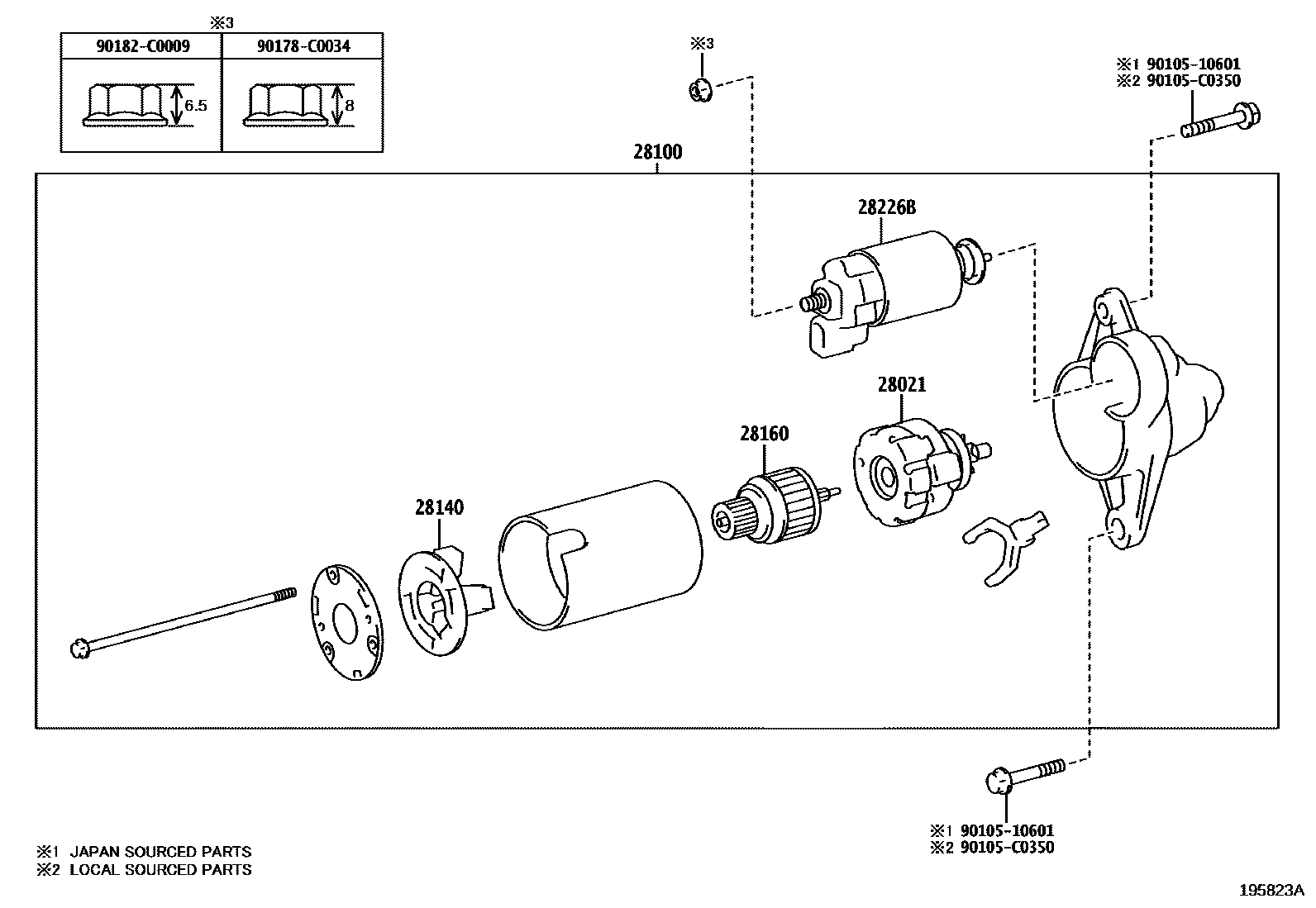

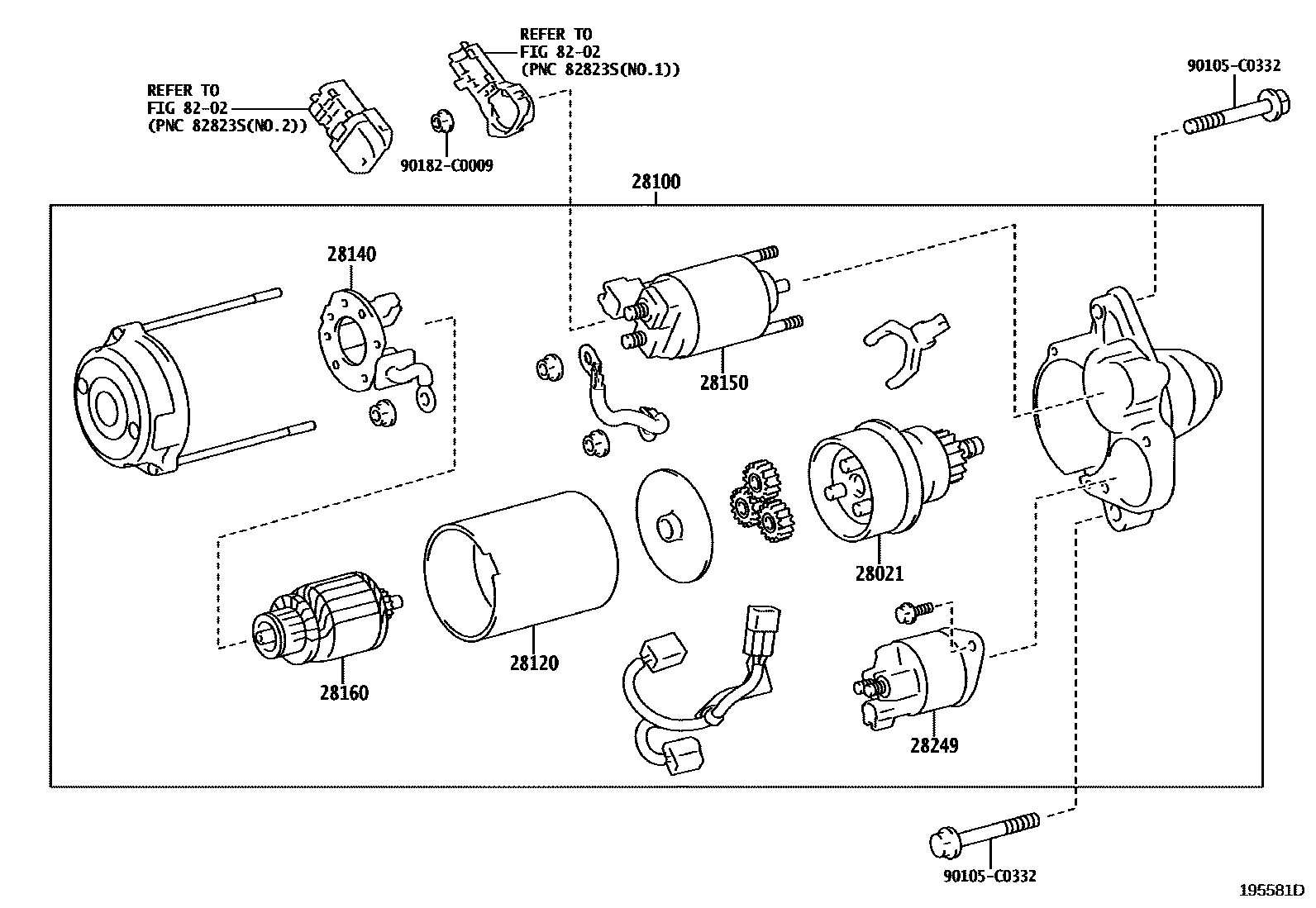

Toyota COROLLA 起动机 — Figure 1904
Toyota COROLLA EPC diagram 1904, 起动机, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-0Y460 · 28021-F3010 |
| 28100 | Starter assembly | 28100-0Y460 · 28100-F3010 |
| 28120 | Starter yoke assembly | 28120-0T360 |
| 28140 | Starter brush holder assembly | 28140-0T330 · 28140-0V040 |
| 28150 | Starter electromagnetic switch assembly | 28150-0Y460 |
| 28160 | Starter armature assembly | 28160-0N110 · 28160-0T330 |
| 28226B | starter magnetic switch | 28226-F3010 |
| 28249 | Starter starting current deceleration relay | 28249-0Y460 · 28249-47280 |
