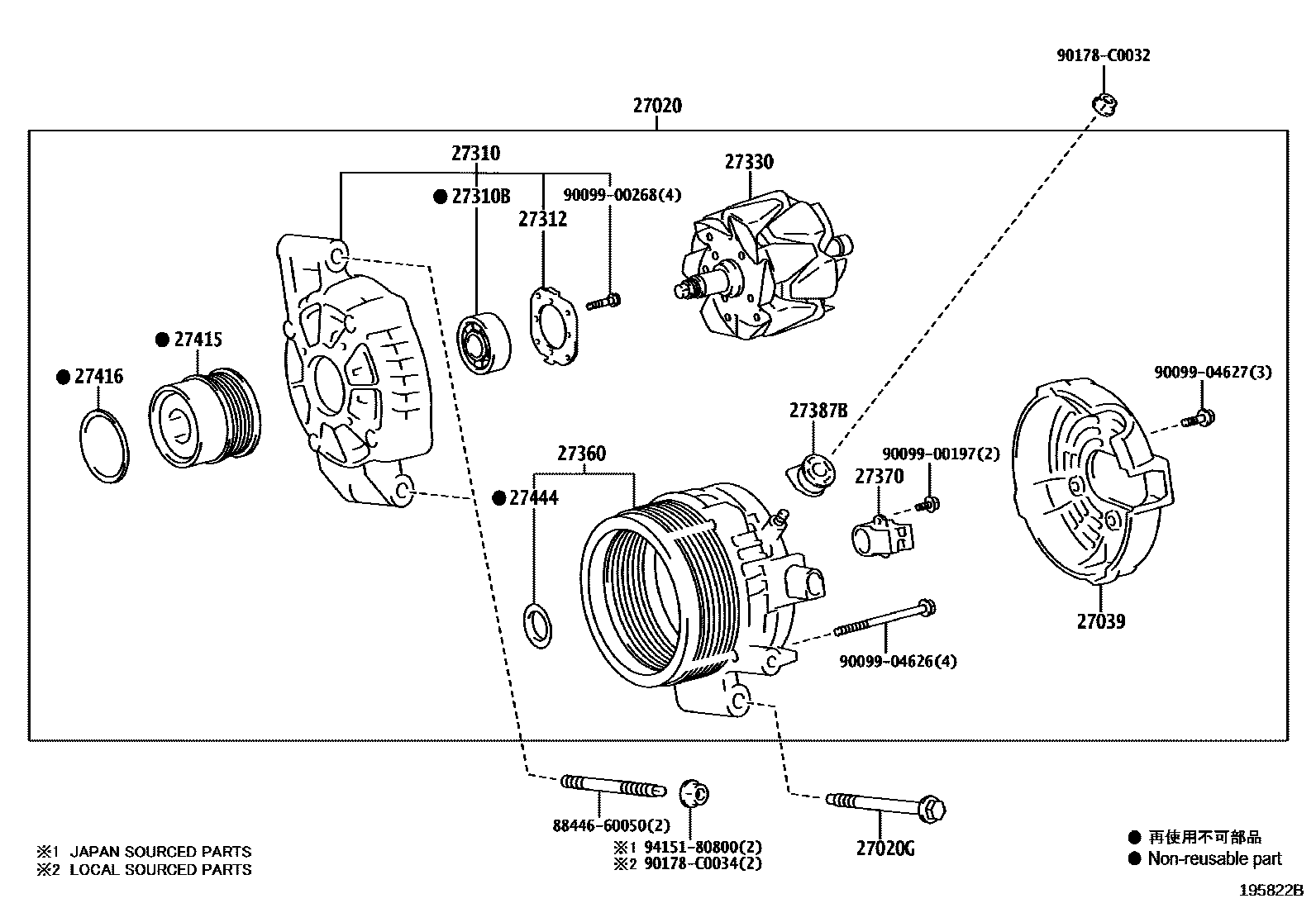

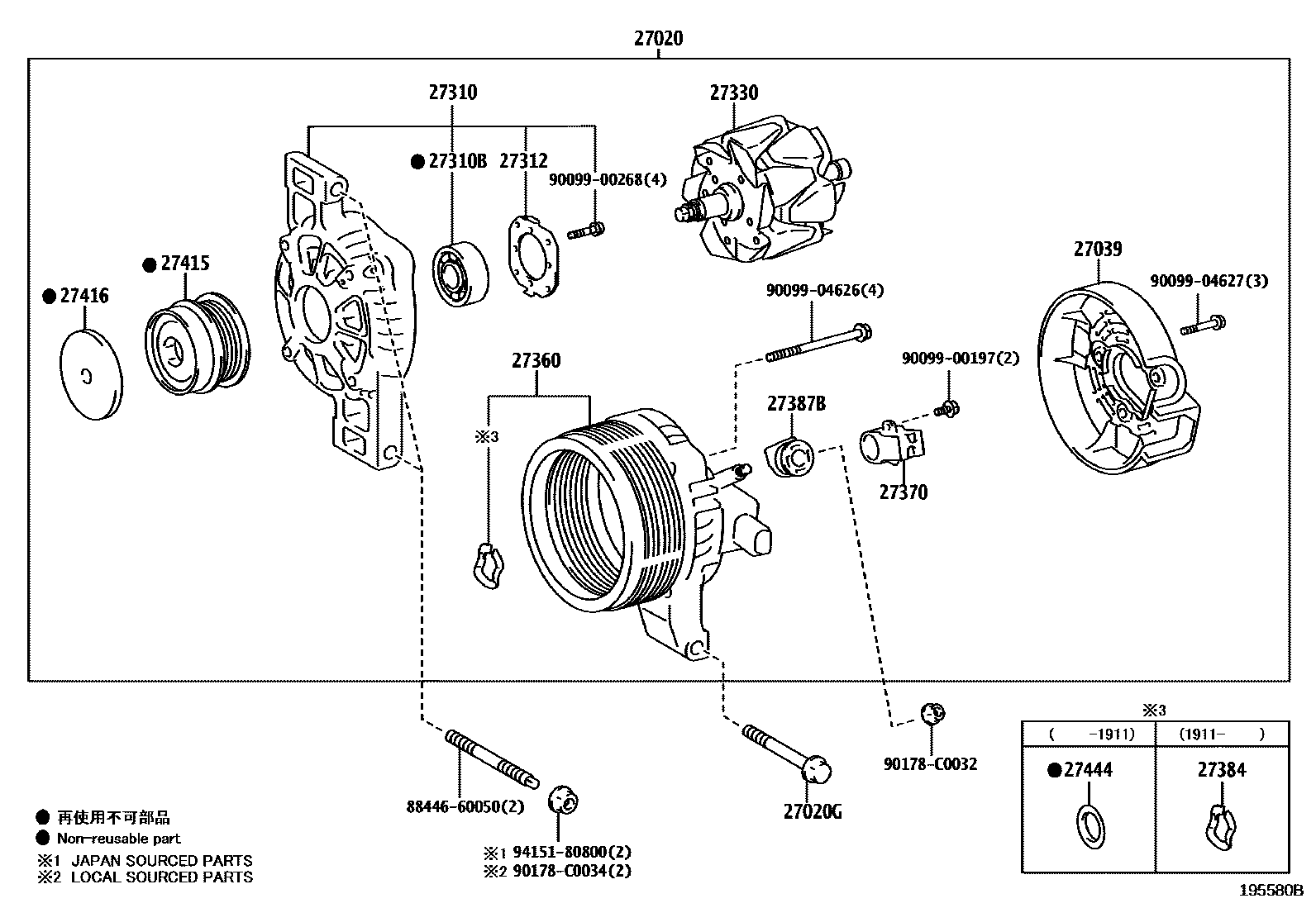

Toyota COROLLA Alternator — Figure 1903
Toyota COROLLA EPC diagram 1903, Alternator, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0Y350 · 27060-F3010 · 27060-F3030 |
| 27020G | Bolt No. 2 (for generator) | 90119-08C78 |
| 27039 | Alternator Rear End Cover | 27039-0C180 · 27039-0V220 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0Y330 · 27310-F2070 · 27310-F3010 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10033 · 90068-10051 |
| 27312 | Retainer Plate | 27312-0M070 |
| 27330 | Alternator Rotor Assembly | 27330-0T260 · 27330-F3020 |
| 27360 | Alternator Stator Coil Assembly | 27360-0Y330 · 27360-F2070 · 27360-F3020 |
| 27370 | Alternator Brush Holder Assembly | 27370-0T030 |
| 27384 | Washer | 27384-0V170 |
| 27387B | Generator terminal insulation pad | 27387-0H110 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0W260 · 27415-0Y100 |
| 27416 | Generator pulley cover | 27416-0W050 · 27416-0Y010 · 27416-F0010 |
| 27444 | Generator bearing cap seals | 27444-0Y180 |
