Toyota COROLLA 点火线圈和火花塞 /电热塞 — Figure 1901

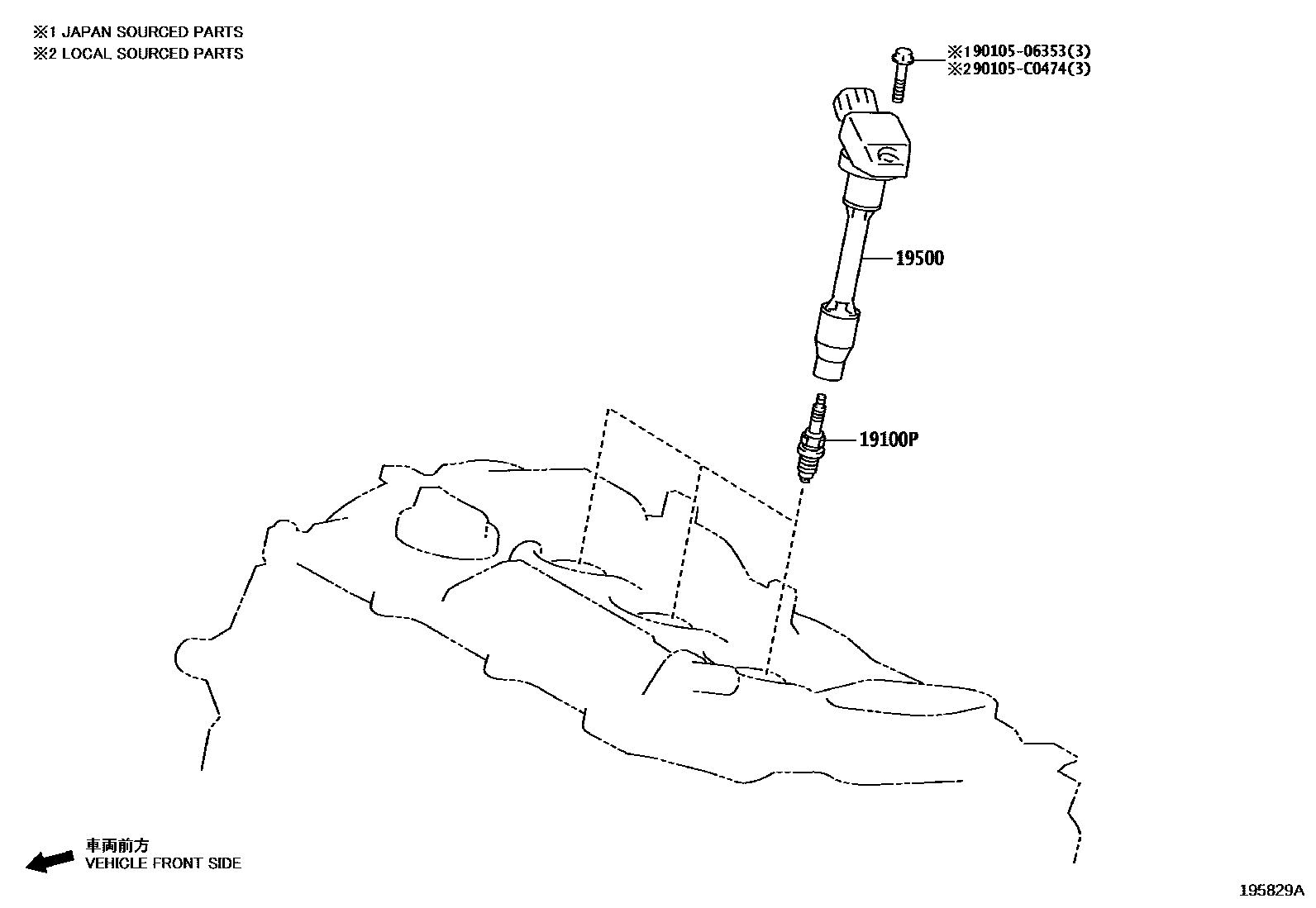

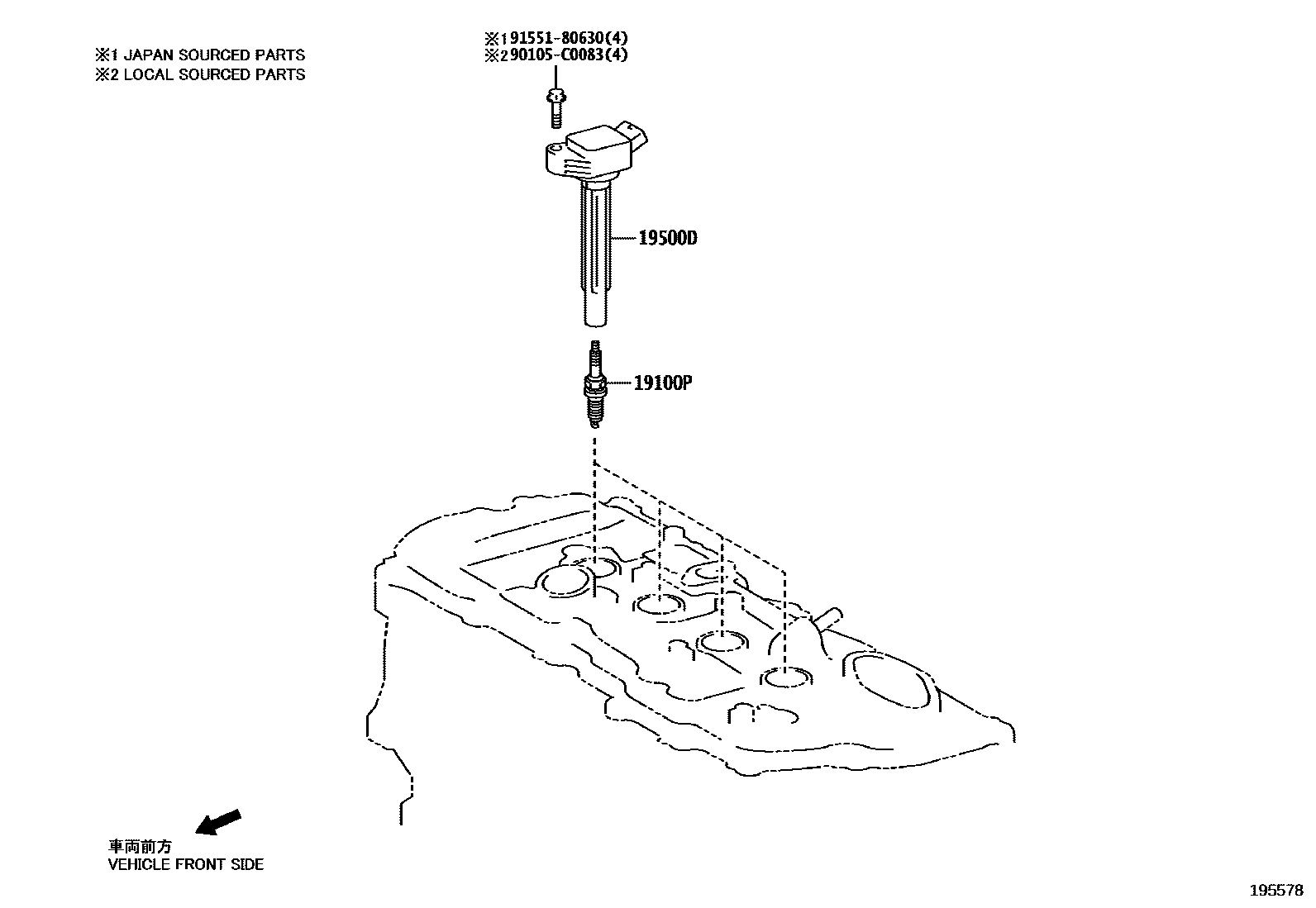

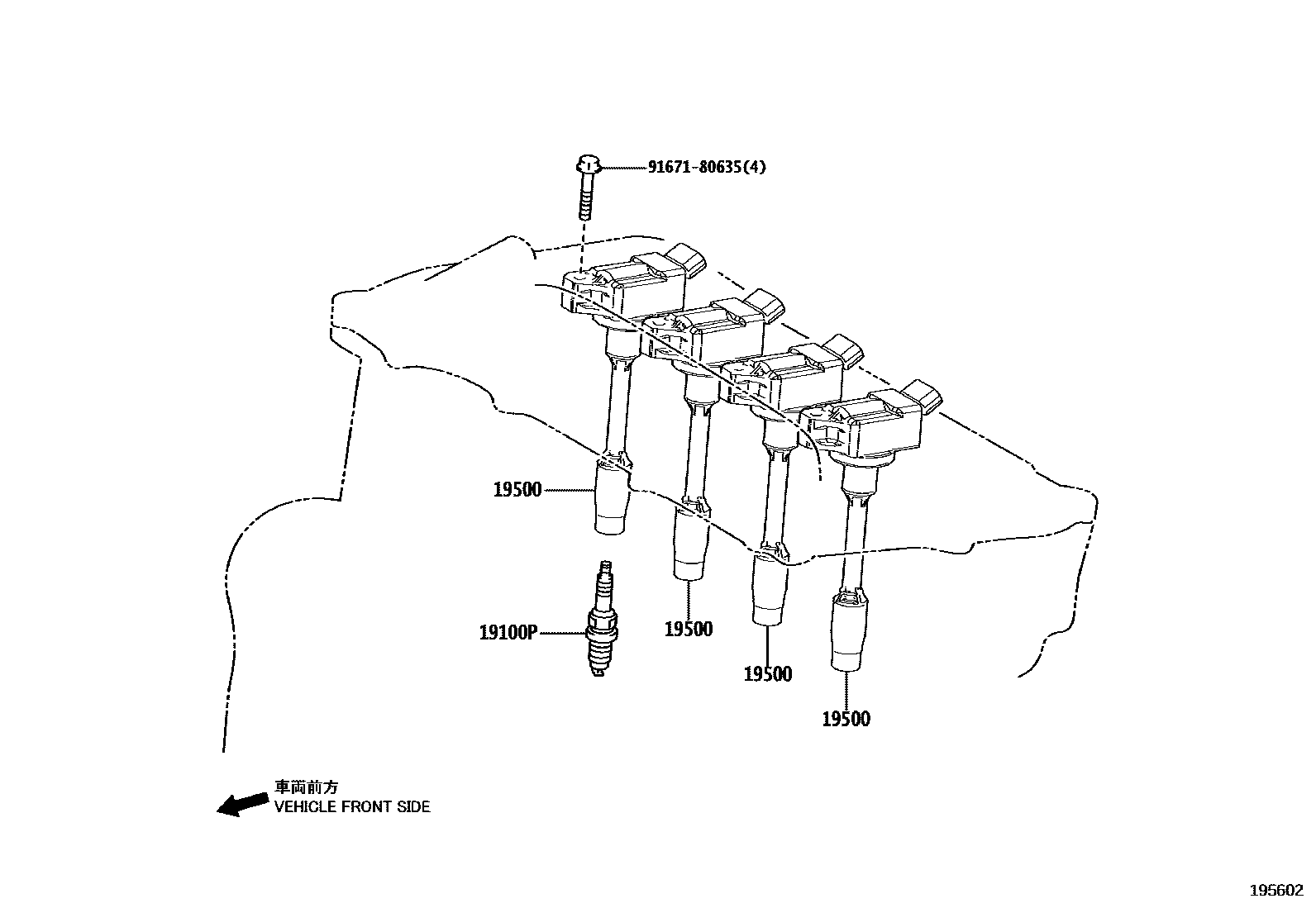

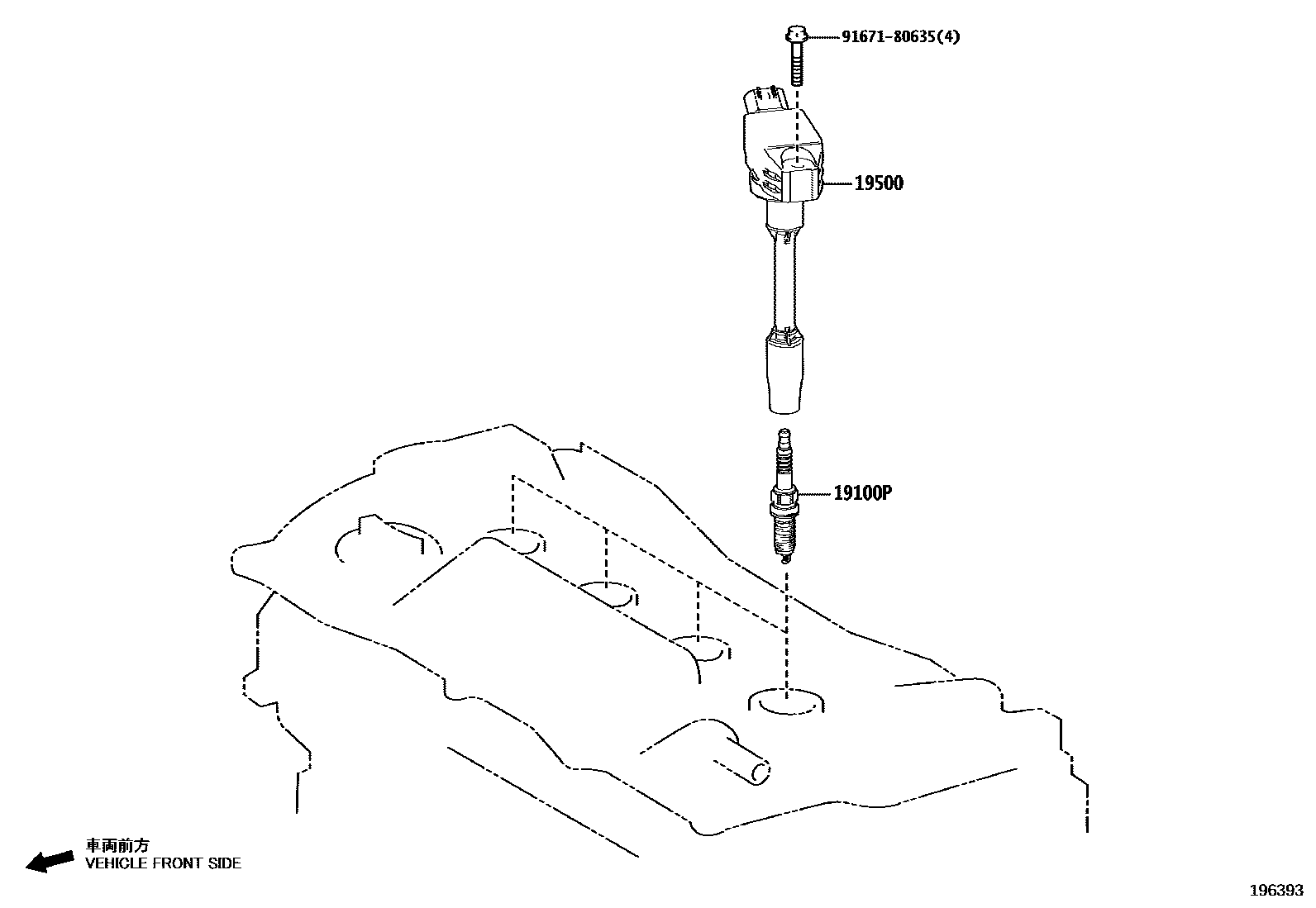

Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞 /电热塞, with 4 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01285 · 90919-01301 · 90919-C1007 · 90919-C1011 · 90919-C1013 |
| 19500 | Ignition coil assembly | 90919-02272 · 90919-02277 · 90919-C2010 |
| 19500D | No. 1 ignition coil | 90919-02271 · 90919-C2008 |
