Toyota COROLLA vacuum tube — Figure 1708

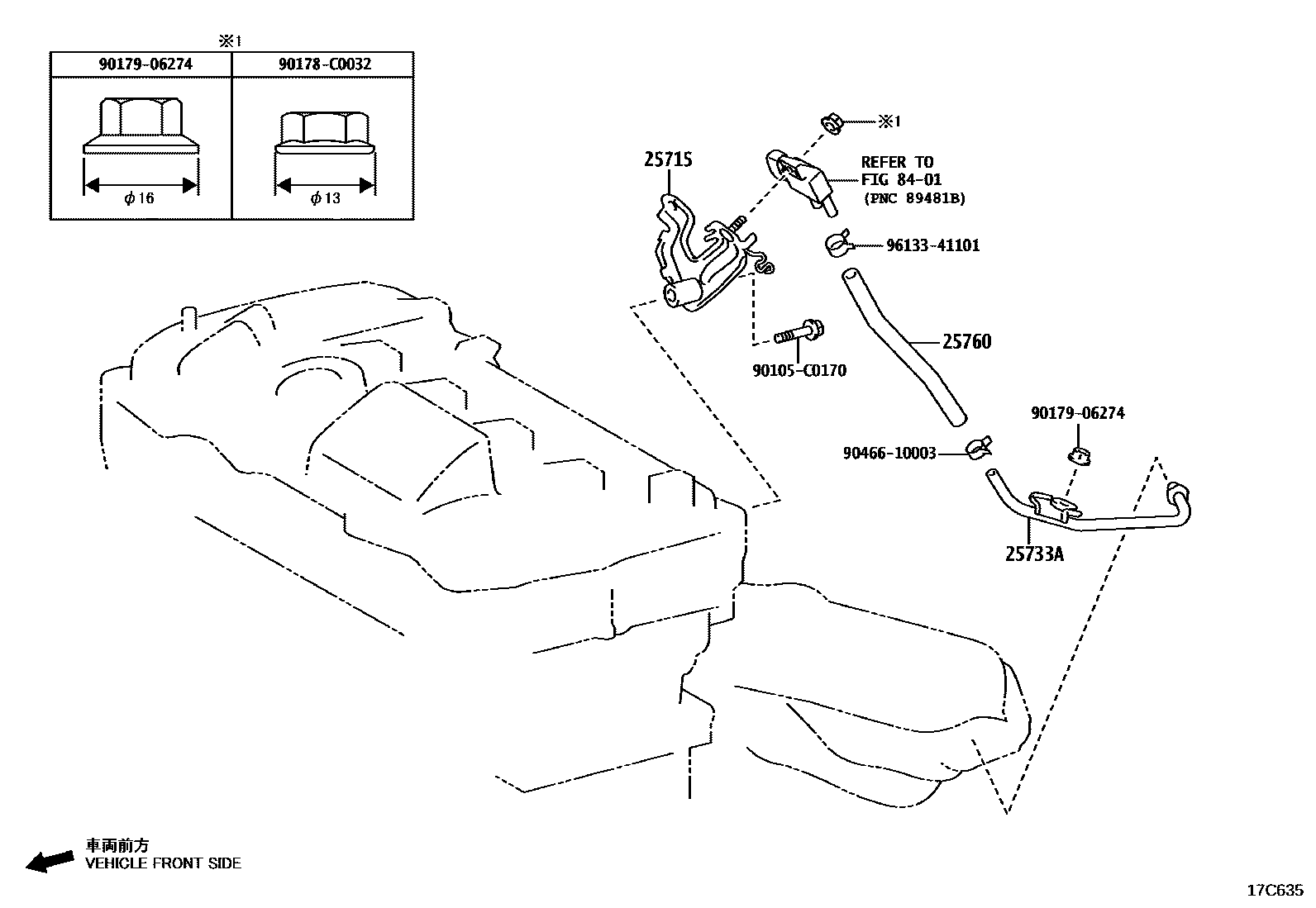

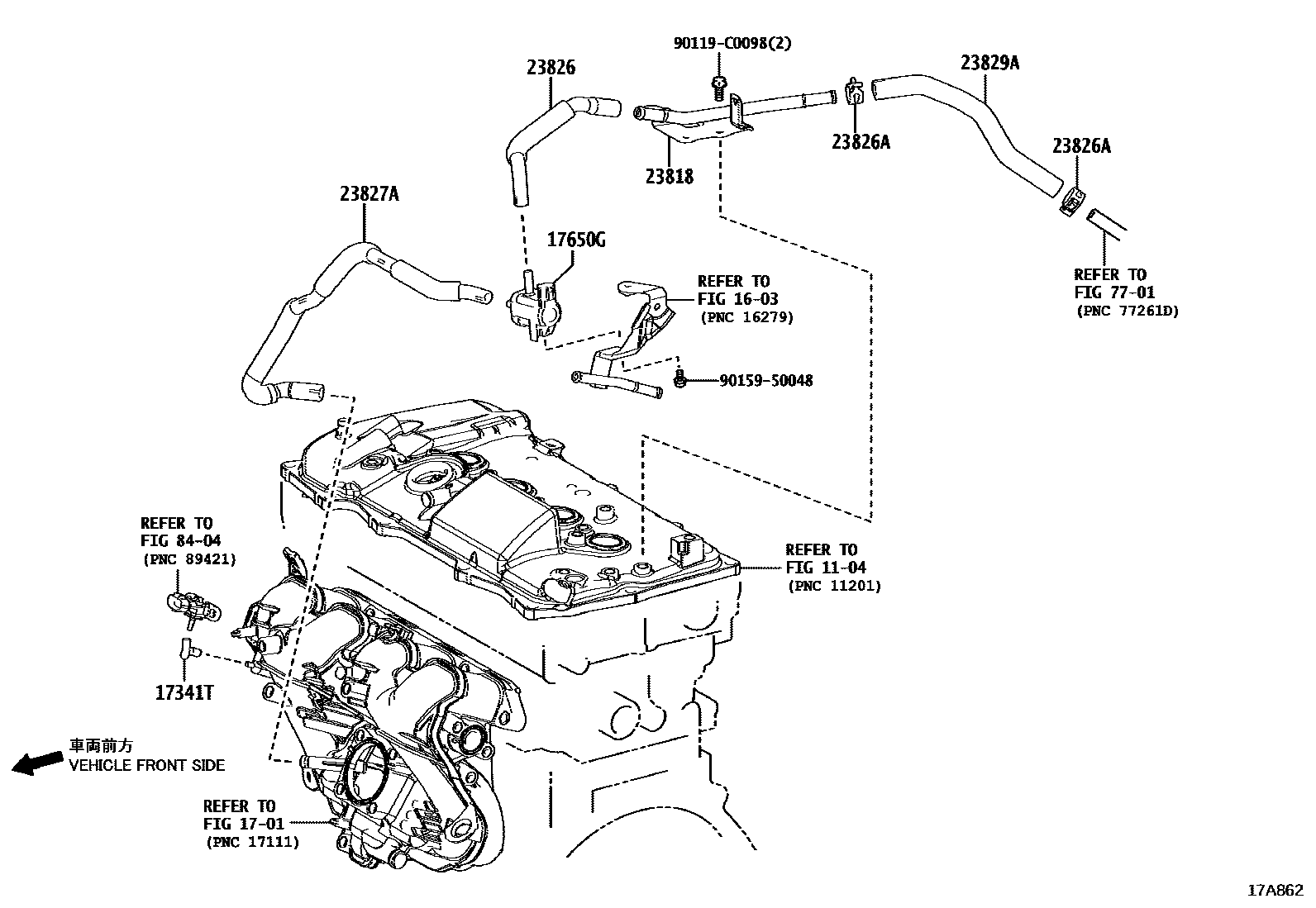

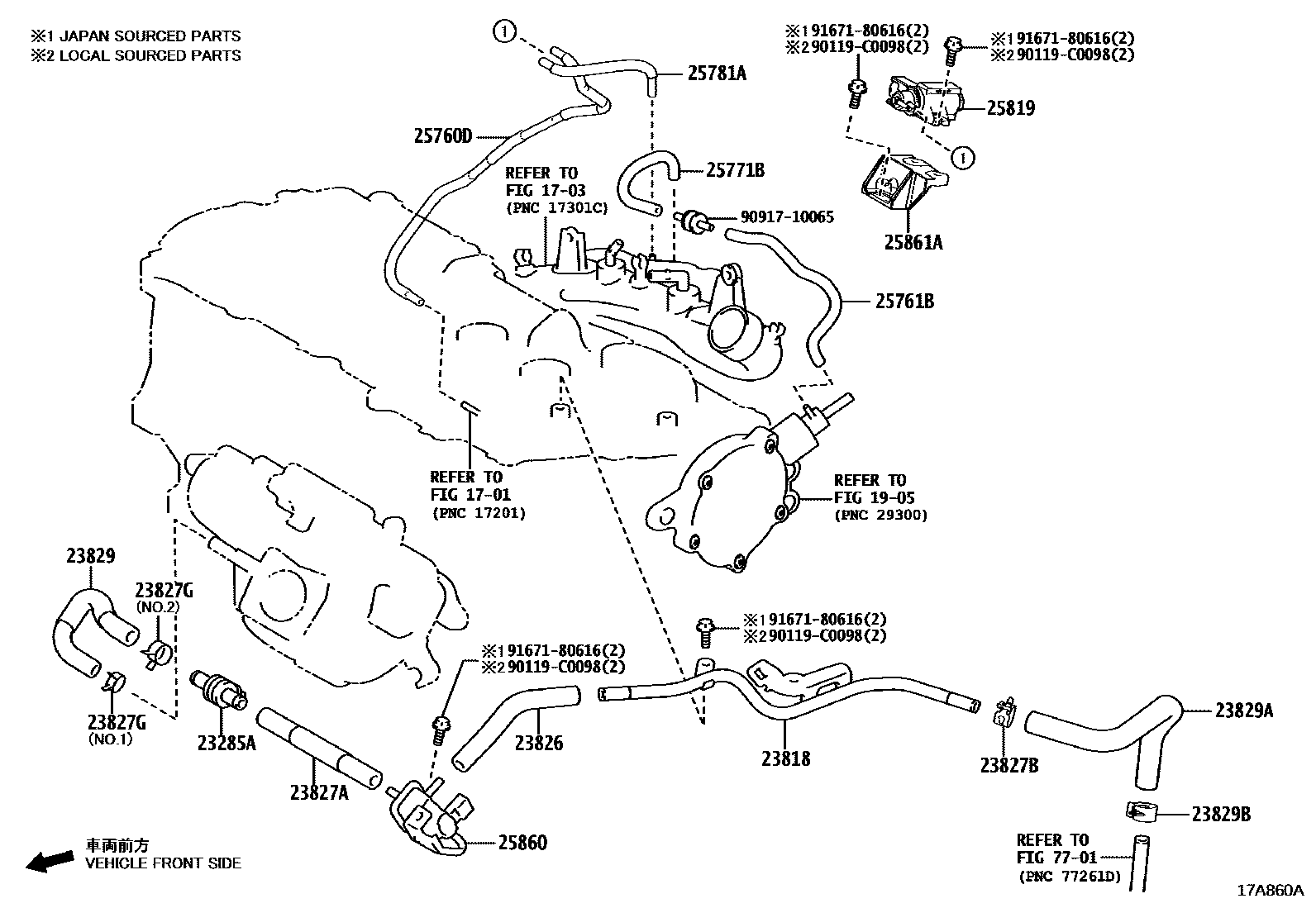

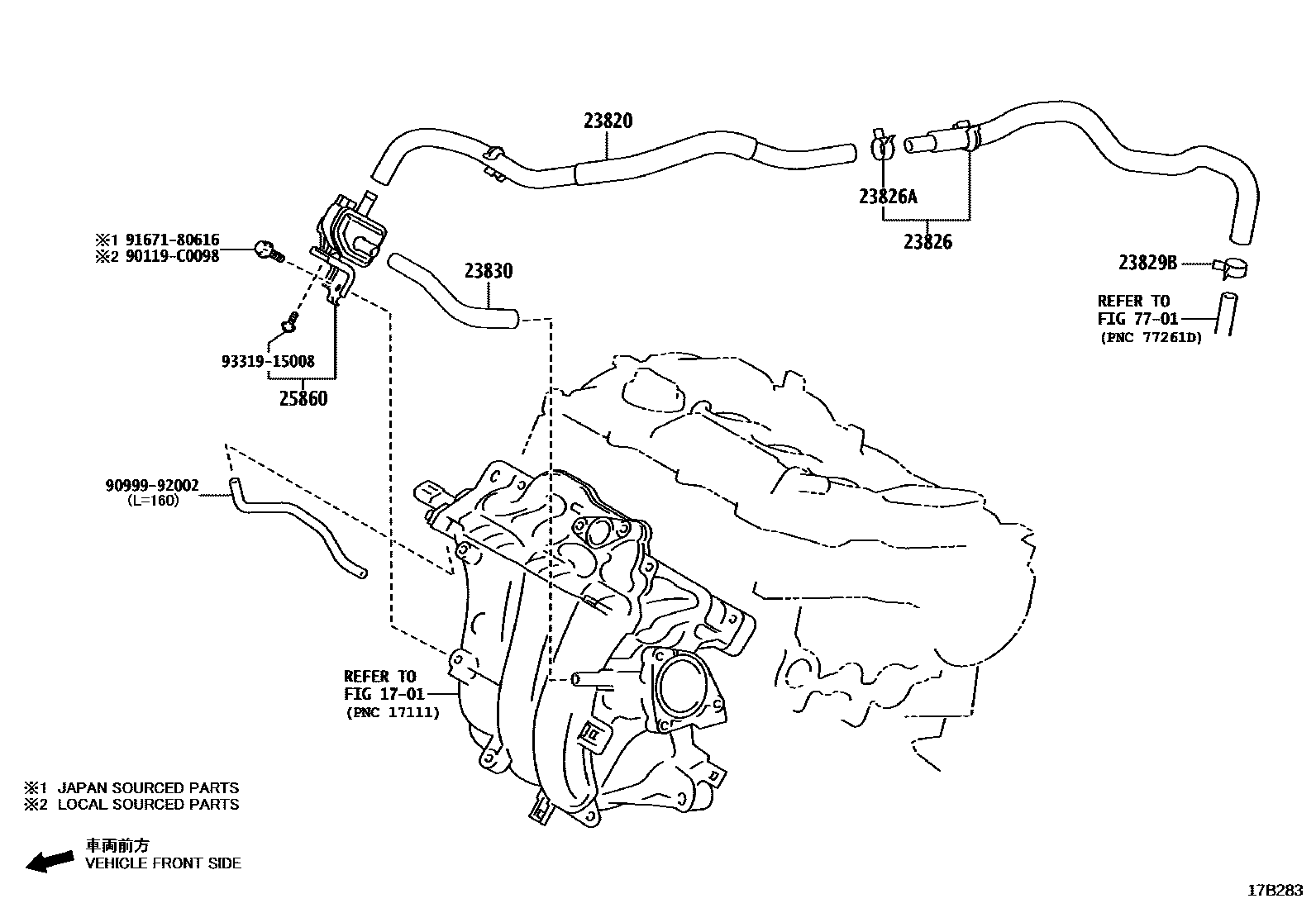

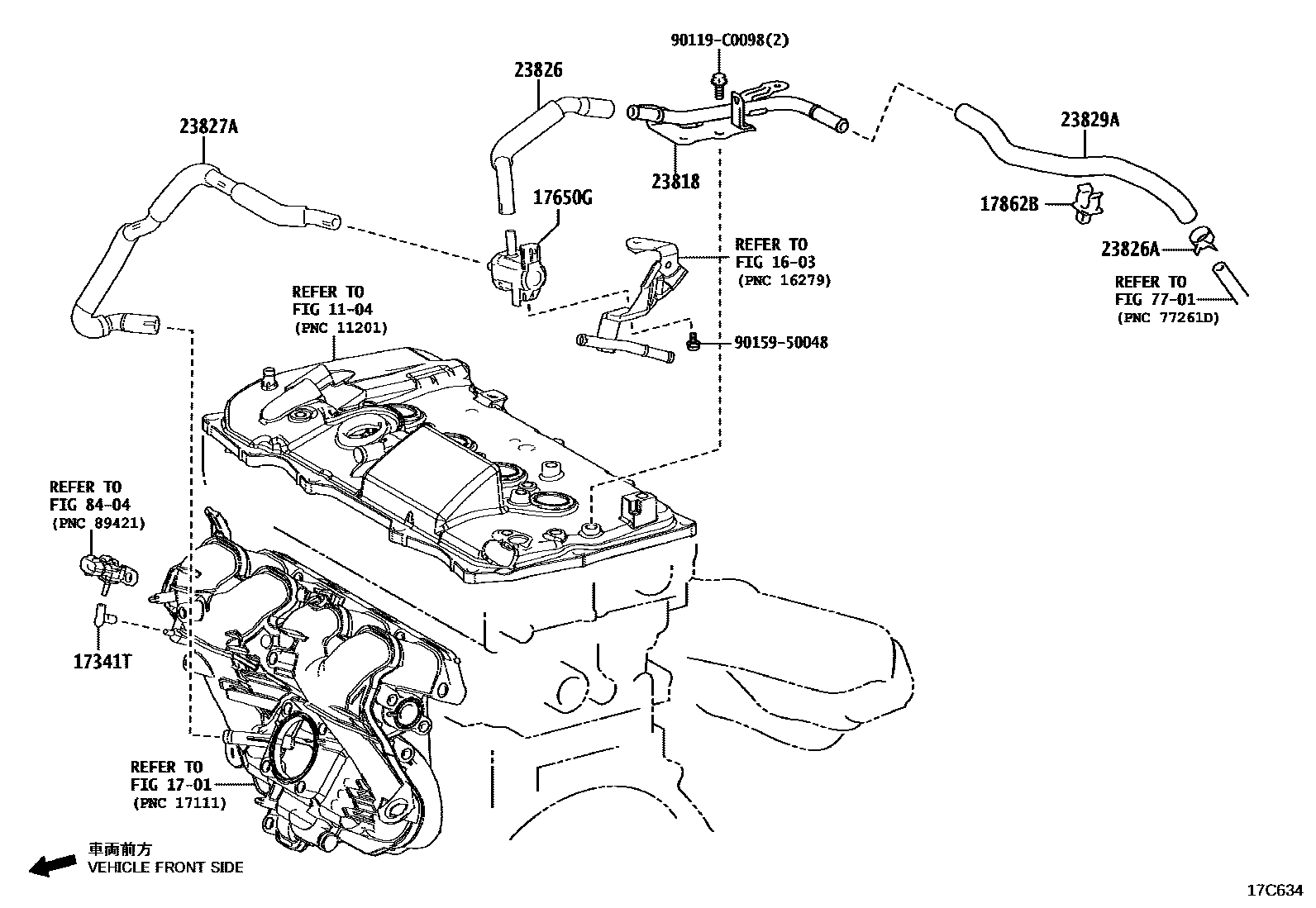

Toyota COROLLA EPC diagram 1708, vacuum tube, with 5 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341T | Air hose No. 1 | 17341-0T030 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12276 · 90910-TC001 |
| 17862B | hose clamp | 44753-02010 · 44753-30320 |
| 23285A | No. 1 one-way valve | 25748-0Y010 · 25748-0Y020 · 25748-25030 · 25748-36010 |
| 23818 | Fuel vapor supply pipe | 23818-0T010 · 23818-0T040 · 23818-0Y010 · 23818-47020 |
| 23820 | Fuel vapor supply hose assembly | 23820-F3010 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0T500 · 23826-0Y260 · 23826-0Y261 · 23826-F3041 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-C0039 · 96136-41901 |
| 23827A | No. 2 fuel vapor supply hose | 23827-0T070 · 23827-0Y220 · 23827-0Y290 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 90466-C0039 · 96136-41901 |
| 23827G | Clamp (for No. 3 fuel vapor supply hose) | 90466-C0031 · 90466-C0039 · 96136-41901 · 96136-42201 |
| 23829 | No. 3 fuel vapor supply hose | 23829-0Y010 · 23829-0Y070 · 23829-47010 |
| 23829A | Fuel vapor supply hose | 23826-0T530 · 23826-0T540 · 23826-0Y320 |
| 23829B | Clamp (for fuel vapor supply hose) | 90466-C0039 · 96136-41901 |
| 23830 | No. 2 fuel vapor supply hose assembly | 23820-F3070 |
| 25715 | Emission control valve bracket | 25715-0T020 |
| 25733A | No. 1 vacuum tube | 25733-0T030 |
| 25760 | Vacuum transfer hose assembly | 25760-0T020 |
| 25760D | No. 4 vacuum transmission hose assembly | 25781-47050 · 25791-0Y040 |
| 25761B | No. 1 Vacuum Transfer Hose | 25761-0Y011 |
| 25771B | No. 2 vacuum transfer hose | 25771-0Y010 · 25771-47010 |
| 25781A | No. 3 vacuum transfer hose | 25781-0Y020 · 25791-47020 |
| 25819 | Vacuum regulating valve assembly | 25819-0W020 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0Y210 · 25860-47080 · 25860-F3010 |
| 25861A | No. 2 vacuum switch valve bracket | 25862-0Y020 · 25862-47020 |
