Toyota COROLLA Air Cleaner — Figure 1703

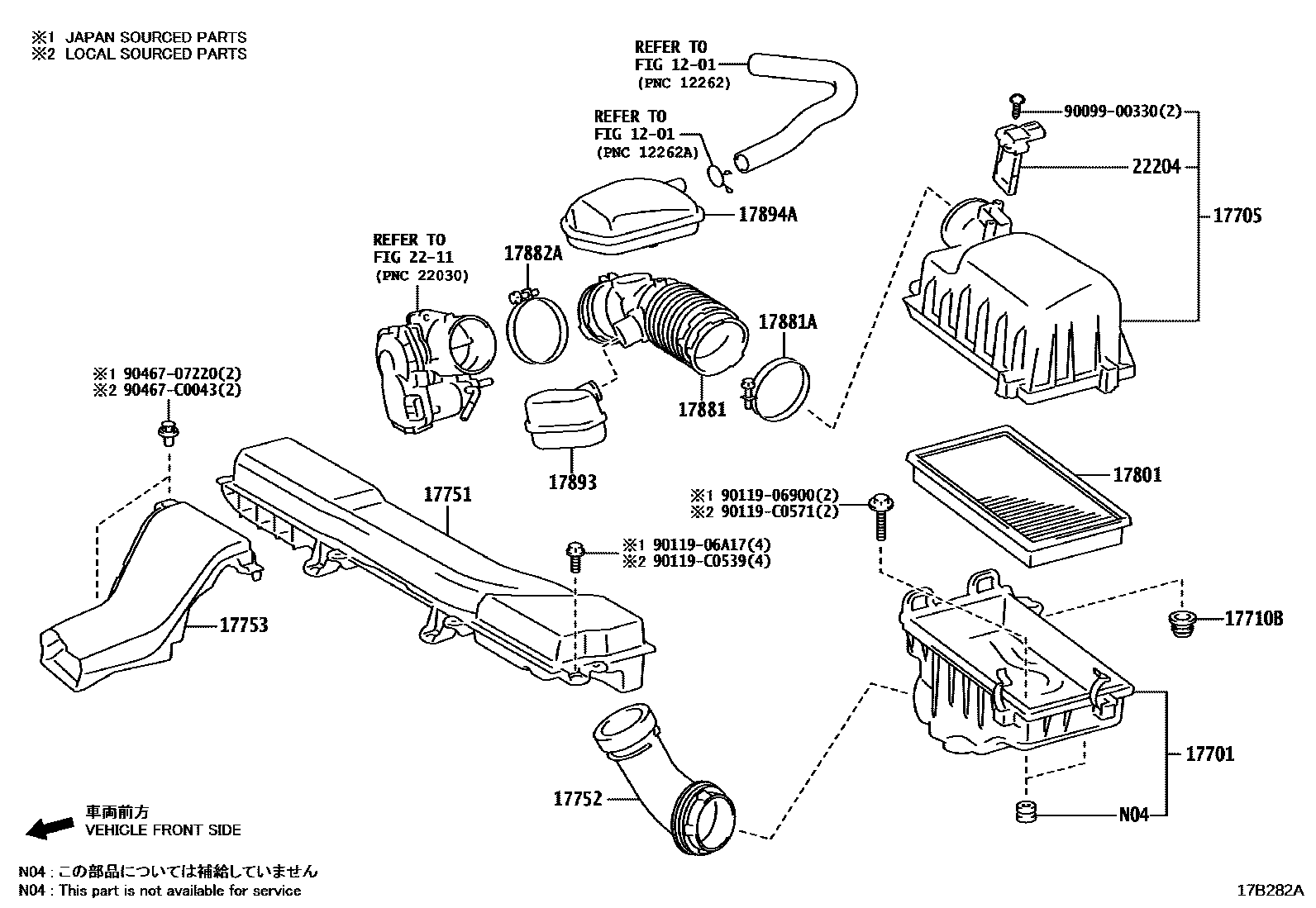

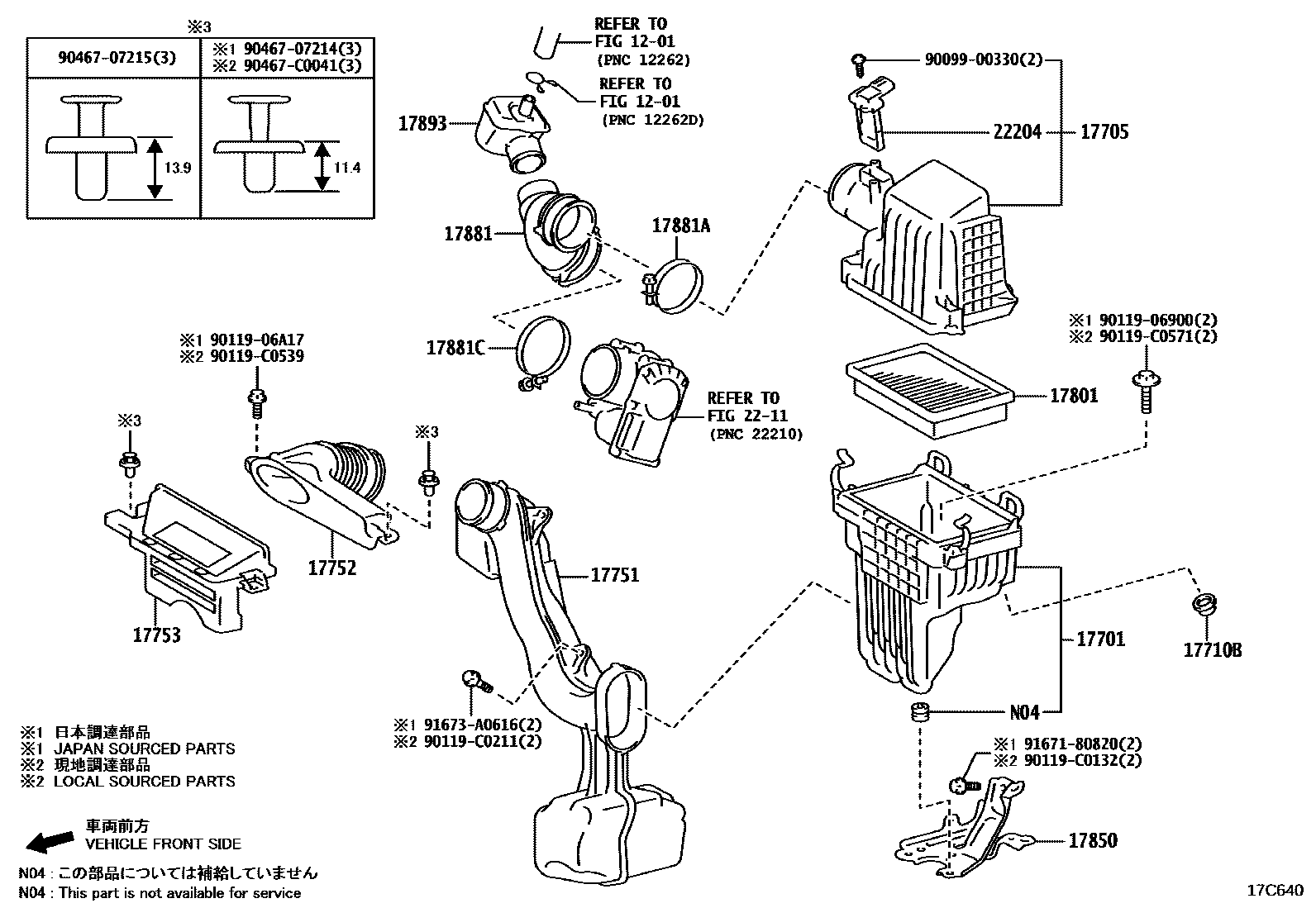

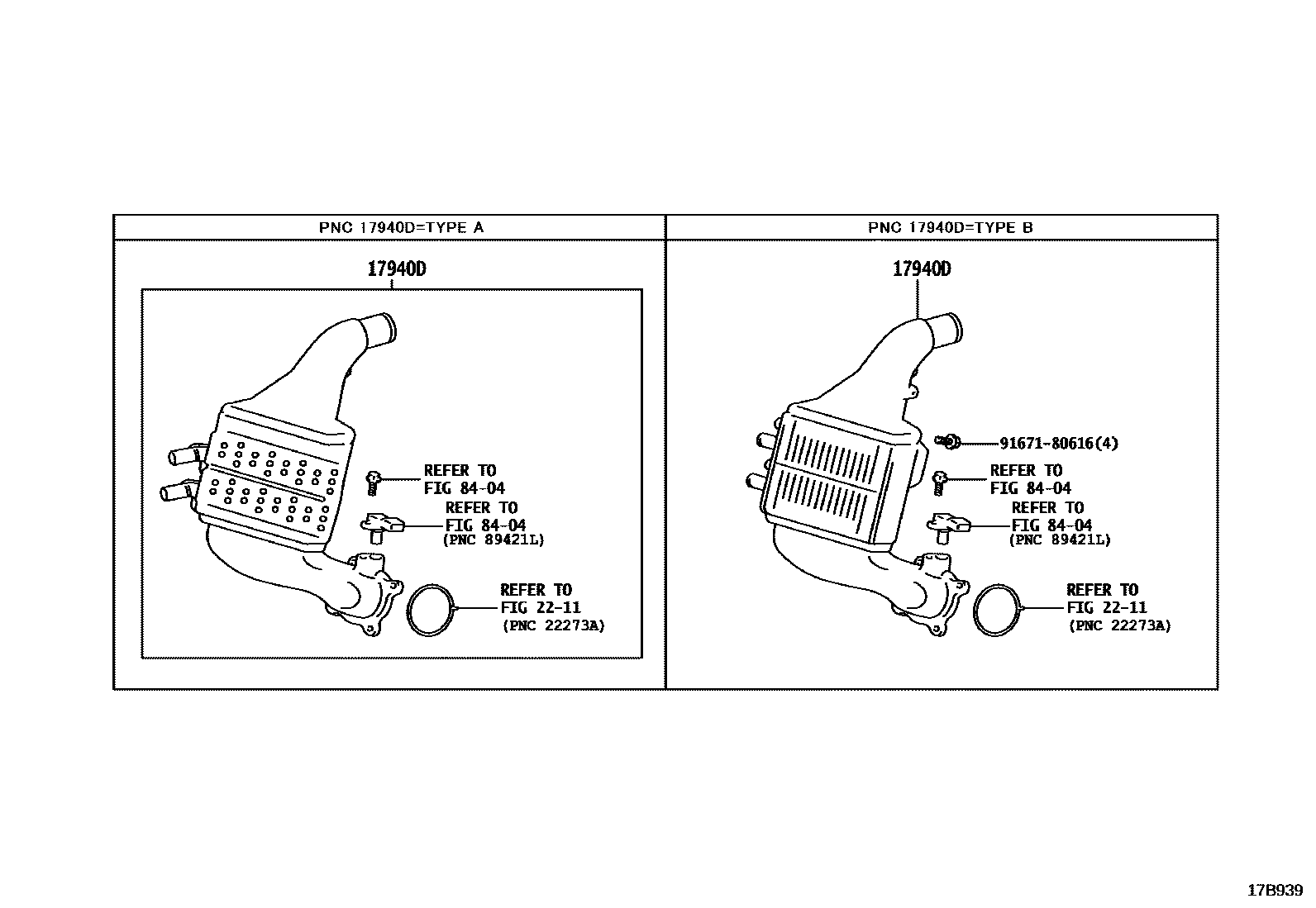

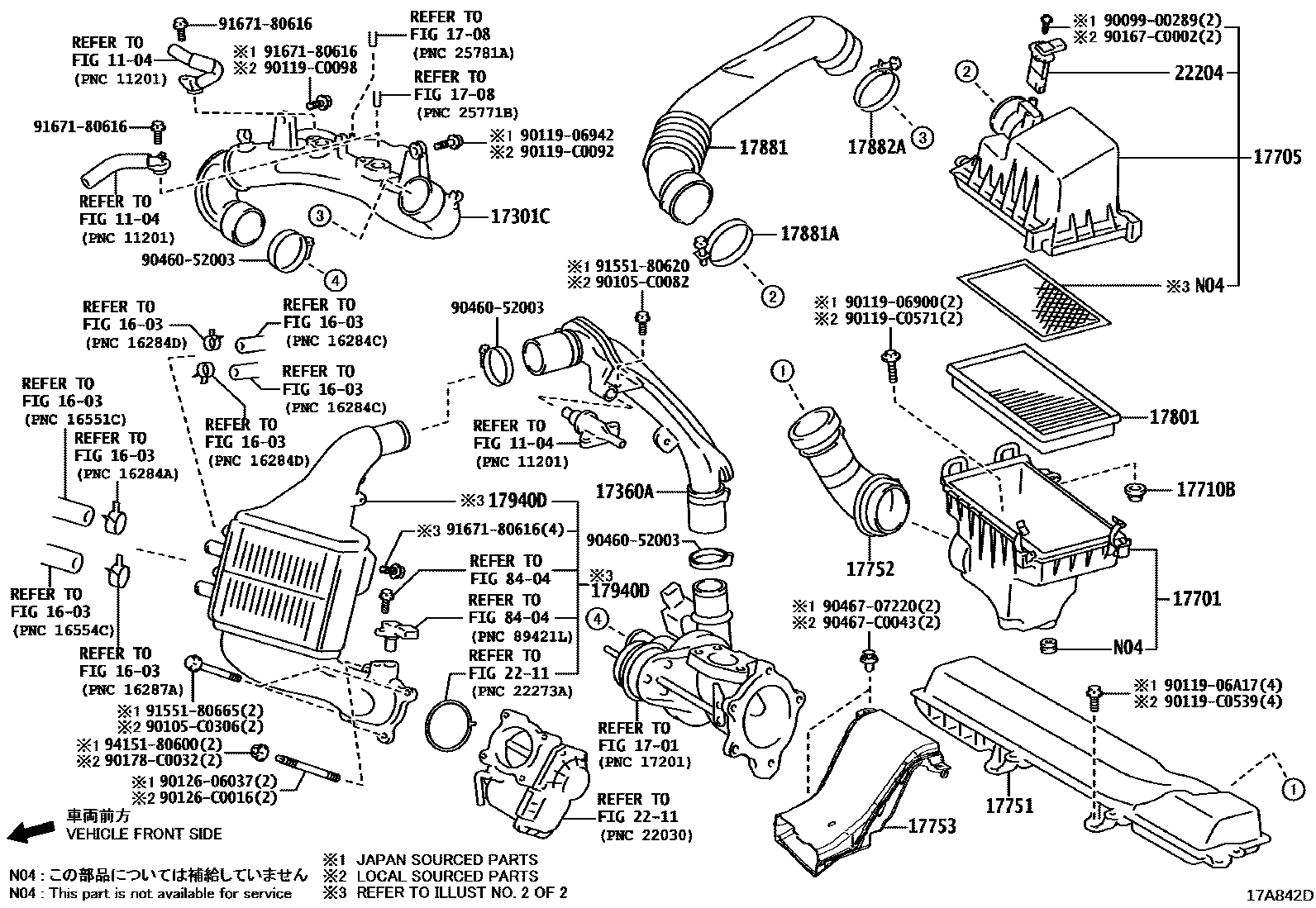

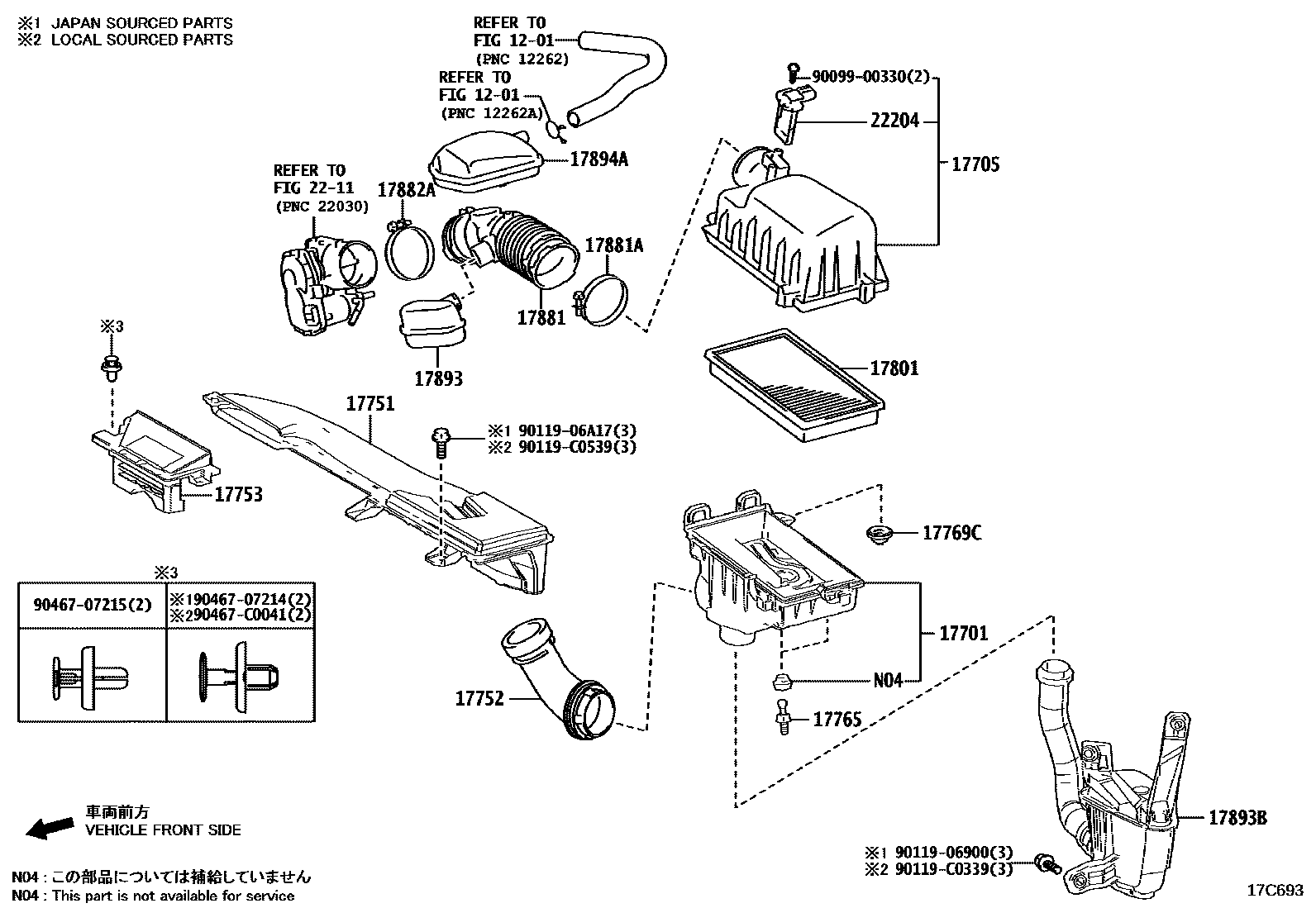

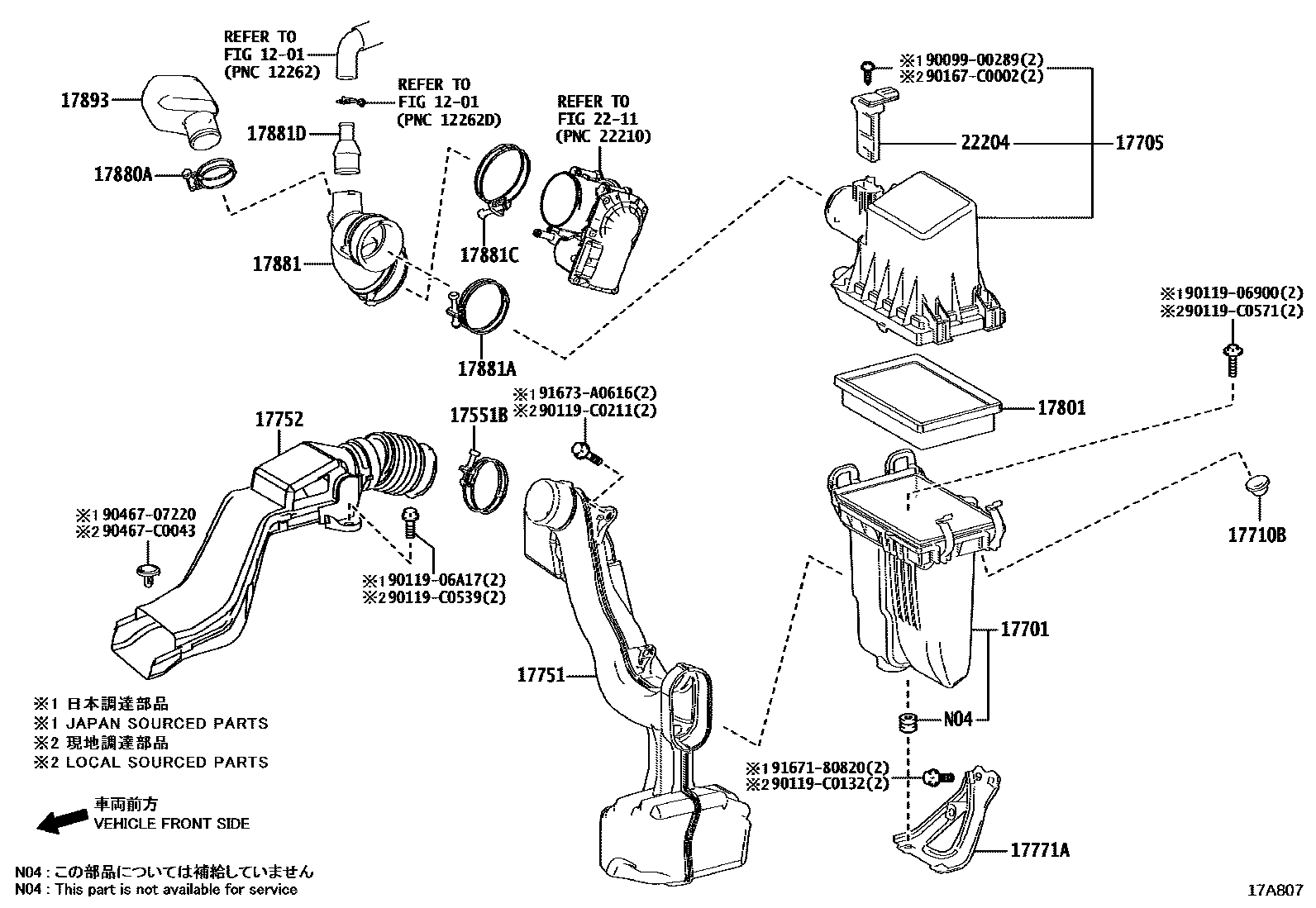

Toyota COROLLA EPC diagram 1703, Air Cleaner, with 6 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17301C | No. 1 air inlet duct sub-assembly | 17301-0Y021 |
| 17360A | air pipe assembly | 17360-0Y020 · 17360-47011 |
| 17551B | Clip (for No. 1 air cleaner air inlet) | 96111-10650 |
| 17701 | Air filter housing sub-assembly | 17701-0T270 · 17701-0T290 · 17701-0Y250 · 17701-F2021 · 17701-F3030 |
| 17705 | Air filter cover sub-assembly | 17705-0T340 · 17705-0T350 · 17705-0T380 · 17705-0Y370 · 17705-0Y380 · 17705-F3010 |
| 17710B | gasket | 90480-18006 |
| 17751 | No. 1 air filter air inlet | 17751-0T300 · 17751-0T350 · 17751-0Y290 · 17751-F3010 · 17751-F3050 |
| 17752 | No. 2 air filter air inlet | 17752-0T161 · 17752-0T220 · 17752-0Y030 · 17752-F2030 |
| 17753 | No. 3 air filter air inlet | 17753-0Y030 · 17753-F2070 |
| 17765 | No. 1 air filter stay | 17765-25010 |
| 17769C | No. 1 air filter bracket | 17769-25020 |
| 17771A | air filter bracket | 17771-0T040 |
| 17801 | Air filter element sub-assembly | 17801-0T060 · 17801-0T110 · 17801-21060 · 17801-77050 · 17801-F2010 |
| 17850 | Air filter bracket sub-assembly | 17850-0T020 |
| 17880A | hose clamp | 96111-10430 |
| 17881 | No. 1 air cleaner hose | 17881-0T600 · 17881-0T680 · 17881-0Y290 · 17881-F3011 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10650 · 96111-10730 |
| 17881C | Clamp (for No. 1 air cleaner hose) | 96111-10750 |
| 17881D | Connector tube (for air cleaner hose) | 17878-0V030 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10670 · 96111-10710 |
| 17893 | Intake resonator | 17893-0T140 · 17893-0T200 · 17893-F3010 |
| 17893B | No. 2 intake resonator | 17893-F3040 |
| 17894A | No. 2 intake resonator | 17894-F3010 |
| 17940D | Intercooler assembly | 17940-0Y010 · 17940-47021 |
| 22204 | Intake air flow meter assembly | 22204-0Y020 · 22204-24010 · 22204-75030 |
