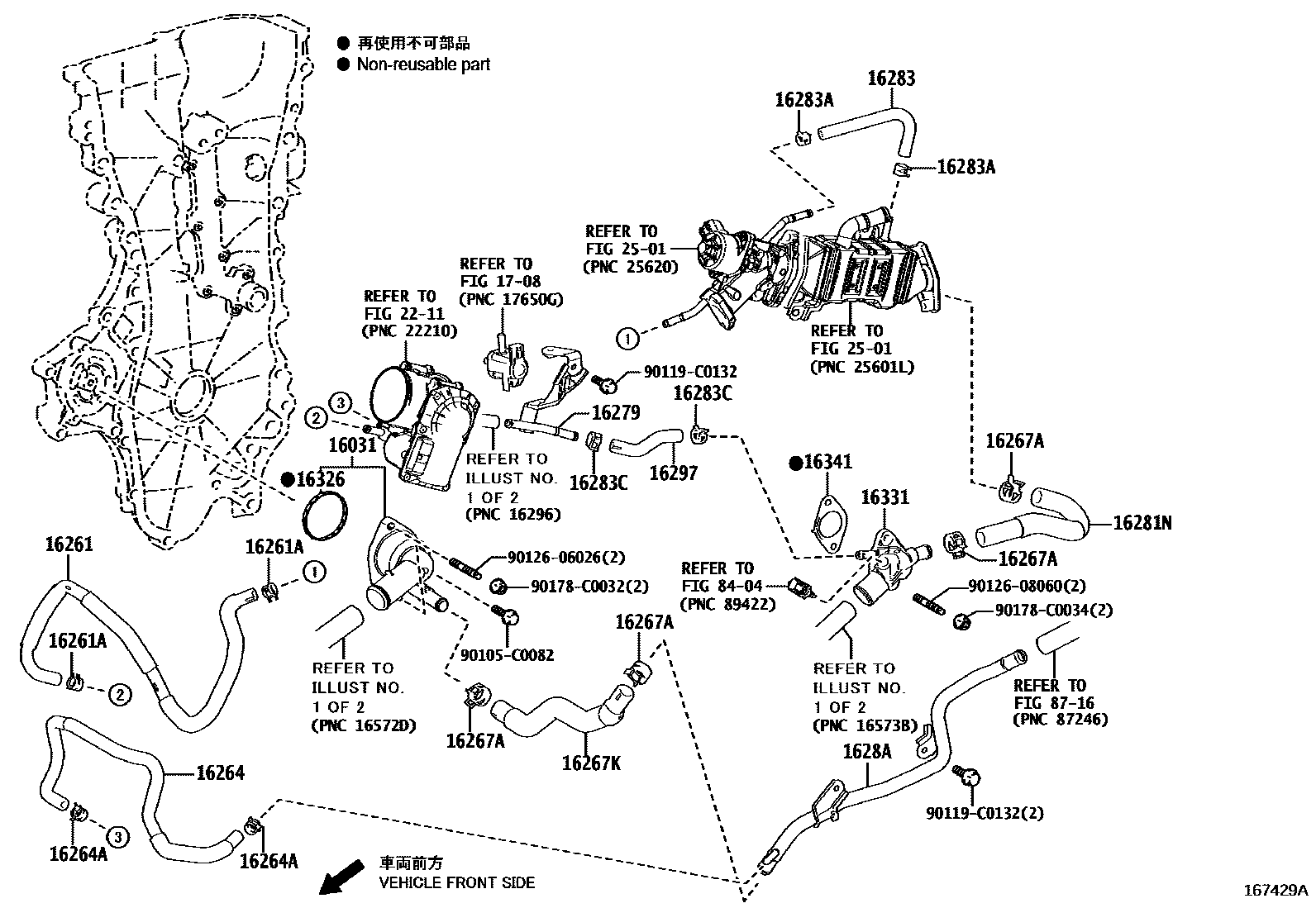

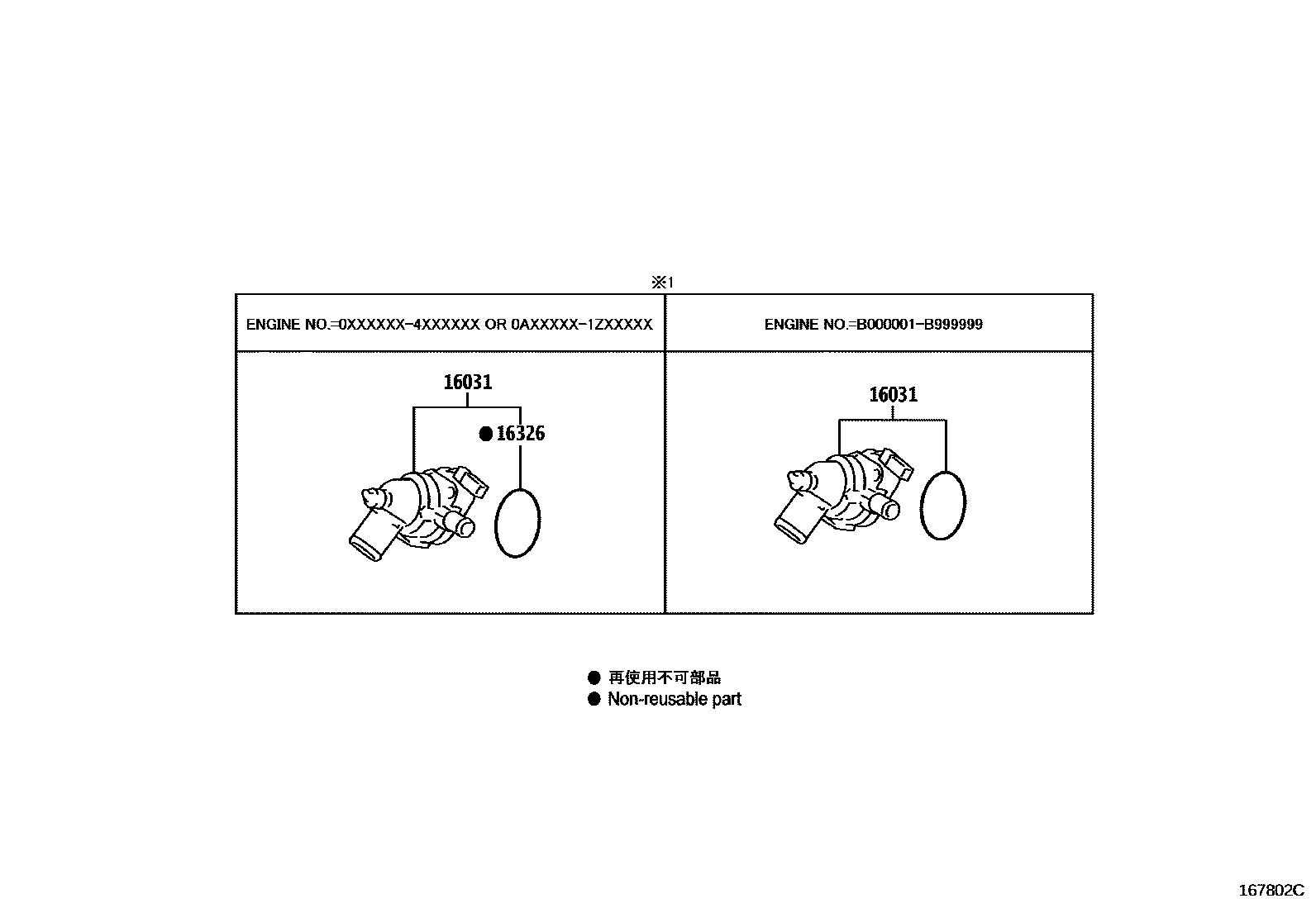

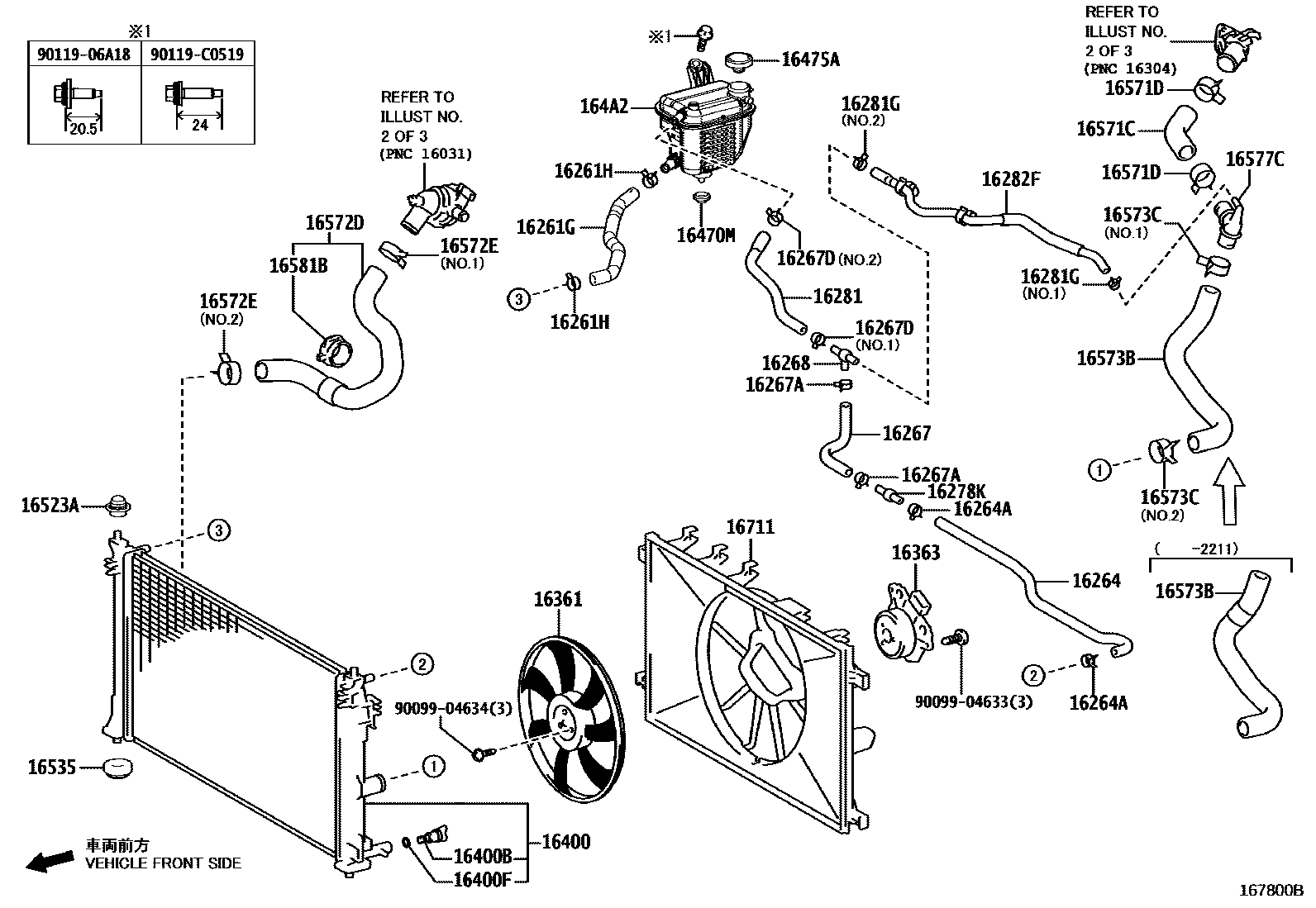

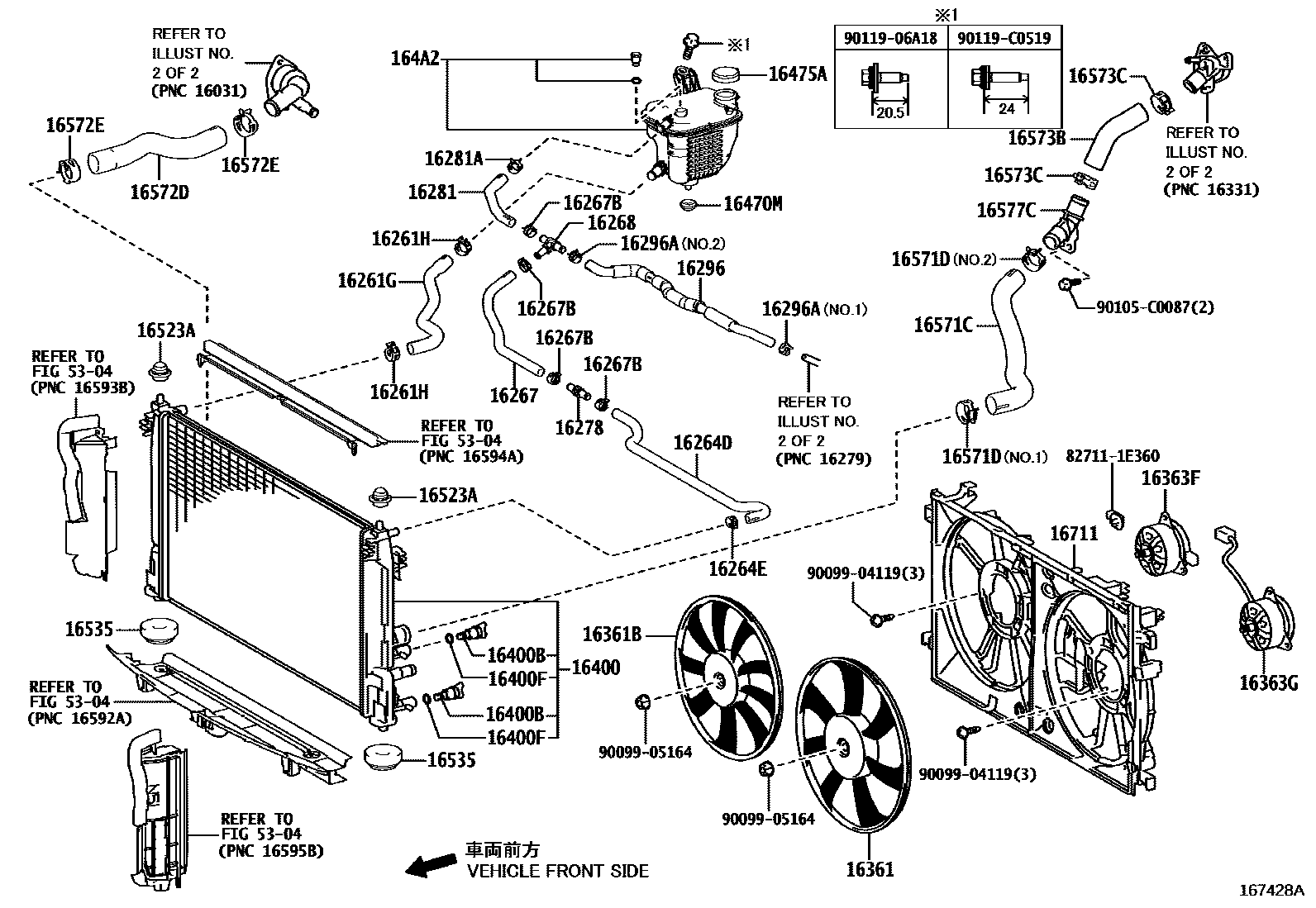

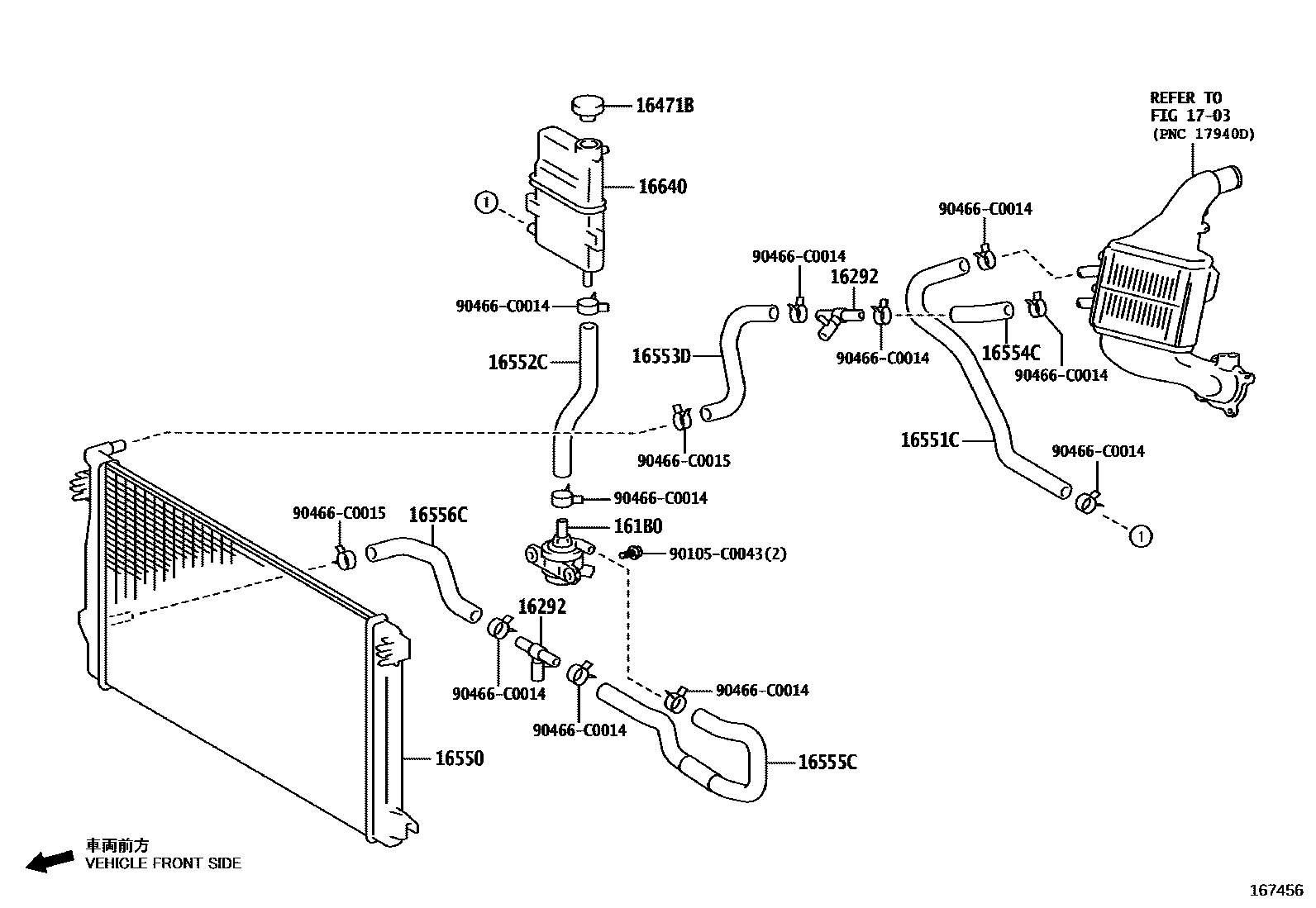

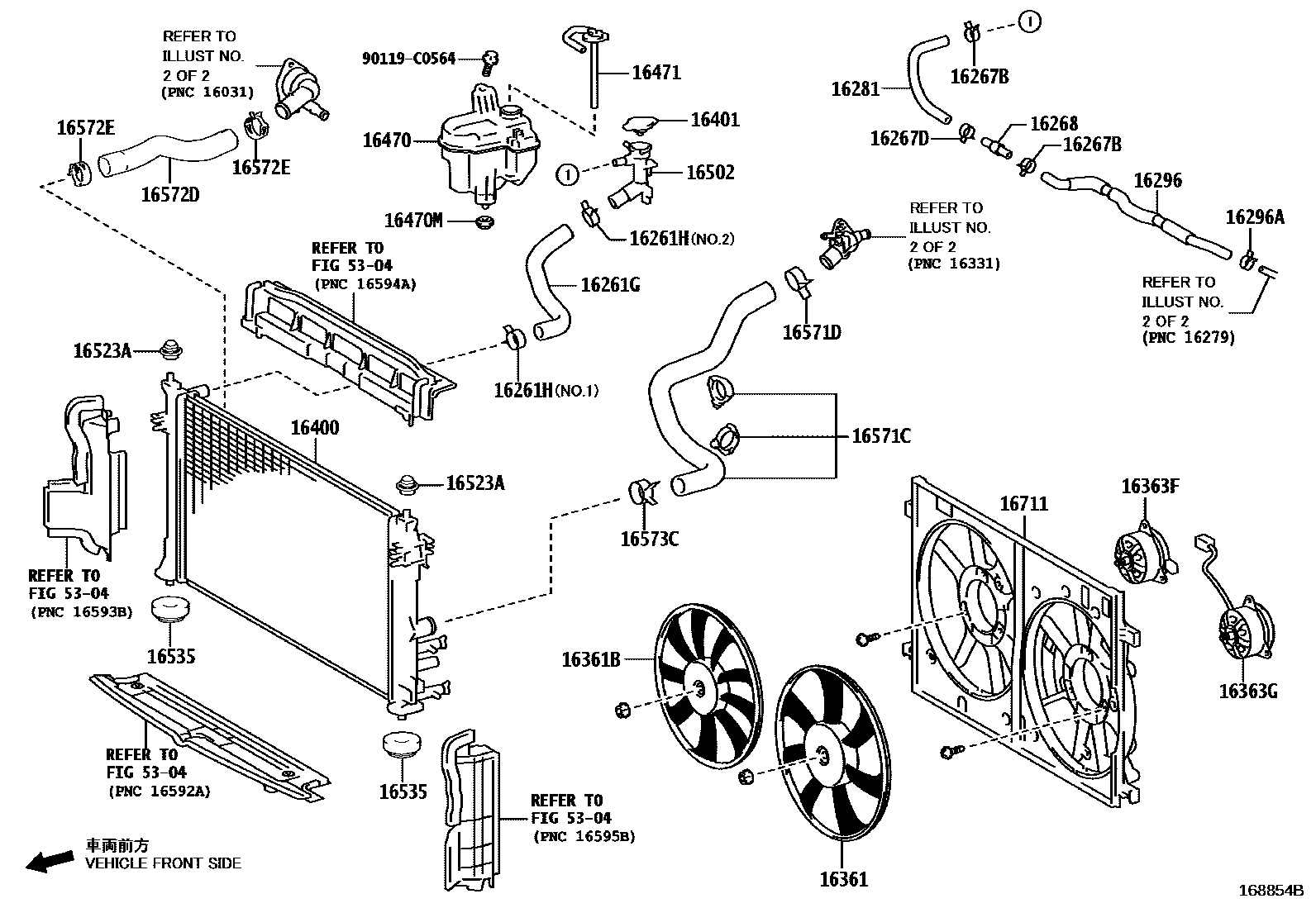

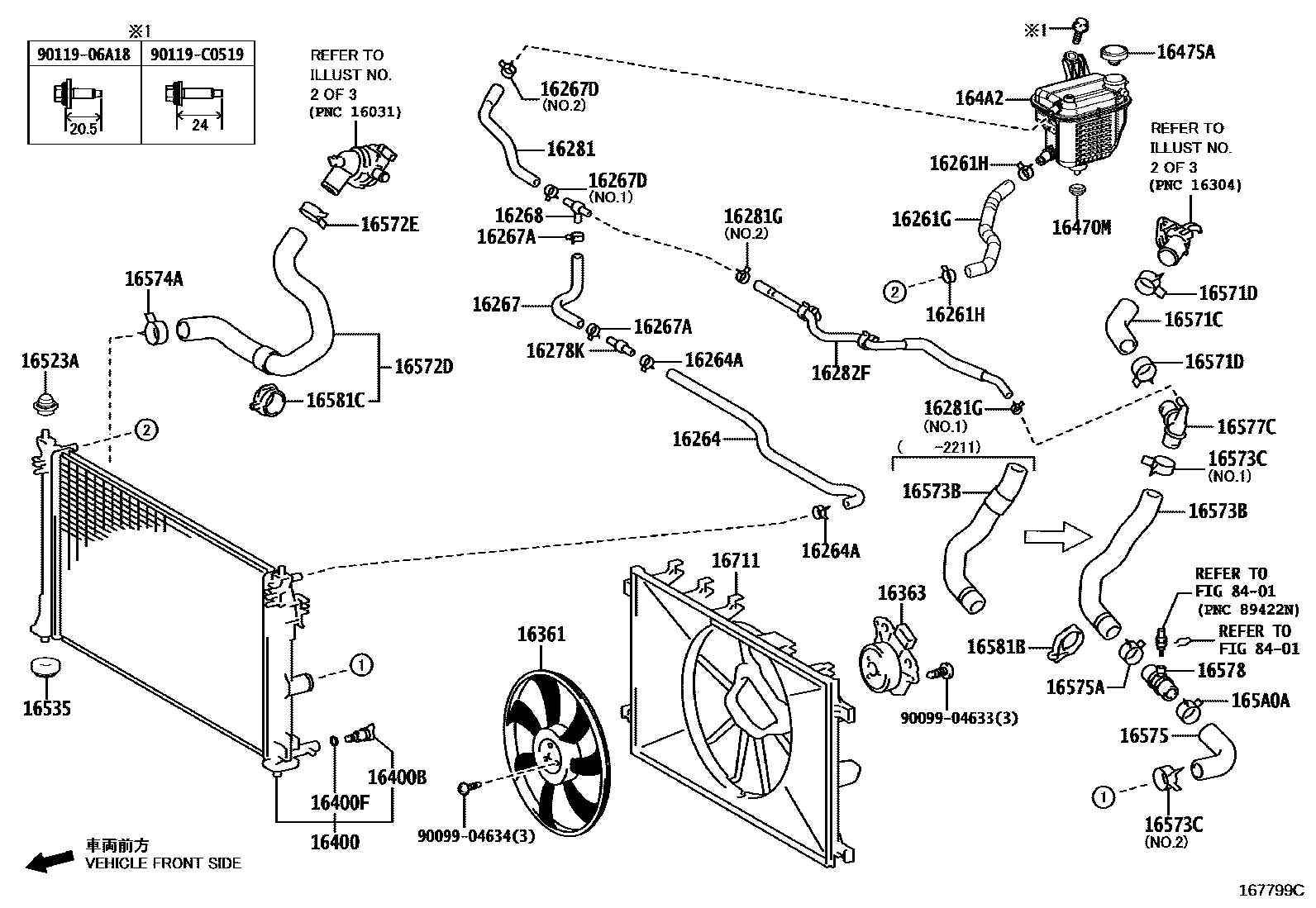

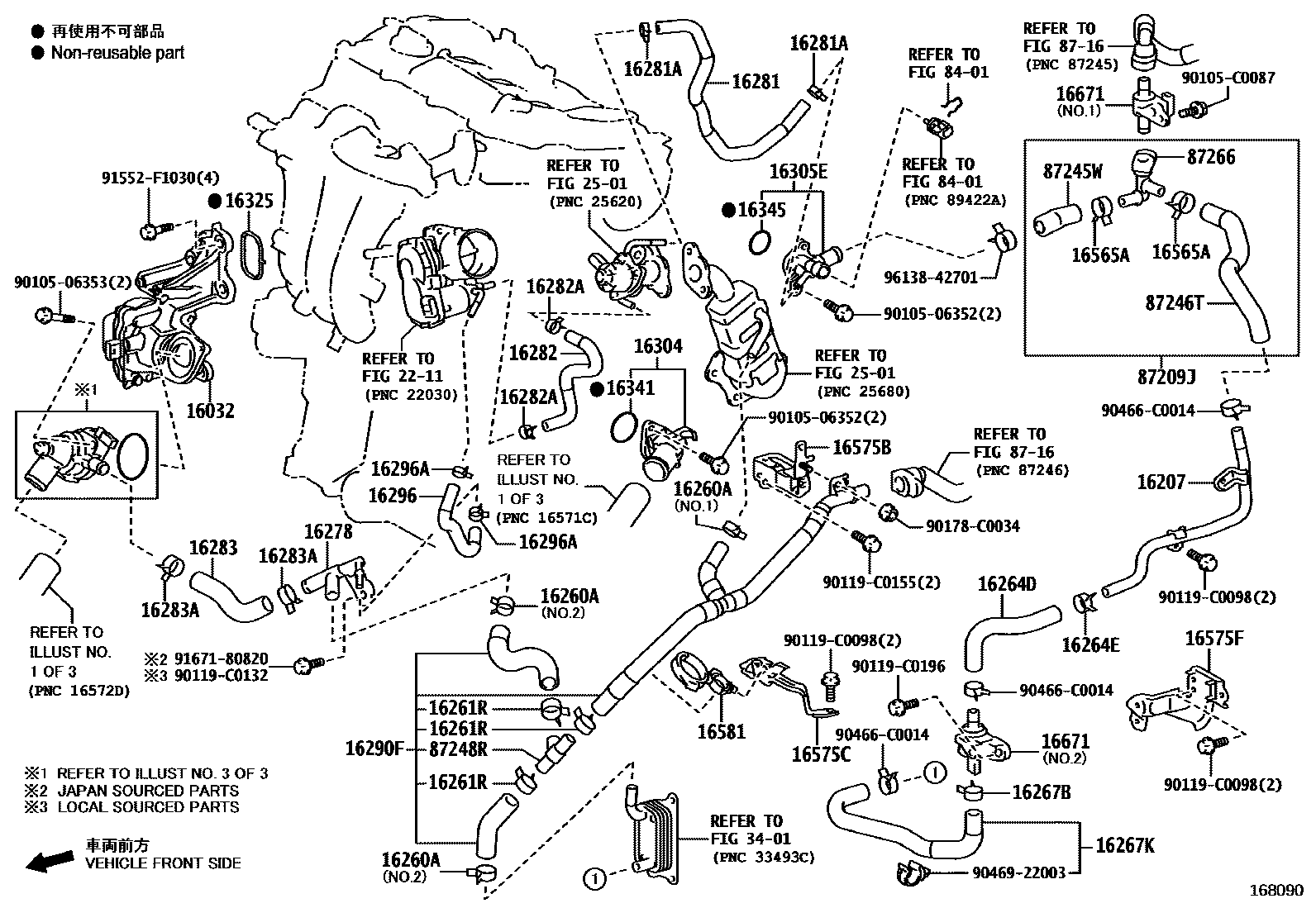

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603

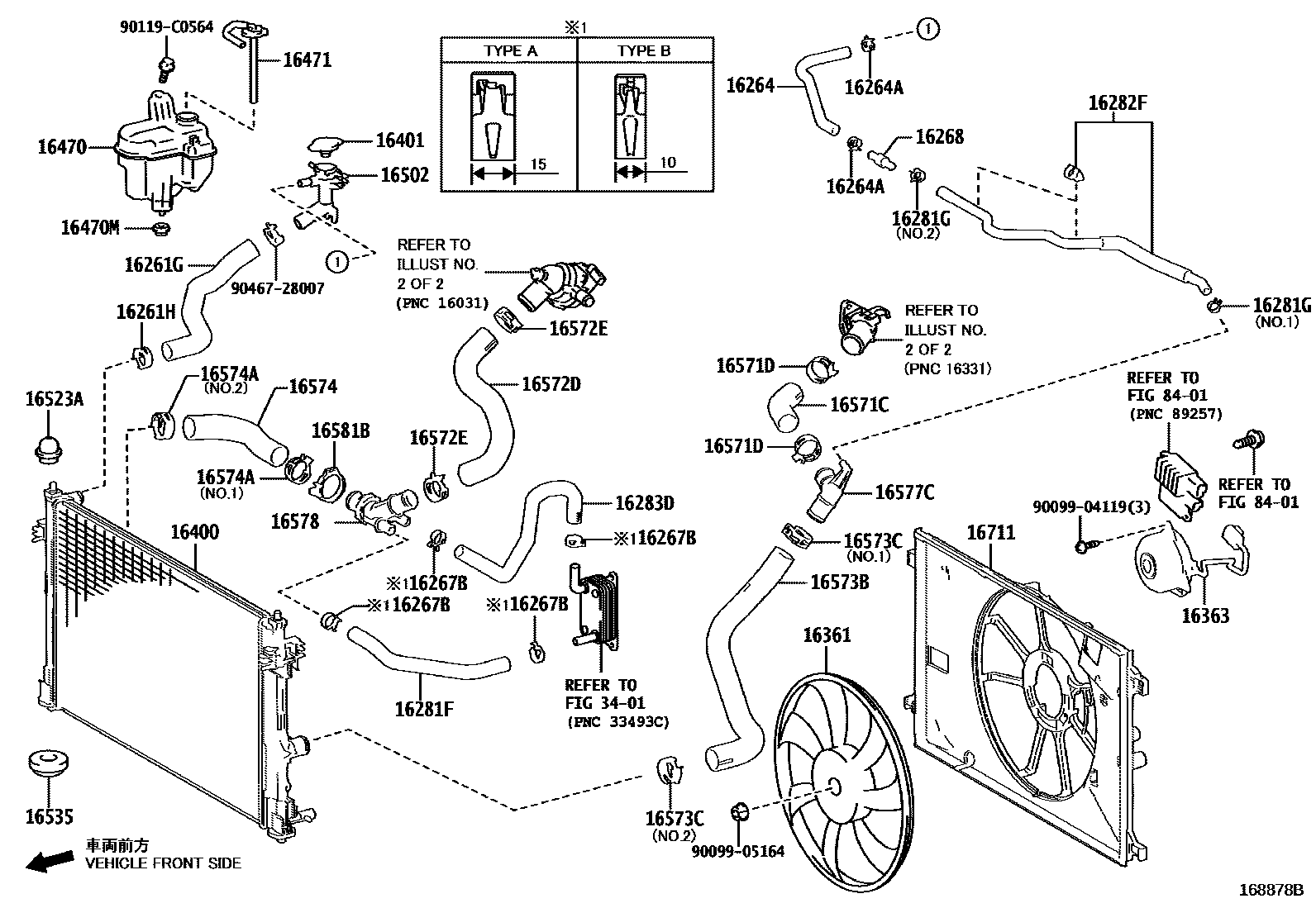

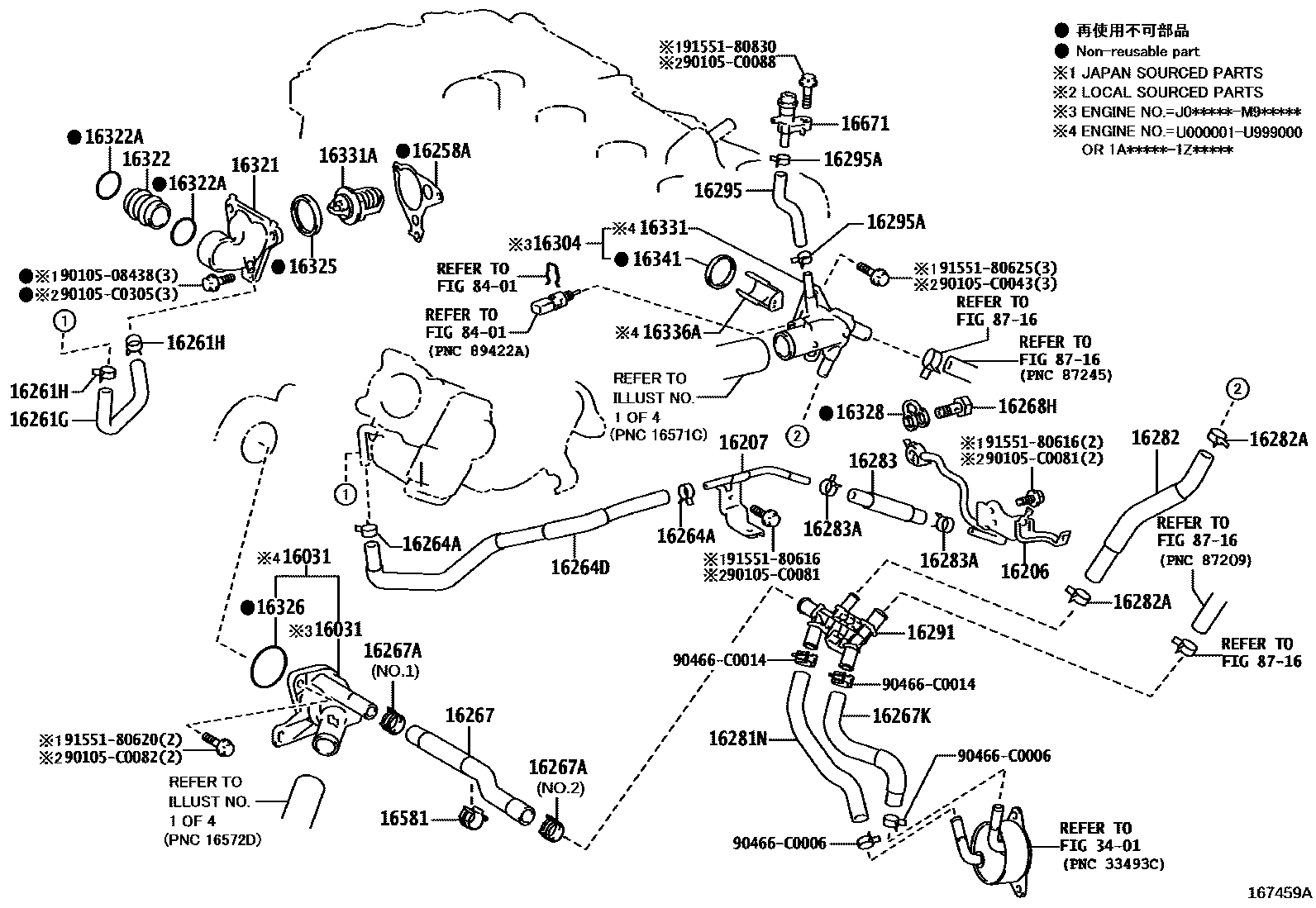

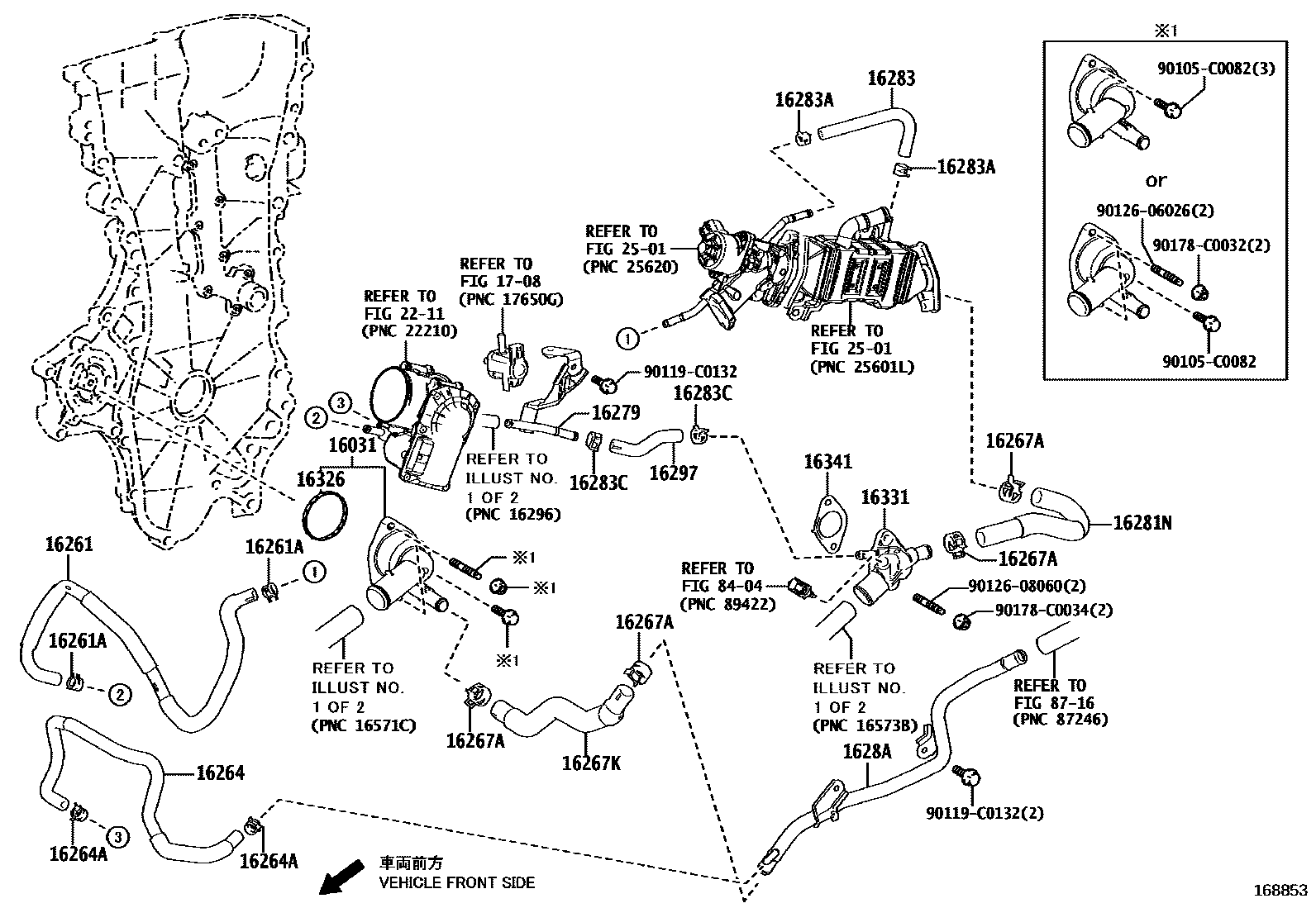

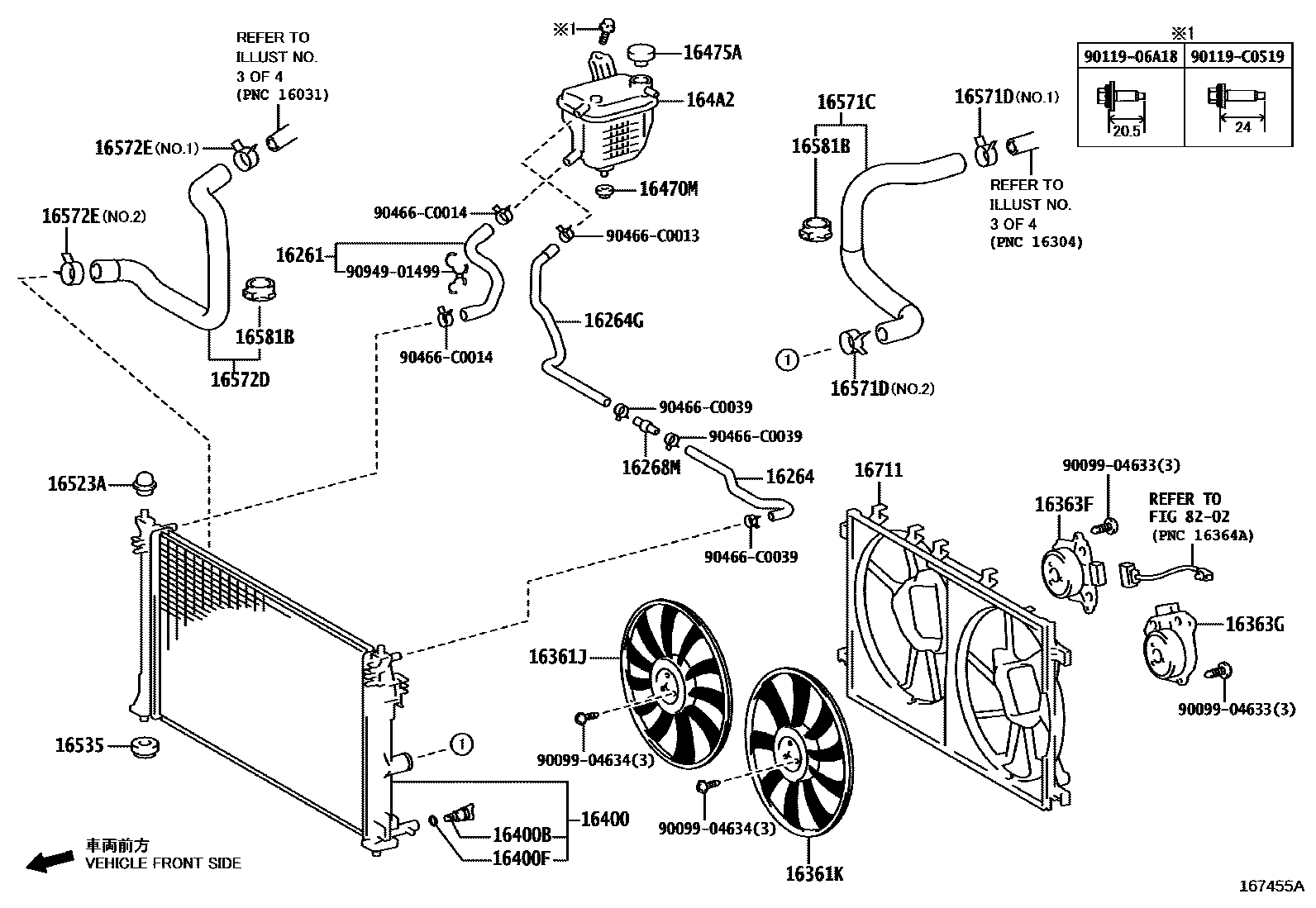

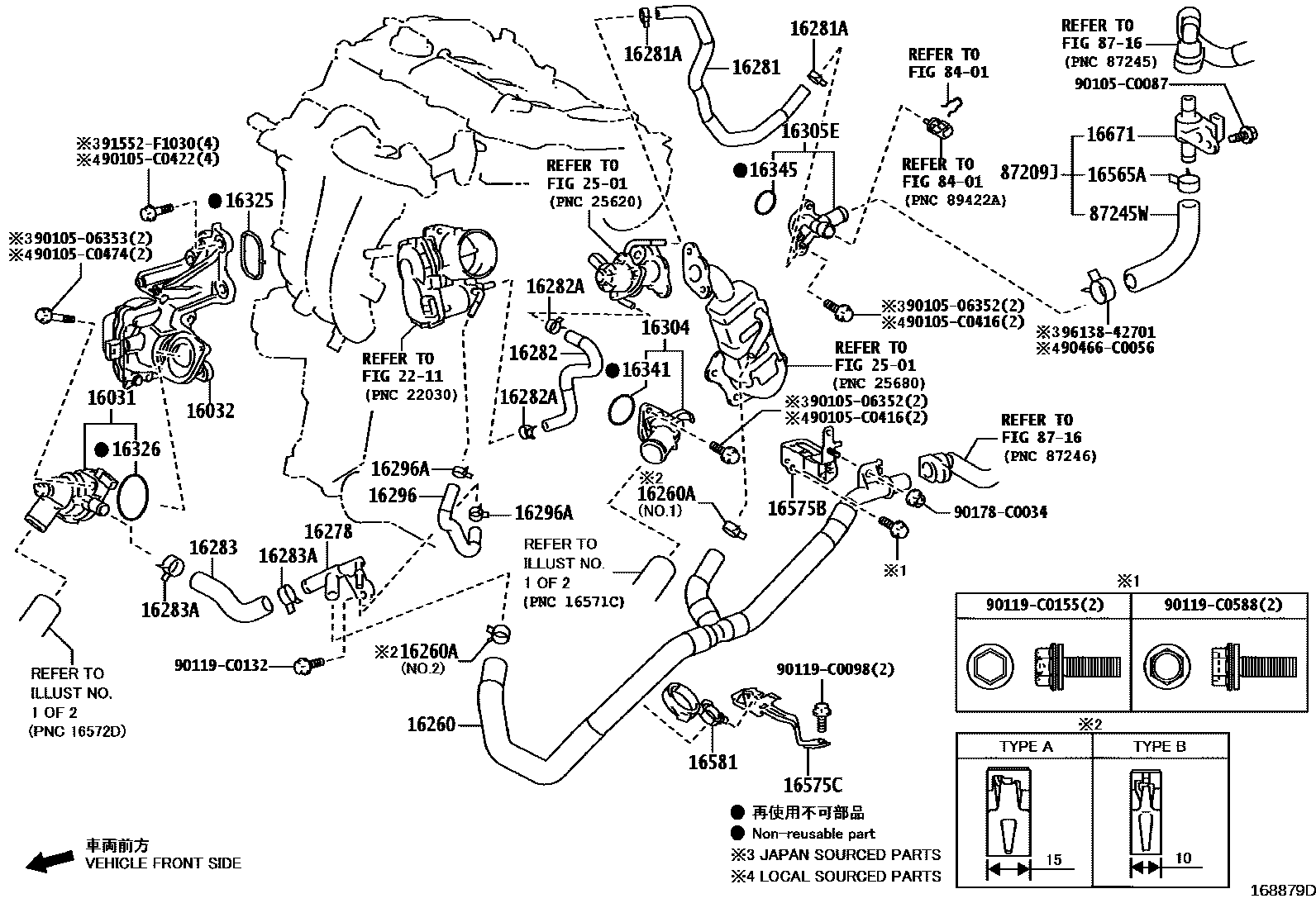

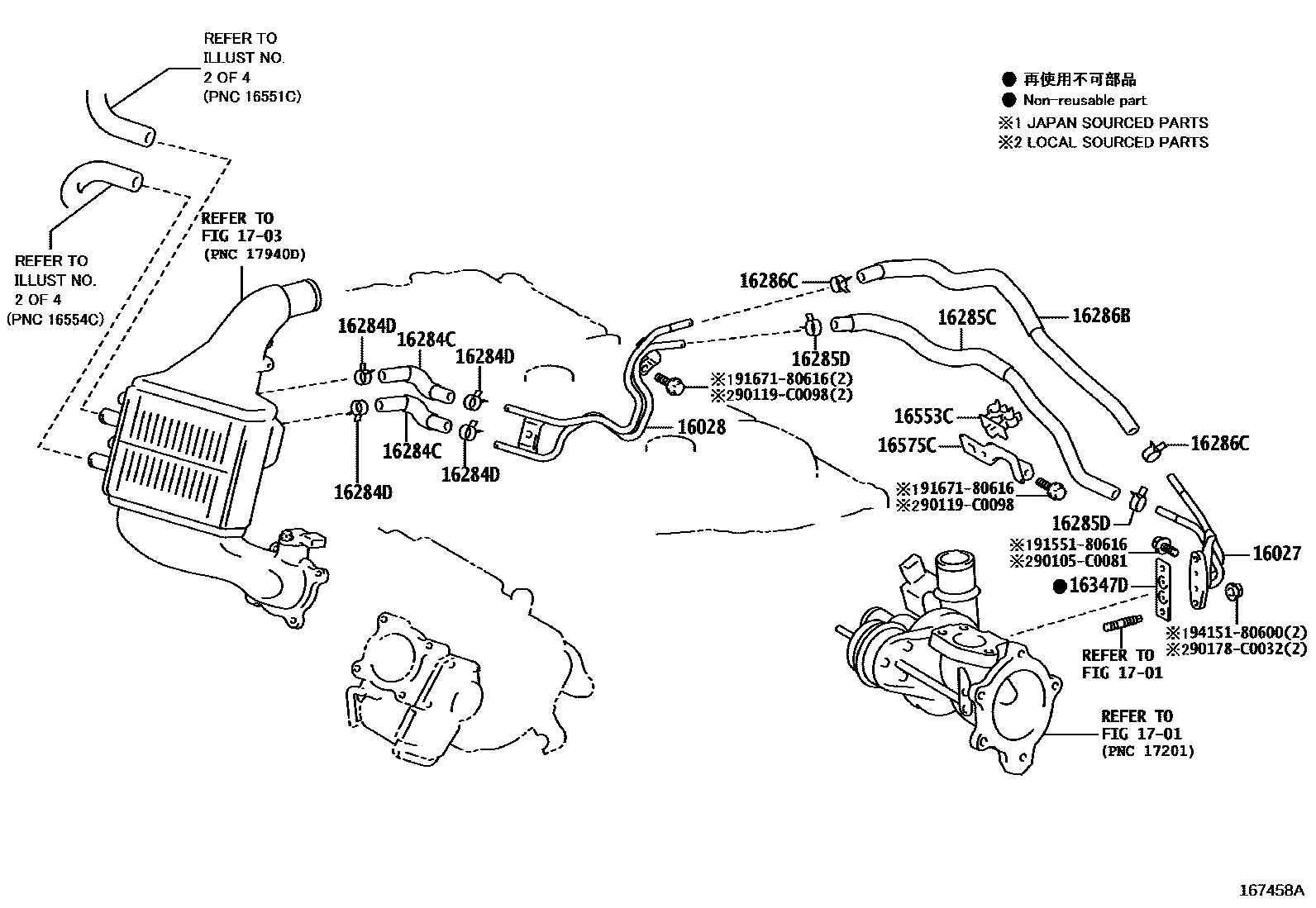

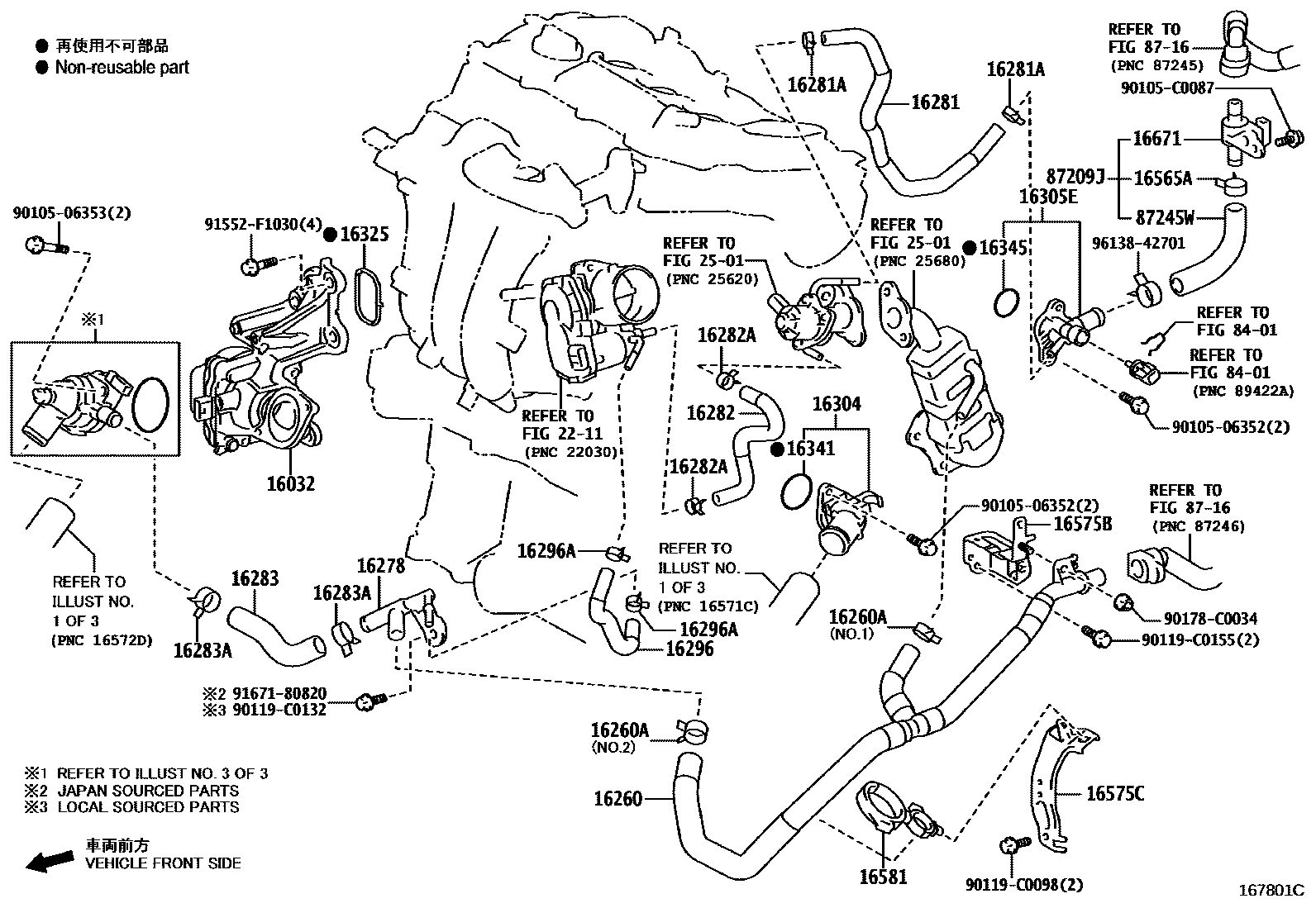

Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 15 images and 128 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16027 | No. 1 turbocharger water pipe sub-assembly | 16027-0Y010 · 16027-47010 |
| 16028 | No. 2 turbocharger water pipe sub-assembly | 16028-0Y010 · 16028-47010 |
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-0T010 · 16031-0T020 · 16031-0Y020 · 16031-15010 · 16031-47030 · 16031-F3020 |
| 16032 | Water inlet housing sub-assembly with water pump | 16032-15190 · 16032-F3030 · 16032-F3050 · 16032-F3060 |
| 161B0 | Electronic water pump assembly | 161B0-0Y010 · 161B0-47010 |
| 16206 | PIPE SUB-ASSY, WATER BY-PASS | 16206-0Y010 · 16206-47010 |
| 16207 | No. 2 water bypass pipe sub-assembly | 16207-0Y010 · 16207-47010 · 16207-F3020 |
| 16258A | Pad (for heater return) | 16258-0Y020 · 16258-47010 |
| 16260 | Water bypass hose assembly | 16260-F3060 |
| 16260A | Clamp (for water bypass hose assembly) | 90466-C0013 · 90466-C0014 · 90466-C0045 · 90466-C0055 · 96138-42101 · 96138-42501 |
| 16261 | HOSE, WATER BY-PASS | 16261-0T430 · 16261-0Y220 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-C0026 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-0T440 · 16261-0Y130 · 16261-47140 · 16261-F2040 · 16261-F2290 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90466-28001 · 90466-C0014 · 90466-C0039 · 90466-C0044 · 90467-28007 · 96136-41501 |
| 16261R | Clip or clip (for water bypass hose) | 96138-42501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0T380 · 16264-0Y210 · 16264-F3020 · 16264-F3080 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0026 · 90466-C0039 · 90466-C0044 · 96136-41501 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-0T390 · 16264-0Y150 · 16264-47060 · 16264-F3050 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0014 |
| 16264G | HOSE, WATER BY-PASS, NO.3 | 16267-0Y190 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0T350 · 16267-0Y110 · 16267-F3020 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-C0014 · 90466-C0015 · 90466-C0039 |
| 16267B | Clip (for water bypass hose) | 90466-C0014 · 90466-C0039 · 96138-42501 |
| 16267D | CLIP, WATER BY-PASS HOSE NO.4 | 90466-C0013 · 90466-C0039 |
| 16267K | HOSE, WATER BY-PASS, NO.3 | 16267-0T340 · 16267-0Y200 · 16267-F3060 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-F2030 · 16268-F2040 · 16268-F3100 |
| 16268H | Joint bolts (for water bypass pipe) | 90401-14003 |
| 16268M | No. 3 water bypass pipe | 16268-F2040 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16268-F2040 · 16278-15080 · 16278-F3020 |
| 16278K | PIPE, WATER BY-PASS, NO.2 | 16268-F2040 |
| 16279 | No. 3 water bypass pipe | 16279-0T030 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-0T280 · 16281-0T340 · 16281-15010 · 16281-F3020 · 16281-F3040 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90466-C0024 · 90466-C0054 · 96138-41501 |
| 16281F | HOSE, WATER BY-PASS, NO.5 | 16282-F3080 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 90466-C0039 · 96138-41701 |
| 16281N | HOSE, WATER BY-PASS, NO.4 | 16281-0T270 · 16281-0T360 · 16281-0T361 · 16281-0Y120 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-0Y010 · 16282-15010 · 16282-F3070 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90466-C0004 · 90466-C0054 · 96138-41501 |
| 16282F | HOSE, WATER BY-PASS, NO.5 | 16282-F3030 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-0T070 · 16283-0Y010 · 16283-15010 · 16283-47040 · 16283-F3060 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 90466-C0026 · 90466-C0044 · 90466-C0045 · 96136-41501 · 96138-42501 |
| 16283C | Clip or clip (for water bypass hose) | 90466-16005 · 96137-51701 |
| 16283D | HOSE, WATER BY-PASS, NO.6 | 16283-F3070 |
| 16284C | Intercooler water hose No. 1 | 16284-0Y040 · 16284-47010 |
| 16284D | Clamp (for intercooler water hose No. 1) | 90466-C0044 · 96136-41501 |
| 16285C | Intercooler No. 2 water hose | 16285-0Y040 · 16285-47010 |
| 16285D | Clamp (for intercooler water hose No. 2) | 90466-C0044 · 96136-41501 |
| 16286B | Intercooler No. 3 water hose | 16286-0Y040 · 16286-47010 |
| 16286C | Clamp (for intercooler No. 3 water hose) | 90466-C0044 · 96136-41501 |
| 1628A | No. 6 water bypass pipe | 16268-0T330 · 16268-0T400 |
| 16290F | No. 3 water bypass pipe assembly | 16290-F3010 |
| 16291 | water hose connector | 87251-02020 |
| 16292 | No. 2 water hose connector | 16291-0Y010 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-0Y010 · 16295-47030 |
| 16295A | CLIP, WATER BY-PASS HOSE NO.7 | 90466-C0003 · 90467-15022 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-0T080 · 16296-15010 · 16296-F3070 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 90466-C0013 · 90466-C0014 · 90466-C0024 · 90466-C0054 · 96138-41501 · 96138-51701 |
| 16297 | No. 9 water bypass hose | 16297-0T010 |
| 16304 | Water outlet sub-assembly | 16304-0Y021 · 16304-15010 · 16304-F3020 |
| 16305E | Water bypass outlet sub-assembly | 16305-15010 · 16305-F3030 |
| 16321 | water inlet | 16321-0Y030 · 16321-47040 |
| 16322 | PIPE, WATER INLET | 16322-0Y010 · 16322-47010 |
| 16322A | O-RING, WATER INLET | 90301-C0079 · 96761-35031 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0Y010 · 16325-15030 · 16325-36040 · 16325-F3020 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-0T020 · 16326-0Y020 · 16326-15010 · 16326-37020 · 16326-47020 · 16326-F3030 |
| 16328 | Inlet pipe gasket | 16328-0Y010 · 16328-47010 |
| 16331 | Water outlet | 16331-0T010 · 16331-47050 |
| 16331A | thermostat | 90916-03154 · 90916-C3009 |
| 16336A | Water outlet insert | 16336-47010 |
| 16341 | GASKET, WATER OUTLET | 16341-0T010 · 16341-0Y010 · 16341-15020 · 16341-47030 · 16341-F3020 |
| 16345 | Outlet pipe gasket | 16345-15010 · 16345-F3020 |
| 16347D | water bypass liner | 16347-0Y010 · 16347-47010 |
| 16361 | Fan | 16361-0T480 · 16361-F2050 · 16361-F2200 |
| 16361B | Fan No. 2 | 16361-0T490 |
| 16361J | Right fan | 16361-0Y350 |
| 16361K | left fan | 16361-0Y340 |
| 16363 | cooling fan motor | 16363-47060 · 16363-F2020 |
| 16363F | Right cooling fan motor | 16363-0T260 · 16363-0T270 · 16363-47050 |
| 16363G | Left cooling fan motor | 16363-0T280 · 16363-0T320 · 16363-47060 |
| 16400 | Radiator assembly | 16400-0T541 · 16400-0Y320 · 16400-F2030 · 16400-F2160 · 16400-F3031 |
| 16400B | Radiator drain switch screw plug | 16417-0H290 |
| 16400F | Seal (for radiator drain switch) | 16492-0P460 |
| 16401 | Radiator cover sub-assembly | 16401-36030 · 16401-F0010 |
| 16470 | Radiator reservoir assembly | 16470-F2020 |
| 16470M | gasket | 90480-18010 · 90480-C0007 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-F2010 |
| 16471B | Reservoir tank cover | 16475-0T081 · 16475-28140 |
| 16475A | Reservoir tank cover | 16475-0T081 · 16475-28140 |
| 164A2 | Closed reservoir water tank without lid | 164A2-F2010 |
| 16502 | Water injection port sub-assembly | 16502-F2020 |
| 16523A | Radiator bracket cushion | 16523-F2010 |
| 16535 | Radiator lower support | 90480-40021 · 90480-T0007 |
| 16550 | Intercooler cooling radiator assembly | 16550-0Y110 |
| 16551C | Intercooler coolant hose No. 1 | 16551-0Y020 · 16551-0Y050 |
| 16552C | Intercooler No. 2 coolant hose | 16552-0Y020 |
| 16553C | hose clamp | 16581-0Y050 · 16581-47090 |
| 16553D | Intercooler No. 3 coolant hose | 16553-0Y020 · 16553-0Y040 |
| 16554C | Intercooler No. 4 coolant hose | 16554-0Y020 · 16554-0Y040 |
| 16555C | Intercooler No. 5 coolant hose | 16555-0Y020 |
| 16556C | Intercooler coolant hose No. 6 | 16556-0Y020 |
| 16565A | clip | 96138-42501 |
| 16571C | Radiator hose No. 1 | 16571-0T440 · 16571-0T490 · 16571-0Y330 · 16571-F3020 |
| 16571D | No. 1 radiator hose clip | 90466-C0008 · 90466-C0009 |
| 16572D | Radiator hose No. 2 | 16572-0T370 · 16572-0T420 · 16572-0Y240 · 16572-F3020 · 16572-F3030 |
| 16572E | No. 2 radiator hose clip | 90466-C0008 · 90466-C0009 |
| 16573B | Radiator hose No. 3 | 16573-0T280 · 16573-F3020 · 16573-F3021 · 16573-F3050 · 16573-F3051 |
| 16573C | No. 3 radiator hose clamp or clip | 90466-C0008 · 90466-C0009 |
| 16574 | Radiator hose No. 4 | 16574-F3010 |
| 16574A | No. 4 radiator hose clip | 90466-C0008 · 90466-C0009 |
| 16575 | Radiator hose No. 5 | 16575-F3200 |
| 16575A | No. 5 radiator hose clip | 90466-C0009 |
| 16575B | No. 2 water hose clamp bracket | 16575-F3110 |
| 16575C | No. 1 water hose clamp bracket | 16575-0Y020 · 16575-47020 · 16575-F3130 · 16575-F3140 |
| 16575F | No. 3 water hose clamp bracket | 16575-F3210 |
| 16577C | radiator pipe | 16577-0T260 · 16577-F3020 |
| 16578 | Radiator pipe No. 2 | 16577-F2060 · 16578-F3010 |
| 16581 | Hose clamp (for water hose) | 16581-0Y040 · 16581-47080 · 16581-F3020 · 16581-F3050 |
| 16581B | Hose clamp (for radiator hose) | 16581-25010 · 16581-31040 · 16581-37080 |
| 16581C | Hose clamp (for No. 2 radiator hose) | 16581-31040 |
| 165A0A | Hose clip | 90466-C0009 |
| 16640 | Intercooler liquid tank assembly | 16640-0Y070 |
| 16671 | water valve | 16671-0Y010 · 16671-24010 · 16671-24020 · 16671-25070 · 16671-47010 |
| 16711 | fan cover | 16711-0T360 · 16711-0T430 · 16711-0Y280 · 16711-F2031 · 16711-F2160 |
| 87209J | Water hose sub-assembly | 87209-02560 · 87209-02630 |
| 87245W | water hose | 87245-02T80 · 87245-02V20 |
| 87246T | No. 2 water hose | 87246-02010 |
| 87248R | water pipe | 87248-0E240 |
| 87266 | Water hose connector No. 2 | 87266-02030 |
