Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 3 images and 6 PNC and OE references.

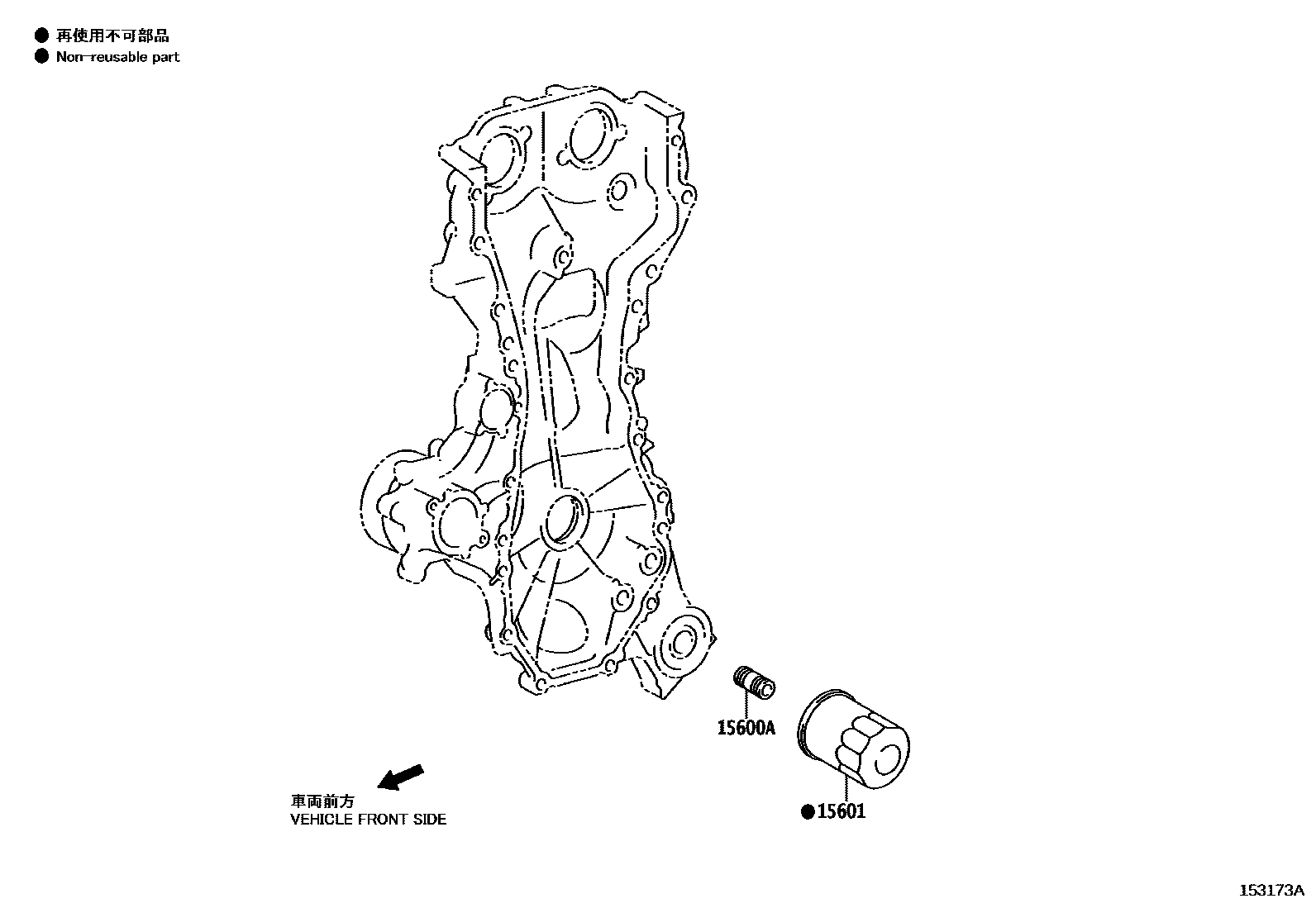

Toyota COROLLA Oil Filter EPC diagram — 153173A
Oil Filter — 153173A (201908 – 999999)

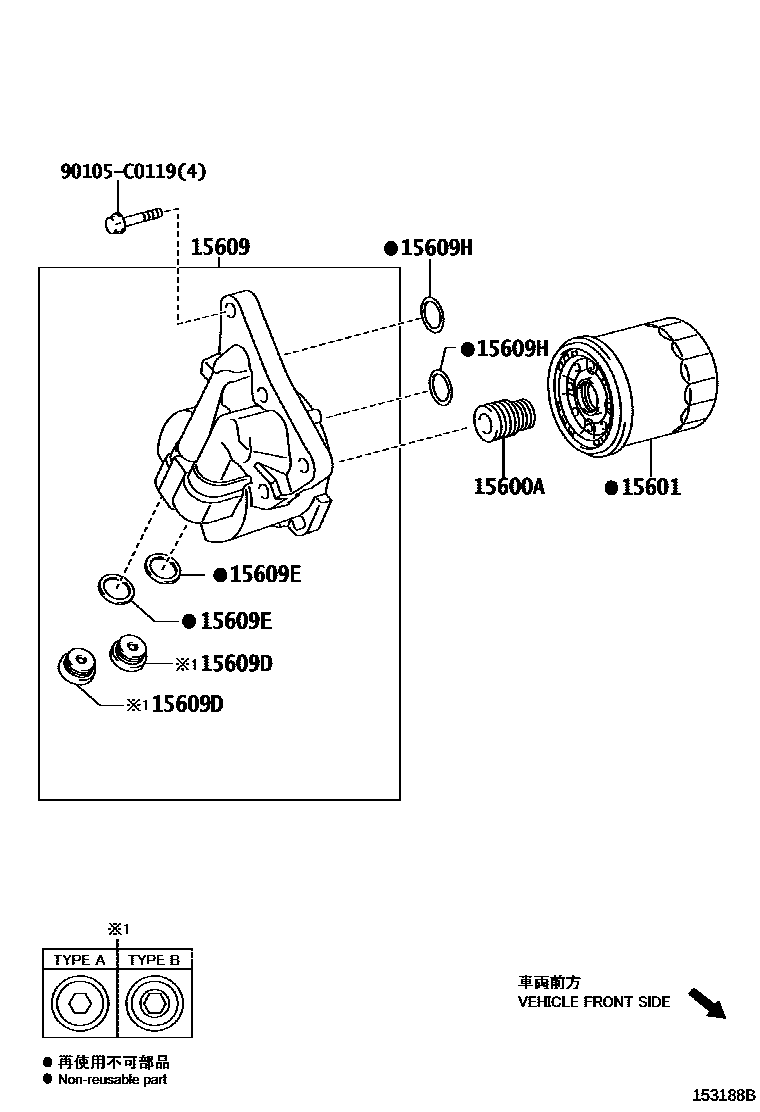

Toyota COROLLA Oil Filter EPC diagram — 153188B
Oil Filter — 153188B (201908 – 999999)

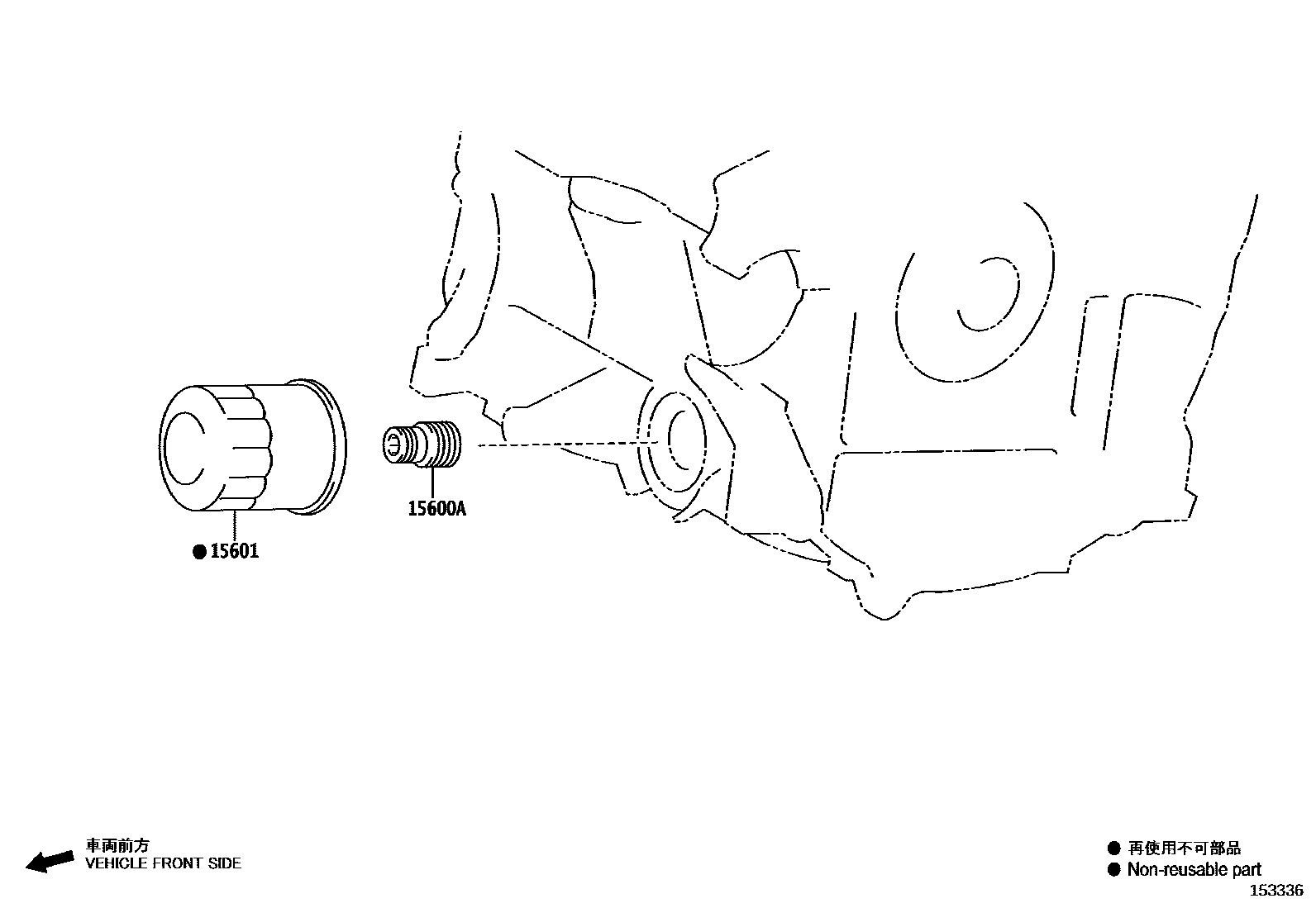

Toyota COROLLA Oil Filter EPC diagram — 153336A
Oil Filter — 153336A (202101 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90404-19011 · 90904-04006
15601Oil filter sub-assembly90915-10003 · 90915-10009 · 90915-CA003 · 90915-CA004
15609Oil filter bracket sub-assembly15609-0T090 · 15609-37060
15609DStraight threaded plug with head (for oil filter bracket)90341-20002 · 90341-20012
15609EHeaded straight thread plug liner90430-20004 · 90430-20018
15609HO-ring (for oil filter bracket)90301-C0033
