Toyota COROLLA Engine Oil Pump — Figure 1501

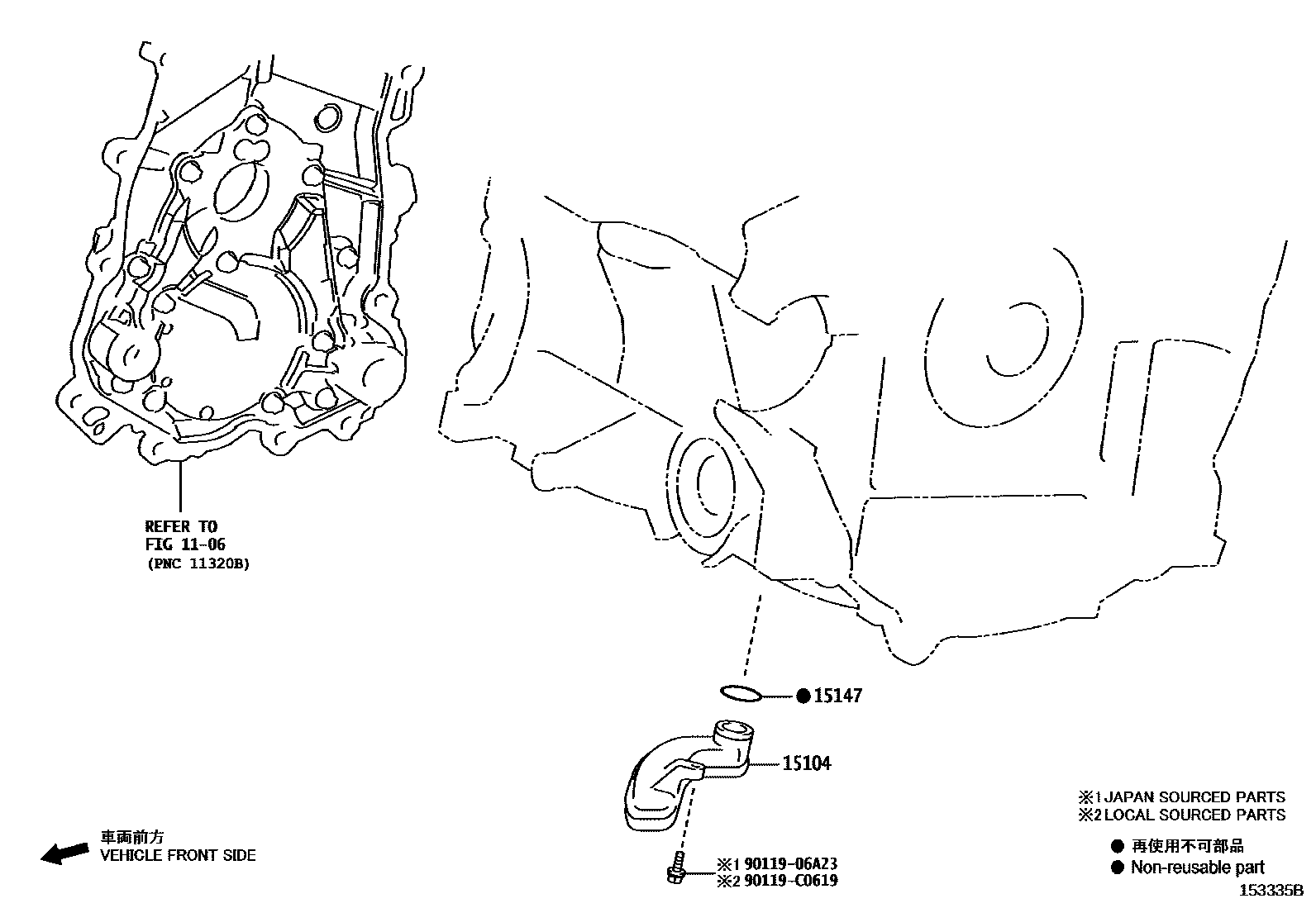

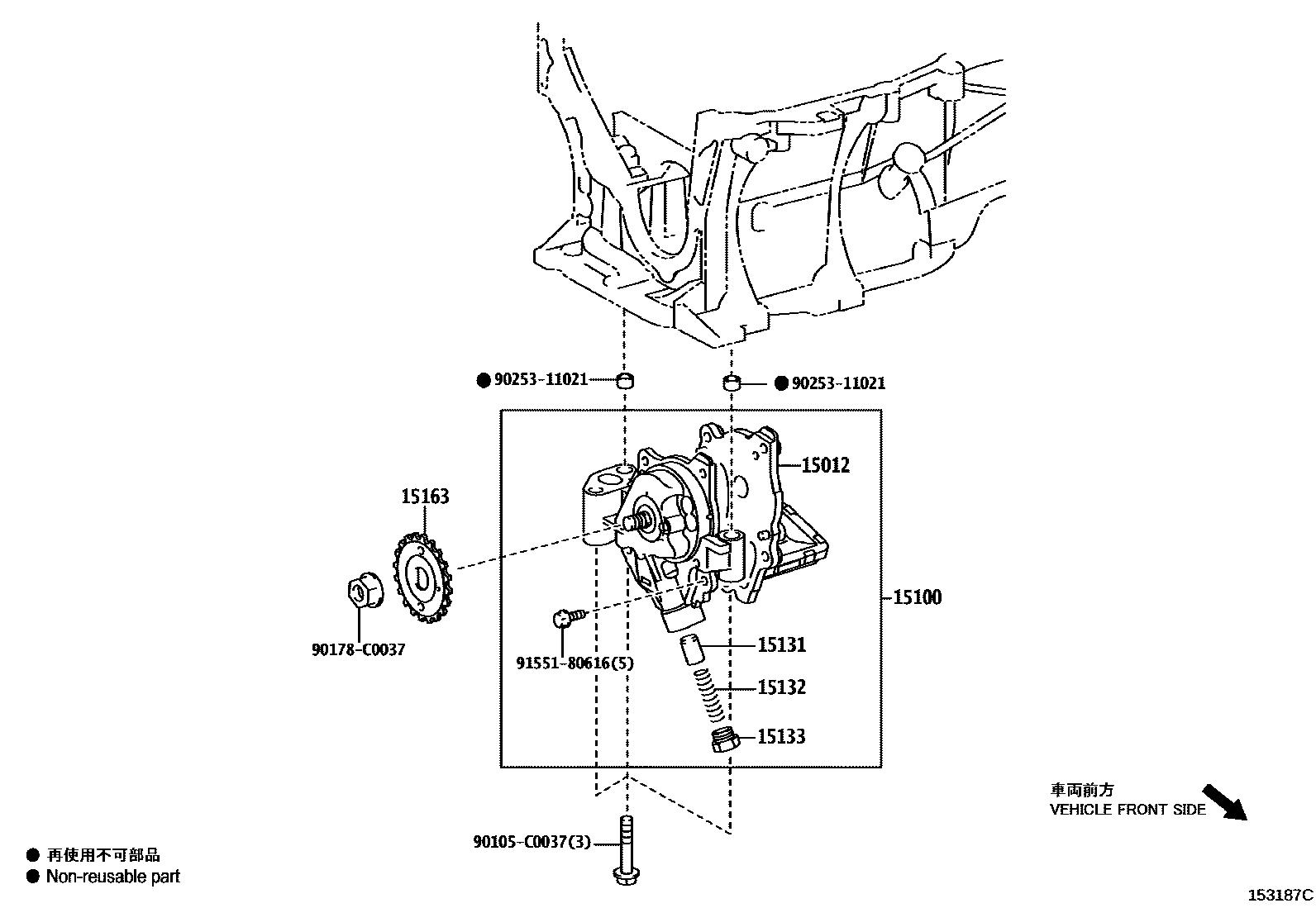

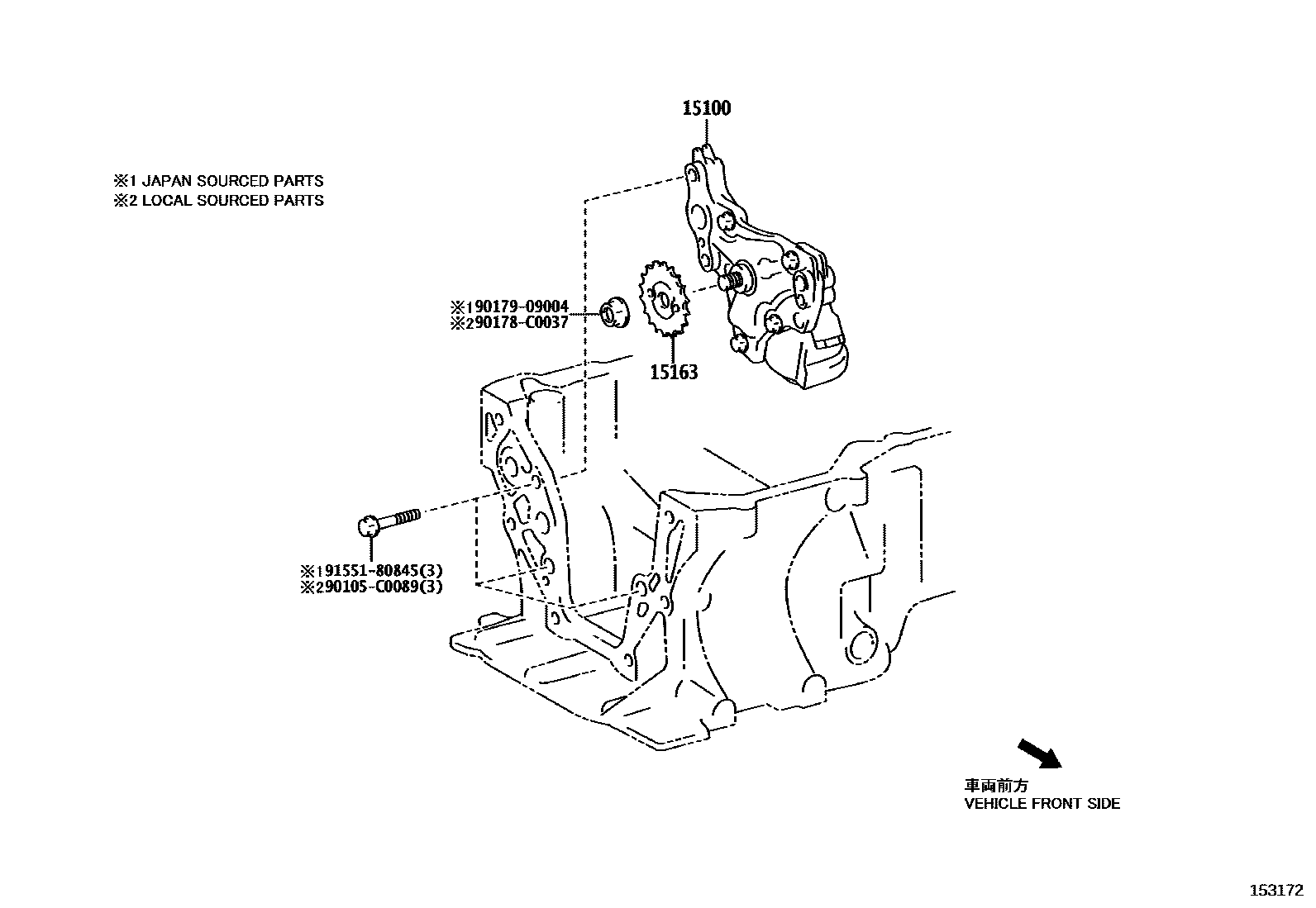

Toyota COROLLA EPC diagram 1501, Engine Oil Pump, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15012 | Oil pump cover sub-assembly | 15012-0T130 · 15012-37060 · 15012-37070 |
| 15100 | Oil pump assembly | 15100-0T130 · 15100-0T170 · 15100-0Y010 · 15100-47050 |
| 15104 | Oil filter sub-assembly | 15104-15110 · 15104-F3020 |
| 15131 | Oil pump pressure reducing valve | 15131-0A040 |
| 15132 | Oil pump pressure reducing valve spring | 15132-46060 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-28020 |
| 15147 | Oil filter gasket | 15147-25010 · 15147-F2010 |
| 15163 | Oil pump drive shaft gear | 15163-0H050 · 15163-0Y010 · 15163-33010 |
