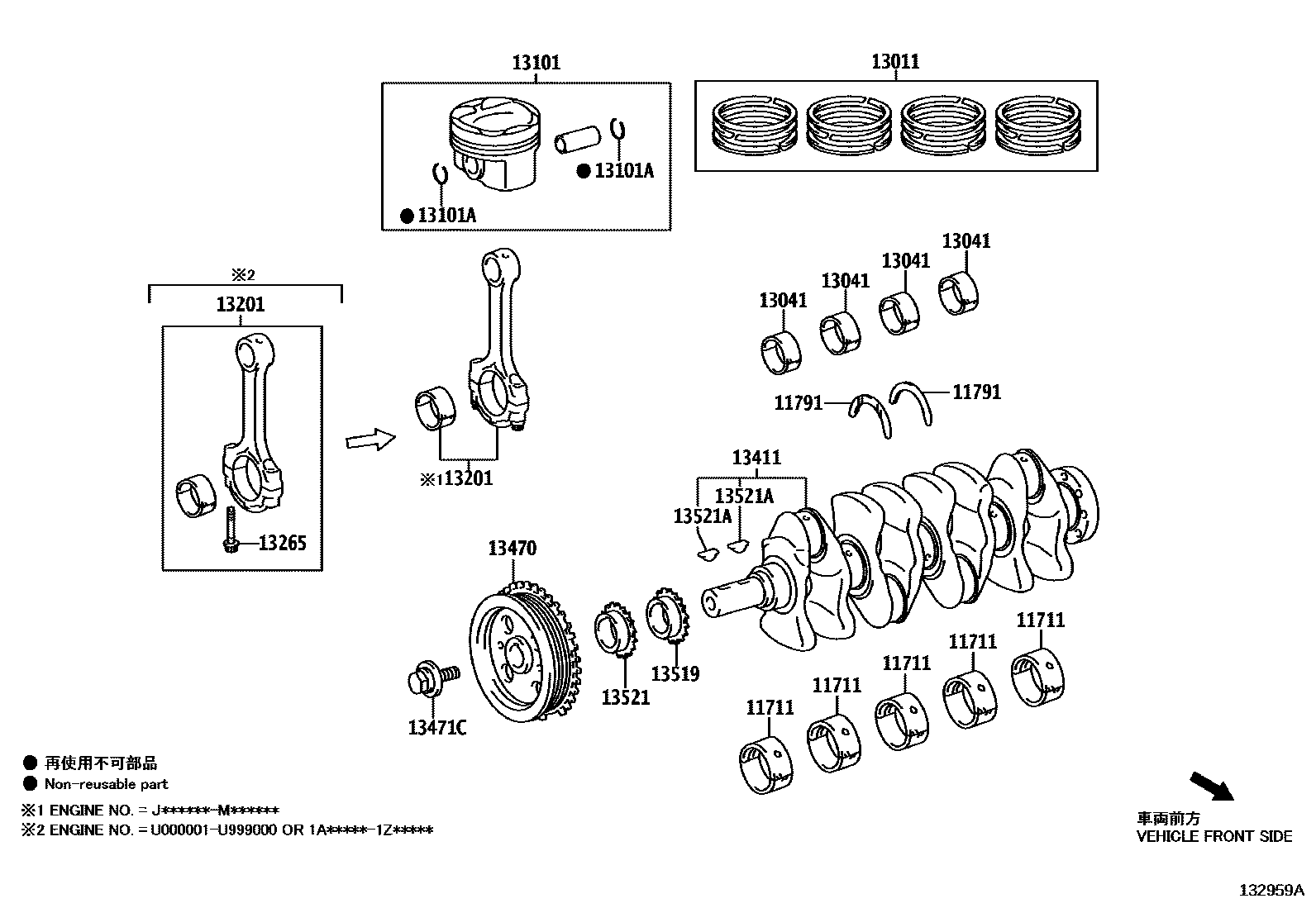

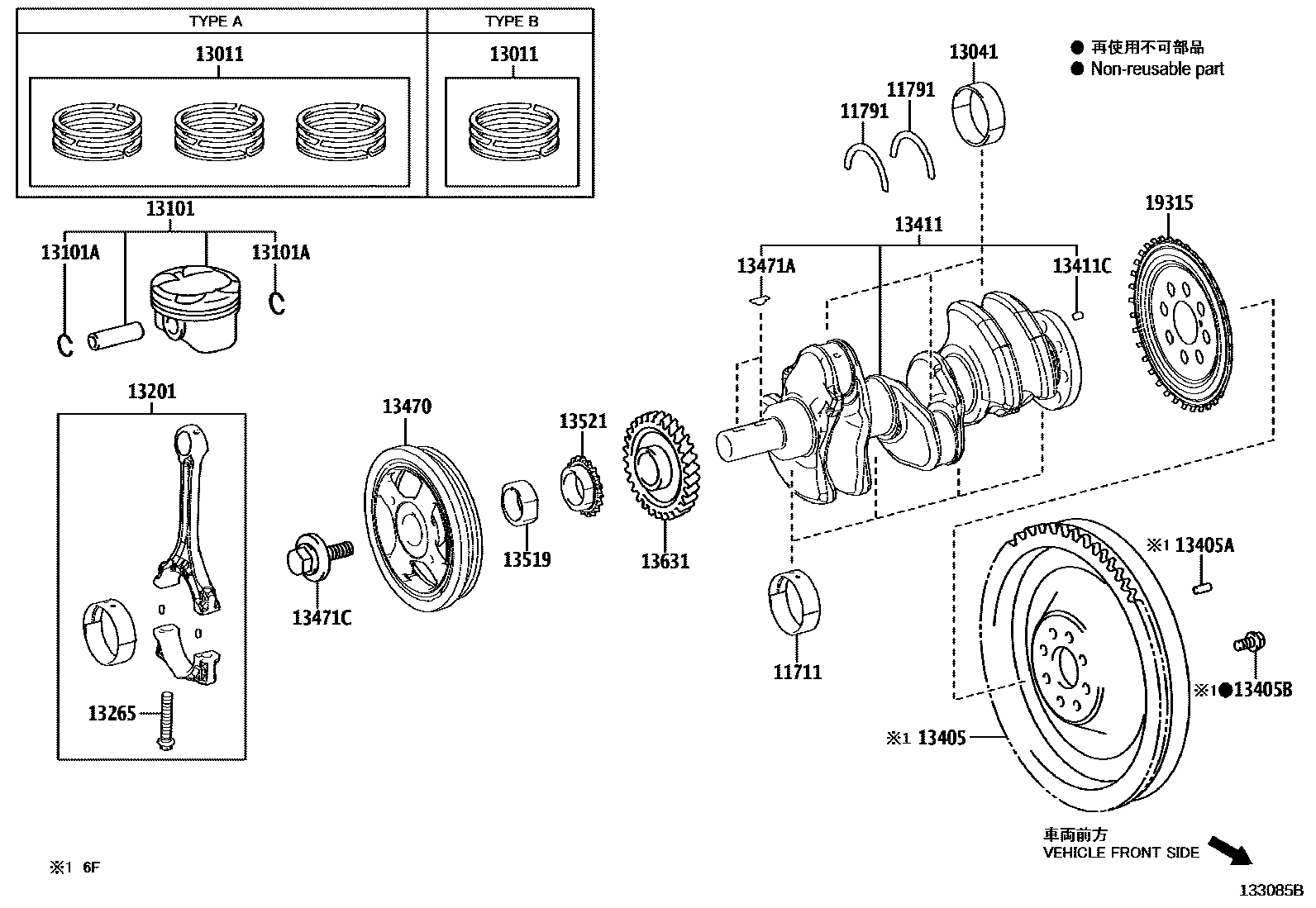

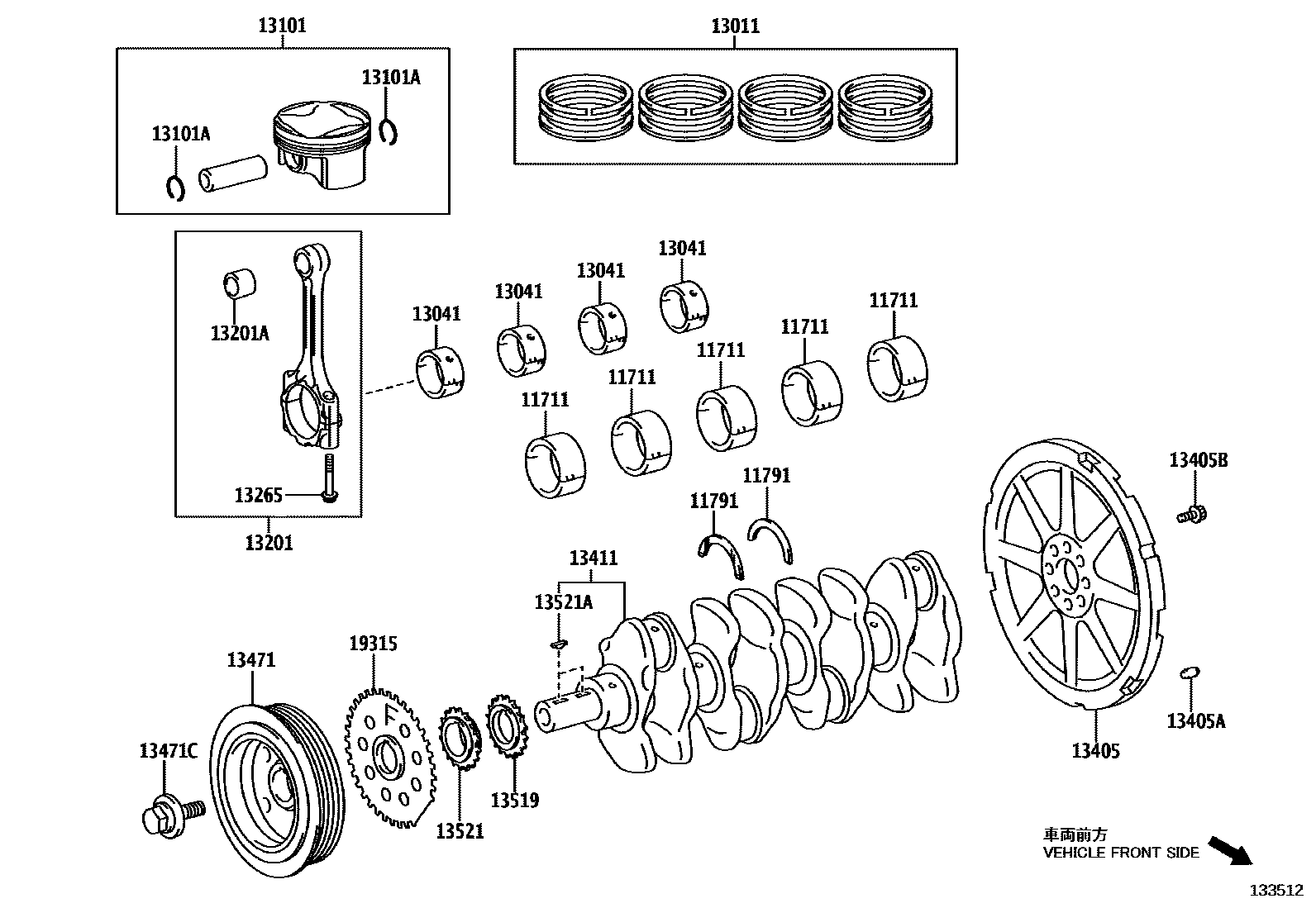

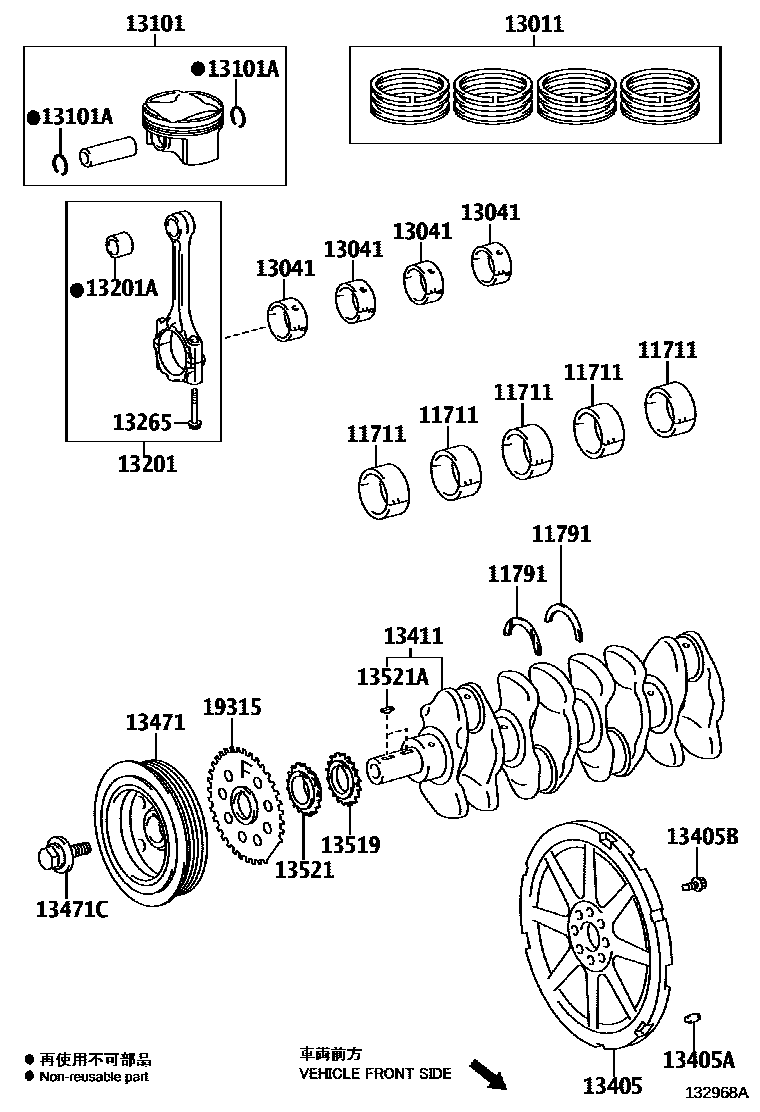

Toyota COROLLA Crankshaft & Piston — Figure 1301
Toyota COROLLA EPC diagram 1301, Crankshaft & Piston, with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11791 | Thrust washer on crankshaft | 11791-0T020 · 11791-0Y030 · 11791-15030 · 11791-47011 · 11791-F2030 |
| 13011 | Piston ring assembly | 13011-0T150 · 13011-0T200 · 13011-0Y111 · 13011-15150 · 13011-37290 · 13011-47131 · 13011-F3020 |
| 13101 | Piston sub-assembly with pin | 13101-0T450 · 13101-0Y180 · 13101-24040 · 13101-47190 · 13101-F3020 |
| 13101A | Bore snap ring (for piston pin) | 90520-19019 · 90520-20064 |
| 13201 | Connecting rod sub-assembly | 13201-09C91 · 13201-09D30 · 13201-49126 |
| 13201A | Bushing (for connecting rod small end) | 90999-73151 |
| 13265 | Connecting rod bolts | 13265-0T020 · 13265-22040 · 13265-25020 · 13265-47010 · 13265-F2010 |
| 13405 | Flywheel sub-assembly | 13405-15100 · 13405-F3010 · 13451-0T090 |
| 13405A | Direct sales (for flywheel) | 90250-08120 · 90250-C0011 |
| 13405B | Flywheel fixing bolt | 90105-12322 · 90913-C1002 |
| 13411 | crankshaft | 13401-0T021 · 13401-0Y230 · 13401-15010 · 13401-47100 · 13401-F3020 |
| 13411C | Direct sales (for crankshaft) | 90250-06035 |
| 13470 | Crankshaft wheel assembly | 13470-0Y050 · 13470-15140 · 13470-47100 · 13470-F3030 |
| 13471 | crankshaft pulley | 13470-0T030 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-04001 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-14106 · 90119-16020 · 90119-C0124 · 90119-C0429 |
| 13519 | Oil pump driving gear | 13519-0T010 · 13519-0Y010 · 13519-15010 · 13519-47010 · 13519-F3020 |
| 13521 | Crankshaft timing gear or sprocket | 13521-0T040 · 13521-0T120 · 13521-0Y080 · 13521-15030 · 13521-37011 · 13521-F3030 |
| 13521A | Key (for crankshaft timing gear) | 90280-04001 · 90280-04003 · 90280-C0002 |
| 13631 | Balance shaft drive gear | 13631-15010 · 13631-F3010 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-0T020 · 19315-0T050 · 19315-24010 · 19315-37030 · 19315-F2020 |
