Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 4 images and 11 PNC and OE references.

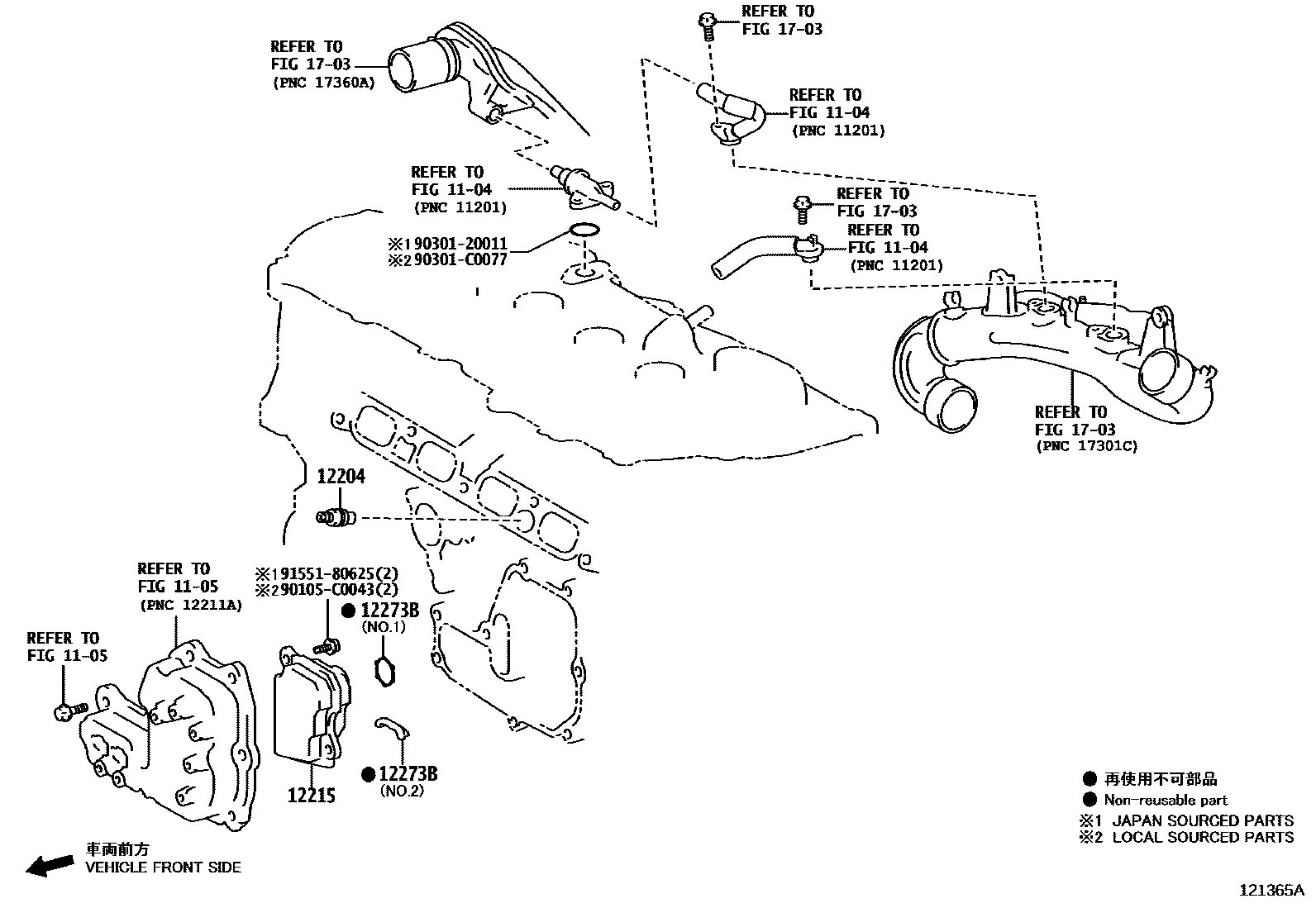

Toyota COROLLA Ventilation Hose EPC diagram — 121365A
Ventilation Hose — 121365A (201908 – 999999)

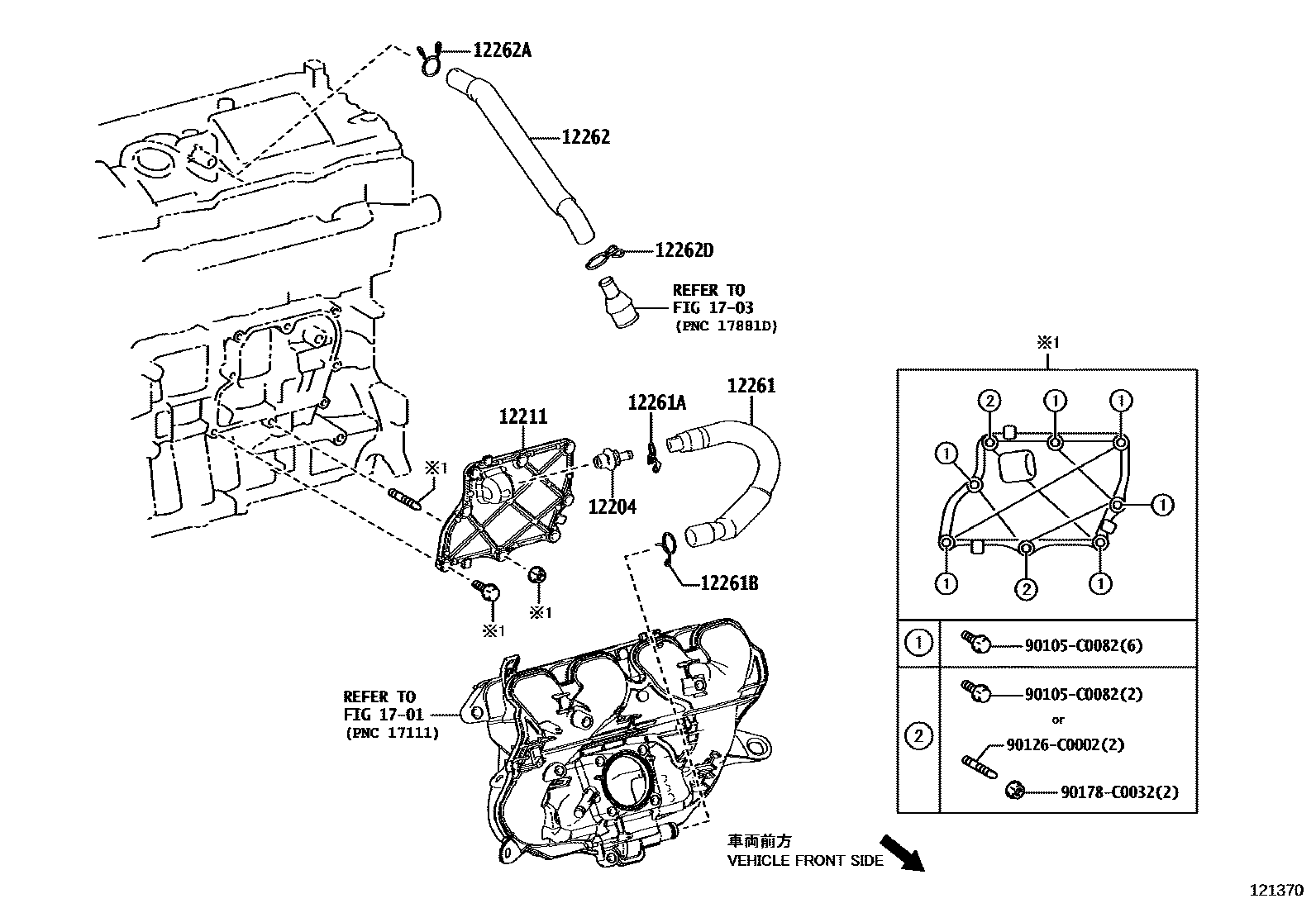

Toyota COROLLA Ventilation Hose EPC diagram — 121370
Ventilation Hose — 121370 (201908 – 999999)

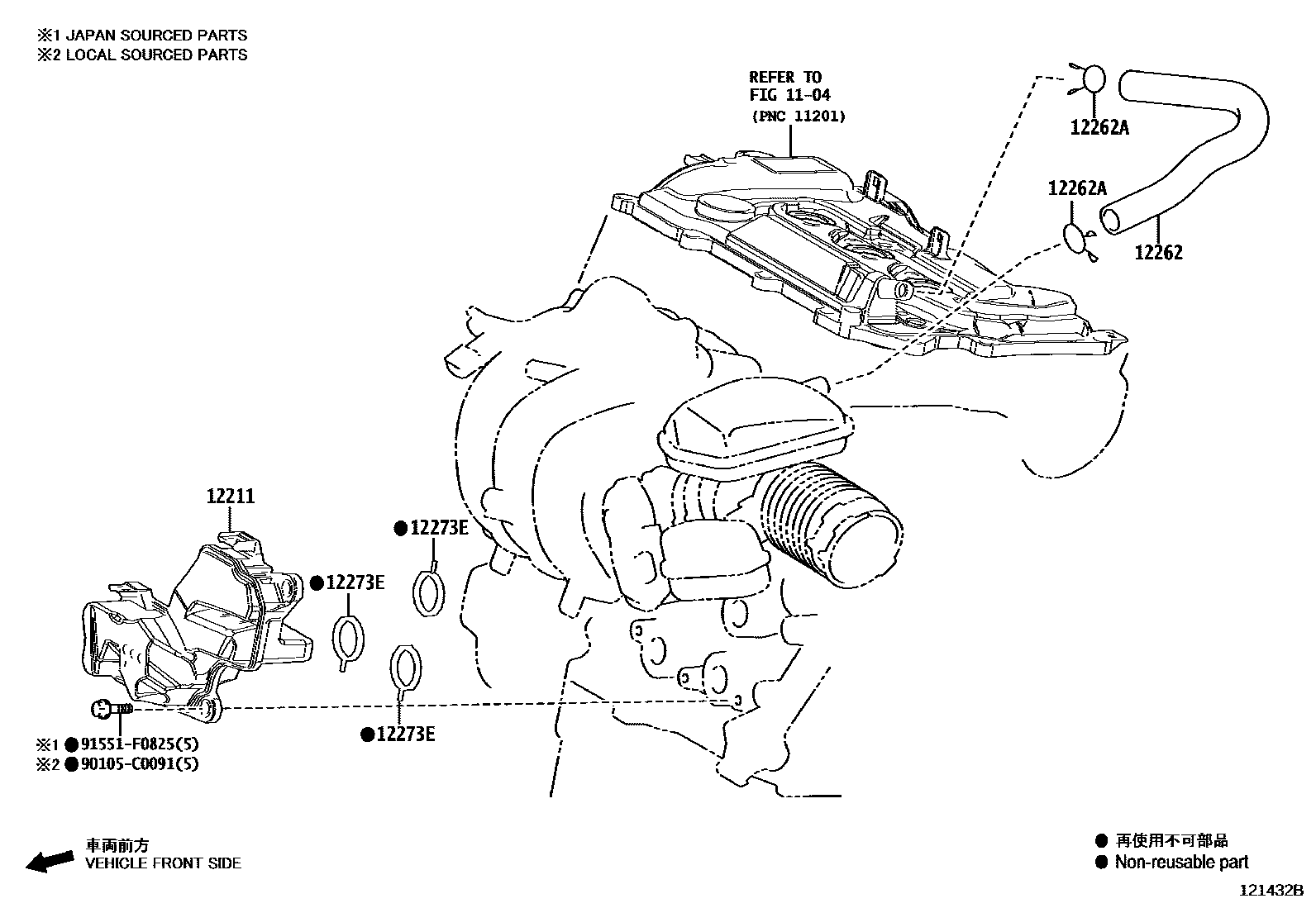

Toyota COROLLA Ventilation Hose EPC diagram — 121432B
Ventilation Hose — 121432B (202101 – 999999)

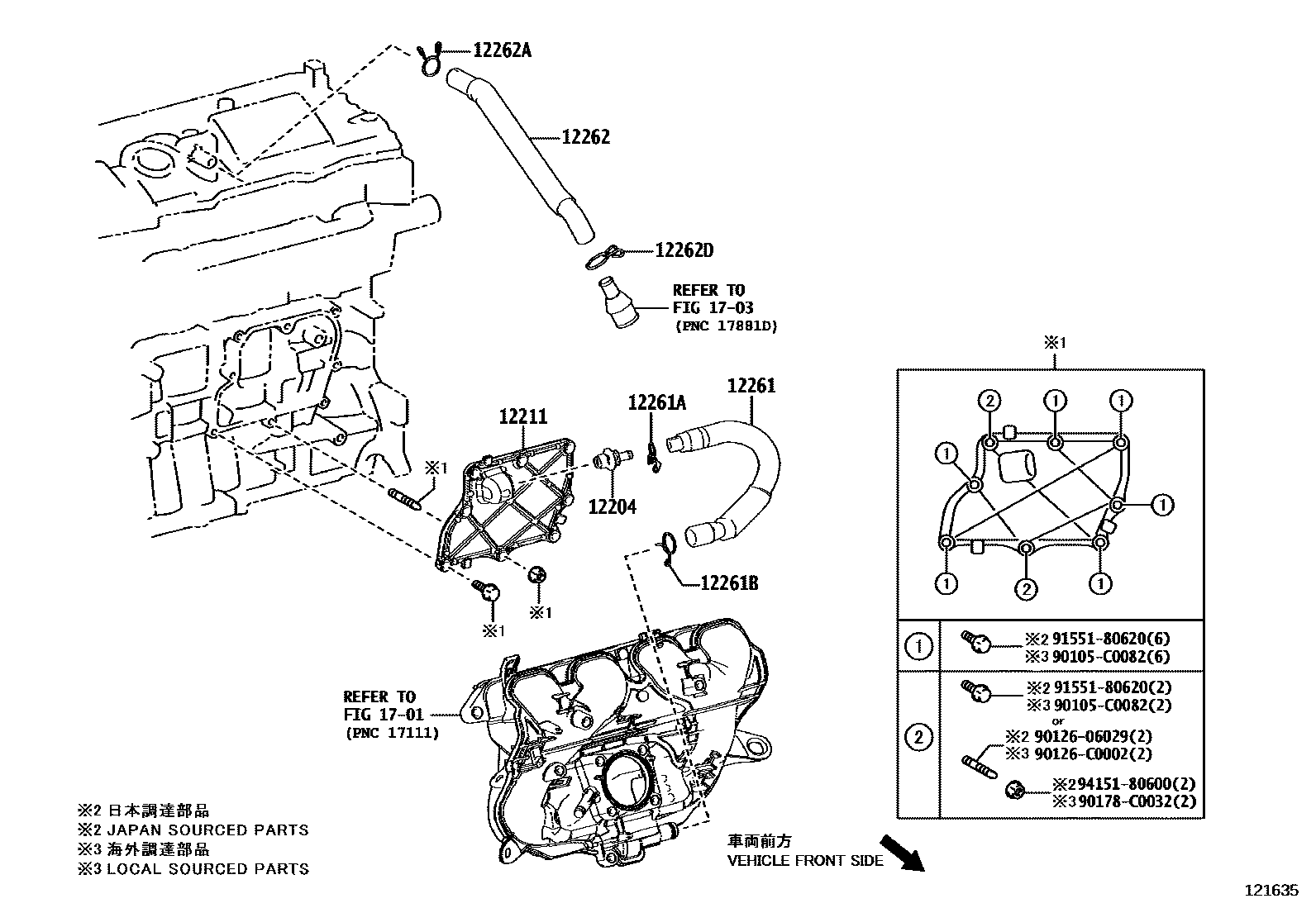

Toyota COROLLA Ventilation Hose EPC diagram — 121635
Ventilation Hose — 121635 (202305 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-0T020 · 12204-0Y030 · 12204-37060 · 12204-47080
12211Ventilation box No. 112211-0T030 · 12211-0T050 · 12211-15060 · 12211-37010 · 12211-F3020 · 12211-F3021
12215Ventilation box isolation device12215-0Y010 · 12215-47010
12261Ventilation Hose12261-0T070
12261AClip or clip (for vent hose)90467-15120
12261BClip or clip (for vent hose)90466-22005
12262Ventilation hose No. 212262-0T070 · 12262-15160
12262AClamp (for vent hose No. 2)90467-21004
12262DClamp (for vent hose No. 2)90467-21004
12273Boil separator gasket12273-0Y010 · 12273-0Y020 · 12273-47010 · 12273-47020
12273EPads (for ventilation boxes)12273-15010 · 12273-F3010
