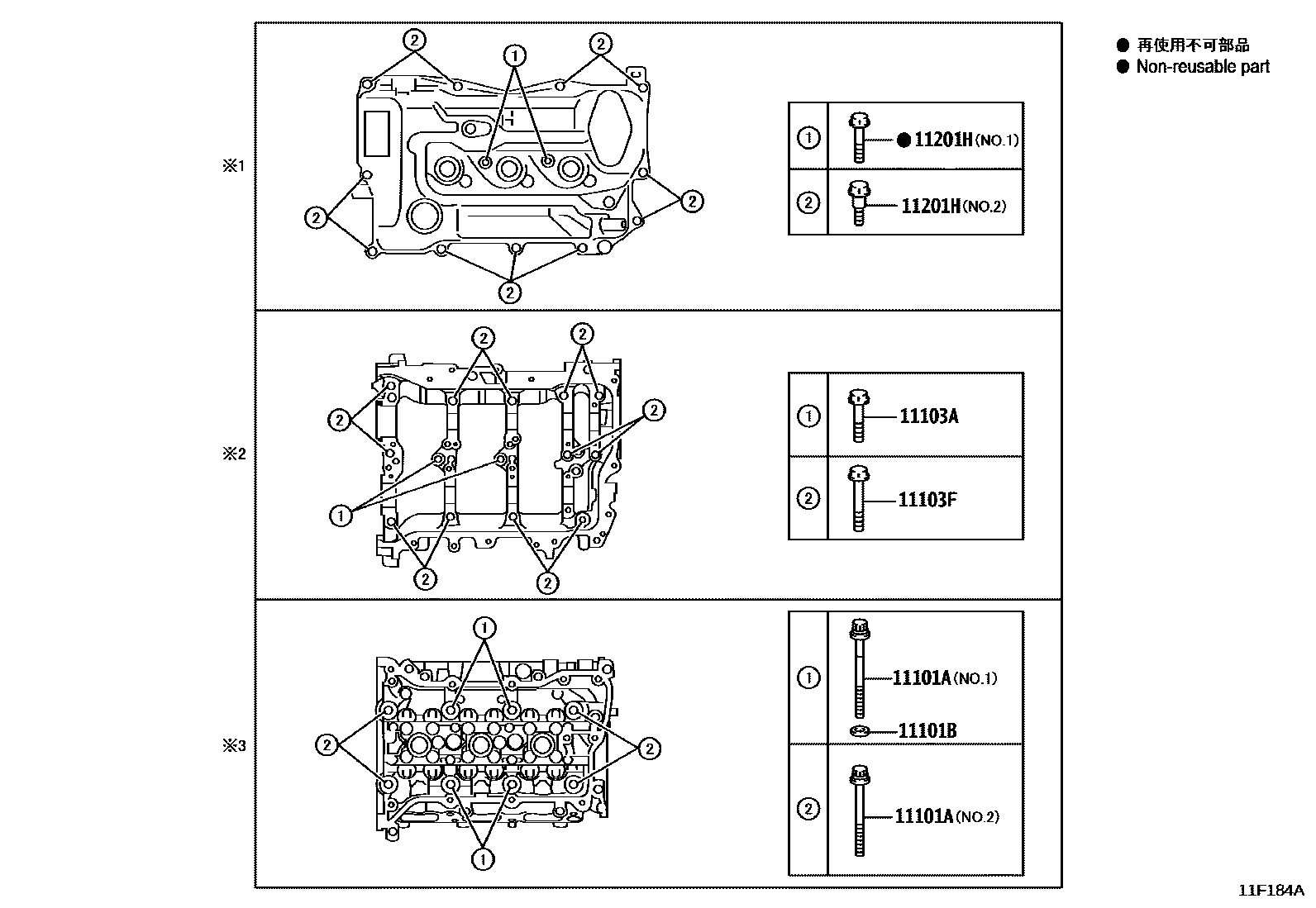

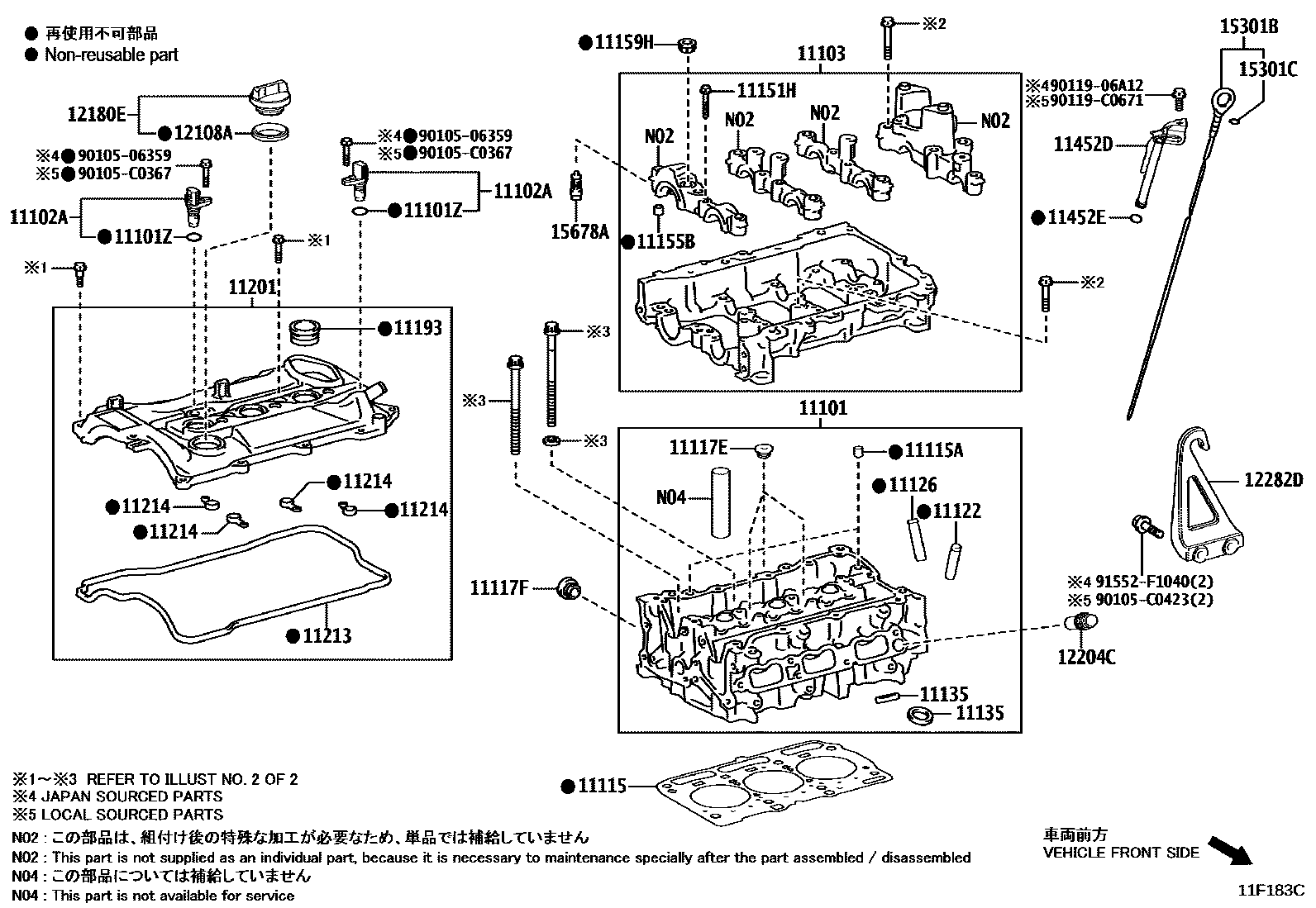

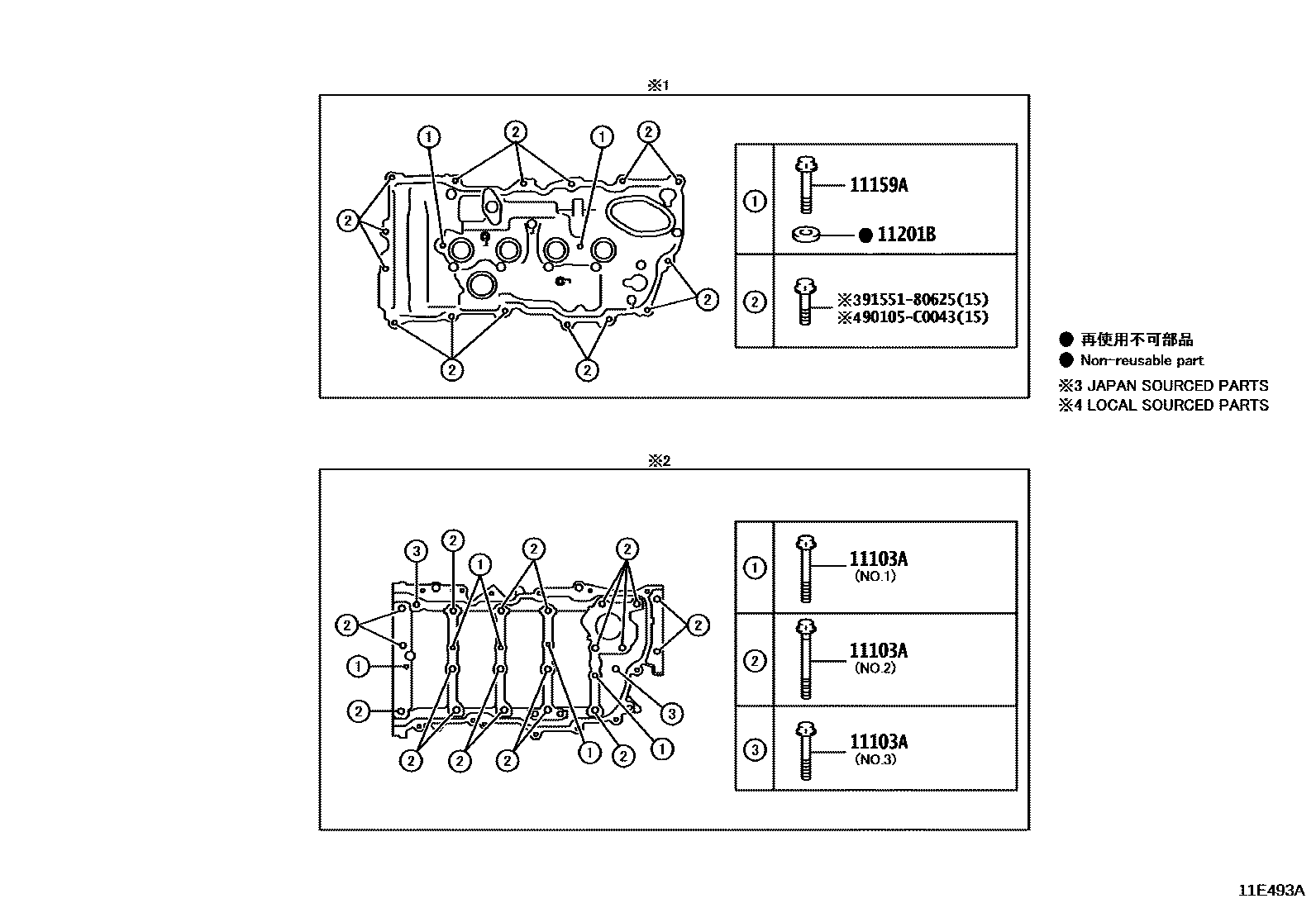

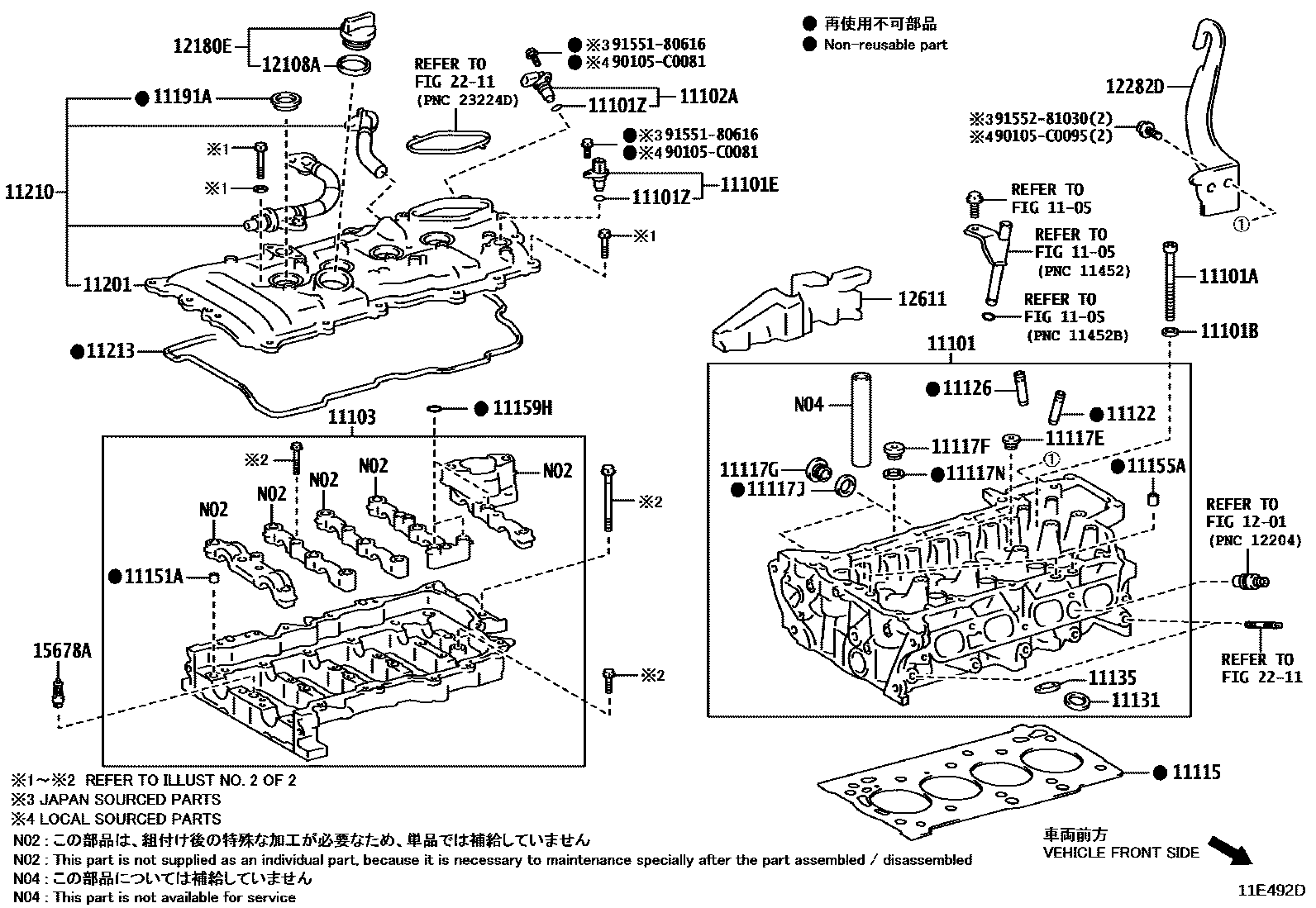

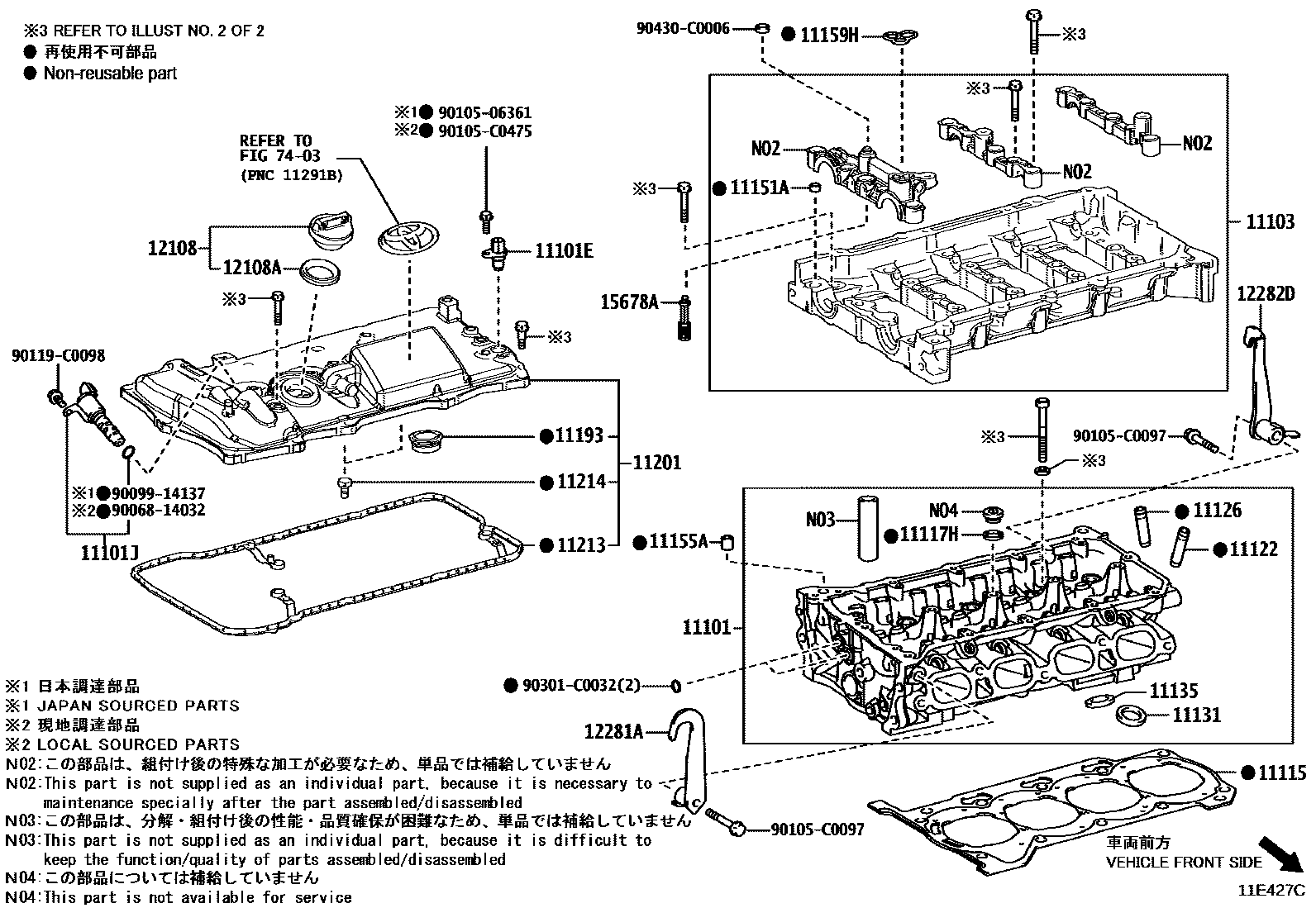

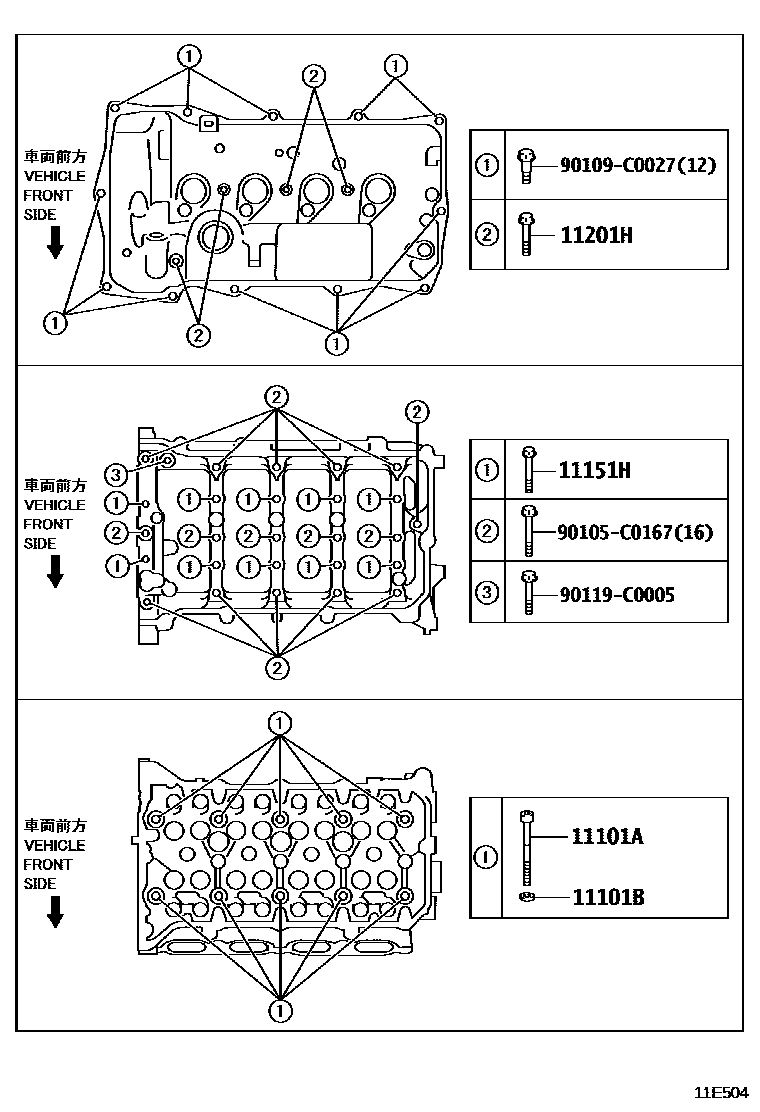

Toyota COROLLA Cylinder Head — Figure 1104
Toyota COROLLA EPC diagram 1104, Cylinder Head, with 6 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-09661 · 11101-09780 · 11101-19535 · 11101-49516 · 11101-80000 · 11101-F9090 · 11101-F9092 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02190 · 90910-02202 · 90910-02205 · 90910-C2002 · 90910-C2003 · 90910-C2004 · 90910-C2009 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-11034 · 90201-12079 · 90201-C0002 · 90201-C0007 |
| 11101E | Cam position sensor | 90919-05060 · 90919-C5001 |
| 11101J | Camshaft timing oil control valve assembly | 15330-0T030 |
| 11101Z | Cam position sensor O-ring | 90301-11038 · 90301-14016 |
| 11102A | Camshaft position sensor | 90919-05061 · 90919-05096 · 90919-C5002 · 90919-C5007 |
| 11103 | Camshaft housing sub-assembly | 11103-0T100 · 11103-0Y090 · 11103-0Y120 · 11103-15010 · 11103-47050 · 11103-47070 · 11103-F3050 |
| 11103A | Bolts (for camshaft housing assembly) | 90105-08455 · 90105-C0074 · 90105-C0167 · 90105-C0421 · 90119-07009 · 90119-C0469 · 91551-G0840 · 91551-G0845 |
| 11103F | Bolts (for camshaft housing assembly) | 90105-C0168 · 91551-G0865 |
| 11115 | GASKET, CYLINDER HEAD | 11115-0T020 · 11115-0T021 · 11115-0Y050 · 11115-15100 · 11115-47090 · 11115-F3010 |
| 11115A | PIN, RING | 90253-12002 · 90253-C0002 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-14015 · 90341-C0012 |
| 11117F | No. 2 headed straight thread plug | 90341-20002 · 90341-20012 |
| 11117G | No. 3 headed straight thread plug | 90341-27006 · 90341-C0017 |
| 11117H | Gasket (for coolant hole) | 90430-C0001 |
| 11117J | Gasket (for cylinder head thread plug) | 90430-27005 · 90430-C0009 |
| 11117N | Gasket (for No. 2 cylinder head threaded plug) | 90430-20004 · 90430-C0001 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-31050 · 11122-31090 · 11122-47010 · 11123-31050 · 11123-31090 · 11123-47010 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-31041 · 11122-47010 · 11123-31041 · 11123-47010 · 11126-31030 · 11126-31040 · 11127-31030 · 11127-31040 |
| 11131 | intake valve seat | 11131-0T050 · 11131-0Y090 · 11131-47040 · 11132-37050 · 11132-47040 |
| 11135 | Exhaust valve seat | 11135-0T050 · 11135-0Y060 · 11135-24020 · 11135-47050 · 11135-F2030 · 11136-37020 · 11136-47010 · 11136-47050 |
| 11151A | Ring pin (for securing camshaft bearing cap) | 90253-13005 · 90253-C0004 |
| 11151H | Bolts (for mounting camshaft bearing cap to camshaft housing) | 90119-07009 · 90119-C0469 |
| 11155A | PIN, RING W/HEAD | 90253-12002 · 90253-C0002 |
| 11155B | PIN, RING | 90253-13005 · 90253-C0004 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90105-C0084 · 91551-80635 |
| 11159H | Camshaft bearing cover oil hole gasket | 11159-0T030 · 11159-31040 · 11159-F2010 · 90430-10024 · 90430-C0006 |
| 11191A | Gasket (for spark plug bushing) | 11193-0Y020 · 11193-47020 |
| 11193 | spark plug bushing gasket | 11193-37030 · 11193-F2020 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-0Y100 · 11201-15030 · 11201-37061 · 11201-47161 · 11201-F3030 |
| 11201B | Gasket (for cylinder head cover) | 90210-05008 · 90210-C0003 |
| 11201H | Bolts (for cylinder head cover) | 90105-06359 · 90105-06361 · 90105-C0367 · 90105-C0475 · 90109-06384 · 90109-C0027 |
| 11210 | ENS. CACHE, CULASSE | 11210-0Y010 · 11210-47010 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-0Y040 · 11213-15100 · 11213-37050 · 11213-47050 |
| 11214 | No. 2 cylinder head cover gasket | 11213-31080 |
| 11452D | Engine oil level gauge guide | 11452-24020 · 11452-F2050 |
| 11452E | O-ring (for oil level gauge guide) | 90301-C0037 · 96741-19010 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-0T010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-35001 |
| 12180E | Oil filler cap assembly | 12180-0T010 · 12180-0V010 · 12180-38010 |
| 12204C | Ventilation valve sub-assembly | 12204-25010 · 12204-F2020 |
| 12281A | Engine No. 1 hanger | 12281-0T020 |
| 12282D | ENGINE HANGER, NO.2 | 12282-0T020 · 12282-0Y070 · 12282-25010 · 12282-47030 · 12282-F2010 |
| 12611 | Engine hood No. 1 | 12611-47110 |
| 15301B | Engine oil level scoring assembly | 15301-15060 · 15301-F3030 |
| 15301C | O-ring (for engine oil level gauge) | 90301-C0083 · 96741-19005 |
| 15678A | Oil control valve filter | 15678-0T020 · 15678-0Y020 · 15678-46020 |
