Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 8 images and 2 PNC and OE references.

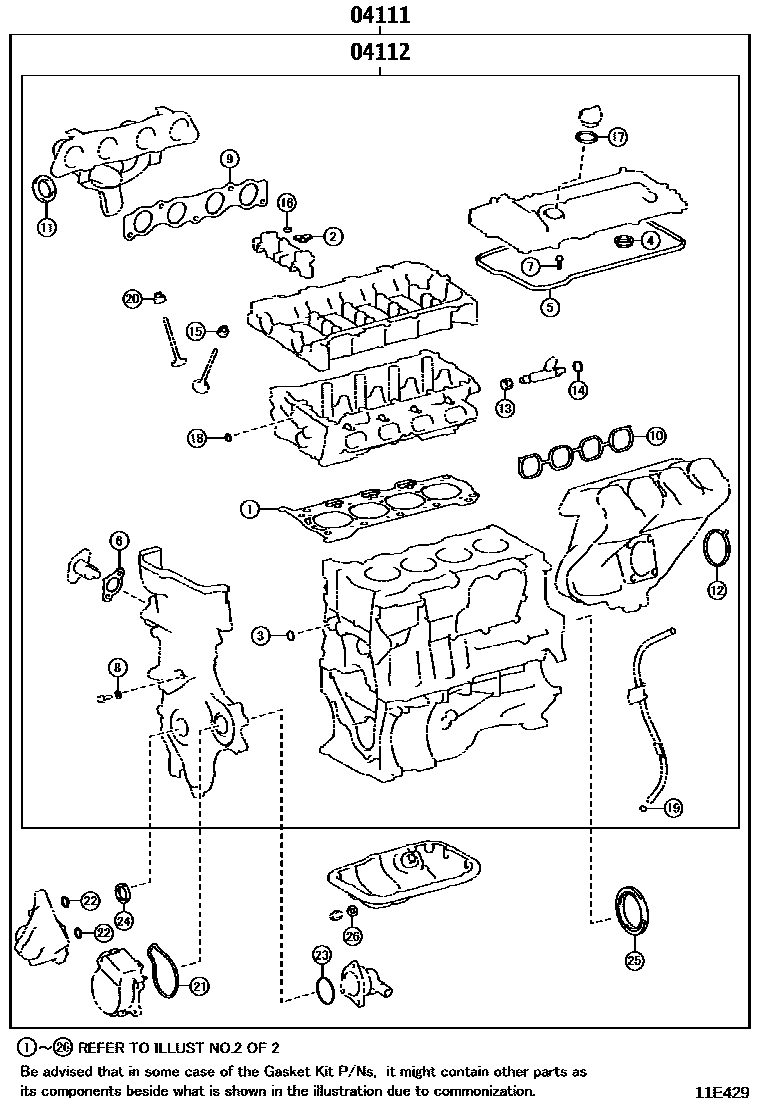

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E429
Engine Overhaul Gasket Kit — 11E429 (201908 – 999999)

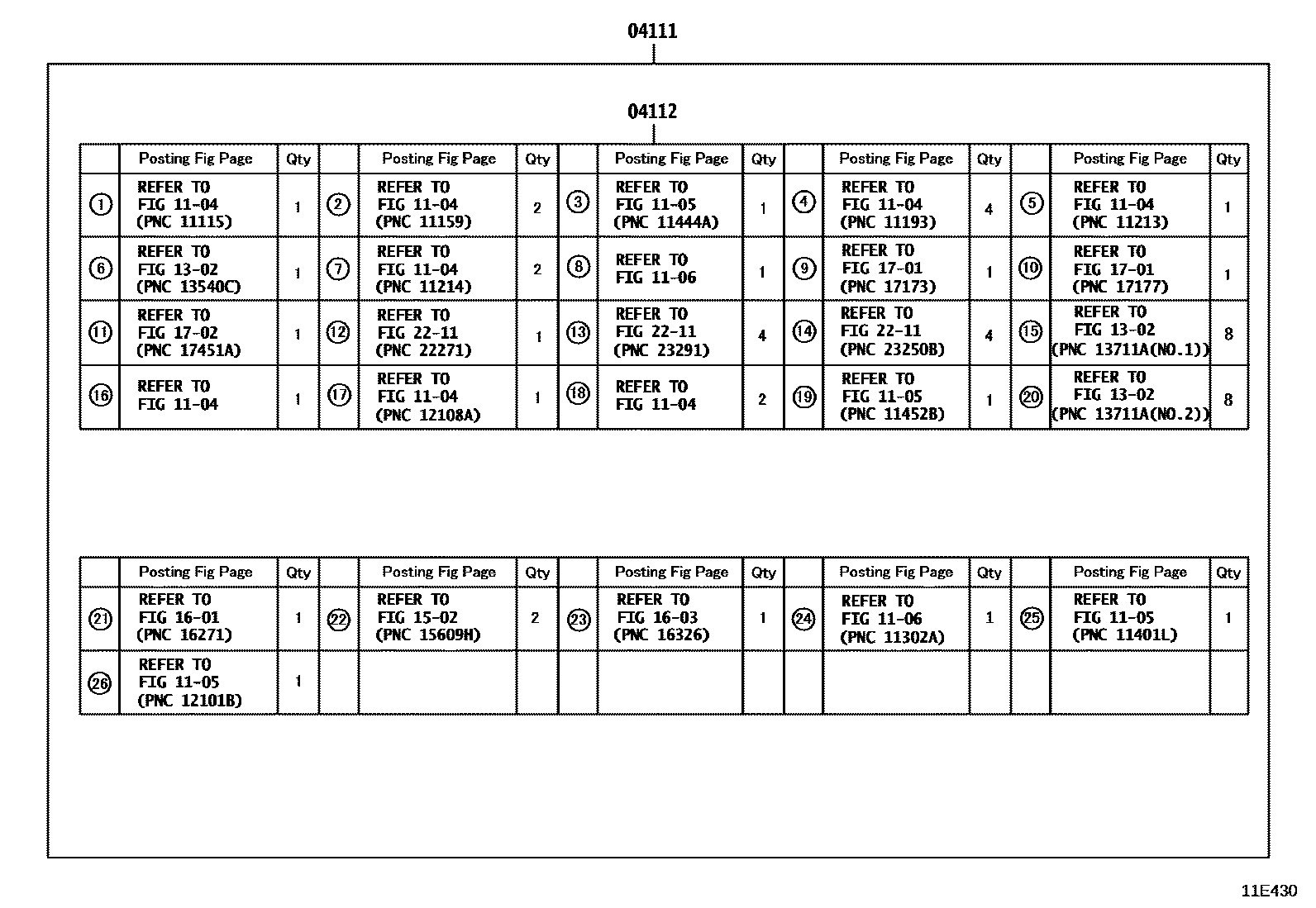

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E430
Engine Overhaul Gasket Kit — 11E430 (201908 – 999999)

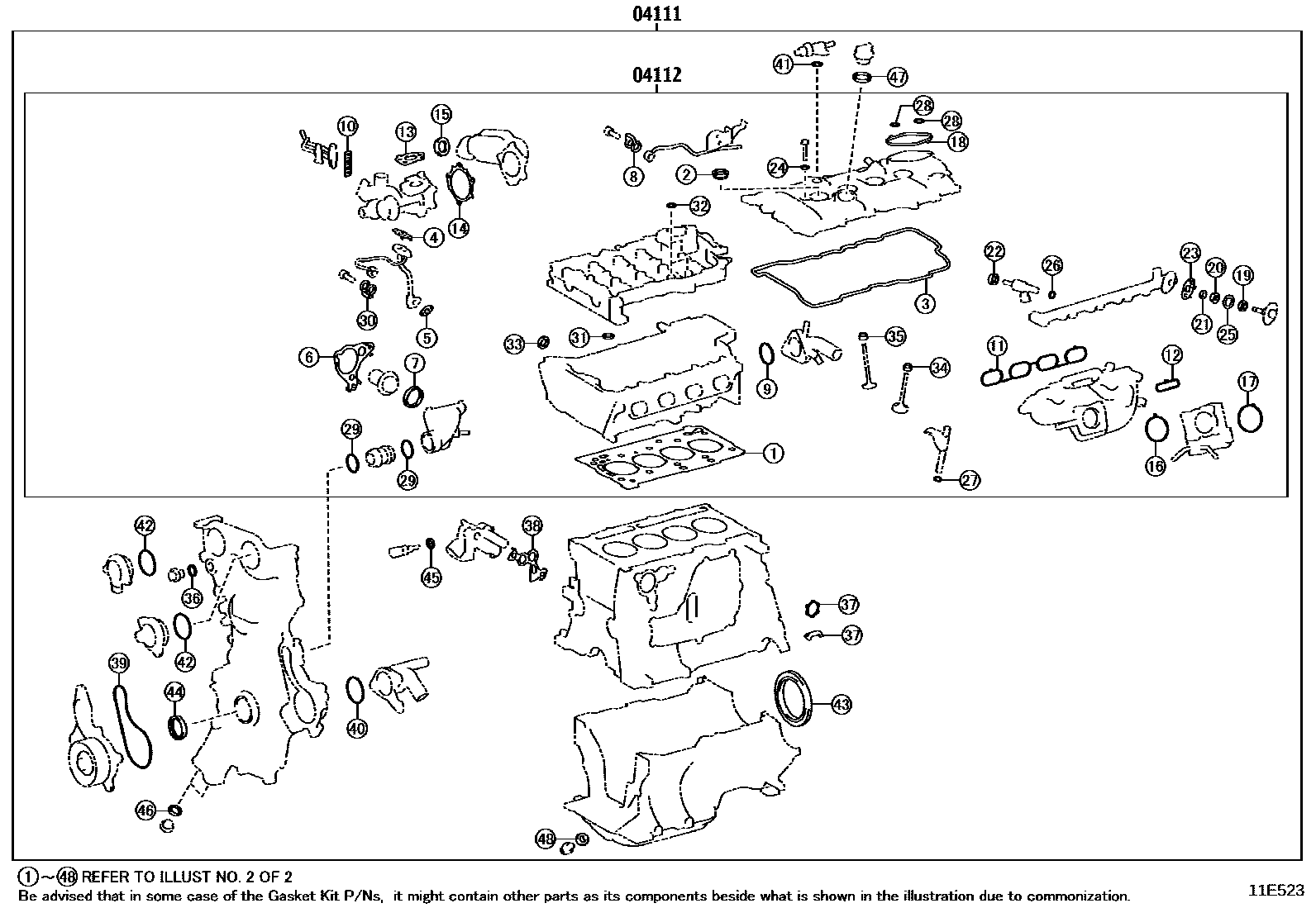

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E523
Engine Overhaul Gasket Kit — 11E523 (201908 – 999999)

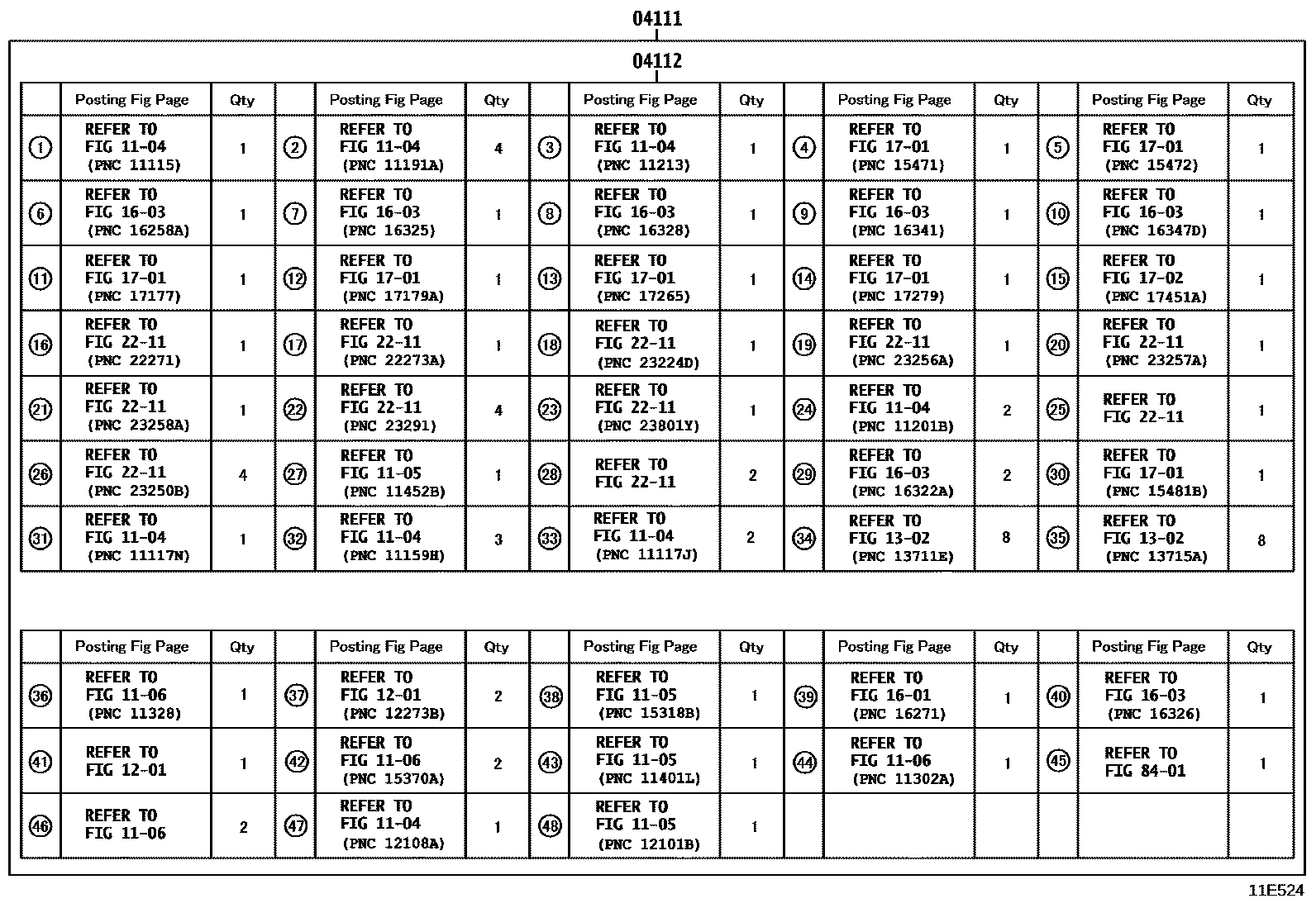

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E524
Engine Overhaul Gasket Kit — 11E524 (201908 – 999999)

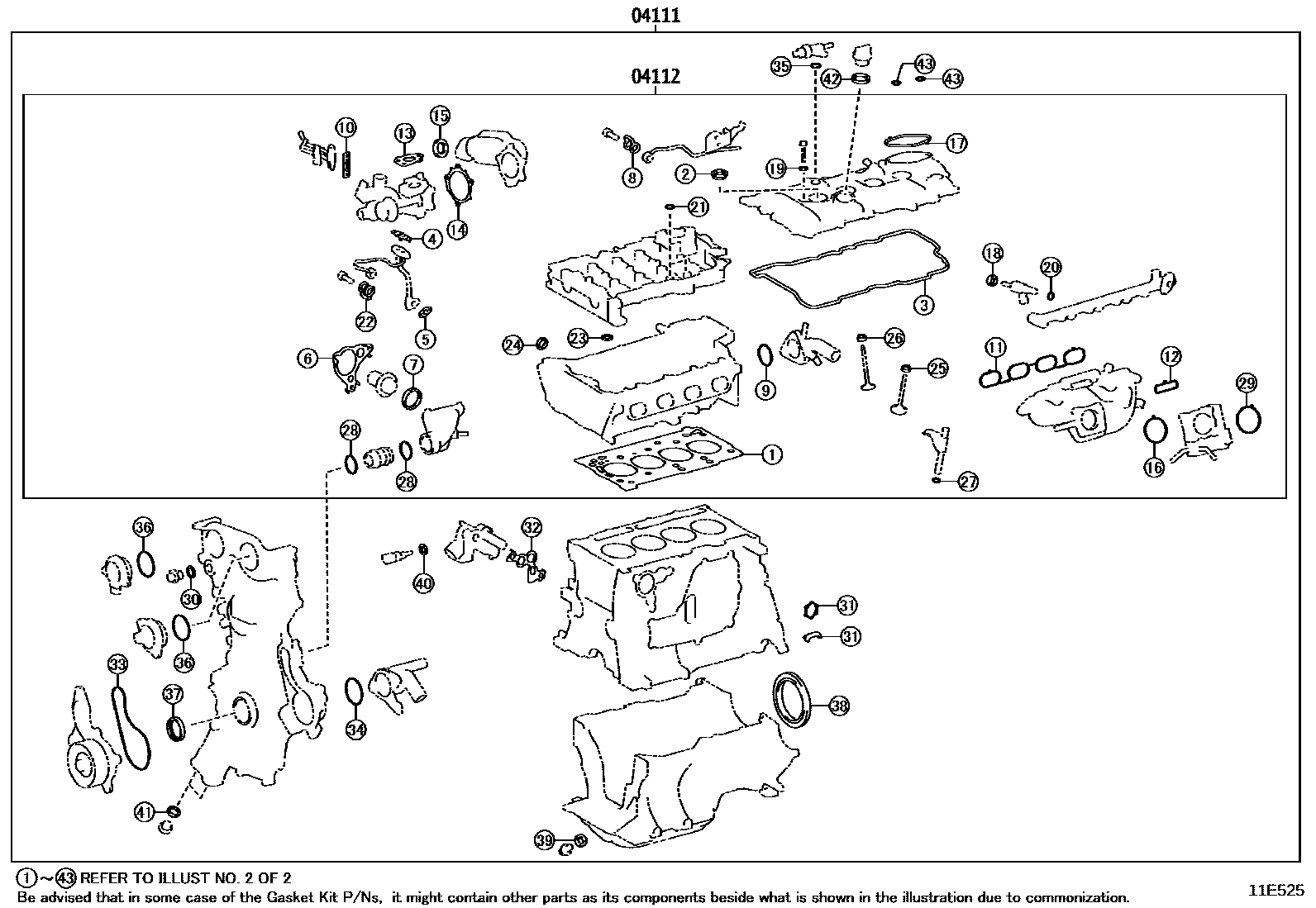

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E525
Engine Overhaul Gasket Kit — 11E525 (201908 – 999999)

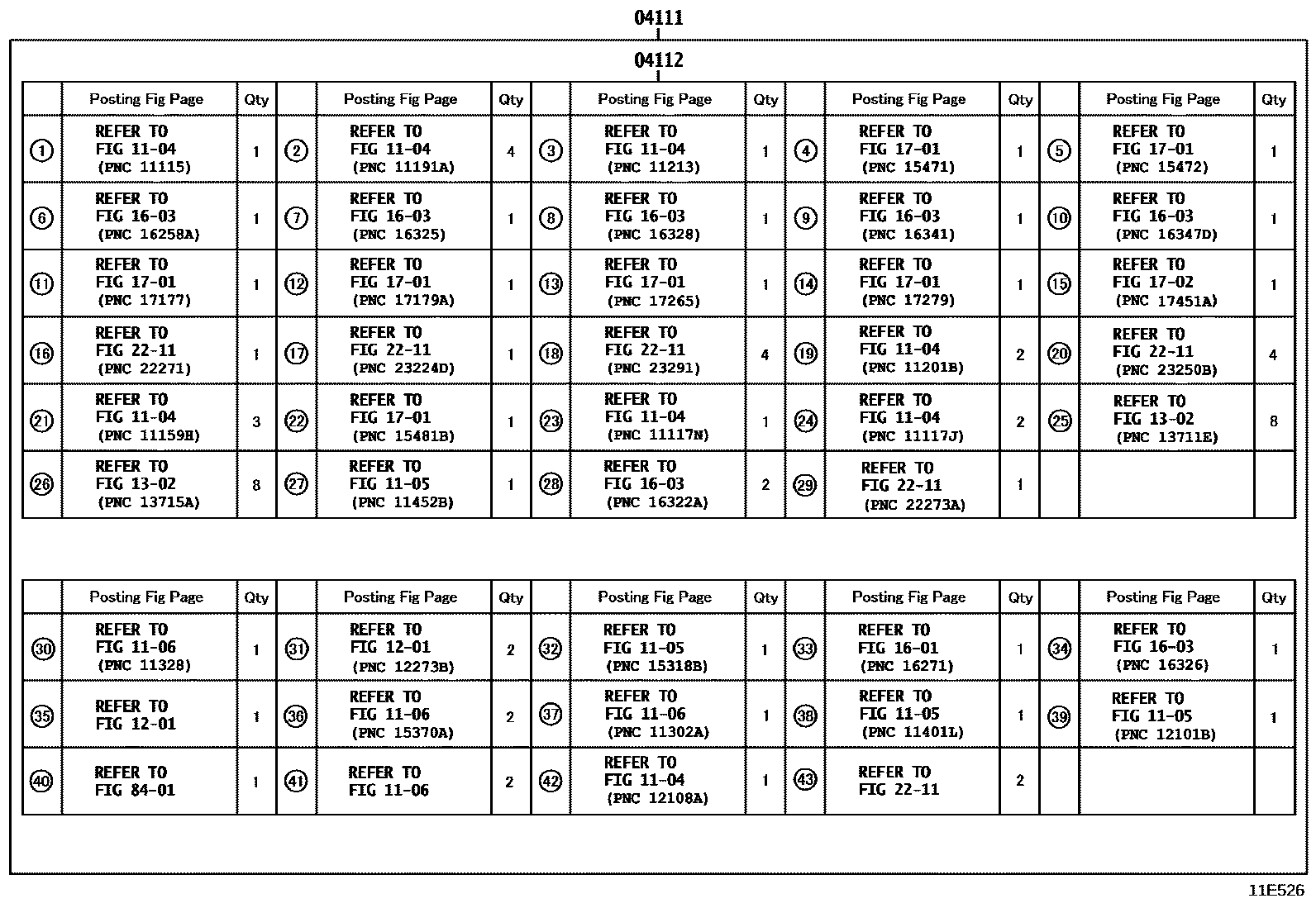

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11E526
Engine Overhaul Gasket Kit — 11E526 (201908 – 999999)

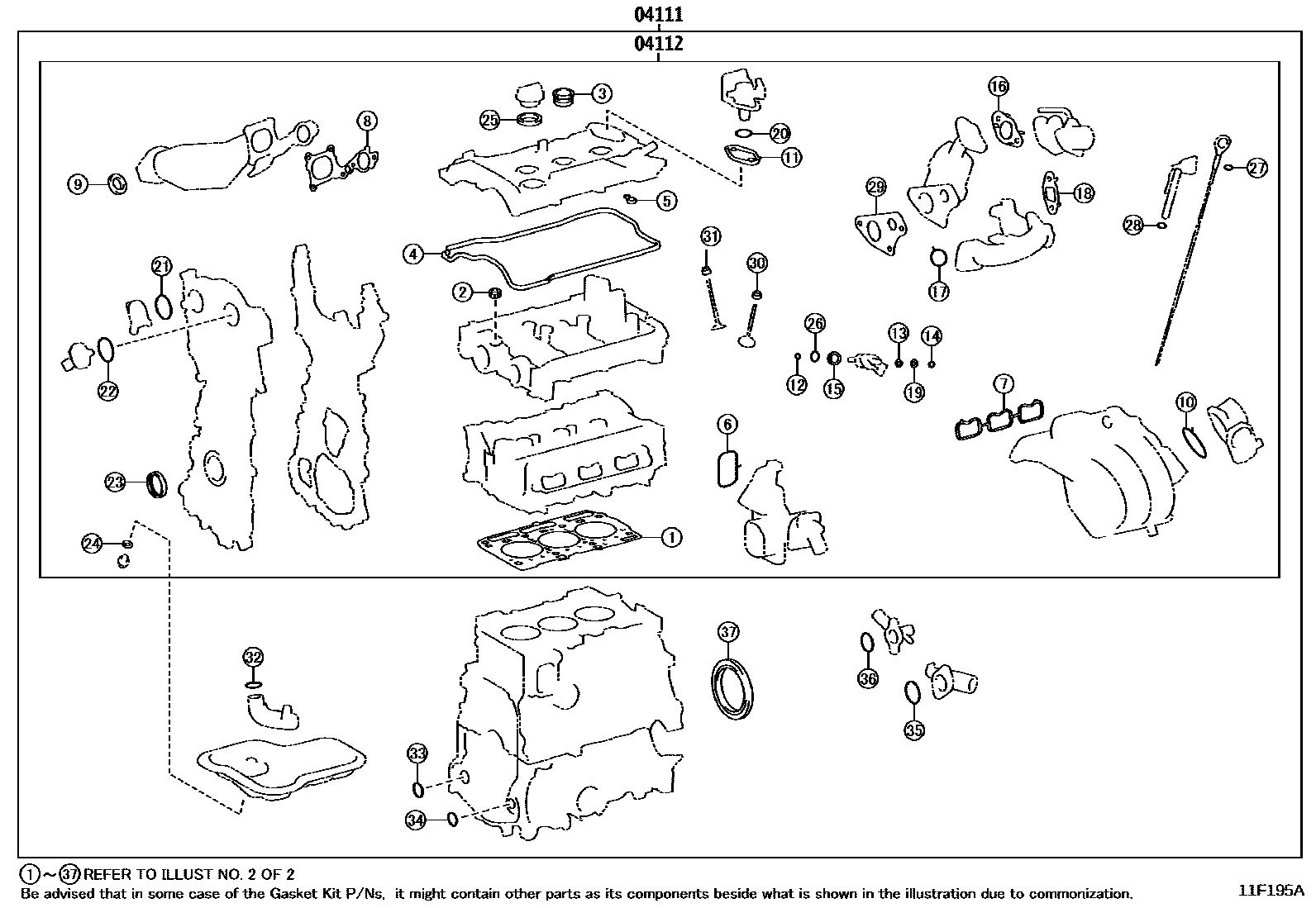

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11F195A
Engine Overhaul Gasket Kit — 11F195A (202101 – 999999)

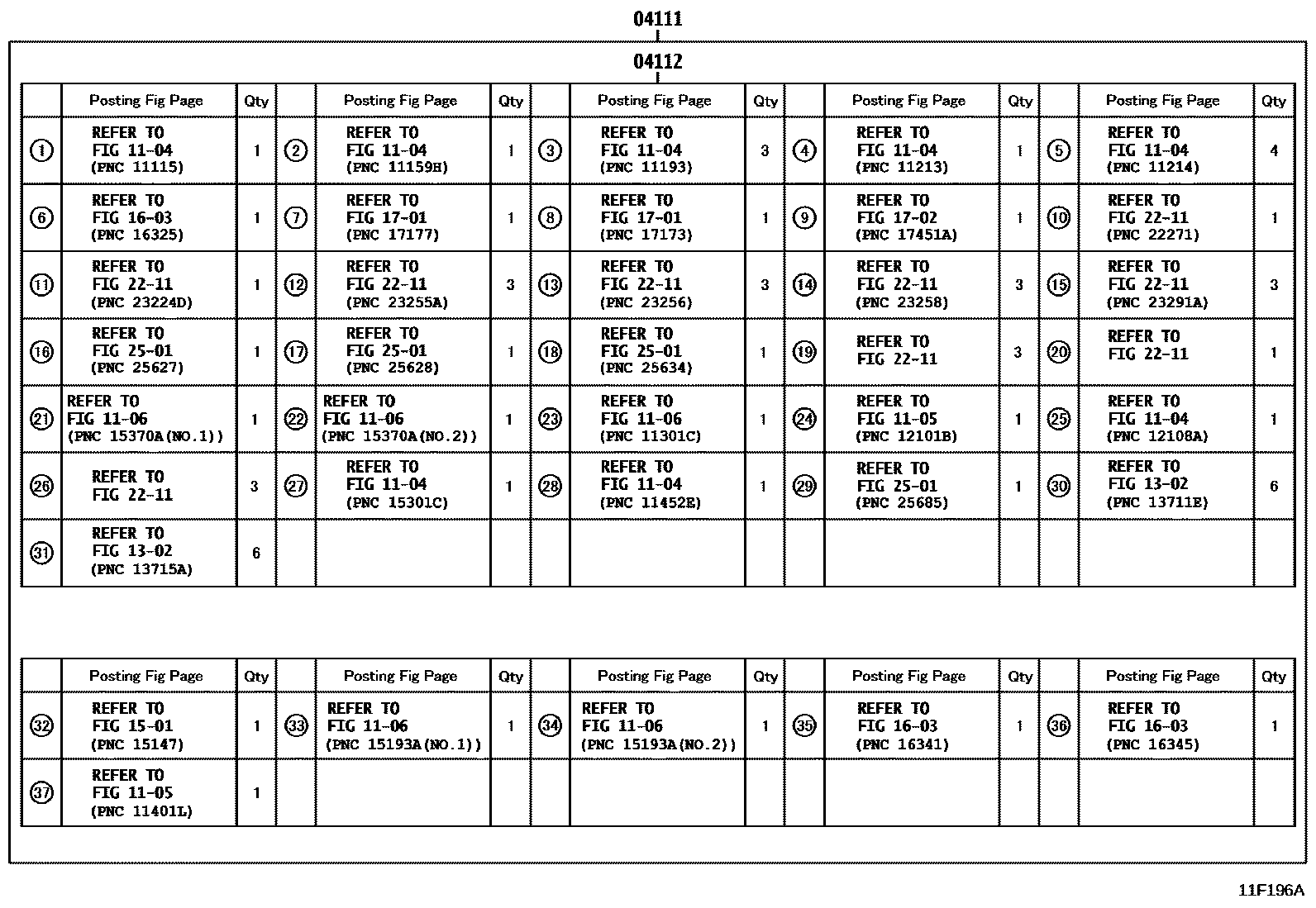

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11F196A
Engine Overhaul Gasket Kit — 11F196A (202101 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0T310 · 04111-0T320 · 04111-0T330 · 04111-0T331 · 04111-0Y120 · 04111-47272 · 04111-F3030 · 04111-F3031
04112Engine valve grinding pad assembly04112-0T260 · 04112-0T270 · 04112-0T280 · 04112-0T281 · 04112-0Y120 · 04112-47182 · 04112-F3030 · 04112-F3031
