Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

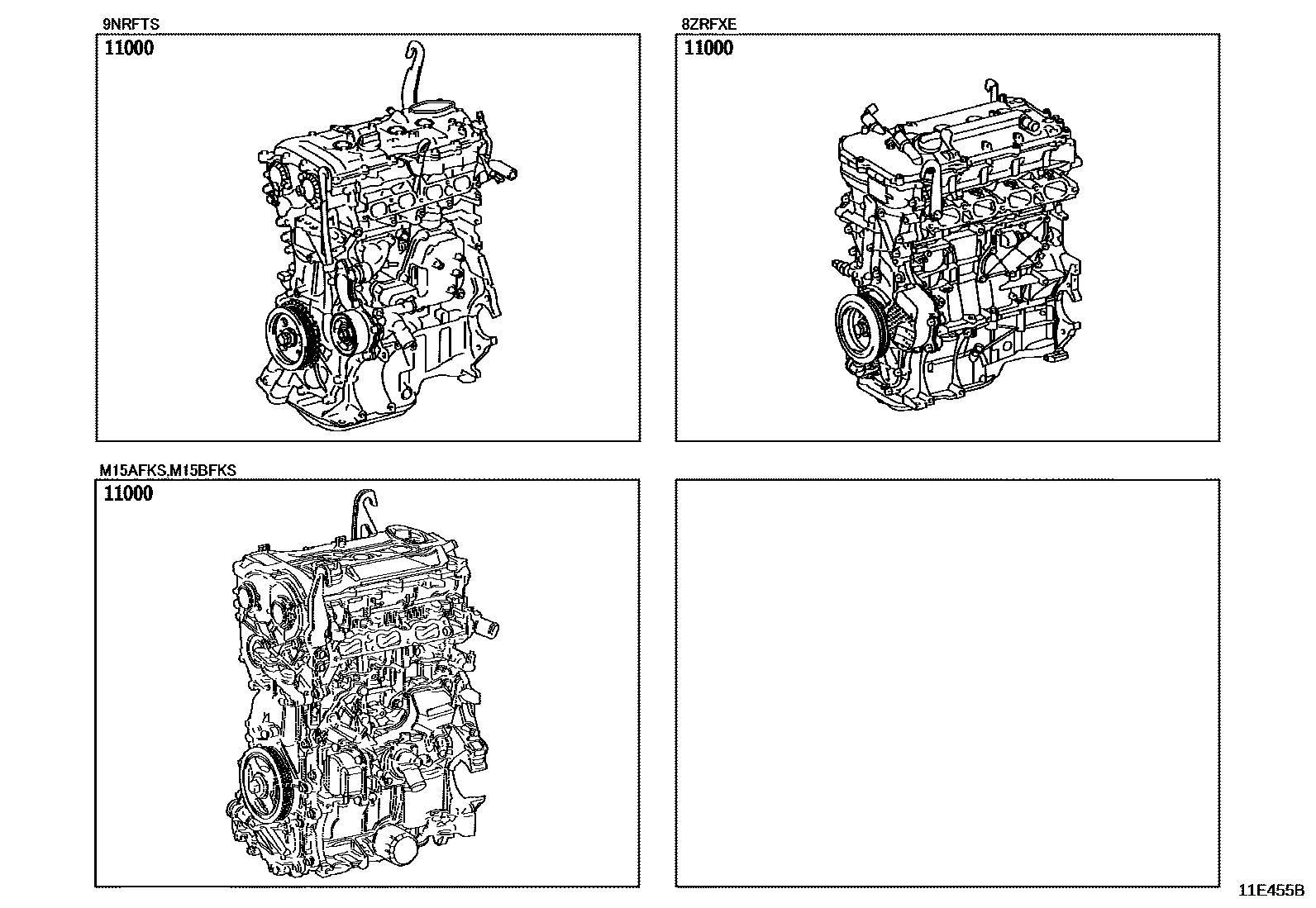

Toyota COROLLA Partial Engine Assembly EPC diagram — 11E455B
Partial Engine Assembly — 11E455B (201908 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-0T740 · 19000-0T870 · 19000-0Y320 · 19000-15390 · 19000-47520 · 19000-F3030
