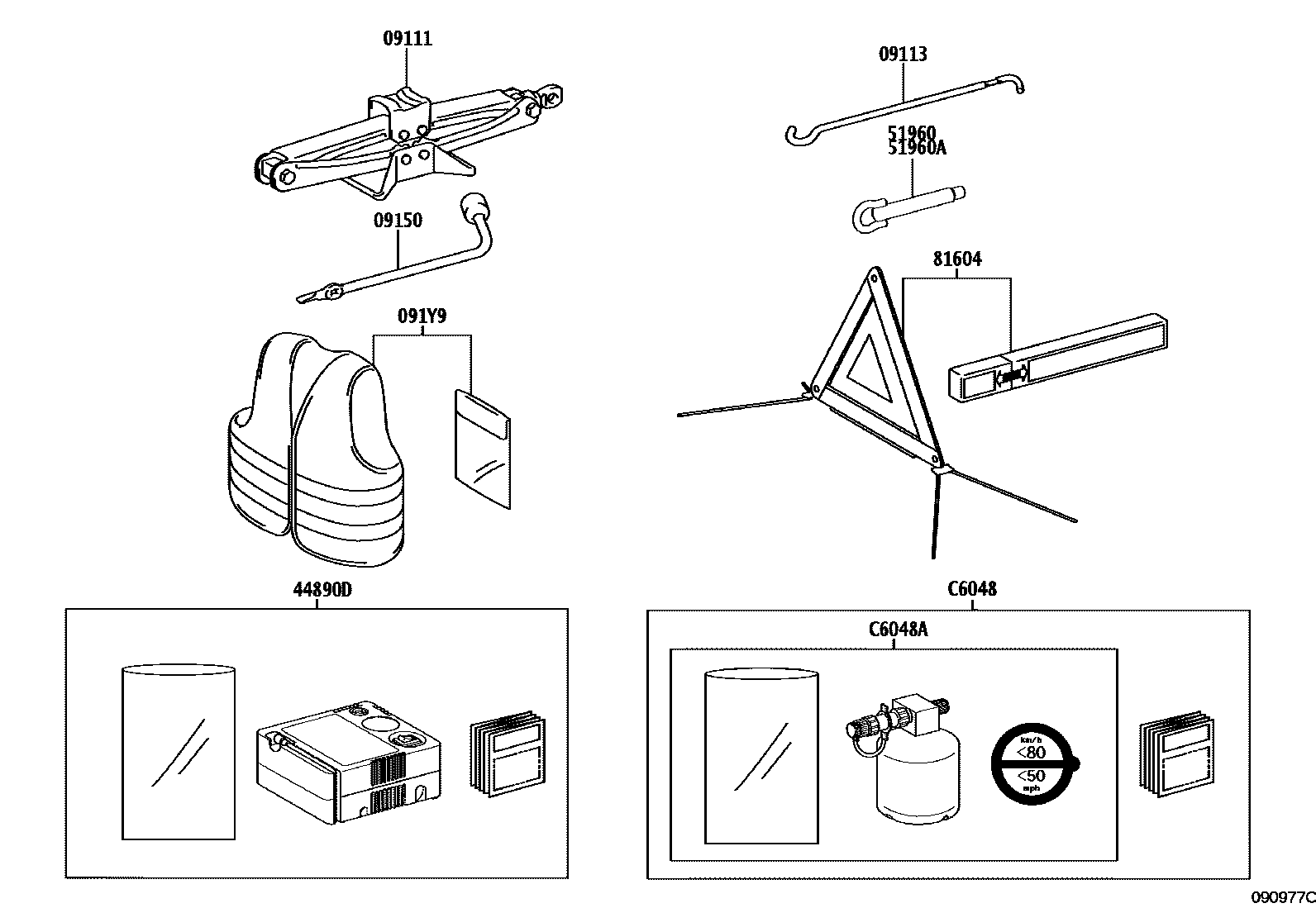

Toyota COROLLA Standard Tools — Figure 0901
Toyota COROLLA EPC diagram 0901, Standard Tools, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09111 | Jack sub-assembly | 09111-F4031 |
| 09113 | Jack Handle | 09113-0R030 |
| 09150 | Wheel Nut Wrench Case | 09150-0R020 |
| 091Y9 | Sheath with reflector | 091Y9-02020 |
| 44890D | Air Compressor Assembly | 44890-03020 |
| 51960 | Front Towing Hook Assembly | 51960-02220 |
| 51960A | Rear Towing Hook Assembly | 51960-02220 |
| 81604 | Triangular reflector assembly | 81604-02030 |
| C6048 | Tire Repair Kit | 42606-02020 · 42606-03020 |
| C6048A | Tire Repair Sealant | C6048-02040 |
