Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

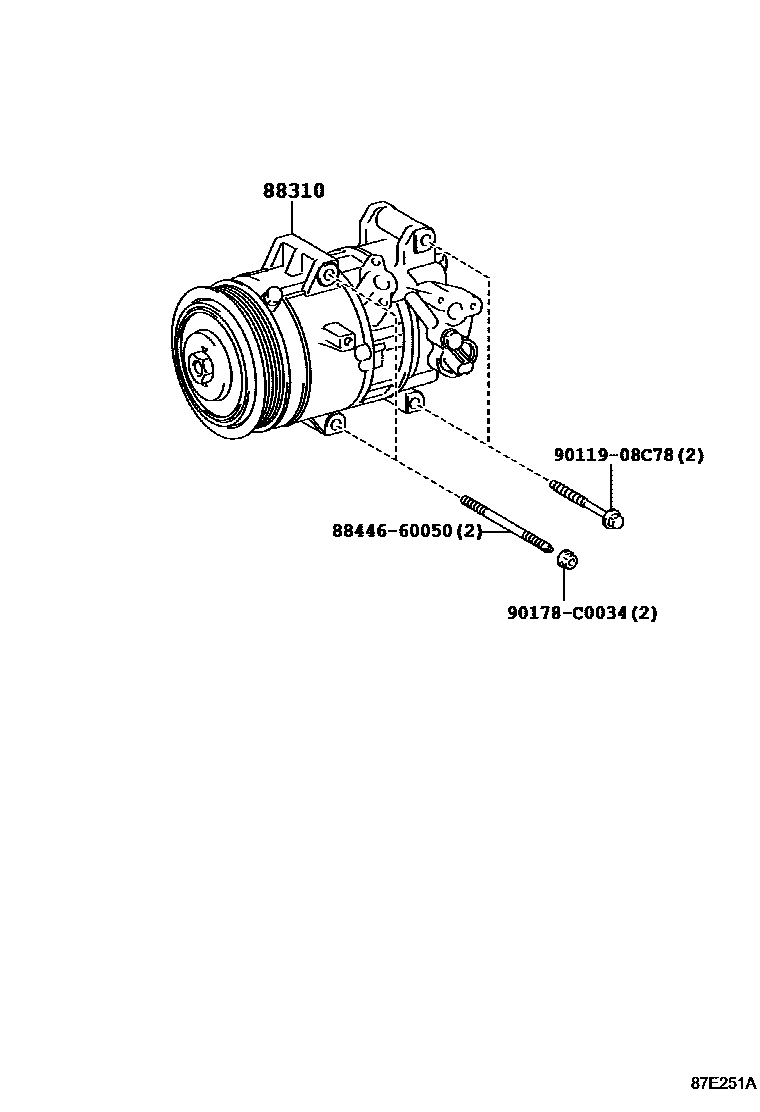

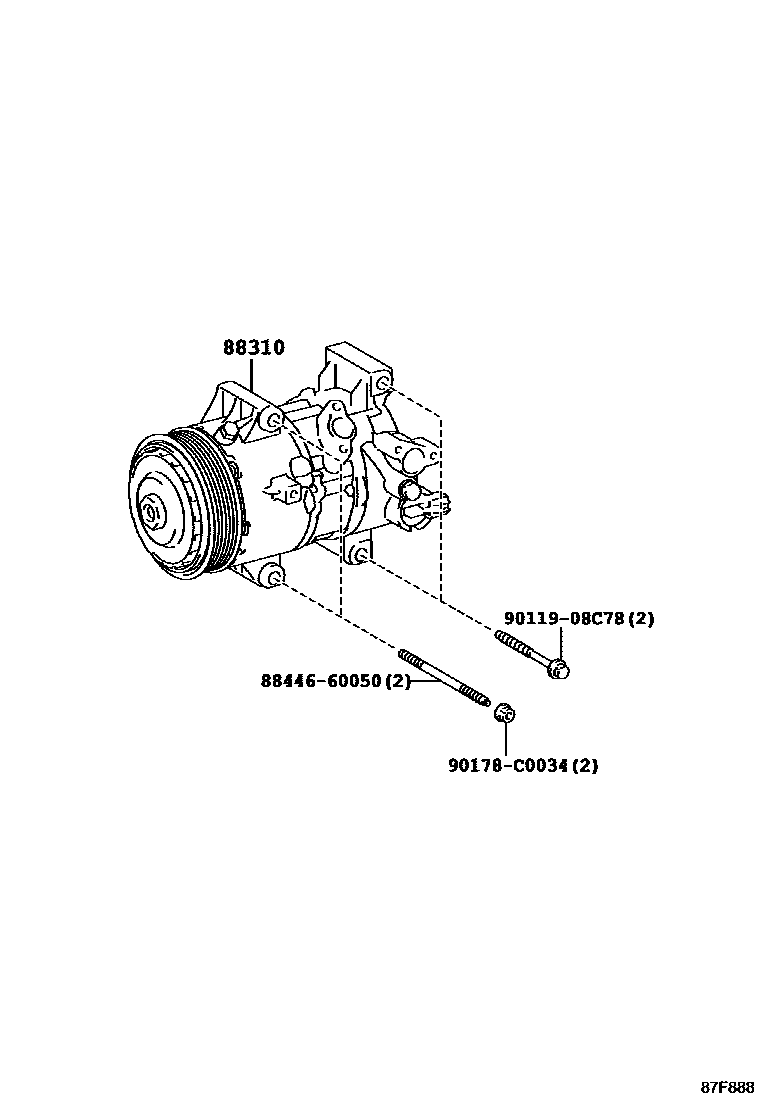

| 88310 | Compressor assembly with pulley | 88310-02A70 · 88310-02A71 · 88310-02A72 · 88310-02B40 |

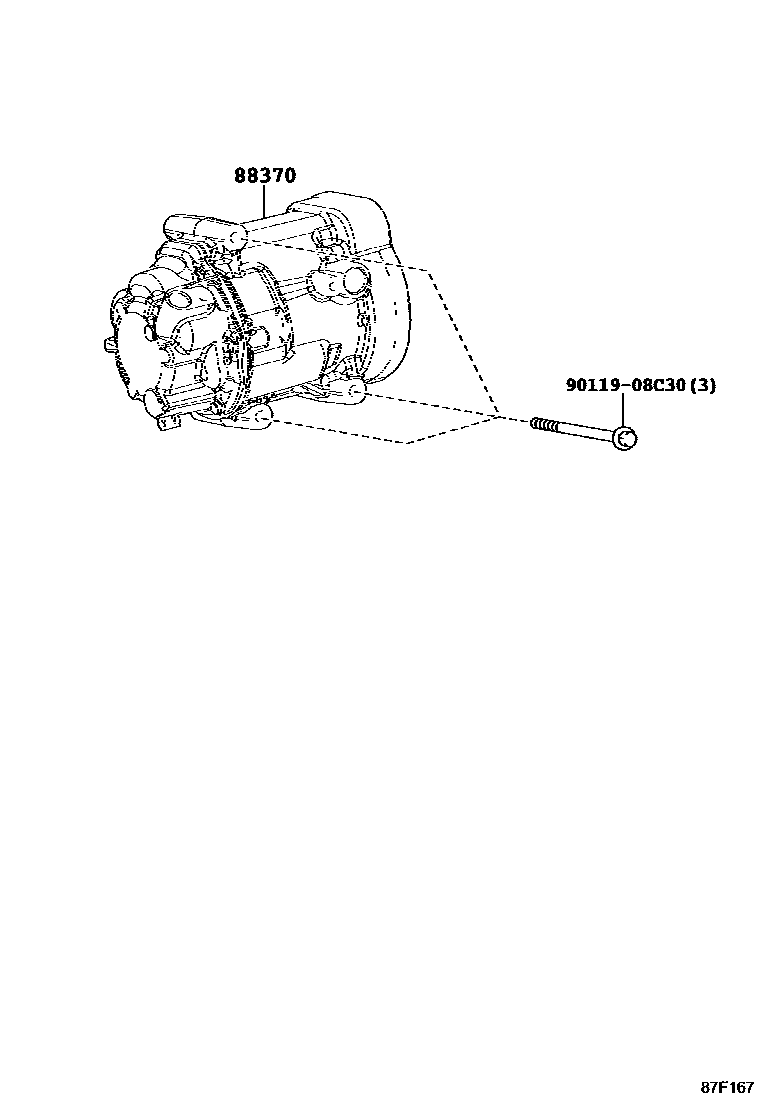

| 88370 | Compressor assembly with motor | 88370-12020 · 88370-12021 |
