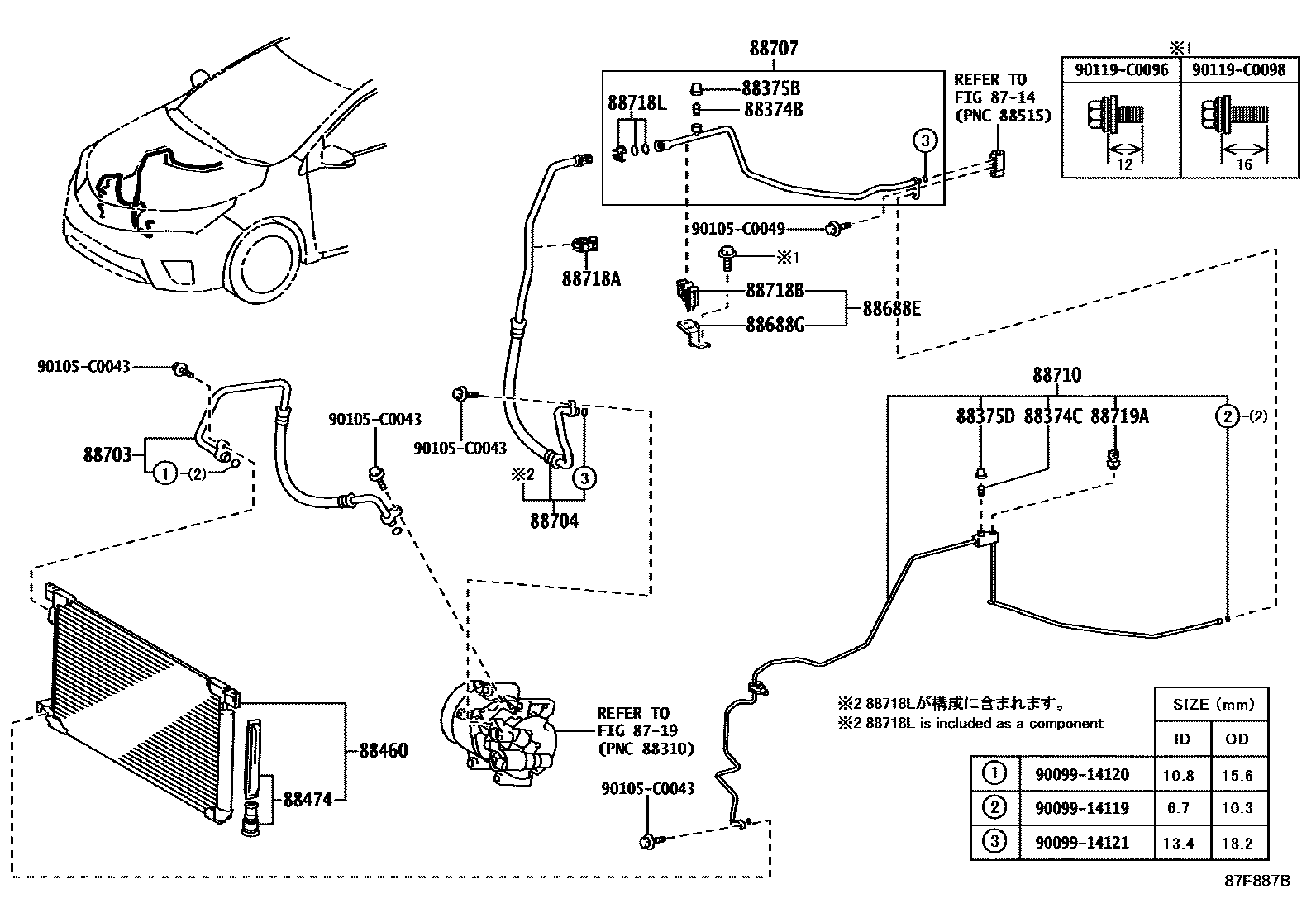

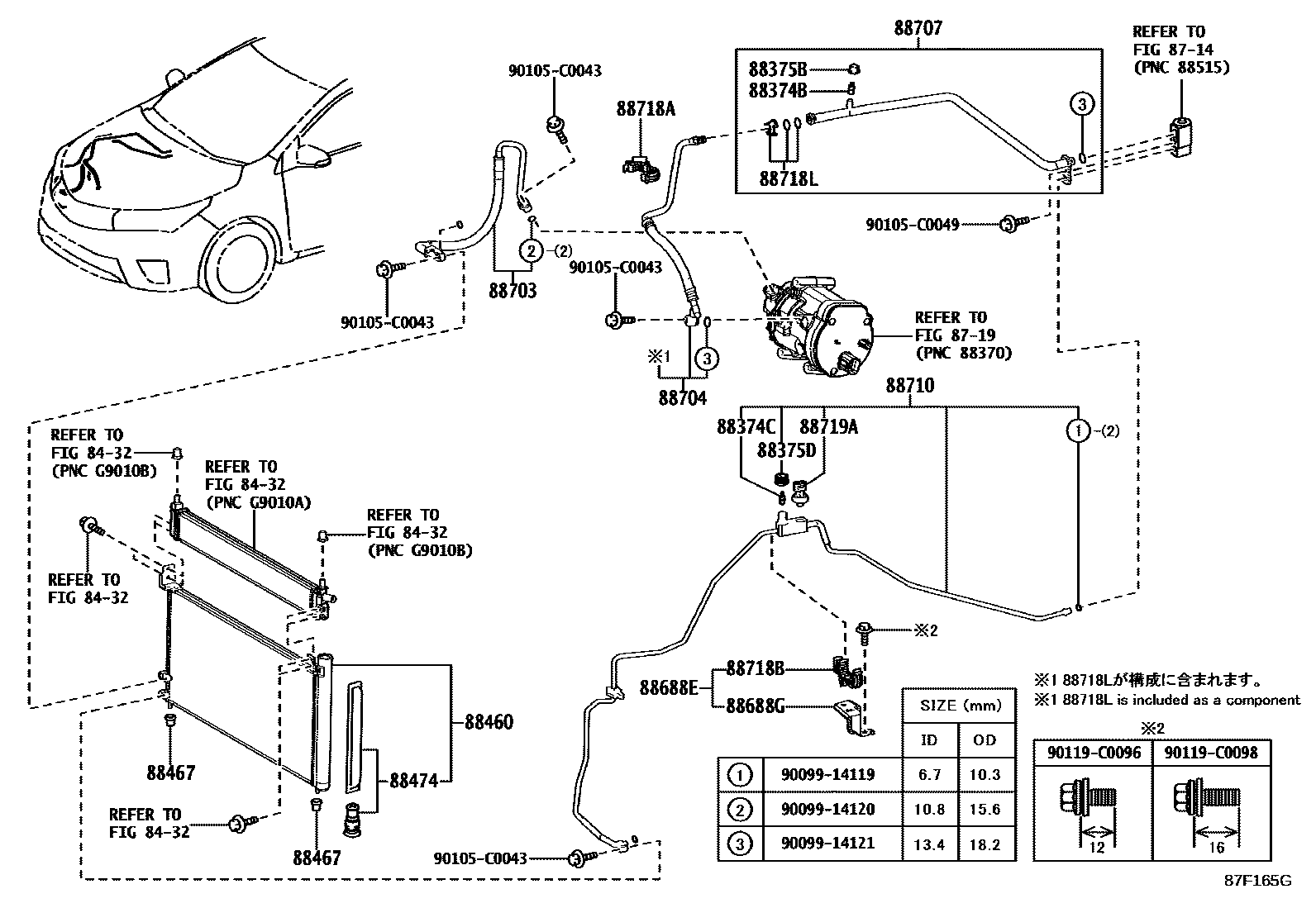

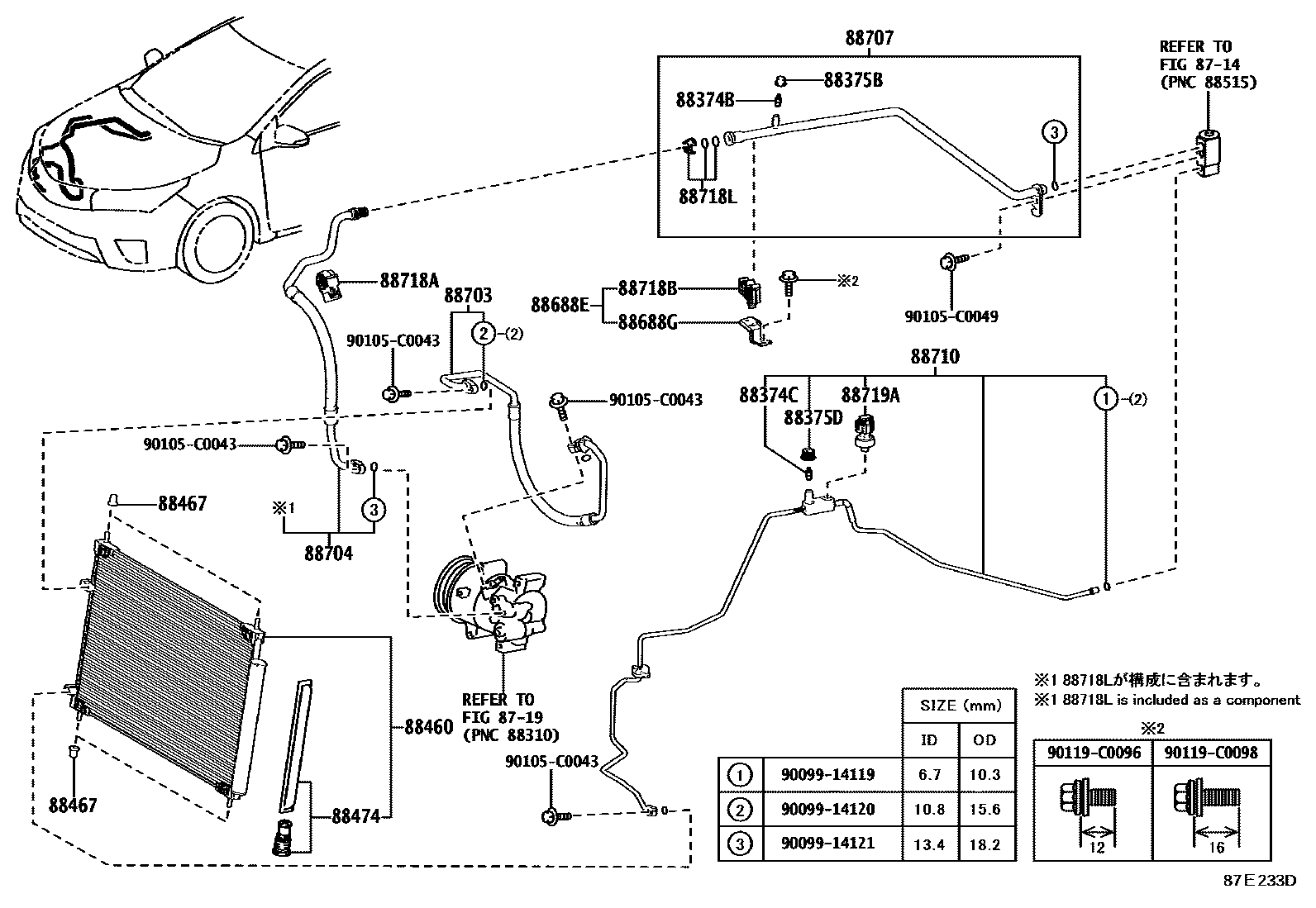

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-0D010 · 88375-30280 |
| 88460 | Air conditioning condenser assembly | 88450-02440 · 88450-02540 · 88450-02610 · 884A0-02260 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-02120 |
| 88474 | cooler dryer | 88474-12010 · 88474-12020 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-02A60 · 88688-02A61 · 88688-02B10 · 88688-02C10 |
| 88688G | Cooler refrigerant pipe bracket | 88688-02B30 · 88688-02B90 |
| 88703 | Discharge hose sub-assembly | 88703-02B00 · 88703-02B20 · 88703-02B90 |
| 88704 | Oil suction hose sub-assembly | 88704-02B30 · 88704-02B50 · 88704-02C30 |
| 88707 | Suction pipe sub-assembly | 88707-02350 · 88707-02400 · 88707-02420 |
| 88710 | Air conditioning pipe assembly | 88710-02A50 · 88710-02A90 · 88710-02B10 · 88710-02B40 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-02680 |
| 88718B | Clamp No. 2 (for cooler refrigerant pipe) | 88718-02750 · 88718-02A40 · 88718-02B20 |
| 88718L | Pipe clamp | 88718-52260 · 88718-52280 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
