Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

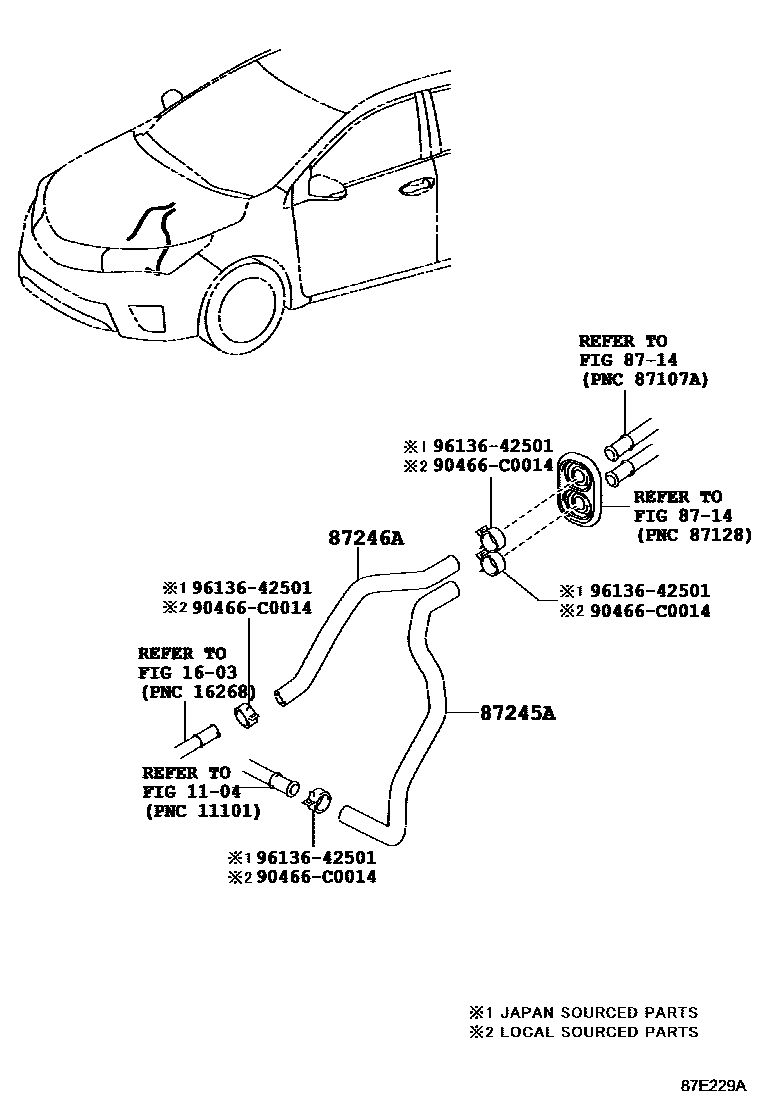

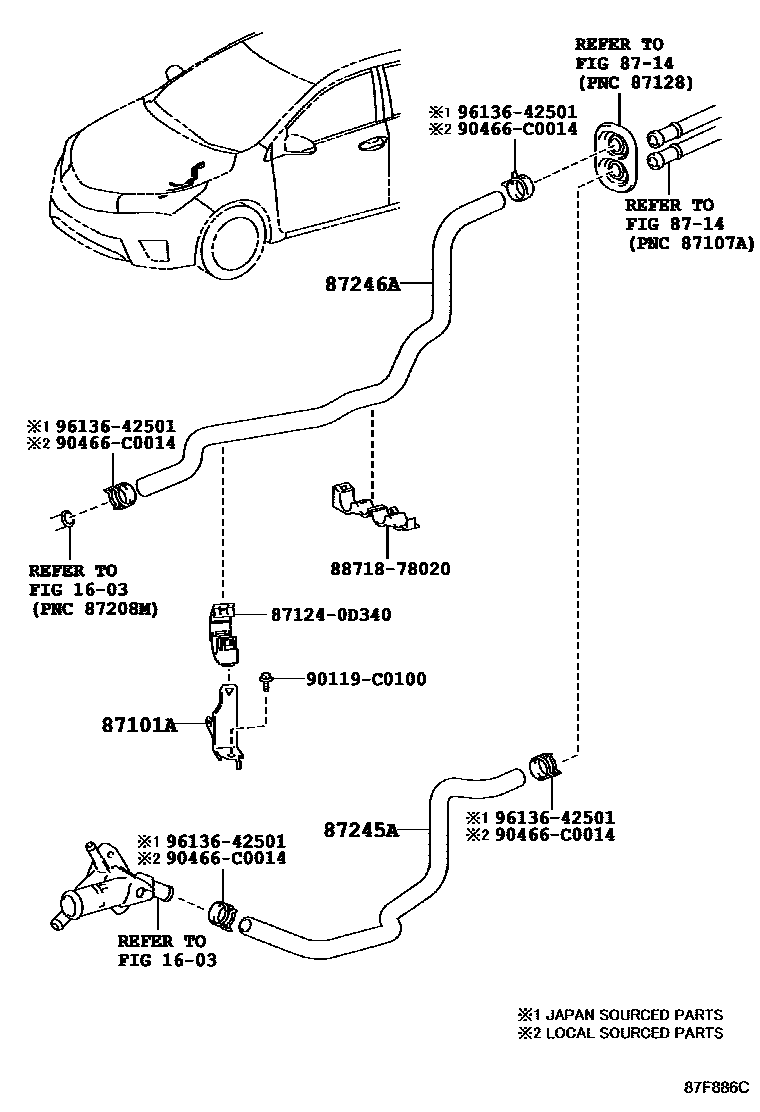

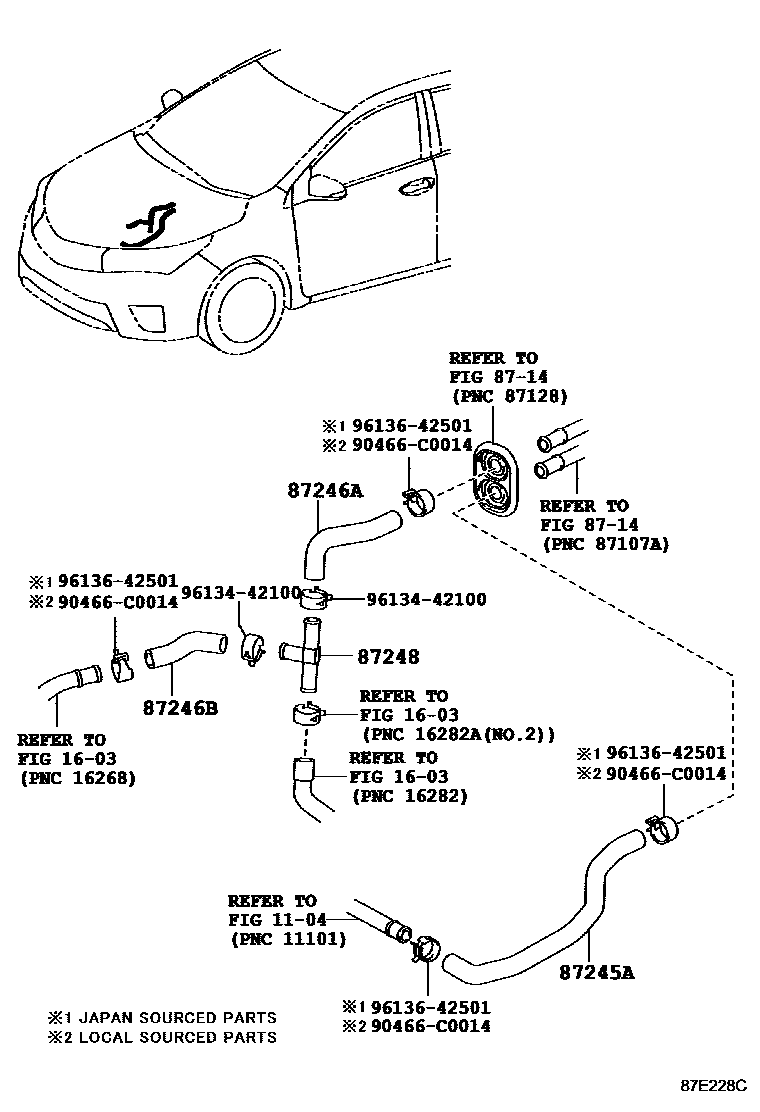

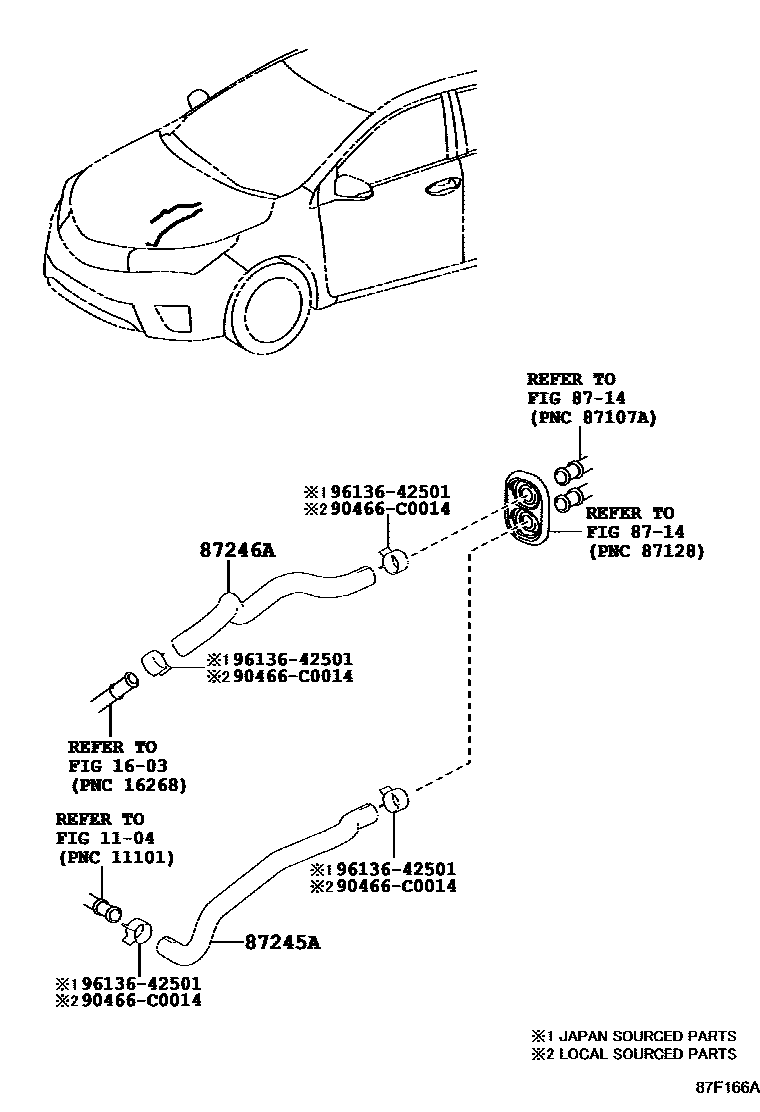

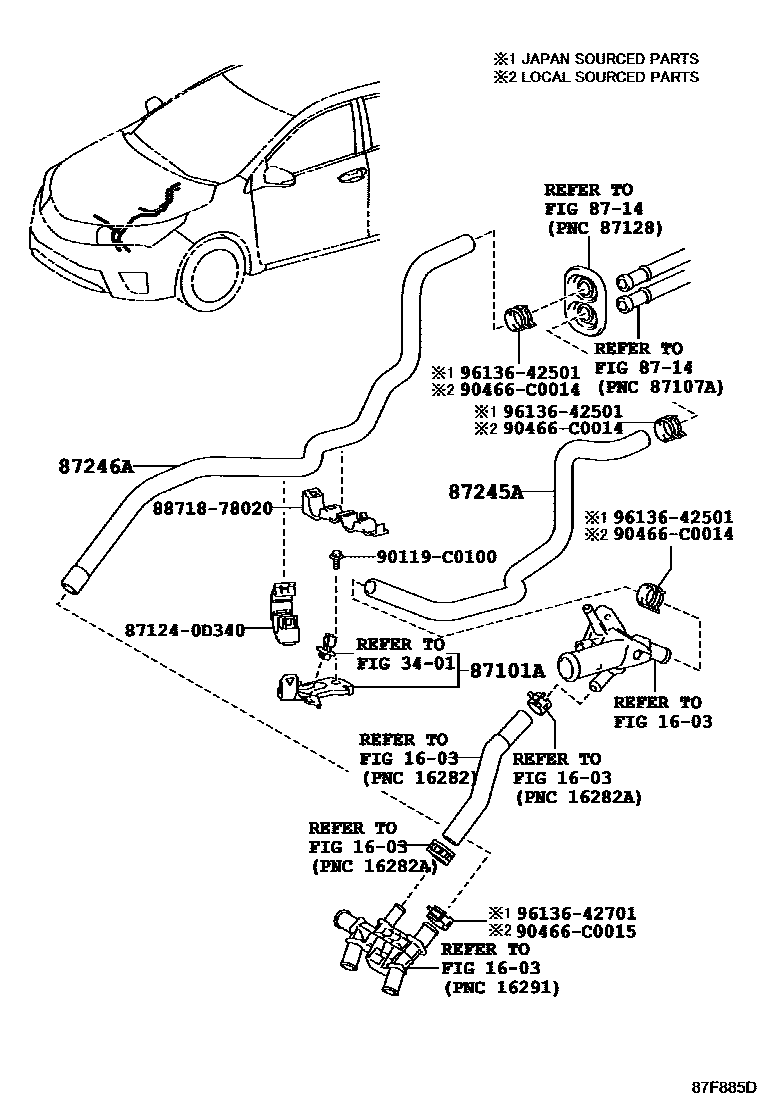

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 5 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87101A | No. 1 heater bracket sub-assembly | 87101-02140 · 87121-02030 |
| 87245A | Heater water inlet hose A | 87245-02C40 · 87245-02G40 · 87245-02P10 |
| 87246A | Heater outlet hose A | 87245-02C50 · 87245-02L00 · 87245-02P20 · 87245-02Q30 · 87245-02Q40 |
| 87246B | Heater outlet hose B | 87245-02L10 |
| 87248 | Water pipe sub-assembly | 87248-12300 |
