Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

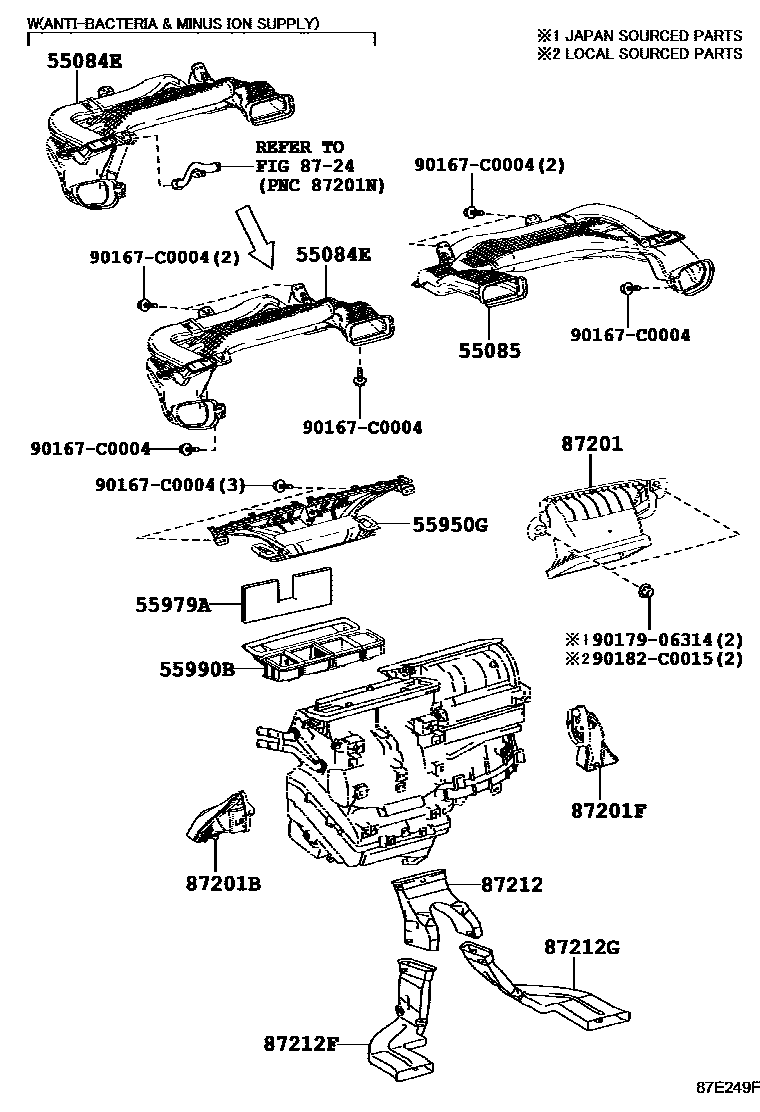

| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-02330 · 55084-02360 · 55084-02540 · 55084-02550 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55086-02330 · 55086-02490 |

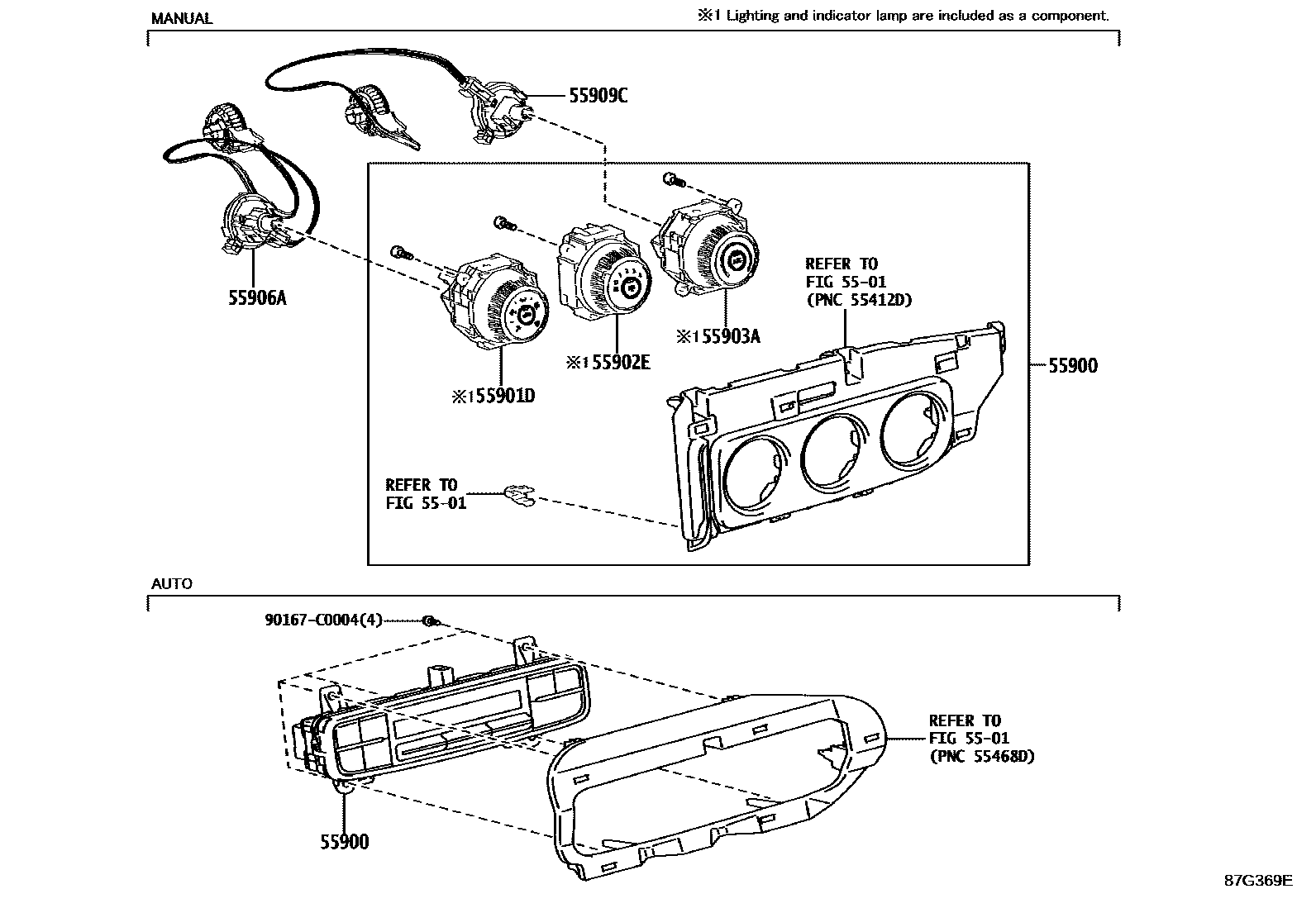

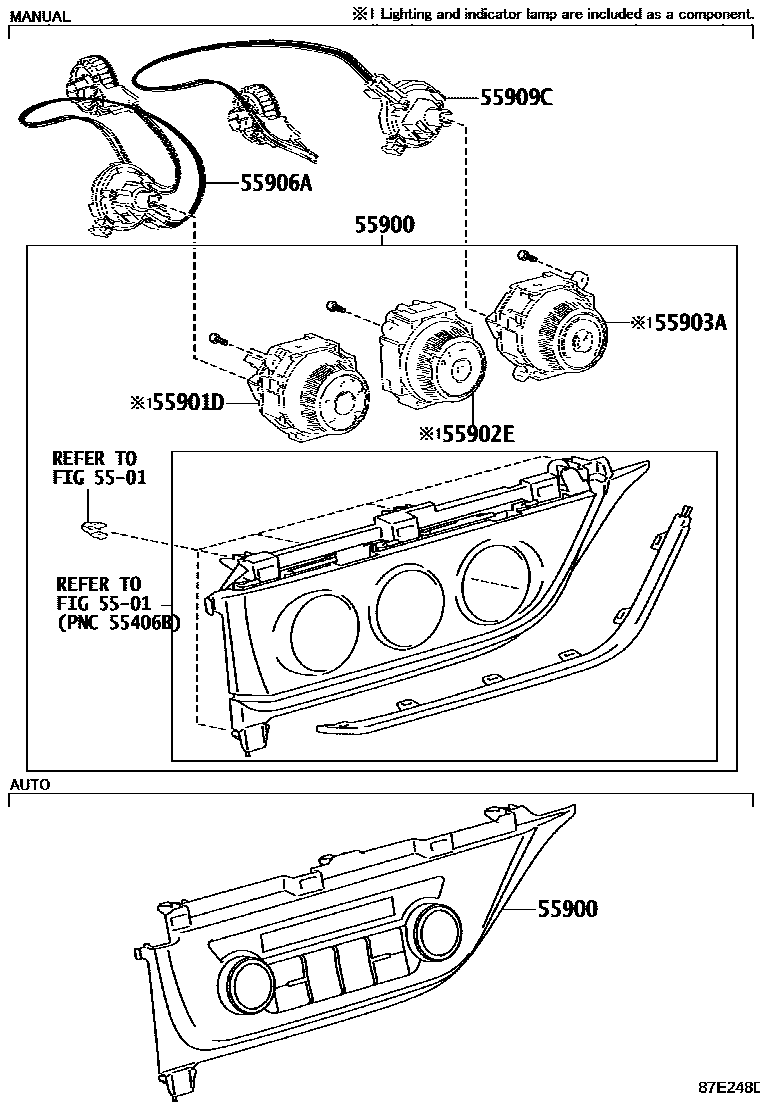

| 55900 | Air conditioning control assembly | 55900-02B50 · 55900-02B80 |
| 55901D | No. 1 heater control sub-assembly | 55901-02120 |
| 55902E | No. 2 heater control sub-assembly | 55902-02261 · 55902-02271 |
| 55903A | No. 3 heater control sub-assembly | 55903-02370 |
| 55906A | Defroster damper control cable sub-assembly | 55906-0K010 |
| 55909C | Air mix damper control cable sub-assembly | 55909-0K010 |
| 55950G | Defroster nozzle assembly | 55950-02360 |
| 55979A | Defroster nozzle cushion | 55979-02090 |
| 55990B | Lower defroster nozzle assembly | 55990-02250 |
| 87201 | No. 1 air duct sub-assembly | 87220-02280 |
| 87201B | No. 2 air duct sub-assembly | 87211-02301 |
| 87201F | No. 3 air duct sub-assembly | 87211-02310 |
| 87212 | No. 1 rear air duct | 87215-02080 |
| 87212F | No. 2 rear air duct | 87213-02100 |
| 87212G | No. 3 rear air duct | 87212-02100 |

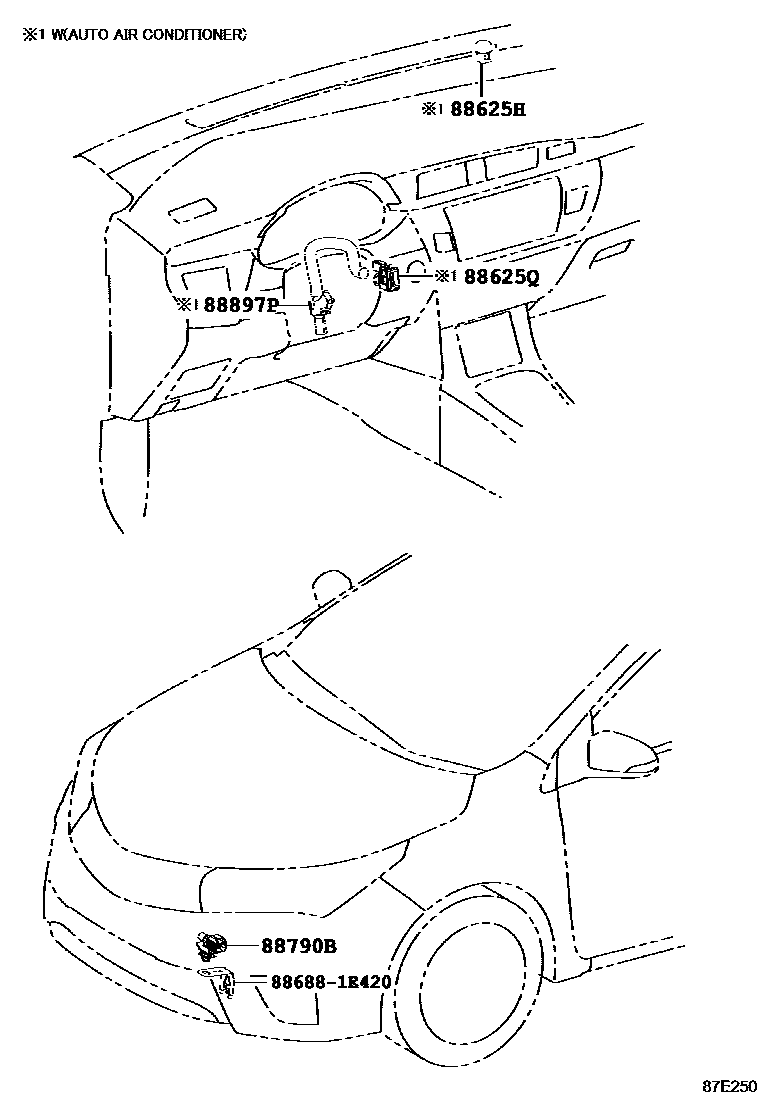

| 88625H | Cooler thermistor (sunlight sensor) | 88625-47031 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88790B | Thermistor assembly | 88790-0D020 · 88790-22131 |
| 88897P | aspirator | 88505-02050 |
