Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714

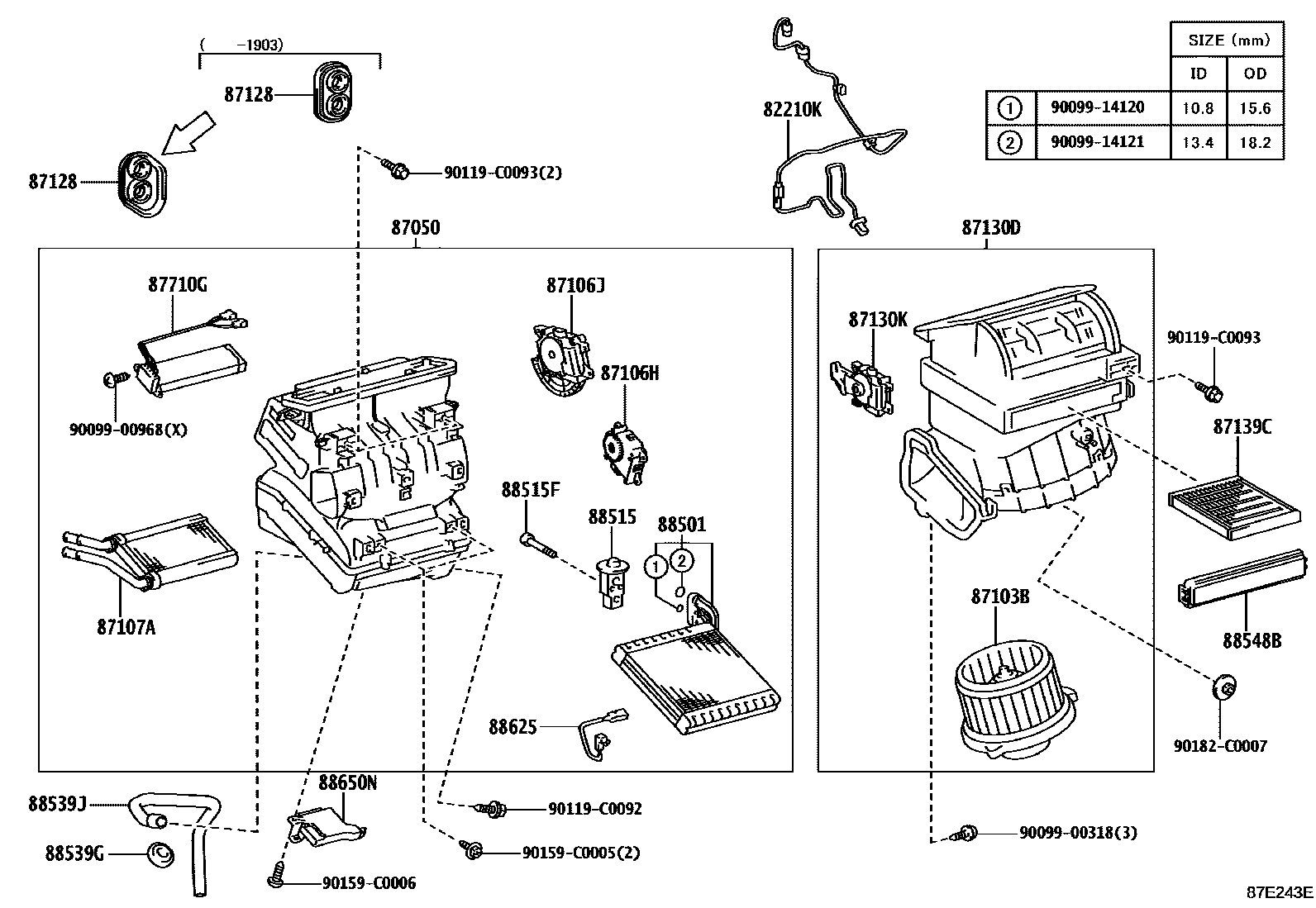

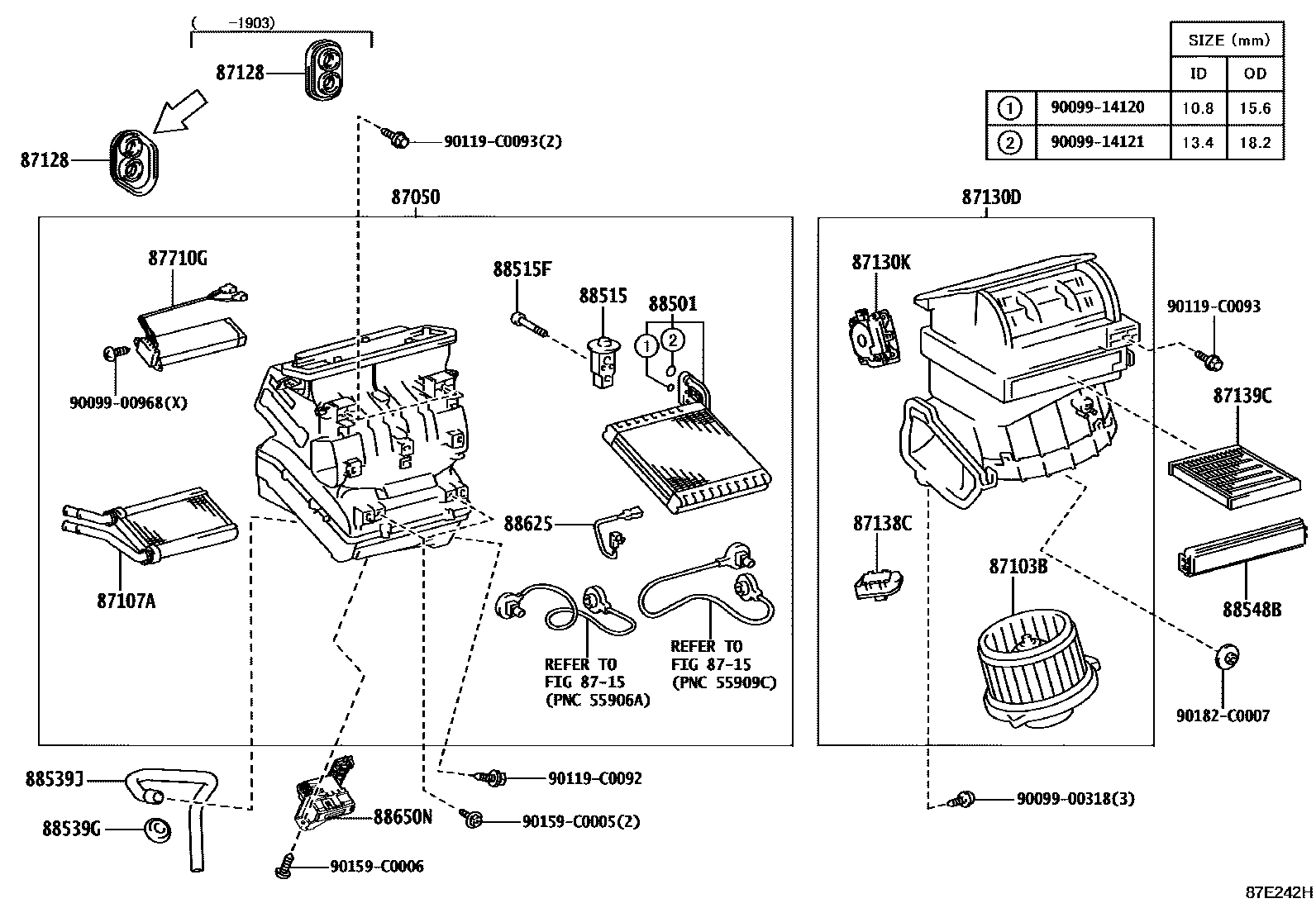

Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-02030 |
| 87050 | Air conditioning radiator assembly | 87050-02B50 · 87050-02B60 · 87050-02R20 |
| 87103B | Blower motor sub-assembly with fan | 87103-02700 · 87103-02710 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-02310 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-02320 |
| 87107A | Heater radiator device sub-assembly | 87107-02220 |
| 87128 | heater seal | 87128-02020 · 87128-02220 |
| 87130D | Blower assembly | 87130-02470 · 87130-02480 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-02330 · 87106-02340 |
| 87138C | Blower resistor | 87138-02120 |
| 87139C | air purification filter | 87139-0R020 · 87139-50100 |
| 87710G | Rapid heater assembly | 87710-02120 · 87710-12020 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-02212 · 88501-02340 |
| 88515 | Cooler expansion valve | 88515-02130 · 88515-02810 · 88515-0D200 |
| 88515F | Bolt (for cooler expansion valve) | 90099-04542 |
| 88539G | Seal (for cooler unit drain hose) | 90480-26030 |
| 88539J | Cooler drain hose | 88539-02390 |
| 88548B | air filter housing | 88548-02100 |
| 88625 | Cooler No. 1 Thermistor | 88625-0D100 |
| 88650N | Air conditioning amplifier assembly | 88650-02D00 · 88650-02D01 · 88650-02D10 · 88650-02D11 · 88650-02E50 · 88650-02F20 · 88650-02G40 · 88650-02G50 · 88650-02K00 · 88650-02K10 |
