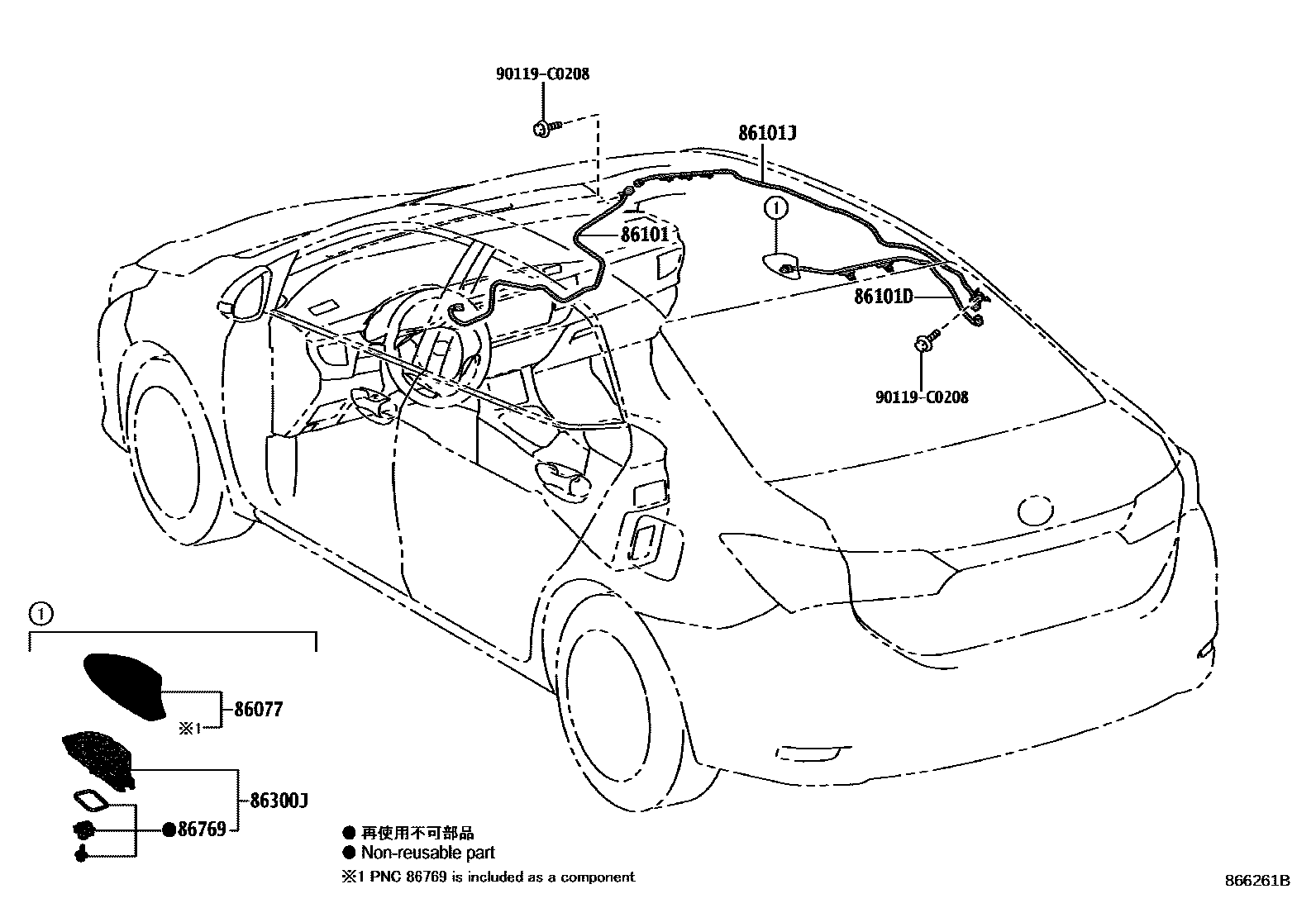

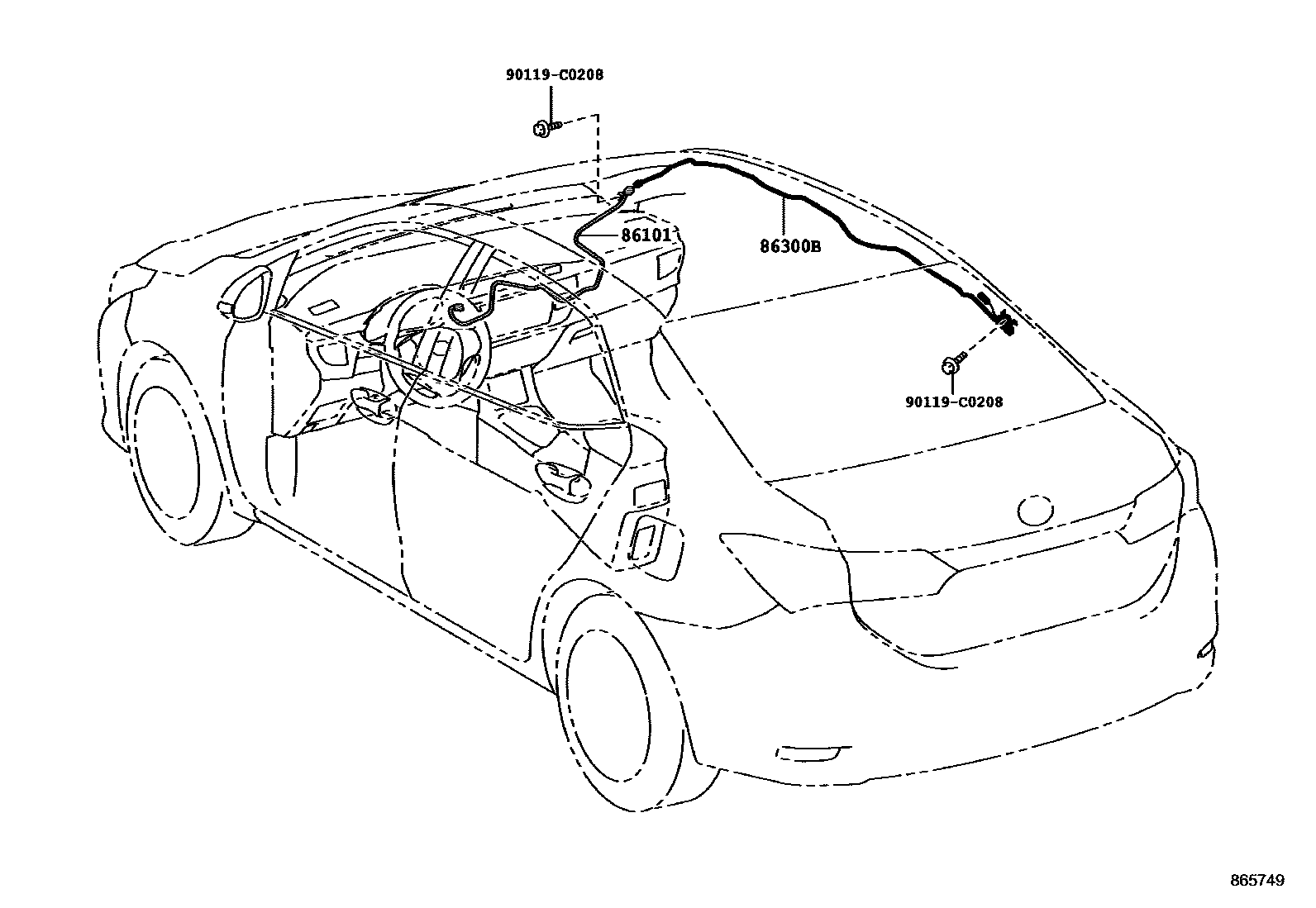

Toyota COROLLA antenna — Figure 8604
Toyota COROLLA EPC diagram 8604, antenna, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-02420 |
| 86101D | No. 3 antenna wire sub-assembly | 86101-02720 · 86101-02D30 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-02670 · 86101-02D20 |
| 86300B | No. 1 amplifier antenna assembly | 86300-02450 |
| 86300J | Roof antenna assembly | 86300-02470 |
| 86769 | roof radome | 86769-12010 |
