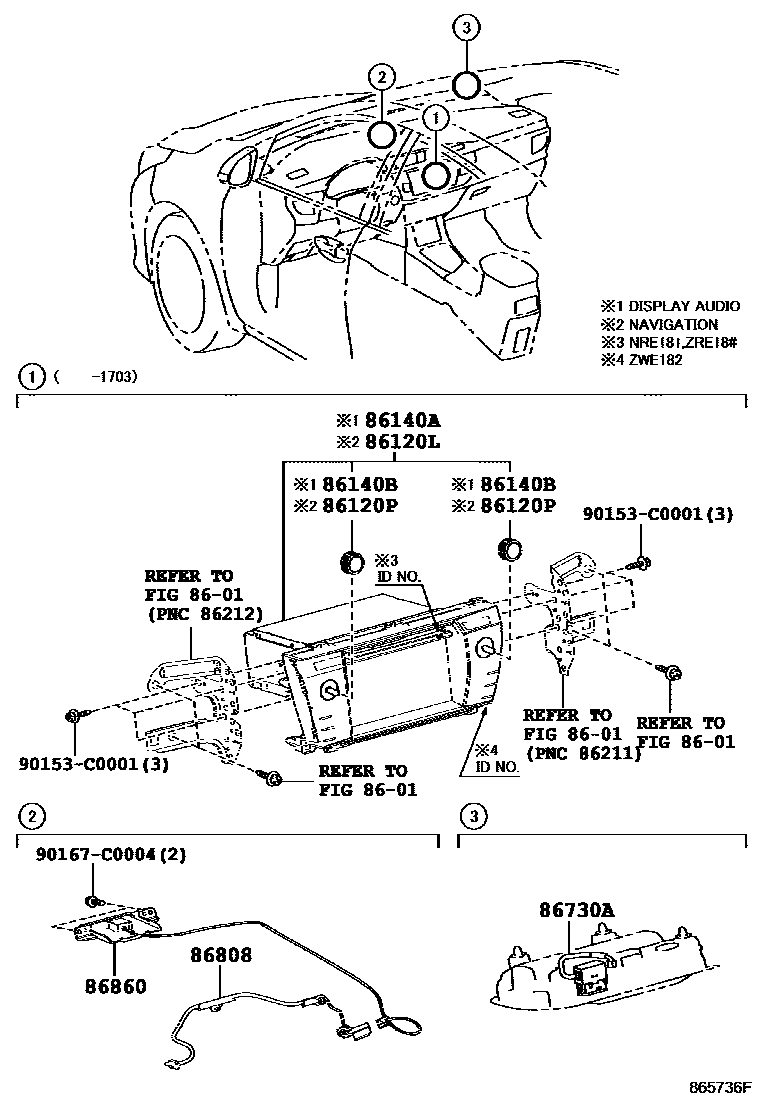

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86100-02170 · 86100-02171 · 86100-02172 · 86100-02190 · 86100-02191 |
| 86120P | Navigation receiver switch button | 90011-25239 |
| 86140A | Radio and display receiver assembly | 86140-02200 · 86140-02420 |
| 86140B | Radio and display receiver switch button | 90011-25240 |
| 86730A | Telephone amplifier assembly | 86730-06020 |
| 86808 | No. 1 navigation antenna wire sub-assembly | 86808-02120 |
| 86860 | Navigation antenna assembly | 86860-02050 |
