Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

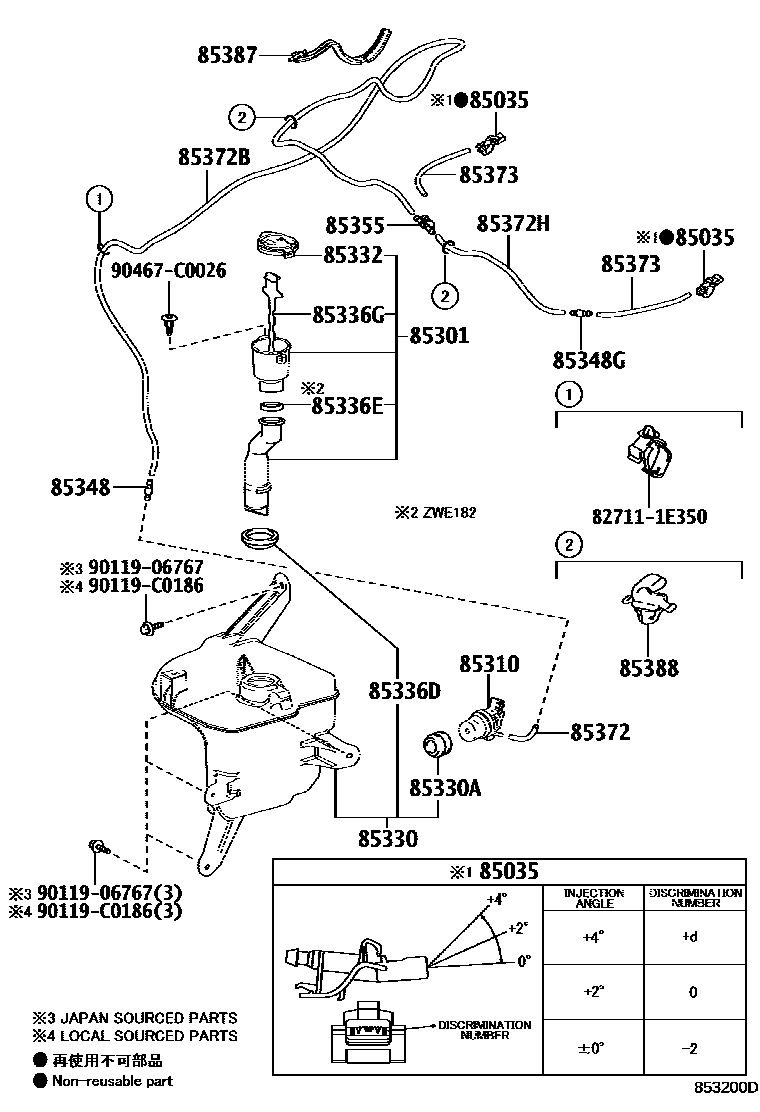

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12400 · 85381-12420 · 85381-12430 |
| 85301 | Cleaner water inlet sub-assembly | 85301-02030 · 85301-02130 |
| 85310 | Windshield washer motor and pump assembly | 85330-21010 |
| 85330 | Windshield washer fluid tank assembly | 85315-02440 |
| 85330A | Windshield washer fluid tank bushing | 85336-60300 |
| 85332 | Windshield washer fluid tank cap | 85316-02440 |
| 85336D | Windshield washer fluid tank seal | 85336-30160 |
| 85336E | Windshield washer water inlet hose seal | 85336-42320 |
| 85336G | water level gauge | 85312-0P010 |
| 85348 | Windshield washer hose connector No. 1 | 85375-0D030 |
| 85348G | Windshield washer hose connector No. 2 | 85375-0D030 |
| 85355 | Windshield washer hose valve | 85321-28020 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90068-33230 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90068-59130 |
| 85372H | No. 3 windshield washer hose (from connector to connector) | 90068-59131 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33229 |
| 85387 | Clip No. 1 (for windshield washer) | 85388-02510 |
| 85388 | Clip No. 2 (for windshield washer) | 85371-12040 |
