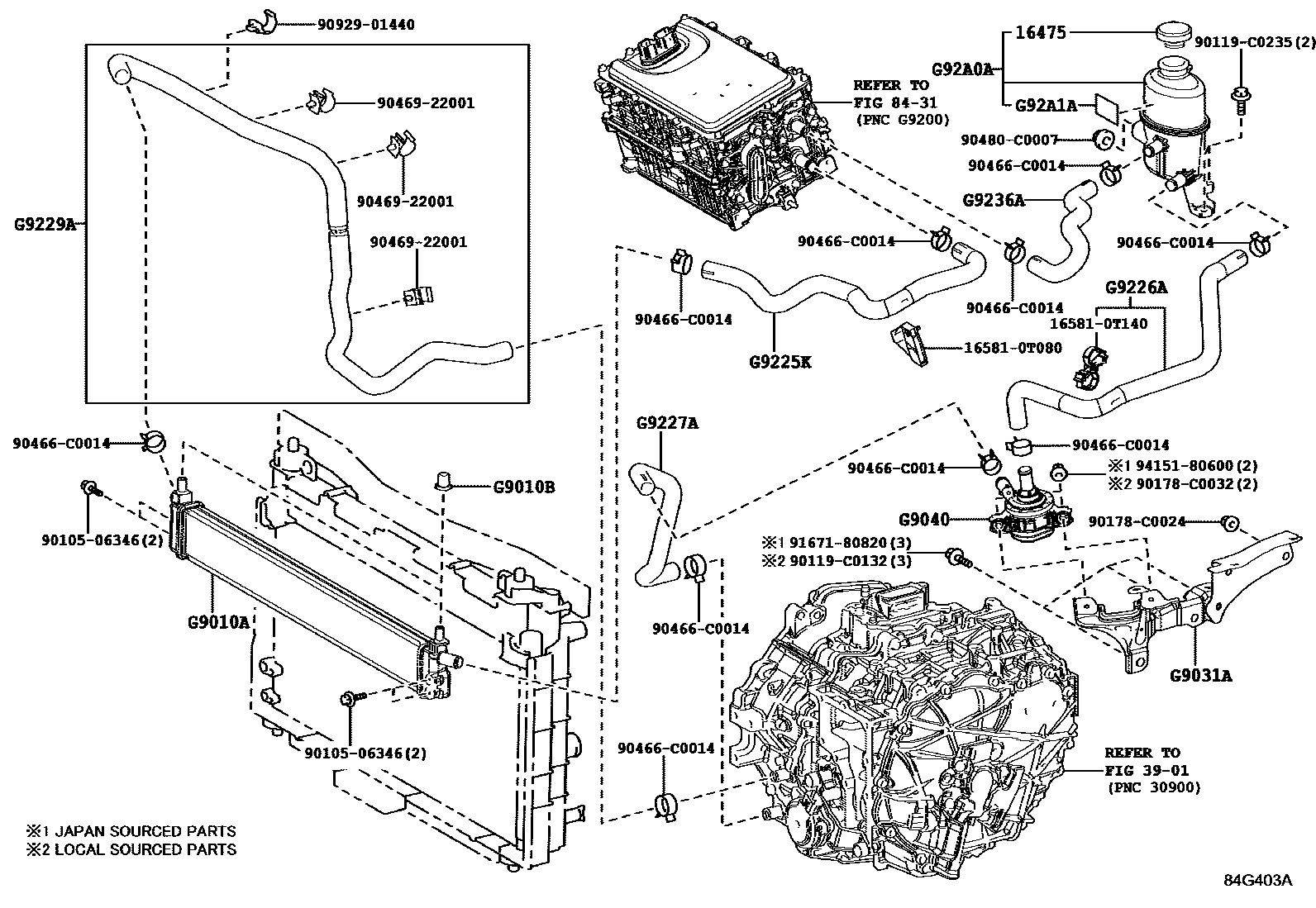

Toyota COROLLA 逆变器冷却系统 — Figure 8432
Toyota COROLLA EPC diagram 8432, 逆变器冷却系统, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16475 | Reservoir tank cover | 16475-28140 · 16475-37011 |
| G9010A | Radiator assembly | G9010-12010 |
| G9010B | Inverter radiator cushion pad | 16716-37010 |
| G9031A | Hybrid water pump bracket sub-assembly | G9031-02010 |
| G9040 | Inverter water pump assembly (with motor) | G9040-52020 |
| G9225K | No. 1 inverter cooling hose | G9225-02020 |
| G9226A | No. 2 inverter cooling hose | G9226-02020 |
| G9227A | No. 3 inverter cooling hose | G9227-02020 |
| G9229A | No. 5 inverter cooling hose | G9229-02010 |
| G9236A | No. 6 inverter cooling hose | G9236-02010 |
| G92A0A | Inverter liquid tank assembly | G91H0-02020 |
| G92A1A | HV coolant system information label | G92A1-76010 |
