Toyota COROLLA 空气囊 — Figure 8421

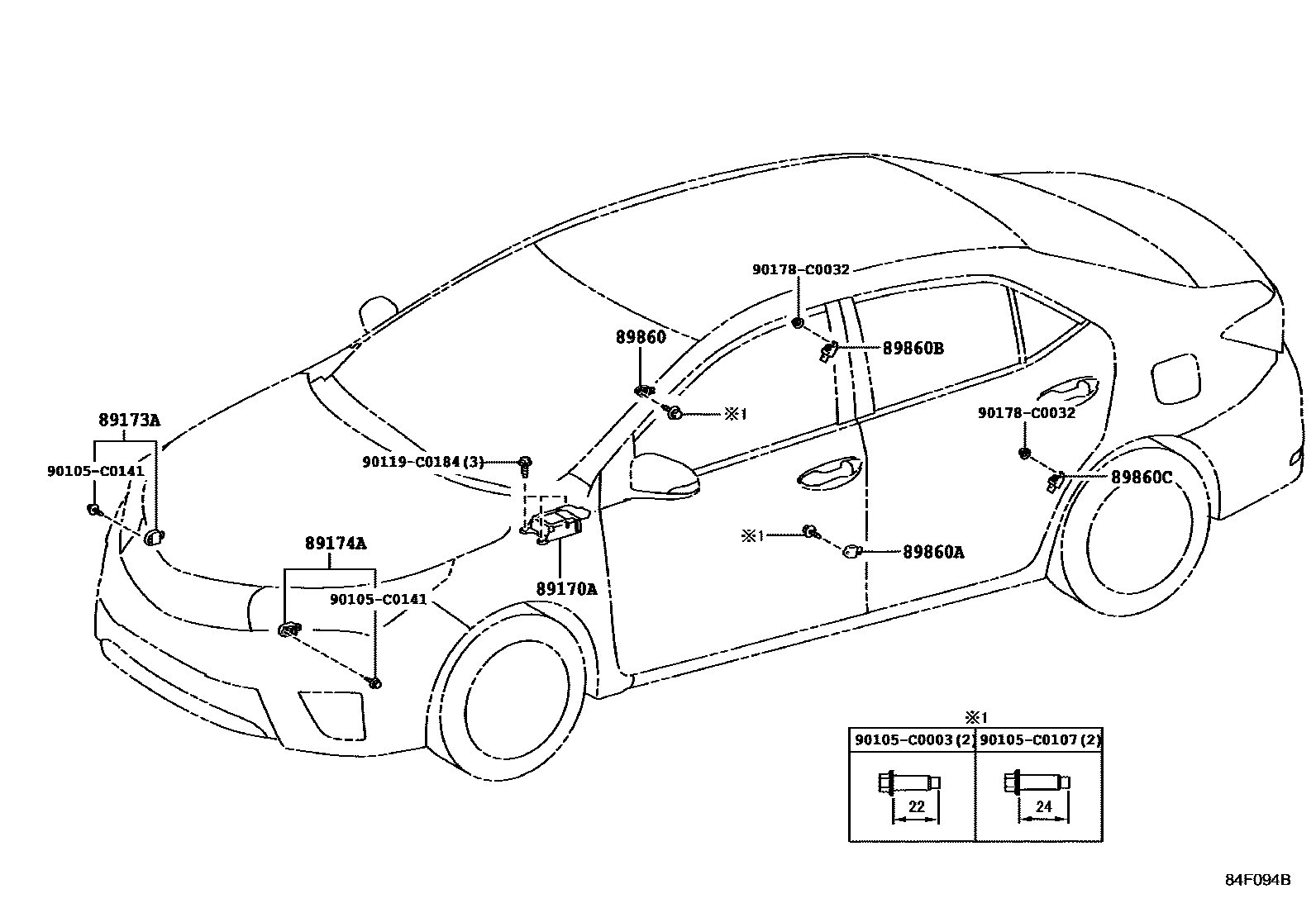

Toyota COROLLA EPC diagram 8421, 空气囊, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-02F20 · 89170-02F30 · 89170-02F40 · 89170-02G20 |
| 89173A | Right front air bag sensor | 89173-09A80 · 89173-09B10 |
| 89174A | Left front air bag sensor | 89173-09A80 · 89173-09B10 |
| 89860 | Right side airbag sensor assembly | 89831-02240 · 89831-0D020 |
| 89860A | Left side air bag sensor assembly | 89831-02240 · 89831-0D020 |
| 89860B | Right No. 2 side airbag sensor assembly | 89831-02230 · 89831-02250 |
| 89860C | Left No. 2 side airbag sensor assembly | 89831-02230 · 89831-02250 |
