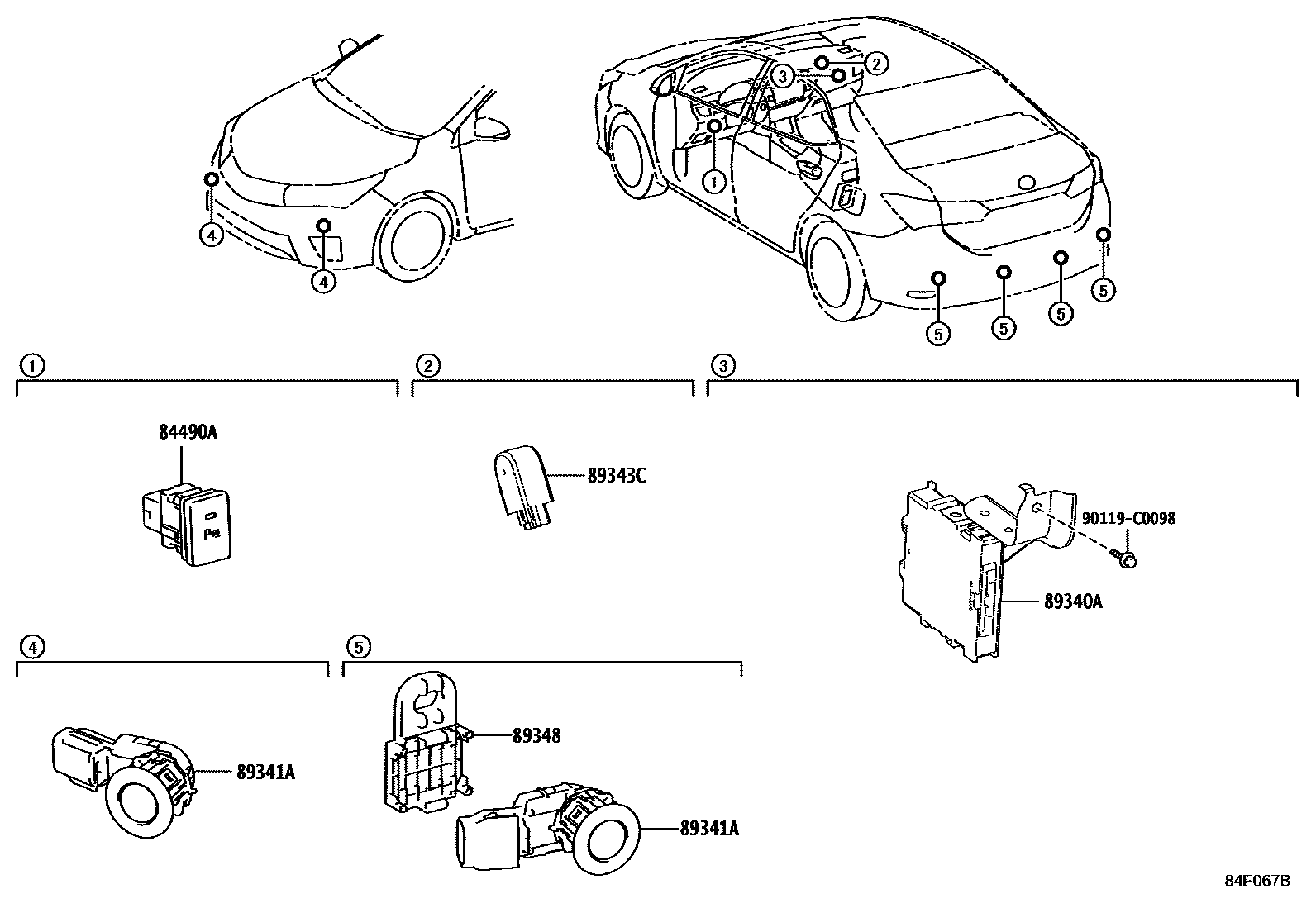

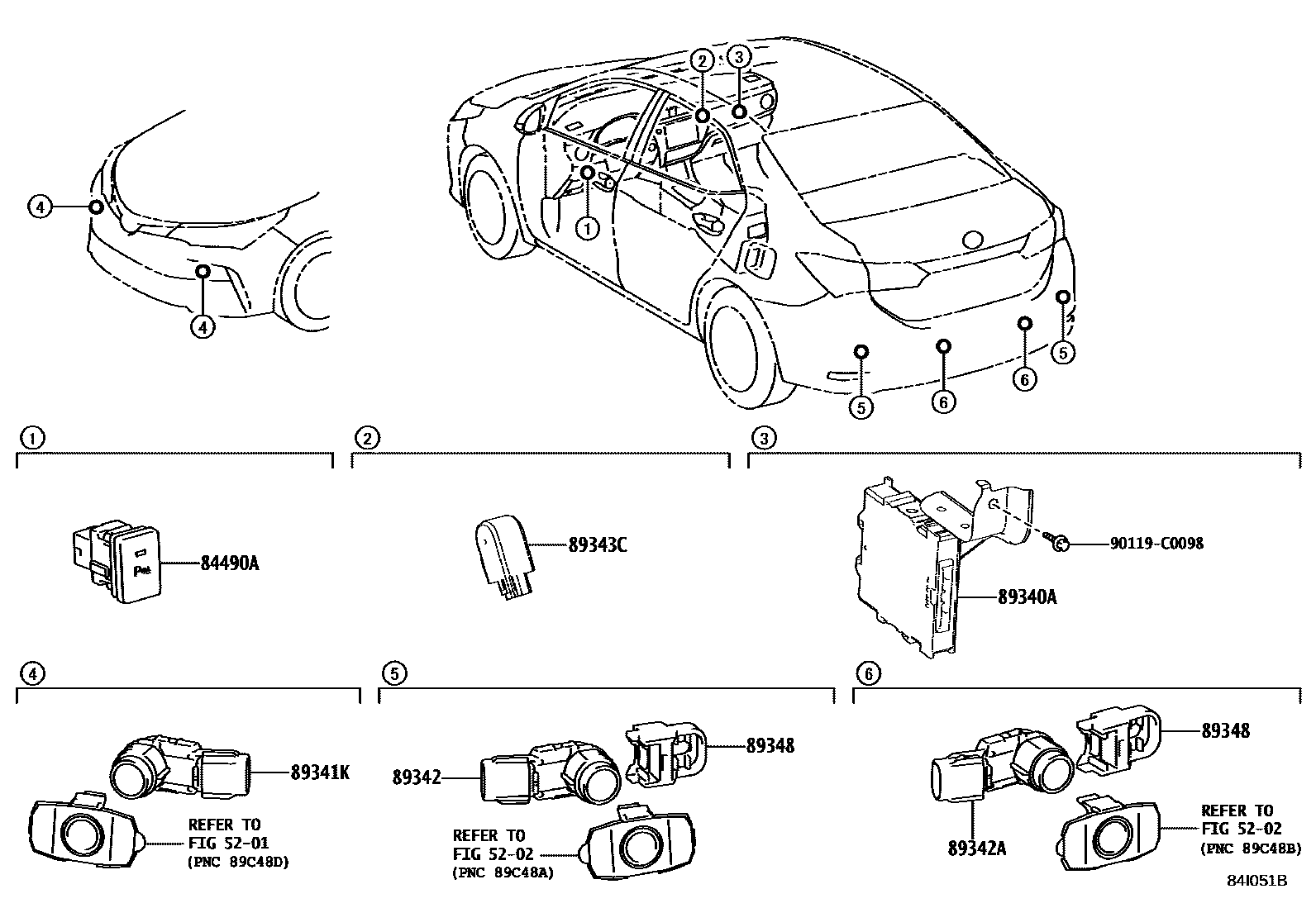

Toyota COROLLA 测距雷达和倒车雷达 — Figure 8417
Toyota COROLLA EPC diagram 8417, 测距雷达和倒车雷达, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84490A | Reversing radar or ranging radar switch assembly | 84490-0P020 · 84490-0P021 |
| 89340A | Distance warning ECU assembly | 89340-02090 · 89340-02120 |
| 89343C | No. 1 distance warning buzzer | 89343-0G010 · 89343-72010 |
| 89348 | Ultrasonic sensor holder No. 1 | 89348-02120 · 89348-33190 |
