Toyota COROLLA 仪表 — Figure 8301

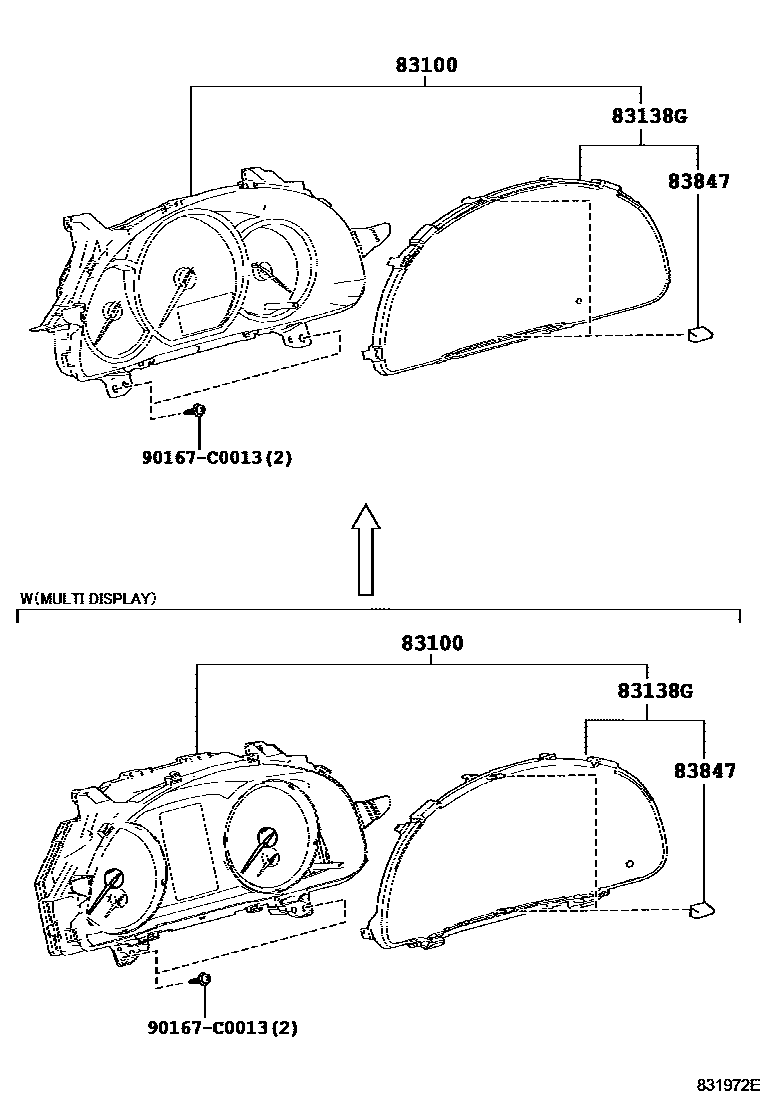

Toyota COROLLA EPC diagram 8301, 仪表, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-0ZK70 · 83800-0ZR70 · 83800-0ZU01 · 83800-F2A00 · 83800-F2A50 · 83800-F2J20 · 83800-F2Q90 · 83800-F2R00 · 83800-F2U20 · 83800-F2U30 · 83800-F2U40 · 83800-F2U50 · 83800-FEE10 |
| 83138G | Instrument cluster glass | 83852-0ZR70 · 83852-0ZU00 · 83852-F2A00 · 83852-F2A50 · 83852-F2U00 · 83852-F2U50 |
| 83847 | No. 1 combination speedometer cushion | 83847-02N50 |
