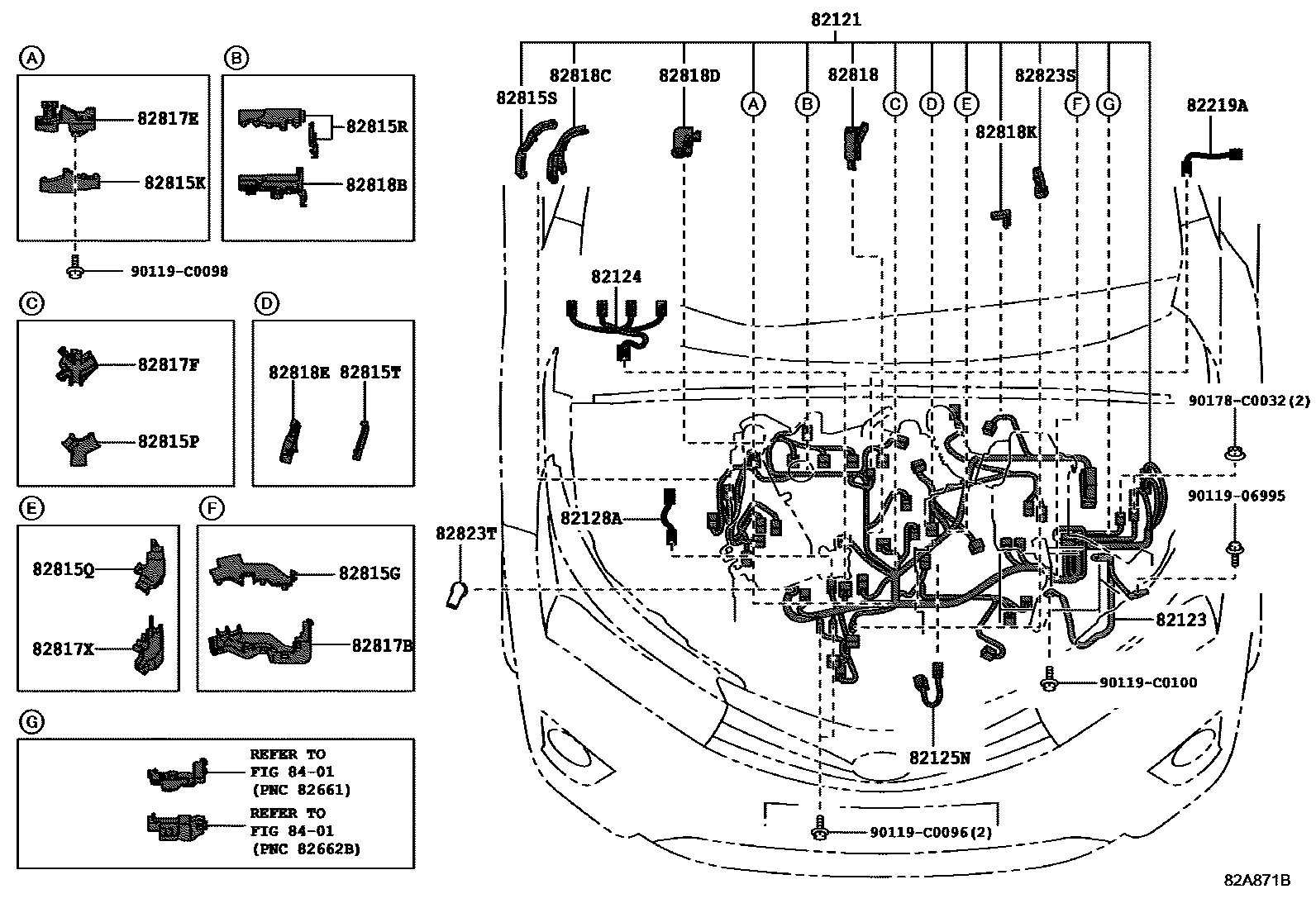

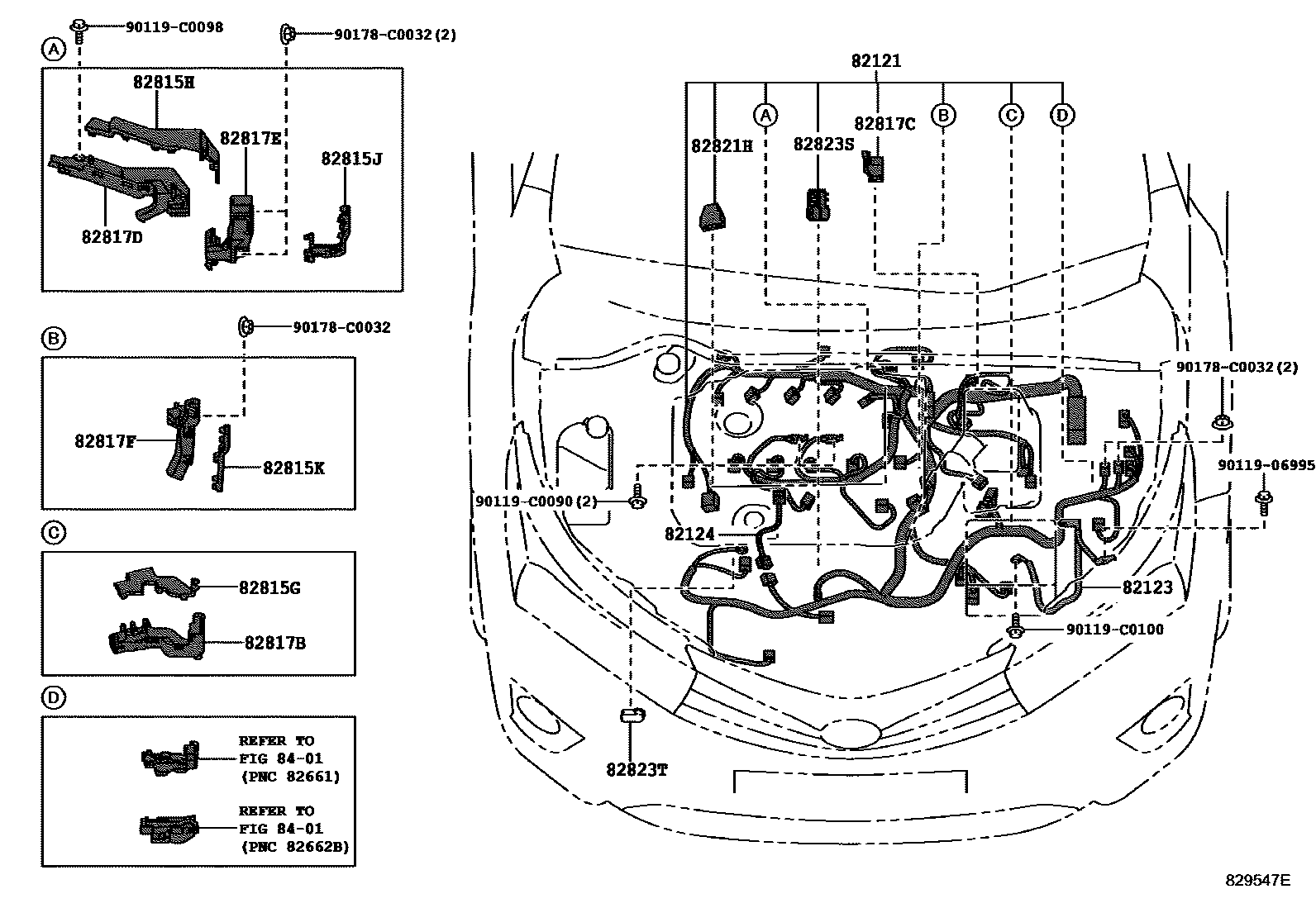

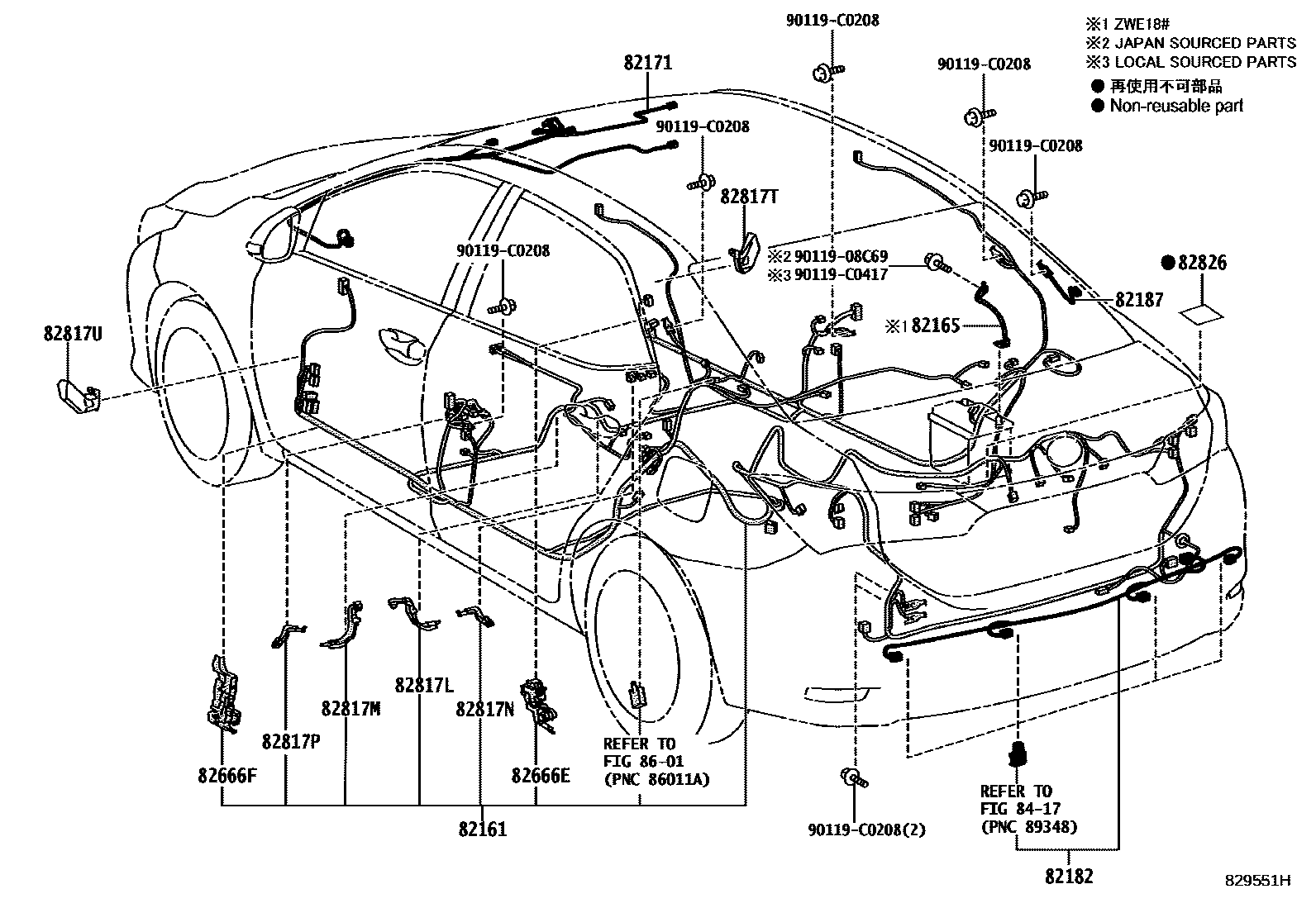

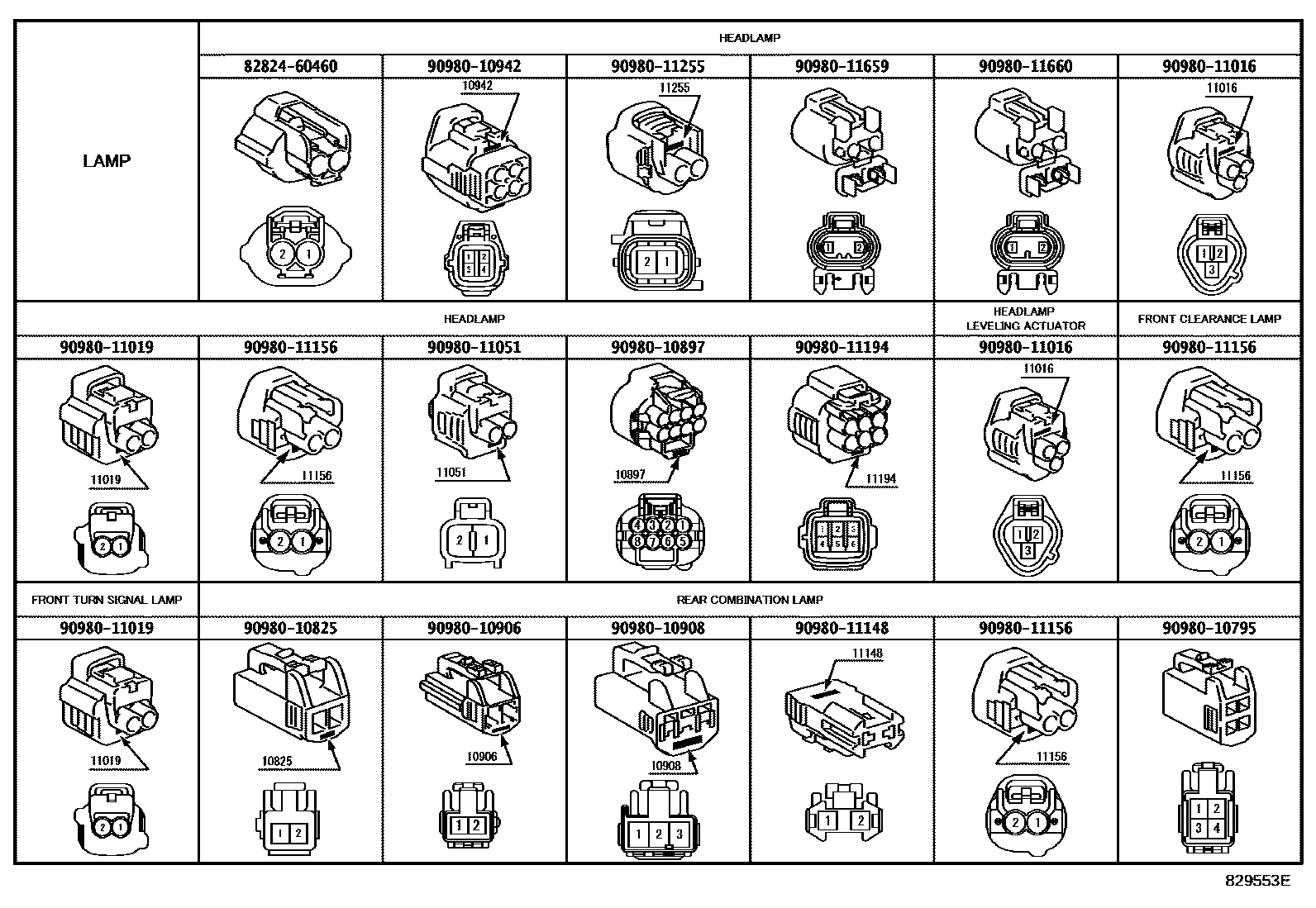

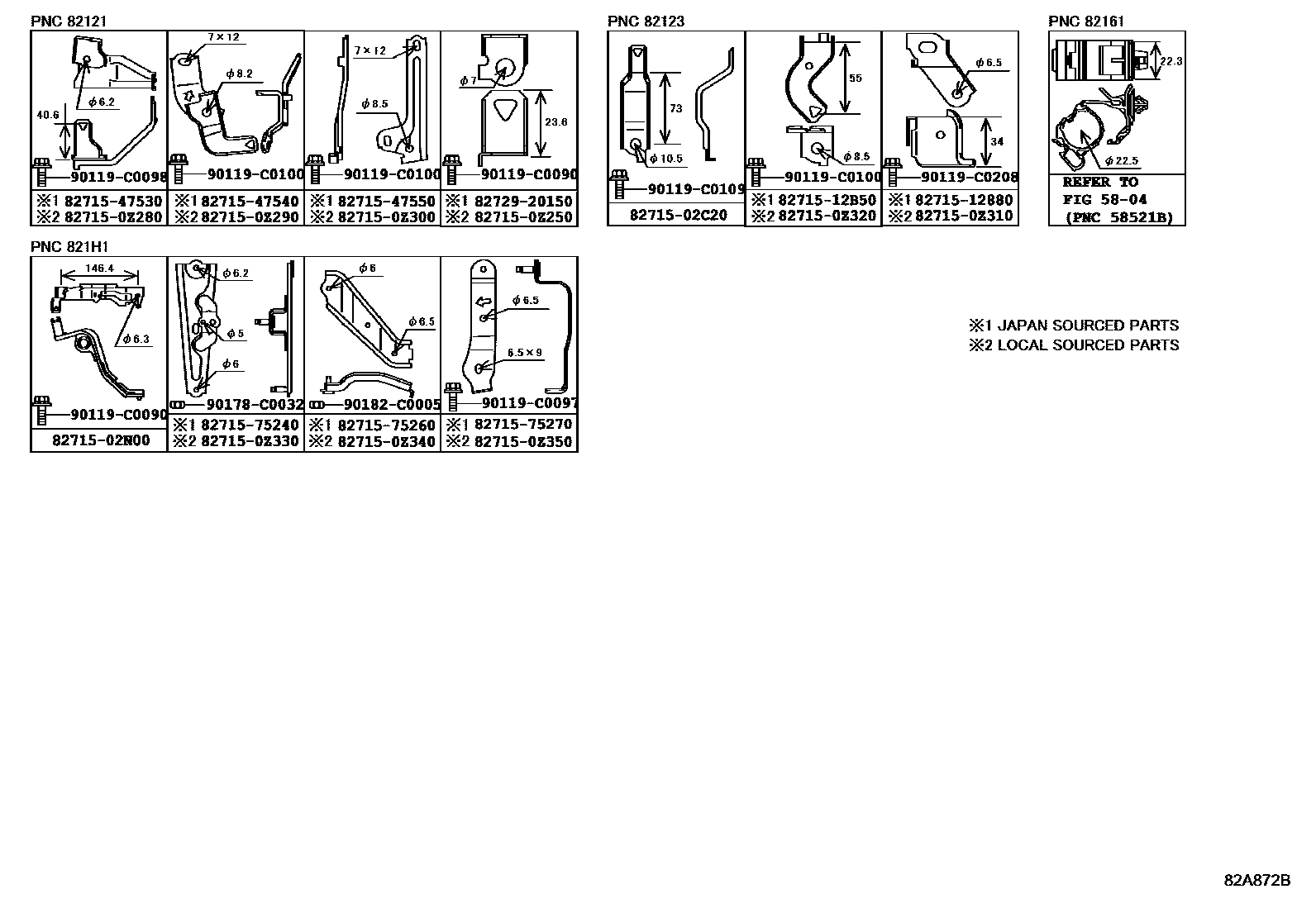

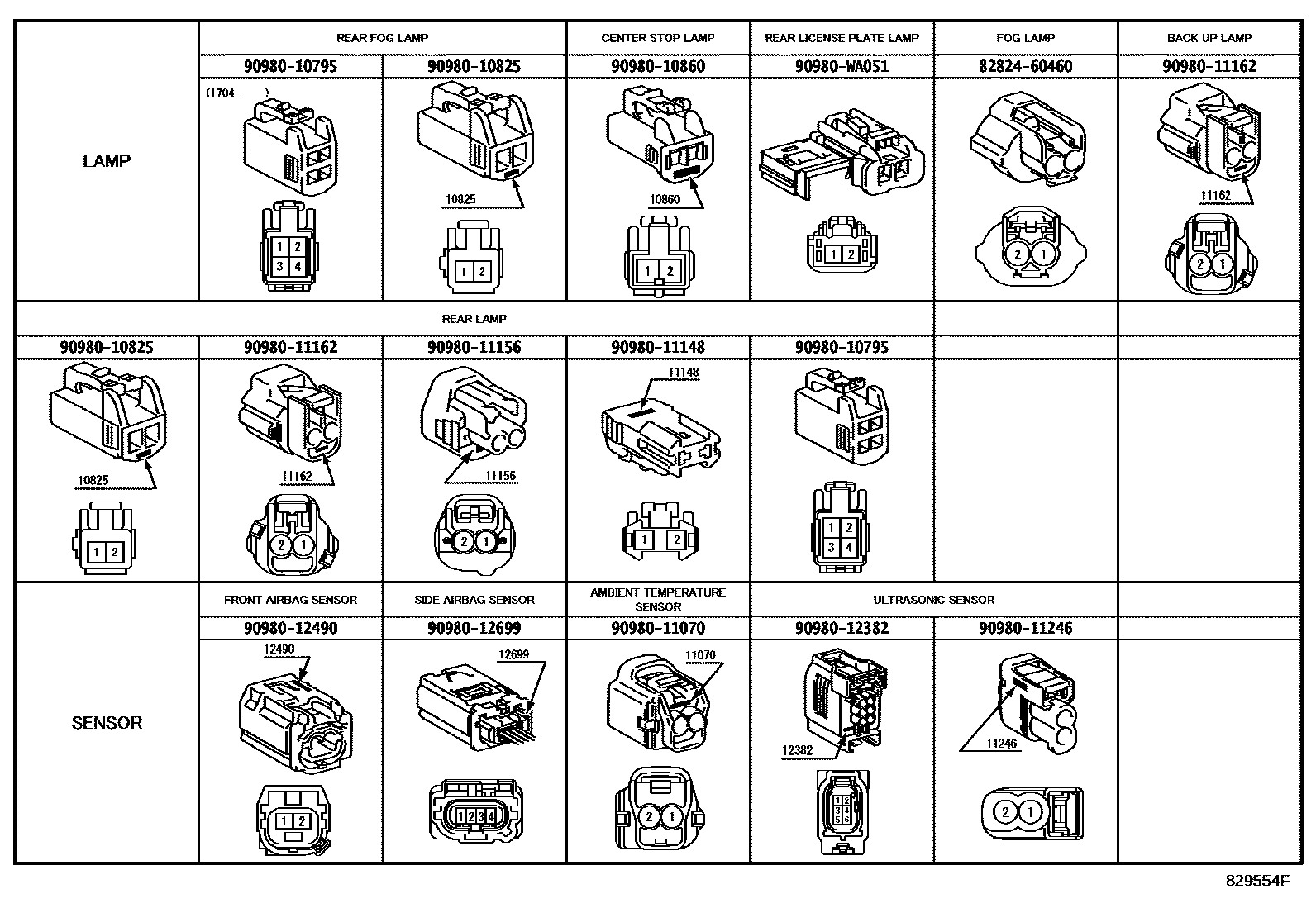

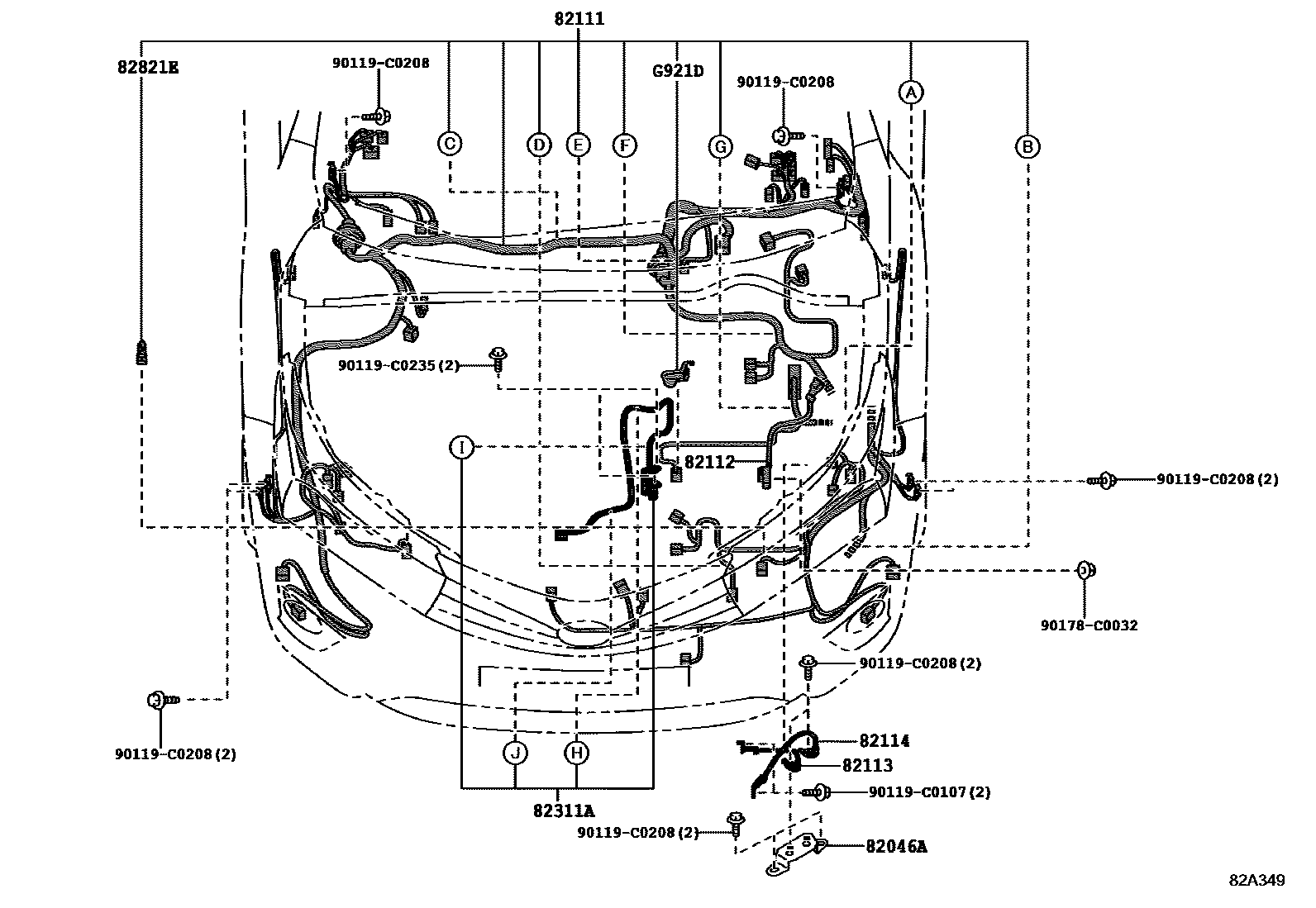

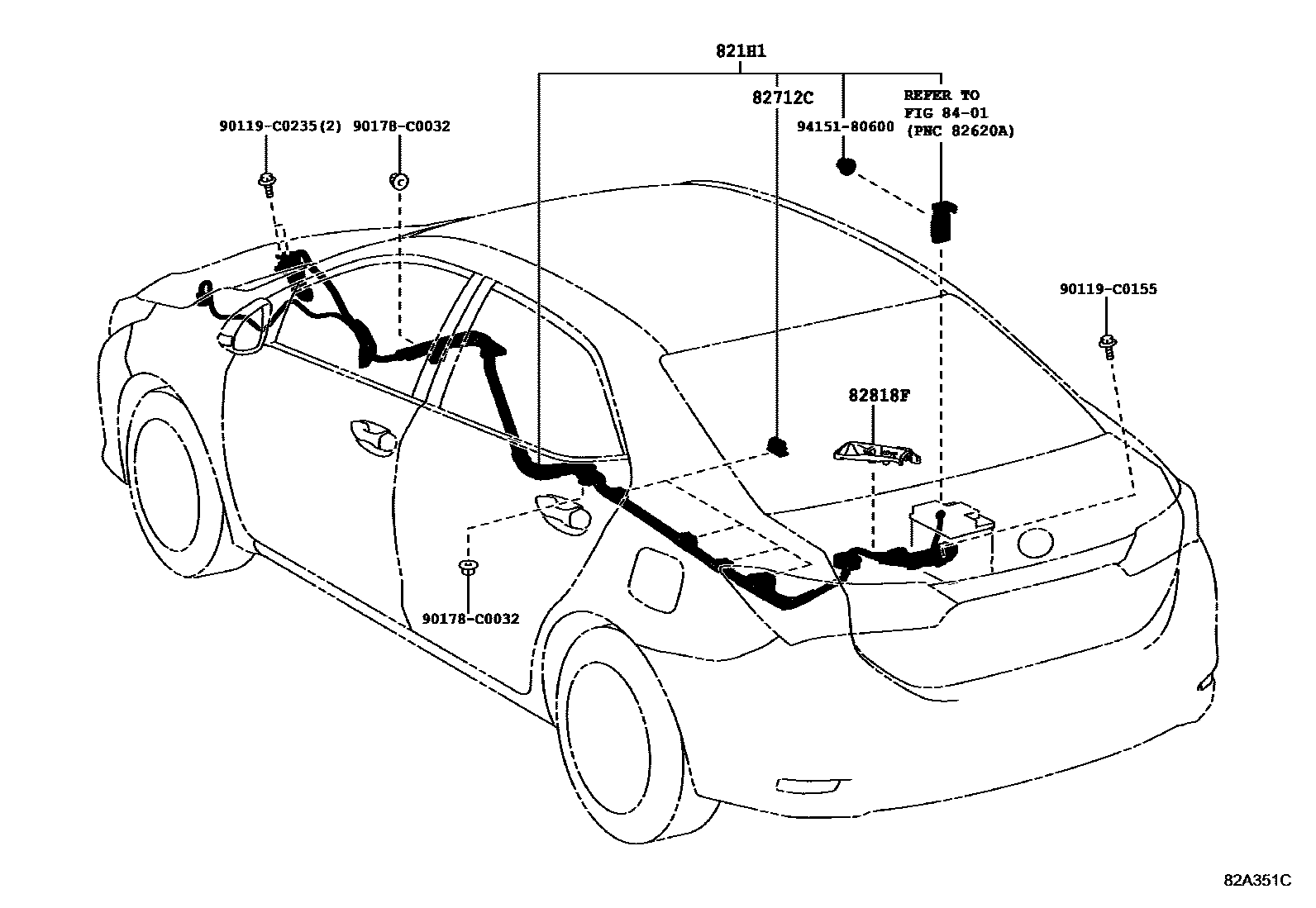

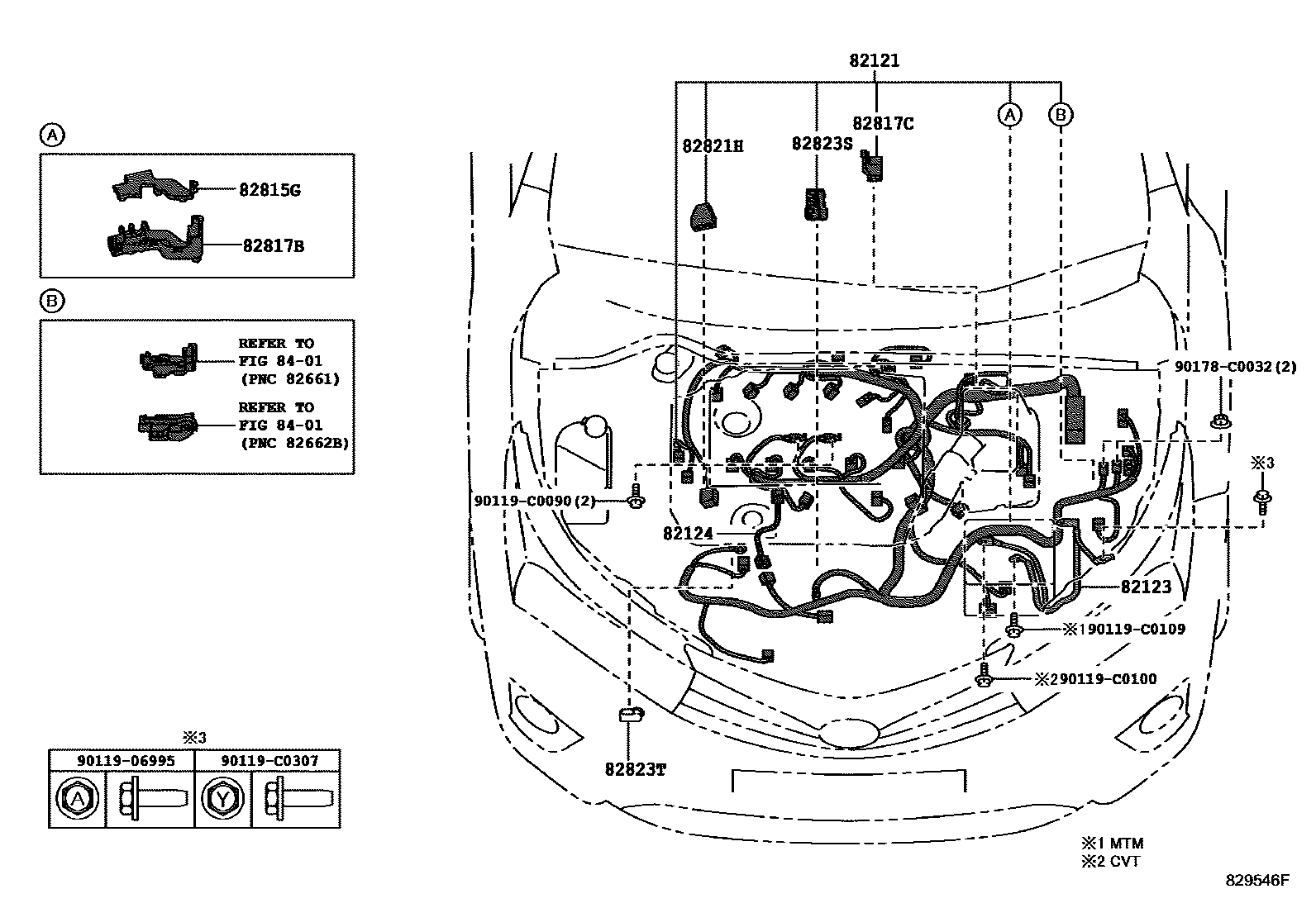

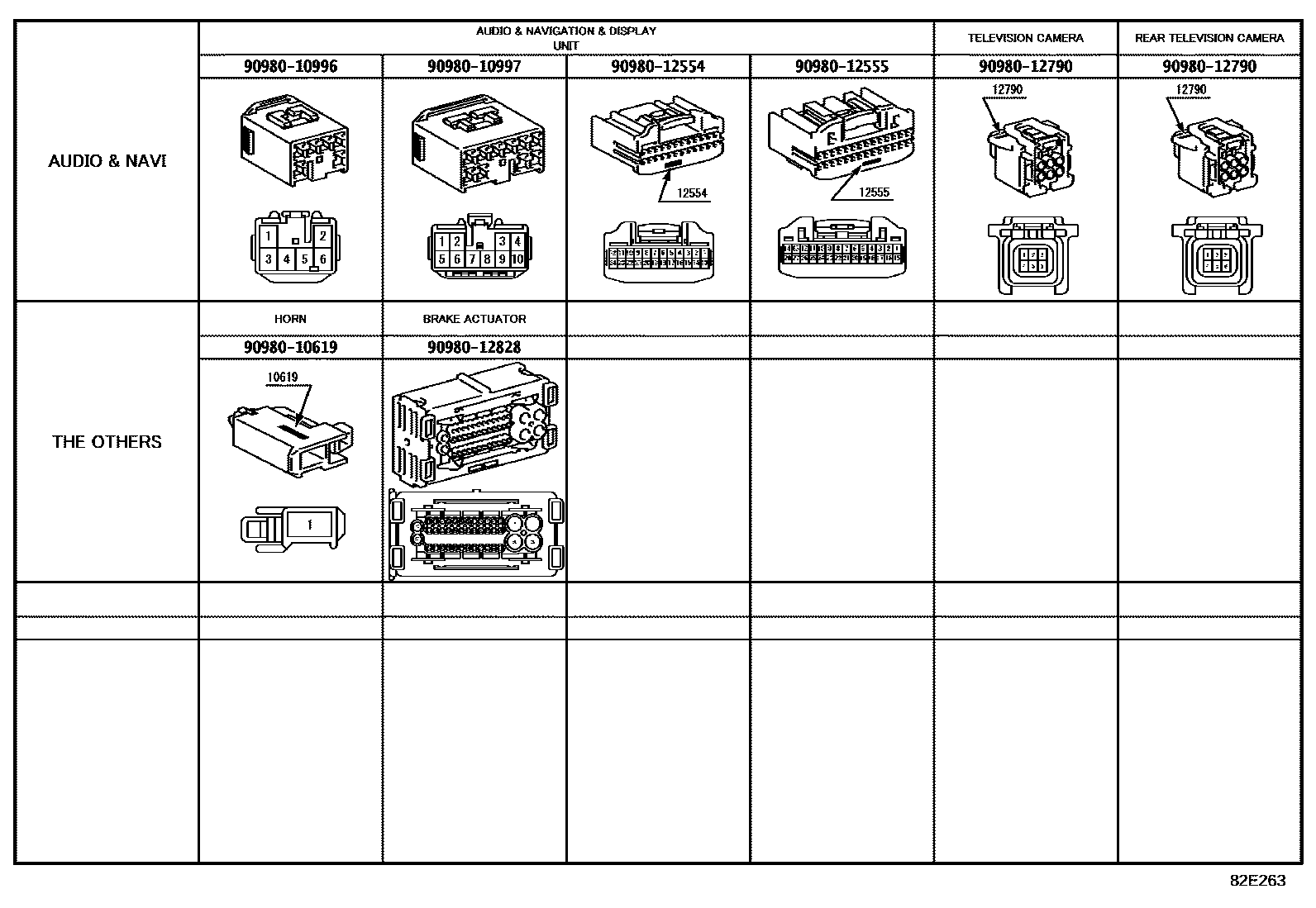

Toyota COROLLA 线束和卡夹 — Figure 8202
Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 17 images and 90 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82046A | Body No. 1 ground wire sub-assembly | 82046-02010 |

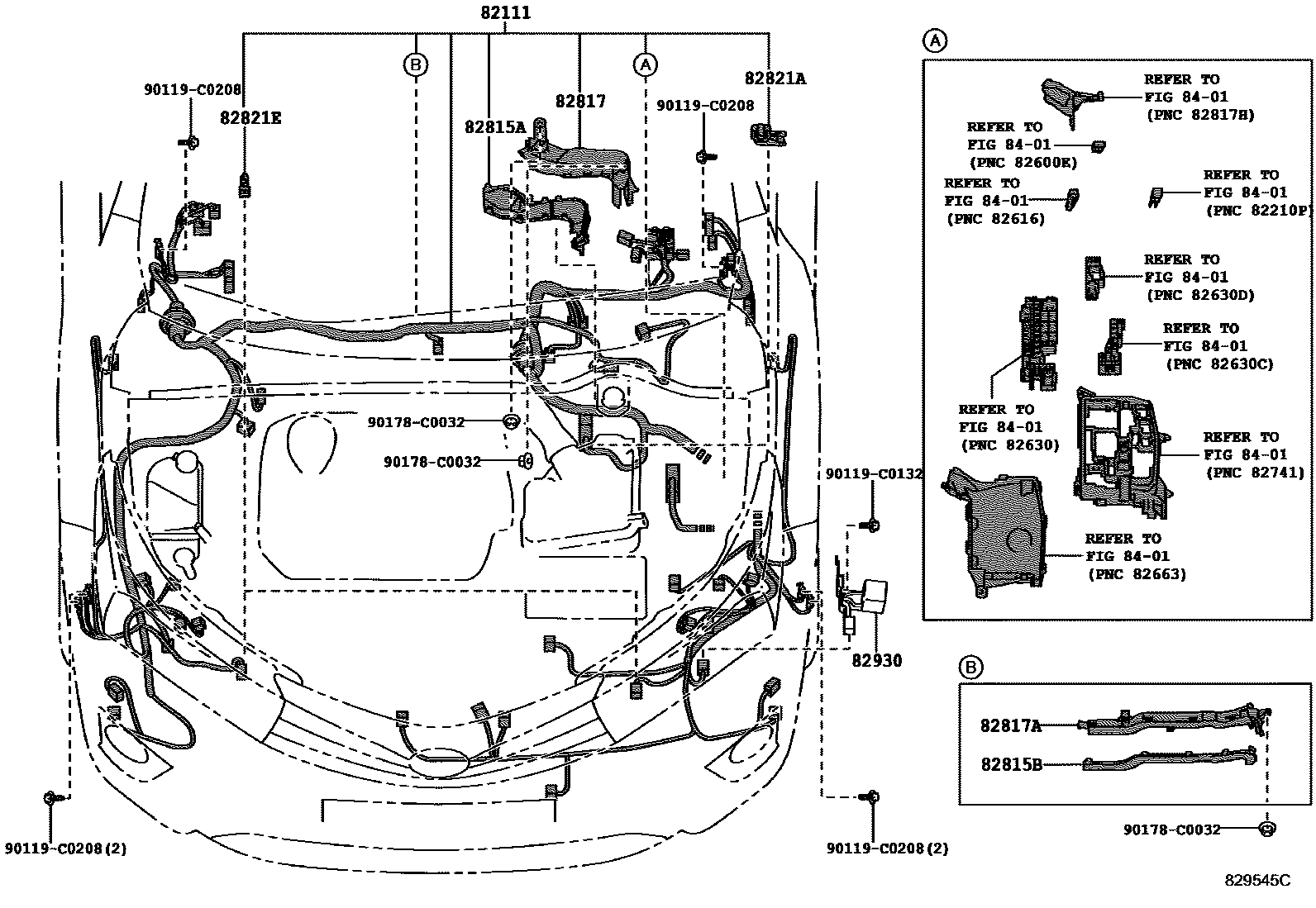

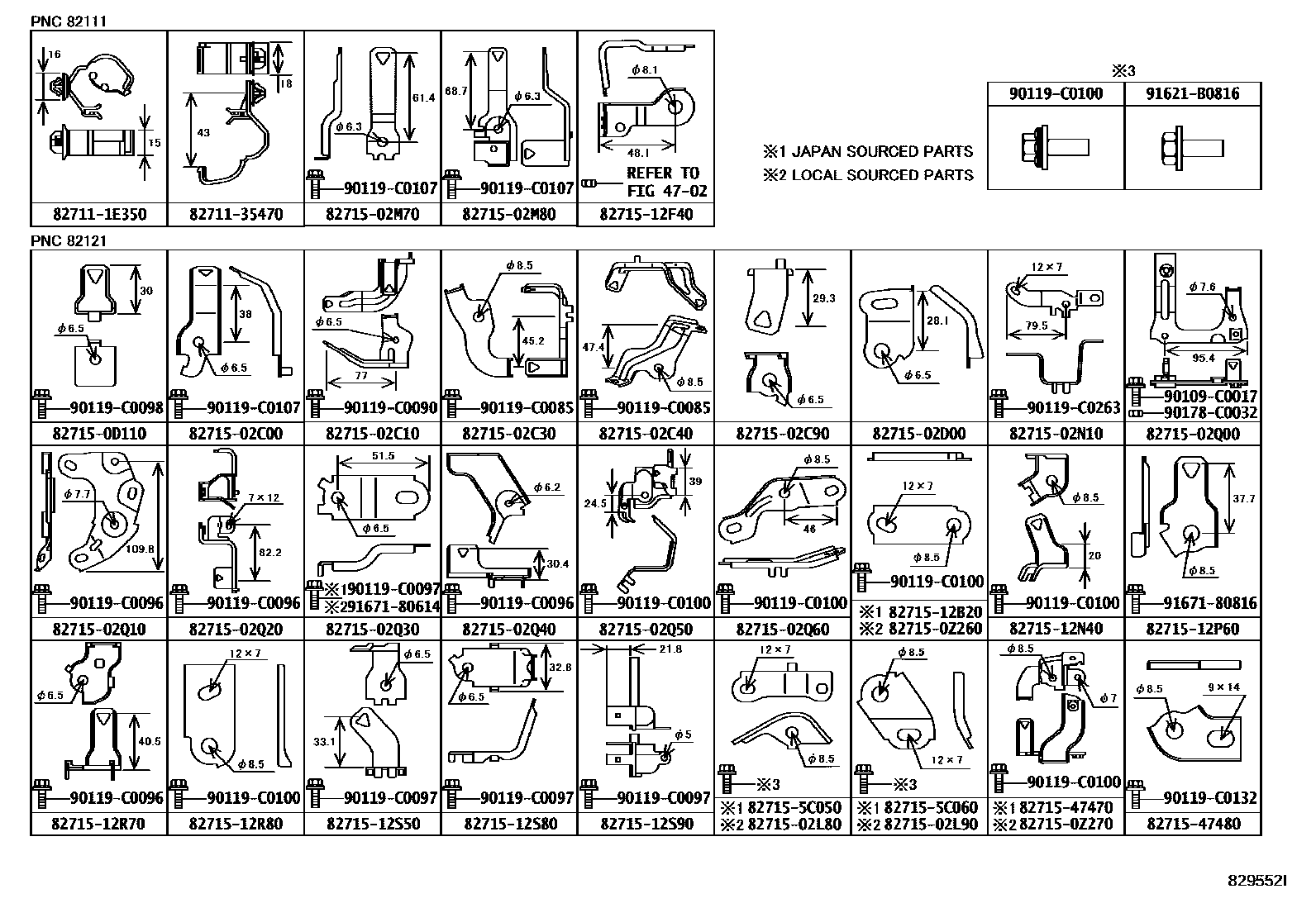

| 82111 | Engine room main wiring harness | 82111-F2A20 · 82111-F2A30 · 82111-F2A40 · 82111-F2A50 · 82115-0ZY50 · 82115-0ZY60 · 82115-0ZY70 · 82115-0ZY71 · 82115-0ZY80 · 82115-0ZZ00 · 82115-F2D20 · 82115-F2F90 · 82116-02Q30 · 82116-02Q31 · 82116-02W90 · 82116-02W91 · 82116-0Z140 · 82116-0Z141 · 82116-0Z150 · 82116-0Z151 · 82116-0ZR30 · 82116-0ZR40 · 82116-0ZR50 · 82116-0ZR60 · 82116-0ZR70 · 82116-0ZT10 · 82116-0ZT20 · 82116-0ZT30 · 82116-0ZT31 · 82116-0ZT40 · 82116-0ZT50 |
| 82112 | Engine room wiring harness No. 2 | 82112-02020 |
| 82113 | Engine room wiring harness No. 3 | 82113-02040 |
| 82114 | Engine room wiring harness No. 4 | 82114-02030 |

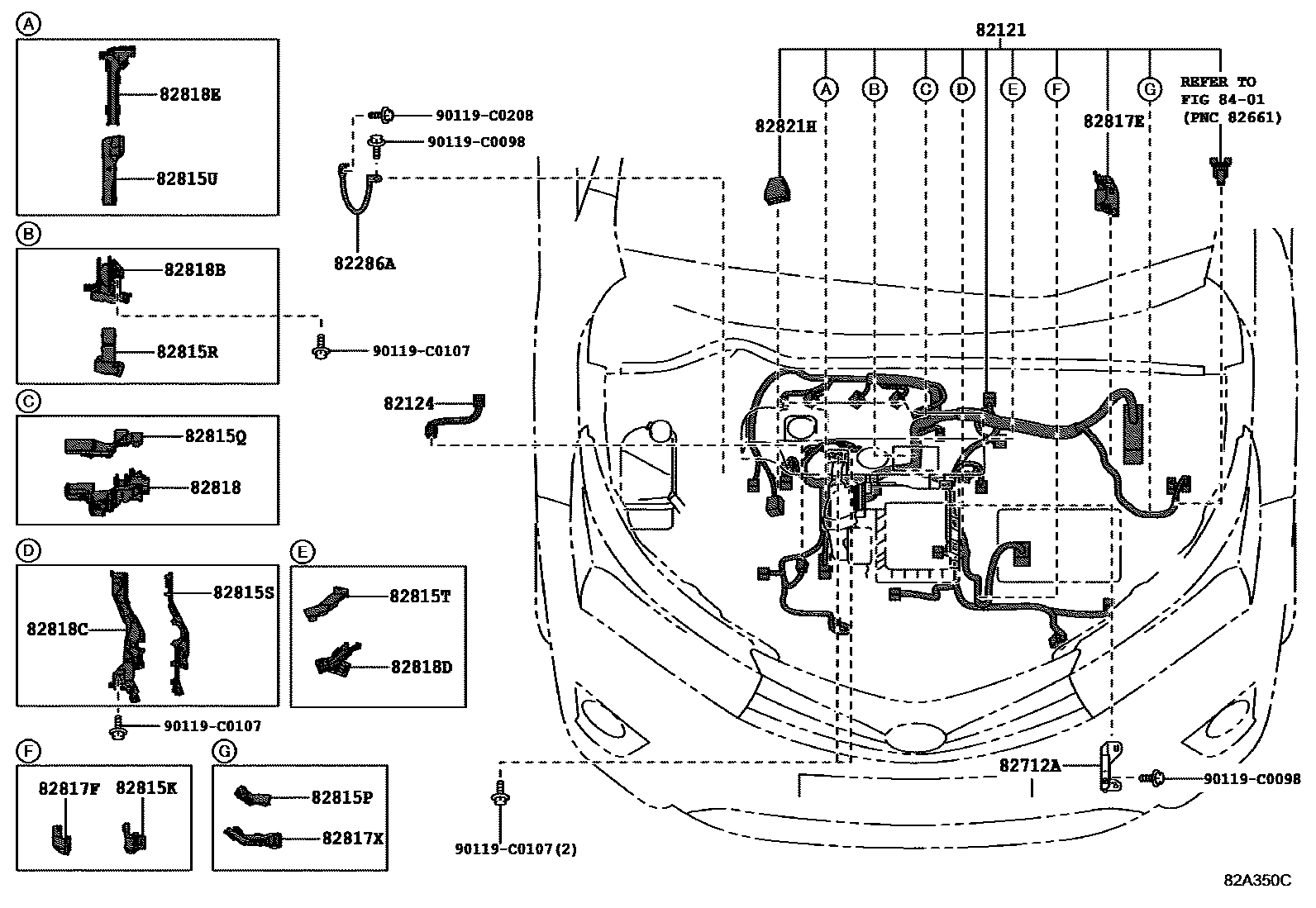

| 82121 | Engine wiring harness | 82121-02X40 · 82121-02X41 · 82121-02X50 · 82121-02Y00 · 82121-02Y10 · 82121-0Z180 · 82121-0Z181 · 82121-0ZJ40 · 82121-0ZJ41 · 82121-0ZJ50 · 82121-0ZJ51 · 82121-0ZJ60 · 82121-0ZJ61 · 82121-0ZM70 · 82121-0ZV00 |
| 82123 | Engine No. 3 wiring harness | 82123-02450 · 82123-02480 · 82123-02490 · 82123-02D80 · 82123-02D90 |
| 82124 | Engine No. 4 wiring harness | 82124-02100 · 82124-02200 |
| 82125N | Engine No. 5 wiring harness | 82125-02580 · 82125-12610 |
| 82128A | Engine wiring harness No. 8 | 82128-02020 |

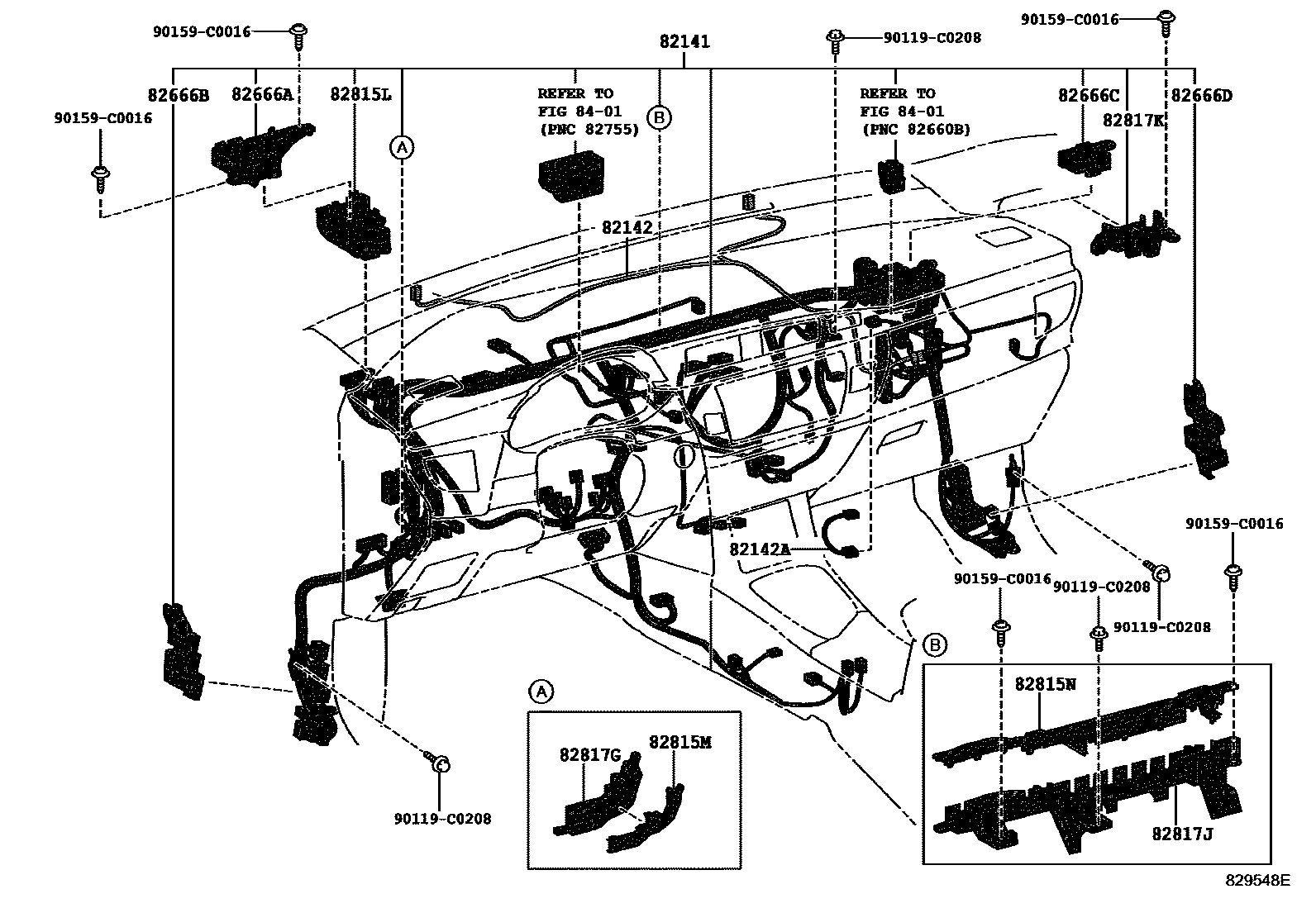

| 82141 | Dashboard wiring harness | 82117-02X00 · 82117-02X10 · 82117-02X20 · 82117-02X30 · 82117-02X40 · 82117-0ZF50 · 82117-0ZF60 · 82117-0ZF70 · 82117-0ZF80 · 82117-0ZF90 · 82117-0ZM30 · 82117-0ZM40 · 82117-0ZP80 · 82117-0ZR90 · 82117-0ZR92 · 82117-0ZS00 · 82117-0ZS02 · 82117-0ZS10 · 82117-0ZS12 · 82117-0ZS20 · 82117-0ZS22 · 82138-0ZP70 · 82138-0ZP80 · 82138-0ZP90 · 82138-0ZQ00 · 82138-0ZQ10 · 82138-0ZQ20 · 82138-0ZQ30 · 82138-0ZQ40 · 82138-0ZQ60 · 82138-0ZS40 · 82138-0ZS50 · 82138-0ZS60 · 82138-0ZS80 · 82138-0ZS90 · 82138-0ZT10 · 82141-F2040 · 82141-F2050 · 82141-F2070 · 82141-F2080 · 82141-F2090 · 82141-F2100 · 82141-F2110 · 82141-F2120 · 82141-F2A80 · 82141-F2B10 · 82141-F2B21 · 82145-F2E10 · 82145-F2E20 · 82145-F2E30 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-02660 · 82142-02670 · 82142-02780 · 82142-02790 · 82142-02E00 · 82142-02E10 · 82142-02E20 · 82142-02K70 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-02480 |

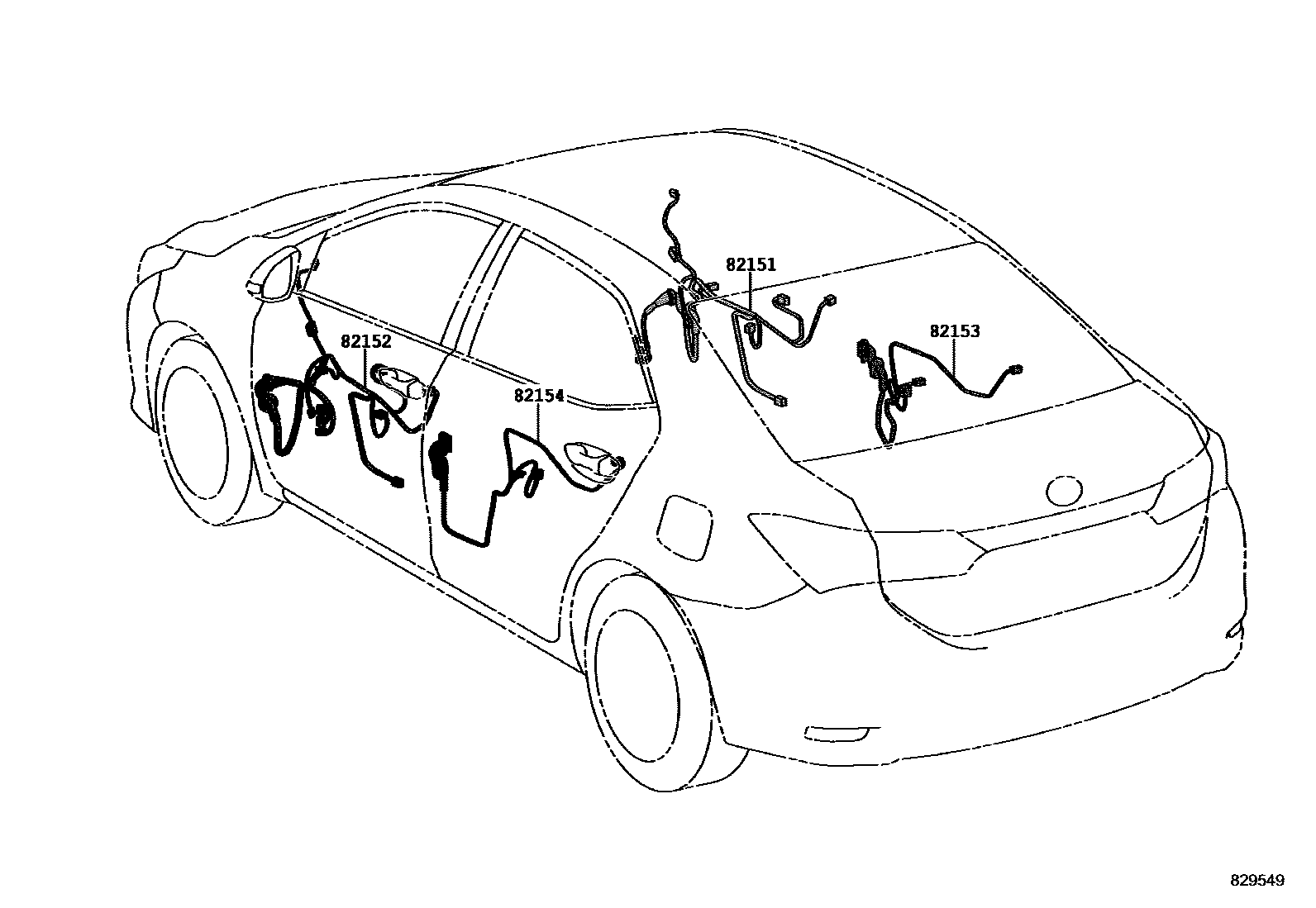

| 82151 | Right front door wiring harness | 82151-02Z20 · 82151-0ZD80 · 82151-0ZD90 · 82151-0ZE00 · 82151-0ZF00 · 82151-0ZK70 · 82197-02530 |
| 82152 | Left front door wiring harness | 82152-02Y40 · 82152-0ZC70 · 82152-0ZC80 · 82152-0ZC90 · 82152-0ZD00 · 82152-0ZE00 · 82152-0ZJ00 · 82152-0ZJ10 · 82198-02290 · 82198-02300 |
| 82153 | Rear door wiring harness No. 1 | 82153-02C90 |
| 82154 | Rear door wiring harness No. 2 | 82154-02B20 |
| 82161 | floor wiring harness | 82161-F2011 · 82161-F2020 · 82161-F2021 · 82161-F2031 · 82161-F2041 · 82161-F2051 · 82161-F2Z81 · 82199-02460 · 82199-02470 · 82199-02471 · 82199-02480 · 82199-02490 · 82199-02500 · 82199-02510 · 82199-02511 · 82199-02520 · 82199-02530 · 82199-02650 · 82199-02660 · 82199-02A00 · 82199-02A01 · 82199-02A03 · 82199-02A04 · 82199-02A10 · 82199-02A11 · 82199-02A13 · 82199-02A14 · 82199-02A20 · 82199-02A21 · 82199-02A23 · 82199-02A24 · 82199-02A30 · 82199-02A31 · 82199-02A33 · 82199-02A34 · 82199-02T50 · 82199-02T51 · 82199-02T60 · 82199-02T61 · 82199-02T70 · 82199-02T71 · 82199-02T80 · 82199-02T81 · 82199-02T90 · 82199-02T91 · 82199-02U00 · 82199-02U01 · 82199-0Z360 · 82199-0Z361 · 82199-0Z380 · 82199-0Z381 · 82199-0Z390 · 82199-0Z391 · 82199-0ZE40 · 82199-0ZE41 · 82199-0ZE50 · 82199-0ZE51 · 82199-0ZE60 · 82199-0ZE61 · 82199-0ZE71 · 82199-0ZE81 · 82199-0ZN51 · 82199-0ZN61 · 82199-0ZN71 · 82199-0ZN81 · 82199-0ZN91 · 82199-0ZW31 · 82199-0ZW41 · 82199-0ZY90 · 82199-0ZZ00 |
| 82165 | No. 2 frame wiring harness | 82165-02071 |
| 82171 | Roof No. 1 wiring harness | 82171-02T80 · 82171-0Z740 · 82171-0Z750 · 82171-0Z760 · 82171-0Z770 · 82171-0Z860 · 82171-0Z870 · 82171-0Z880 |
| 82182 | Luggage No. 2 wiring harness | 82182-02070 · 82182-02140 |
| 82187 | Rear window wiring harness No. 2 | 82187-02270 |

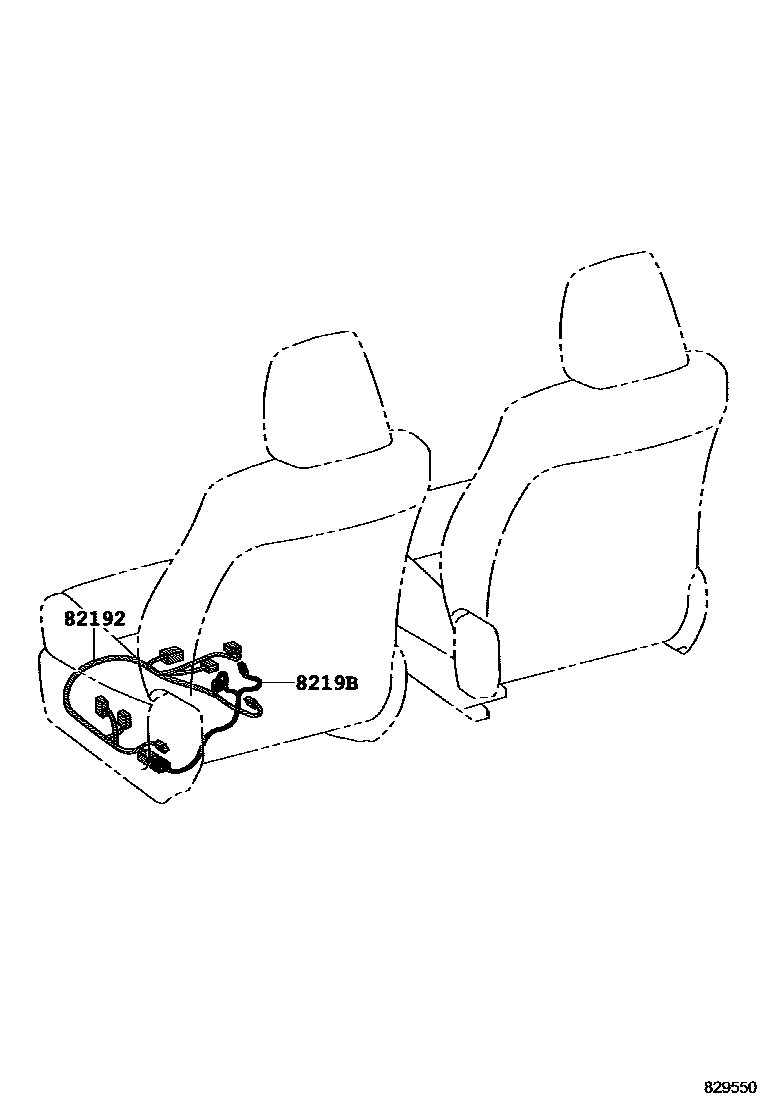

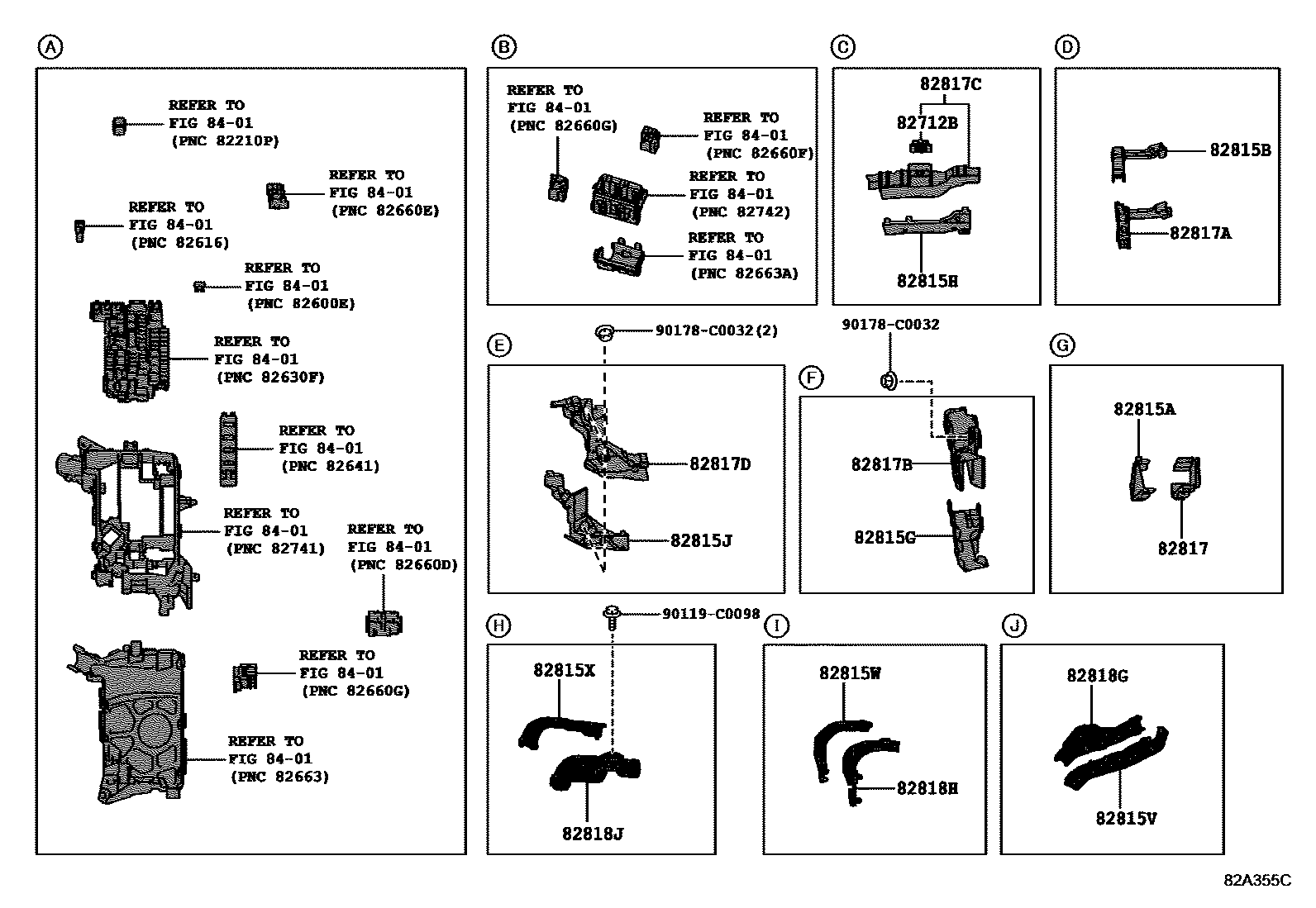

| 82192 | Front left seat wiring harness | 82192-02090 |
| 8219B | Wire harness No. 2, left side of front seat | 8219B-02030 |
| 821H1 | Underfloor wiring harness | 821H1-02010 |
| 82219A | sensor harness | 82219-02020 |
| 82286A | Line 2 | 82286-02020 |
| 82311A | Air conditioning wiring harness | 821H2-02010 |
| 82666A | Connector holder No. 2 | 82666-02570 |
| 82666B | No. 3 connector holder | 82666-02580 |
| 82666C | No. 4 connector holder | 82666-02590 |
| 82666D | No. 5 connector holder | 82666-02600 |
| 82666E | No. 6 connector holder | 82666-02610 |
| 82666F | No. 7 connector holder | 82666-02620 |
| 82712A | Wire harness bracket | 82712-47340 |
| 82712B | Wire harness bracket | 82712-47270 |
| 82712C | No. 1 wiring harness bracket | 82712-47270 |
| 82815A | Wiring harness protector cover | 82815-02520 · 82815-47390 |
| 82815B | Wiring harness protector cover | 82815-02530 · 82815-47560 |
| 82815G | No. 5 wire harness protector cover | 82815-02540 · 82815-47600 |
| 82815H | No. 6 wire harness protector cover | 82815-12510 · 82815-47620 |
| 82815J | No. 7 wire harness protector cover | 82815-12520 · 82815-75050 |
| 82815K | No. 8 wire harness protector cover | 82815-02610 · 82815-02760 · 82815-12530 |
| 82815L | No. 9 wire harness protector cover | 82815-02550 |
| 82815M | No. 10 wire harness protector cover | 82815-02560 |
| 82815N | No. 11 wire harness protector cover | 82815-02570 |
| 82815P | No. 12 wire harness protector cover | 82815-02620 · 82815-02770 |
| 82815Q | No. 13 wire harness protector cover | 82815-02780 · 82815-47480 |
| 82815R | No. 14 wire harness protector cover | 82815-02790 · 82815-47490 |
| 82815S | No. 15 wire harness protector cover | 82815-02810 · 82815-47510 |
| 82815T | No. 16 wire harness protector cover | 82815-02830 · 82815-47520 |
| 82815U | No. 17 wire harness protector cover | 82815-47541 |
| 82815V | No. 1 wire harness protector cover | 82815-02410 |
| 82815W | No. 2 wire harness protector cover | 82815-02630 |
| 82815X | No. 3 wire harness protector cover | 82815-47470 |
| 82817 | No. 1 wire harness protection device | 82817-02F90 · 82817-47620 |
| 82817A | No. 2 wire harness protection device | 82817-02G00 · 82817-47800 |
| 82817B | No. 3 wire harness protection device | 82817-02G10 · 82817-47850 |
| 82817C | No. 4 wire harness protection device | 82817-12J10 · 82817-47870 |
| 82817D | No. 5 wire harness protection device | 82817-12K80 · 82817-75140 |
| 82817E | No. 6 wire harness protection device | 82817-02F70 · 82817-02K30 · 82817-12K90 |
| 82817F | No. 7 wire harness protection device | 82817-02F80 · 82817-02K40 · 82817-12L00 |
| 82817G | No. 8 wire harness protection device | 82817-02G20 |
| 82817J | No. 9 wire harness protection device | 82817-02G30 |
| 82817K | No. 10 wire harness protection device | 82817-02G40 |
| 82817L | No. 11 wire harness protection device | 82817-02G70 |
| 82817M | No. 12 wire harness protection device | 82817-02G80 |
| 82817N | No. 13 wire harness protection device | 82817-02J40 |
| 82817P | No. 14 wire harness protection device | 82817-02J20 |
| 82817T | No. 15 wire harness protection device | 82817-02F30 |
| 82817U | No. 16 wire harness protection device | 82817-02F40 |
| 82817X | No. 17 wire harness protection device | 82817-02K50 · 82817-02M00 |
| 82818 | No. 2 wire harness protection device | 82817-02M10 · 82817-47720 |
| 82818B | No. 3 wire harness protection device | 82817-02M20 · 82817-47730 |
| 82818C | No. 4 wire harness protection device | 82817-02M30 · 82817-47750 |
| 82818D | No. 5 wire harness protection device | 82817-02M40 · 82817-47760 |
| 82818E | No. 6 wire harness protection device | 82817-02M50 · 82817-47781 |
| 82818F | No. 7 wire harness protection device | 82817-02K70 |
| 82818G | No. 8 wire harness protection device | 82817-02D40 |
| 82818H | No. 9 wire harness protection device | 82817-02K60 |
| 82818J | No. 10 wire harness protection device | 82817-47700 |
| 82818K | No. 11 wire harness protection device | 82817-12860 |
| 82821A | Connector cover | 82821-02080 |
| 82821E | Connector cover | 82821-42040 |
| 82821H | Connector cover | 82821-20410 |
| 82823S | starter terminal cover | 82823-12110 · 82823-12120 |
| 82823T | Generator terminal cover | 82823-22050 |
| 82826 | Wire harness hole cover | 61815-64010 |
| 82930 | No. 1 condenser wire harness assembly | 82930-12010 |
| G921D | Inverter Connector Cover Protector | G921D-47010 |
