Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201
Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 5 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

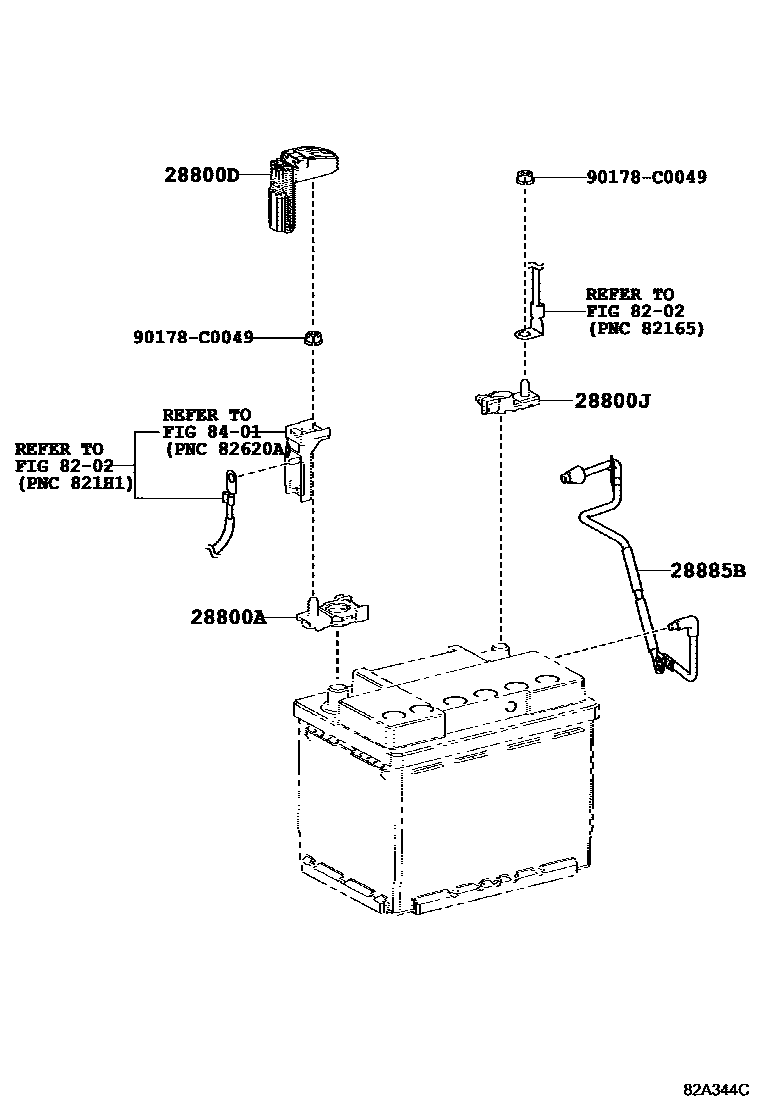

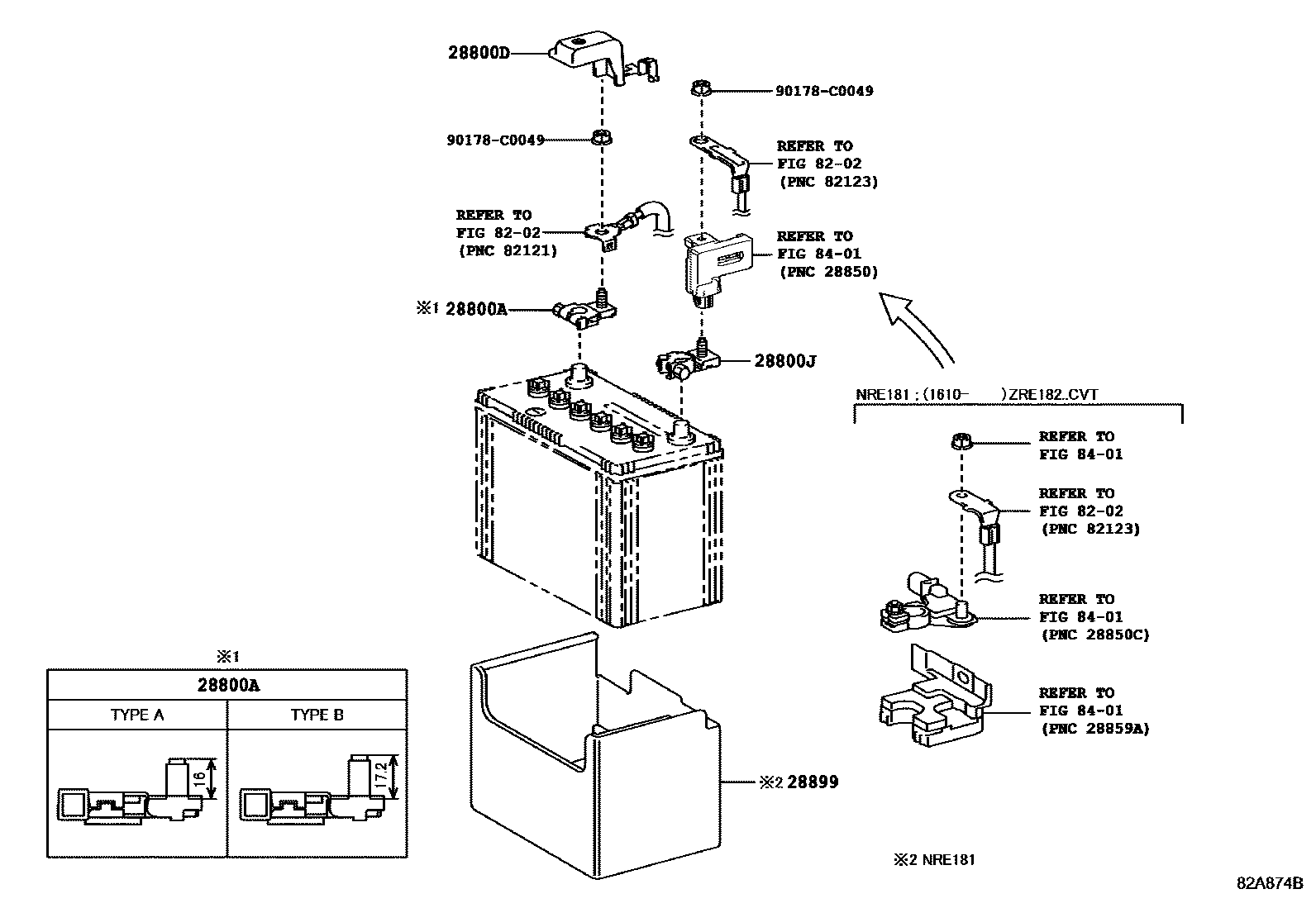

| 28800A | battery positive terminal | 90982-05054 · 90982-05061 · 90982-05062 |
| 28800D | Connector cover (for battery terminals) | 82821-02060 · 82821-12490 |
| 28800J | battery negative terminal | 90982-06059 · 90982-06070 |
| 28885B | battery hose | 28885-0T010 |
| 28899 | Battery insulation cover | 28899-0Y050 |

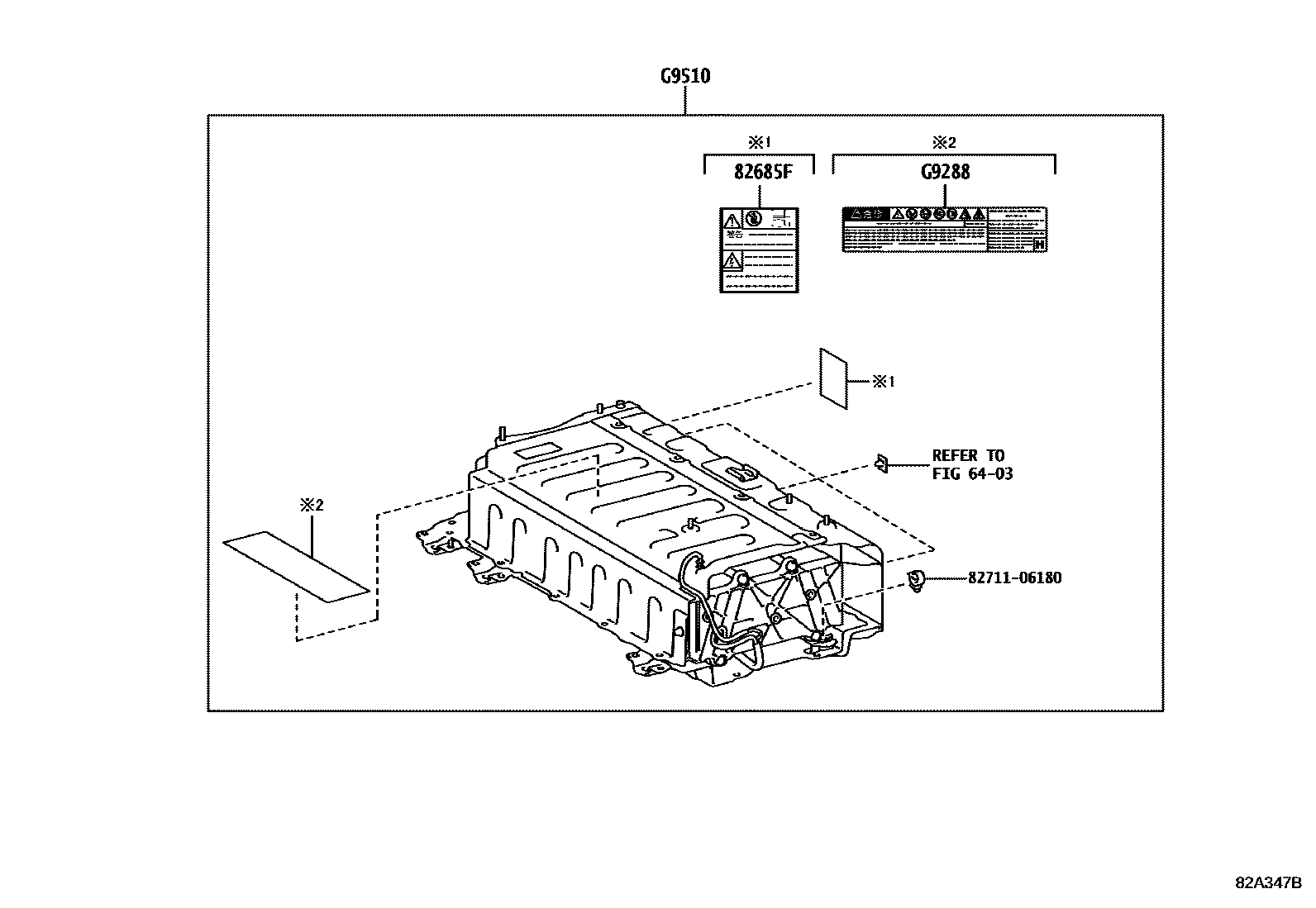

| 82685F | Main battery No. 1 warning nameplate | 82685-02030 |
| 89892A | battery voltage sensor | 89892-02010 |
| G3834 | Service plug handle | G3834-02010 |

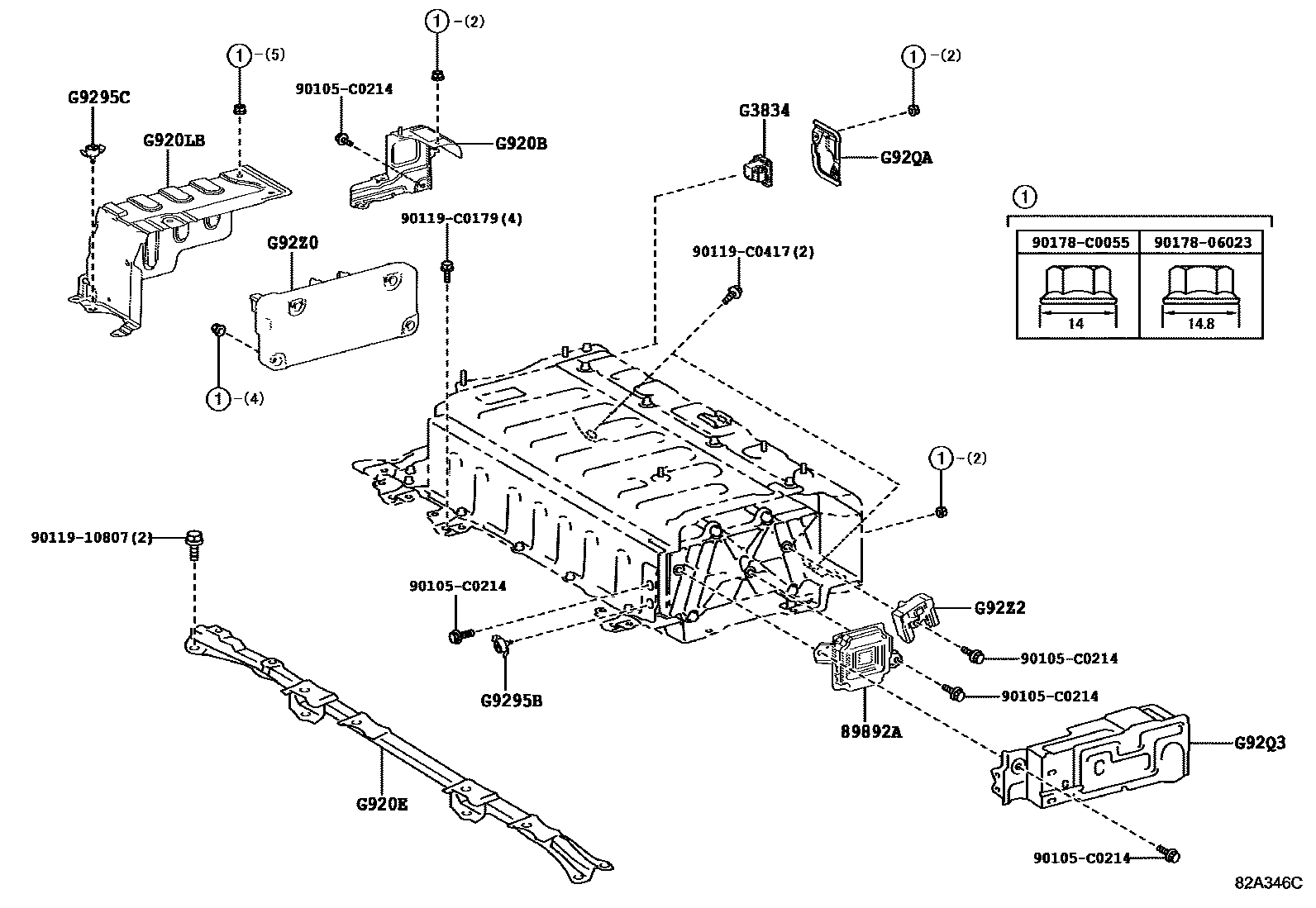

| G920B | HV battery bracket No. 1 bracket sub-assembly | G920B-02010 |
| G920E | HV battery lower bracket sub-assembly | G920E-02010 |
| G920LB | HV battery right cover sub-assembly | G920L-02010 |

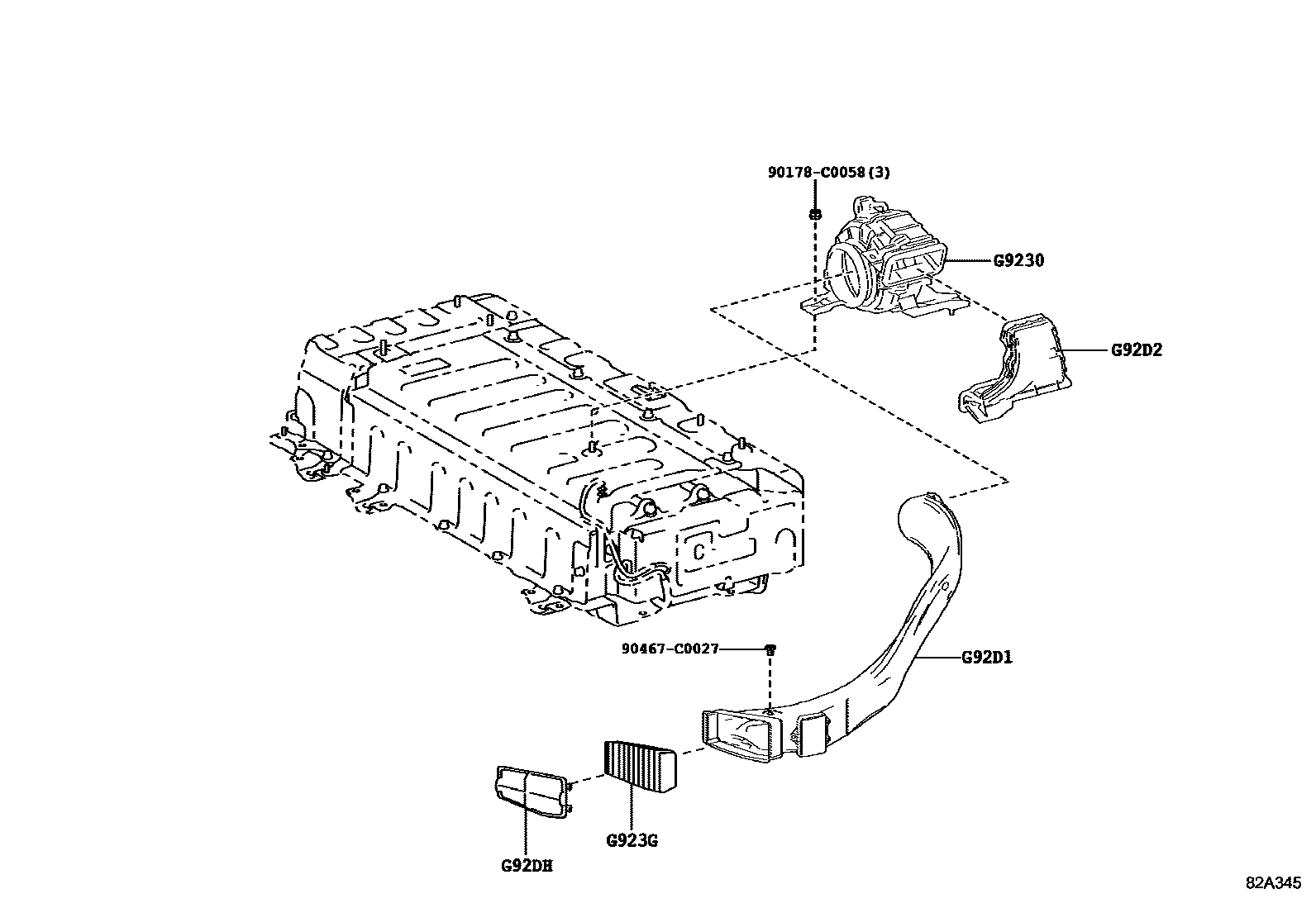

| G9230 | Battery cooling blower assembly | G9230-02010 |
| G923G | Battery cooling blower grid | G92DJ-02010 |
| G9288 | Battery charging precautions label | G9288-02010 |
| G9295B | Battery cover lock | G9295-30020 |
| G9295C | Battery cover No. 2 lock | G9295-02010 |
| G92D1 | No. 1 HV battery air inlet | G92D1-02010 |
| G92D2 | No. 2 HV battery air inlet | G92D2-02010 |
| G92DH | No. 1 HV battery air intake filter | G92DJ-02020 |
| G92Q3 | HV battery No. 3 shielding plate | G92Q3-02010 |
| G92QA | HV battery No. 8 shielding plate | G92QA-02010 |
| G92Z0 | HV battery junction box assembly | G92Z0-02010 |
| G92Z2 | HV battery terminal box | G92Z2-47070 |
| G9510 | HV power supply battery assembly | G9510-02010 |
