Toyota COROLLA 高位刹车灯 — Figure 8117

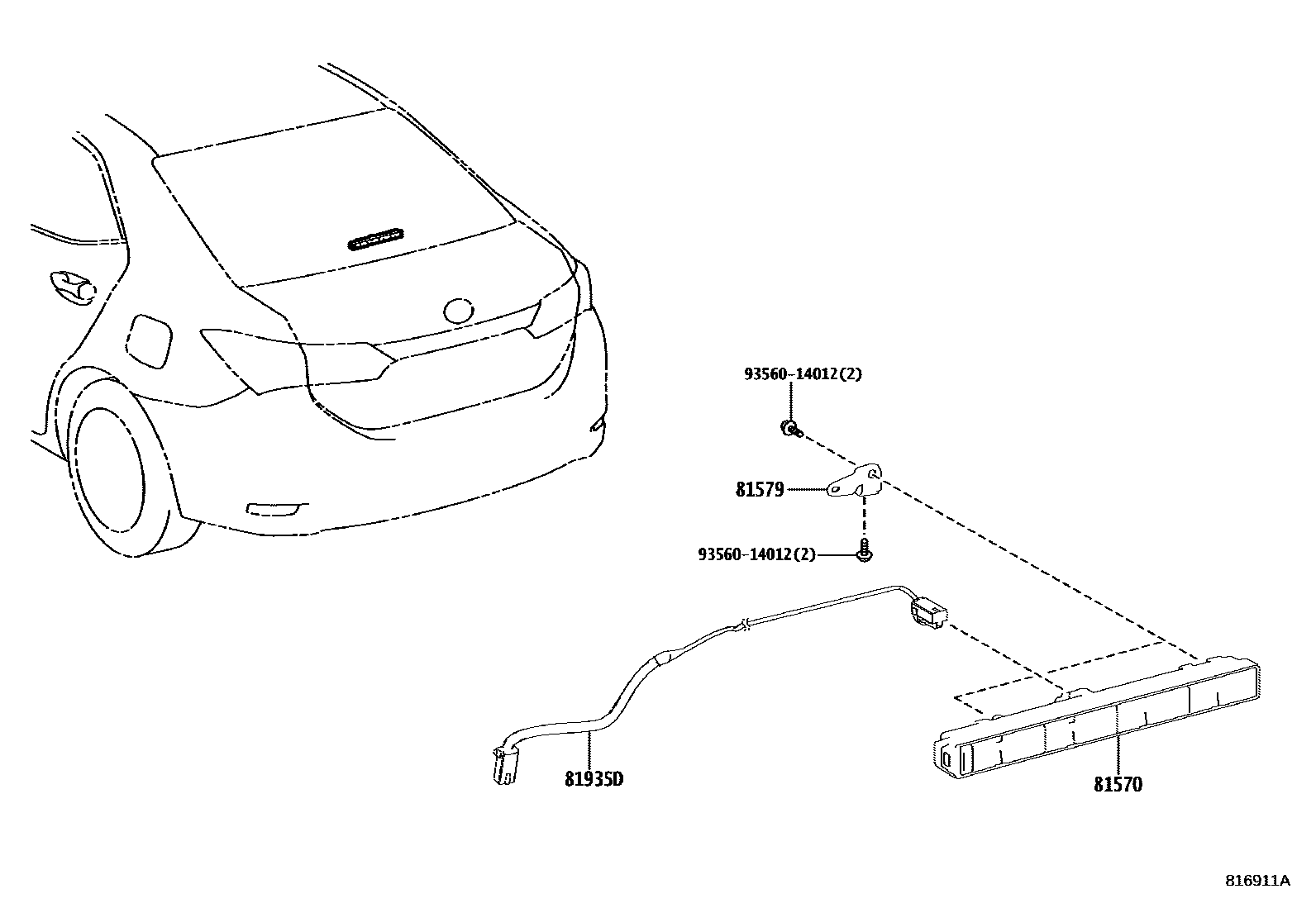

Toyota COROLLA EPC diagram 8117, 高位刹车灯, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81570 | Central brake light assembly | 81570-0D160 |
| 81579 | Central brake light bracket | 81577-33010 |
| 81935D | Central brake light wire assembly | 81935-02200 · 81935-02201 |
