Toyota COROLLA 后组合灯 — Figure 8111

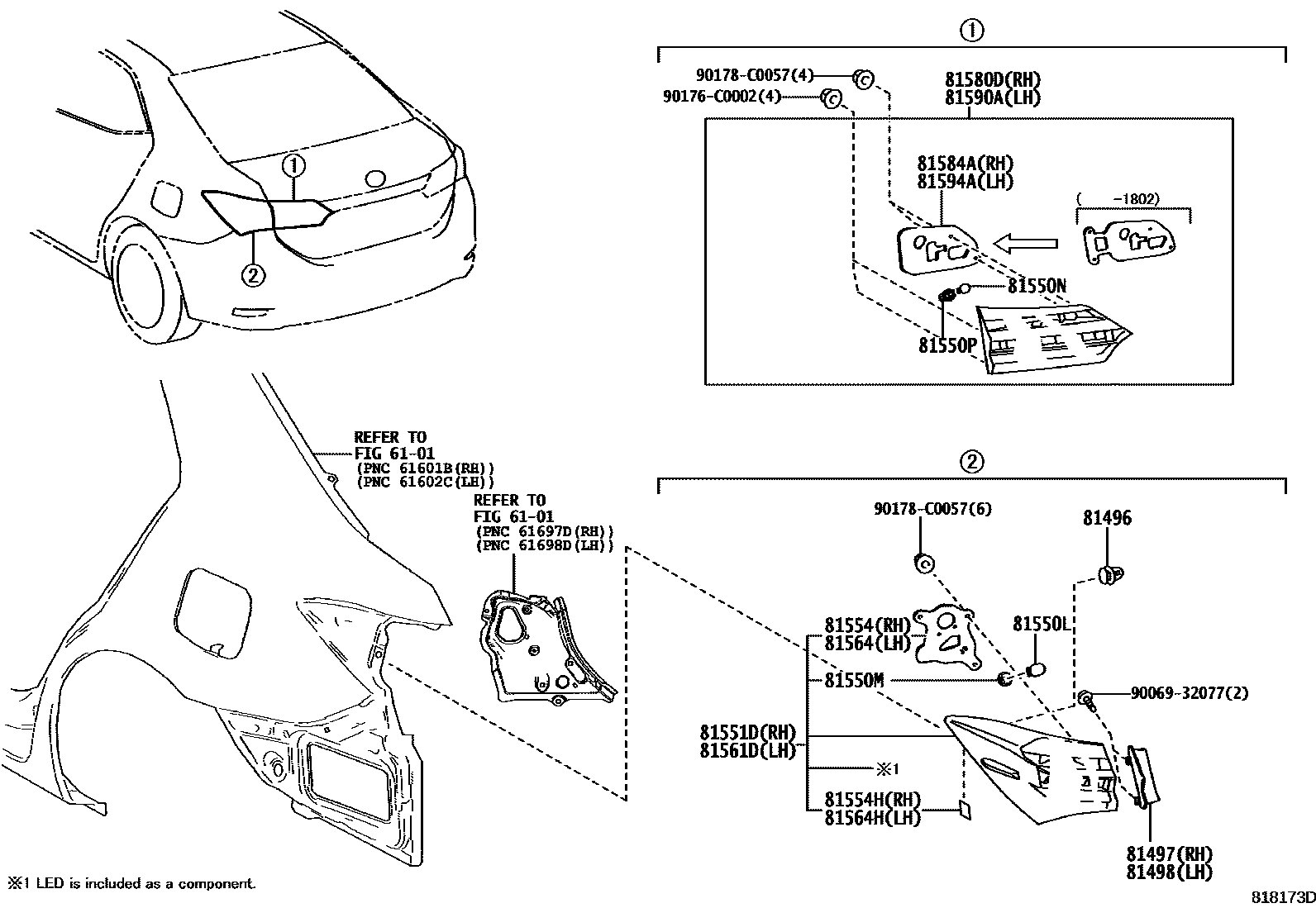

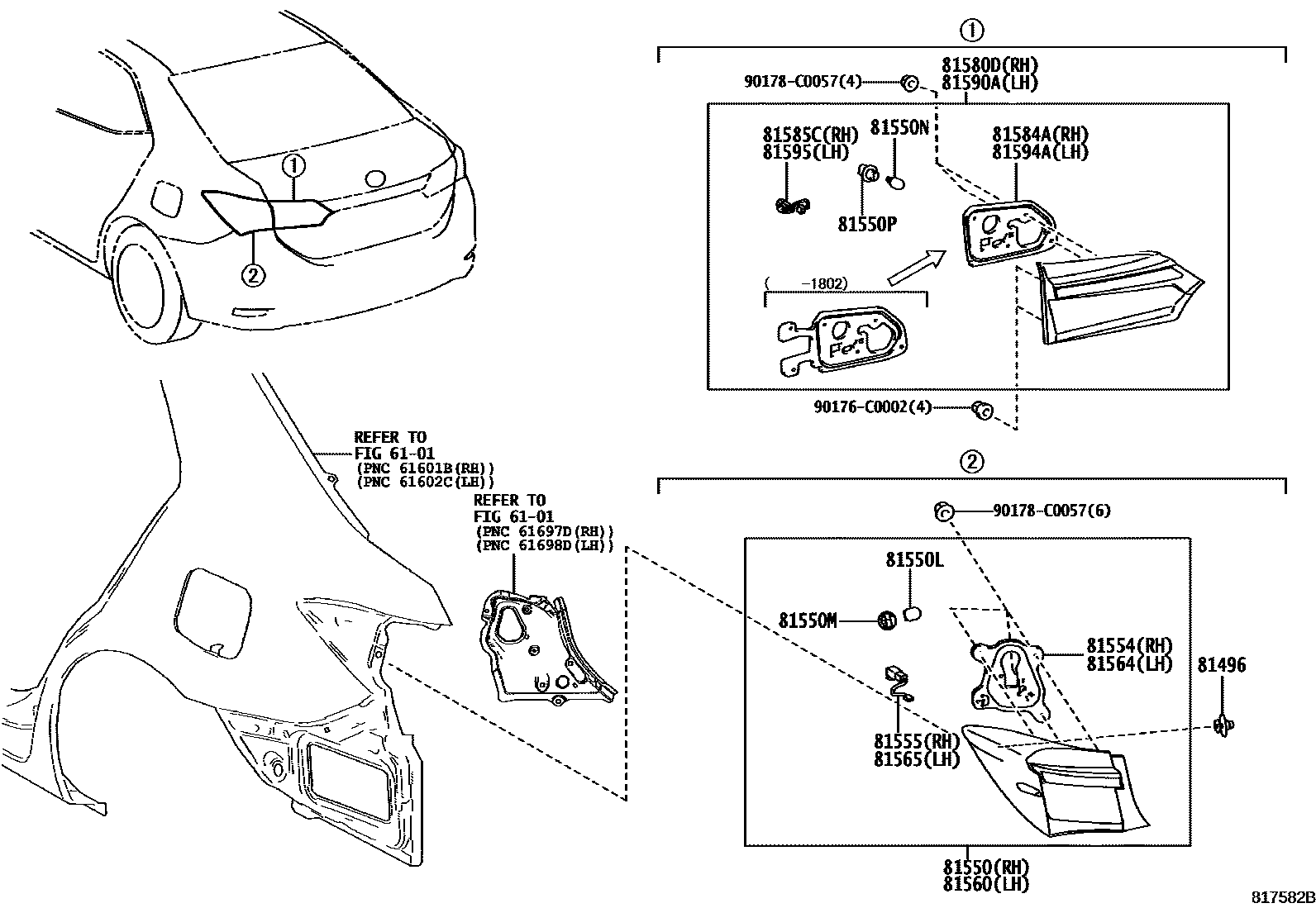

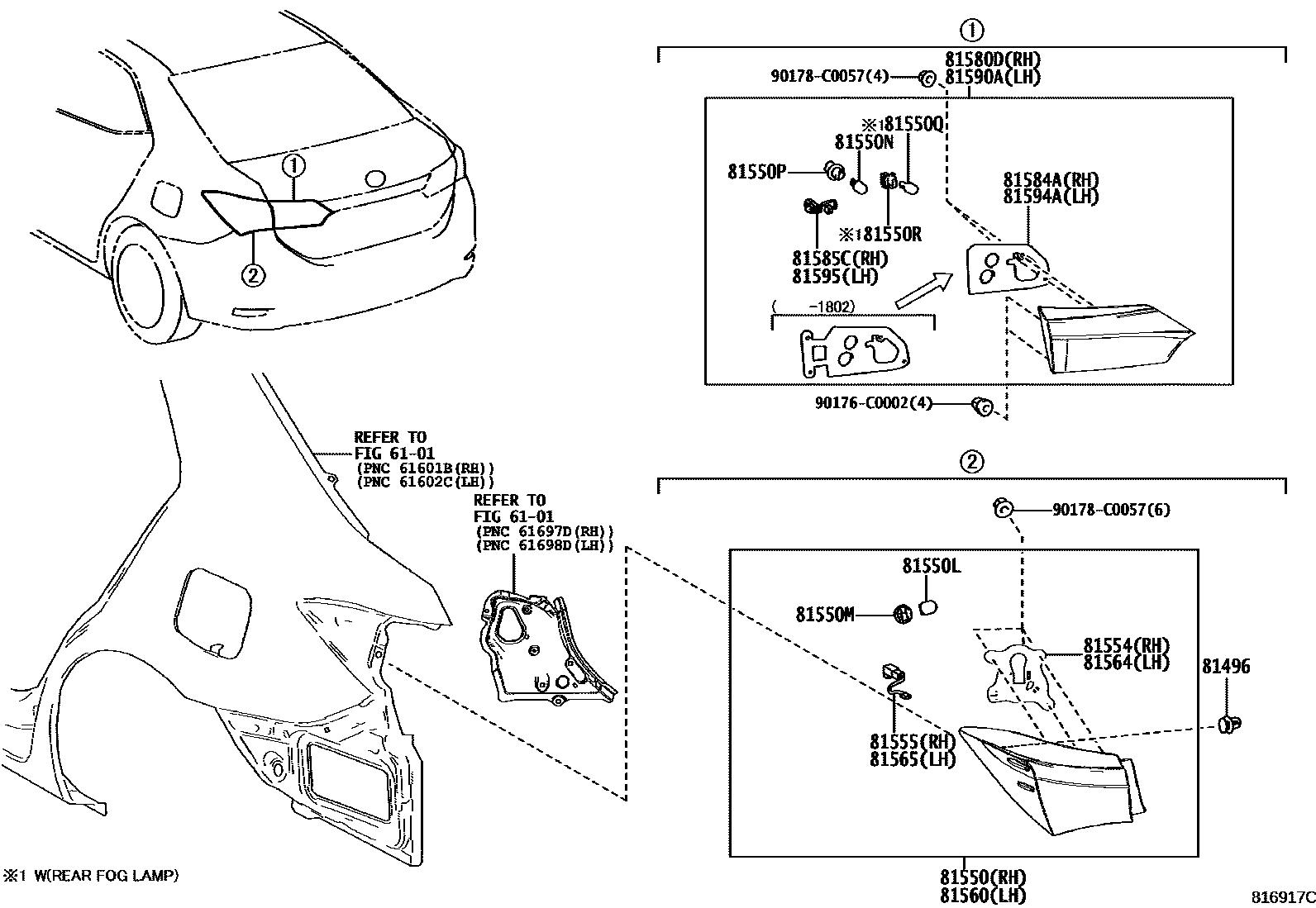

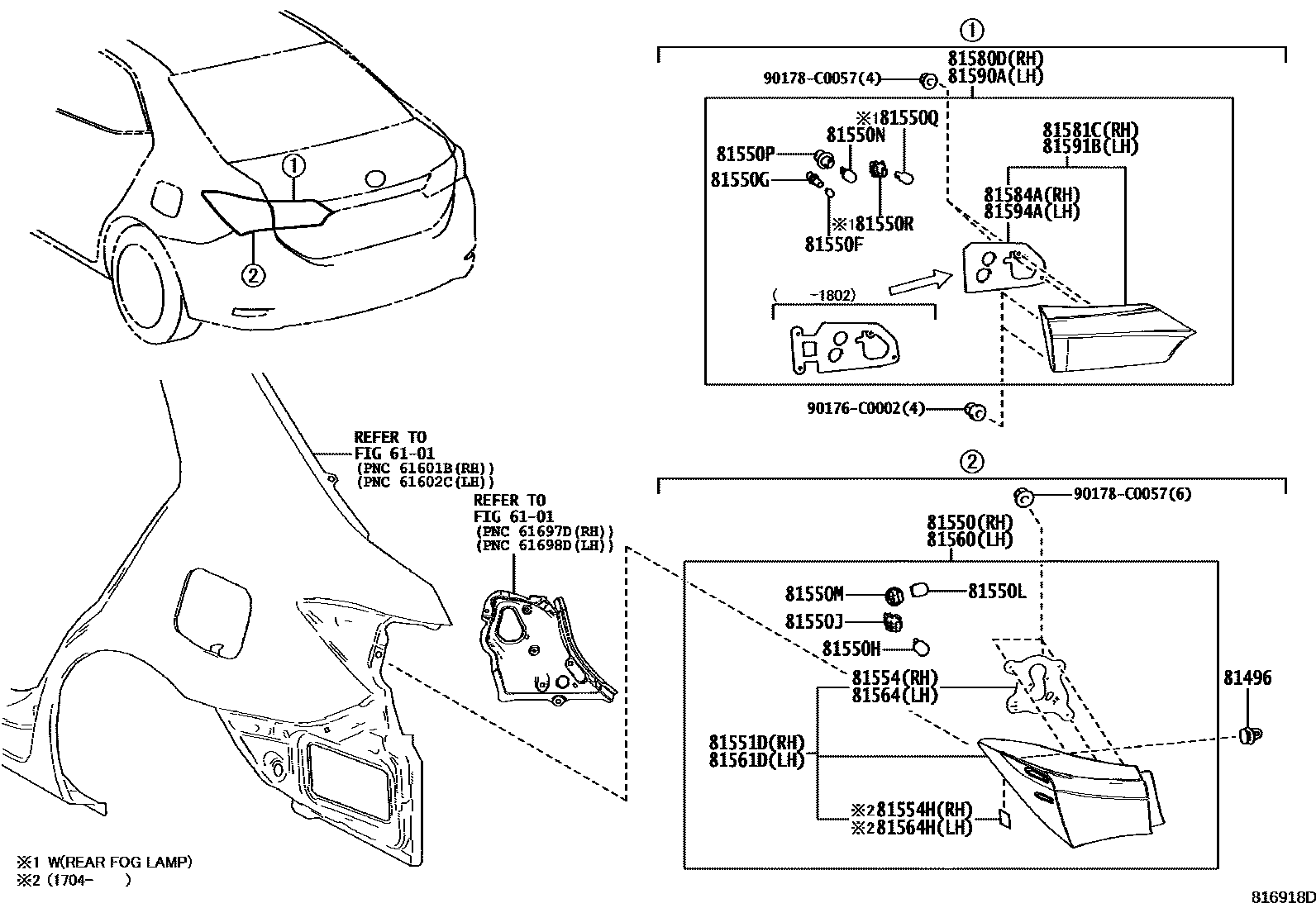

Toyota COROLLA EPC diagram 8111, 后组合灯, with 4 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 90467-C0019 |
| 81497 | Right rear combination lamp cover | 81555-02C10 |
| 81498 | Left rear combination lamp cover | 81565-02B80 |
| 81550 | Right rear combination light assembly | 81550-02690 · 81550-02860 · 81550-02861 · 81550-02870 · 81550-02C50 · 81550-02C51 |
| 81550F | tail light bulb | 90981-CB001 |
| 81550G | Tail light lamp holder | 90069-81102 |
| 81550H | Tail and brake light bulbs | 90981-CB003 |
| 81550J | Tail and brake light holders | 90069-81099 |
| 81550L | Rear turn signal light bulb | 90981-CB004 |
| 81550M | Rear turn signal lamp holder | 90069-81098 |
| 81550N | reversing light bulb | 90981-CB002 |
| 81550P | Reversing light lamp holder | 90069-81101 |
| 81550Q | Rear fog light bulb No. 1 | 90981-CD005 |
| 81550R | Rear fog light lamp holder | 90069-81100 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-02860 · 81551-02861 · 81551-02C10 · 81551-02C50 · 81551-02C51 |
| 81554 | Right rear combination lamp body gasket | 81552-02860 · 81552-02870 |
| 81554H | Right rear combination lamp seal | 81554-02C10 · 81554-02C11 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-02870 |
| 81560 | Left rear combination light assembly | 81560-02690 · 81560-02860 · 81560-02861 · 81560-02870 · 81560-02C00 · 81560-02C01 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-02860 · 81561-02861 · 81561-02B80 · 81561-02C00 · 81561-02C01 |
| 81564 | Left rear combination lamp body gasket | 81552-02860 · 81552-02870 |
| 81564H | Left rear combination lamp seal | 81554-02C10 · 81554-02C11 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81565-02870 · 81565-02B80 |
| 81580D | Right rear light assembly | 81580-02430 · 81580-02730 · 81580-02731 · 81580-02740 · 81580-02770 · 81580-02B20 |
| 81581C | Right rear light lampshade and lamp body | 81581-02730 · 81581-02731 · 81581-02770 · 81581-02771 |
| 81584A | Right rear light gasket | 81584-02430 · 81584-02431 · 81584-02730 · 81584-02740 · 81584-02770 · 81584-02B20 · 81584-02B21 |
| 81585C | Right rear light lamp holder and wiring harness | 81125-02740 · 81585-02430 |
| 81590A | Left rear light assembly | 81590-02430 · 81590-02610 · 81590-02670 · 81590-02730 · 81590-02731 · 81590-02740 |
| 81591B | Left rear light shade and body | 81591-02670 · 81591-02671 · 81591-02730 · 81591-02731 |
| 81594A | Left rear light gasket | 81584-02430 · 81584-02431 · 81584-02730 · 81584-02740 · 81584-02770 · 81584-02B20 · 81584-02B21 |
| 81595 | Left rear light lamp holder and wiring harness | 81125-02740 · 81565-02870 |
