Toyota COROLLA Fog Lamp — Figure 8102

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 2 images and 5 PNC and OE references.

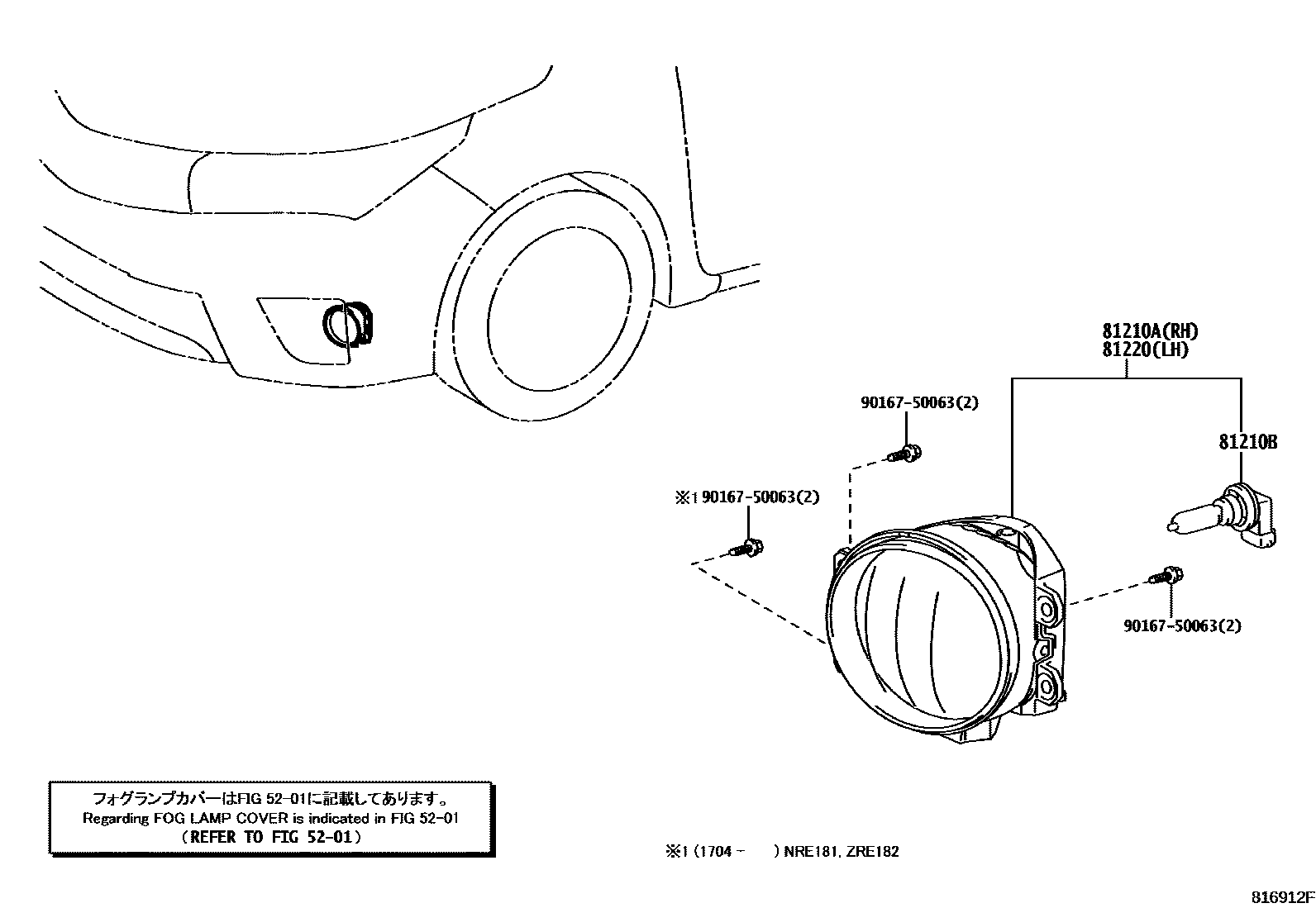

Toyota COROLLA Fog Lamp EPC diagram — 816912F
Fog Lamp — 816912F (201406 – 999999)

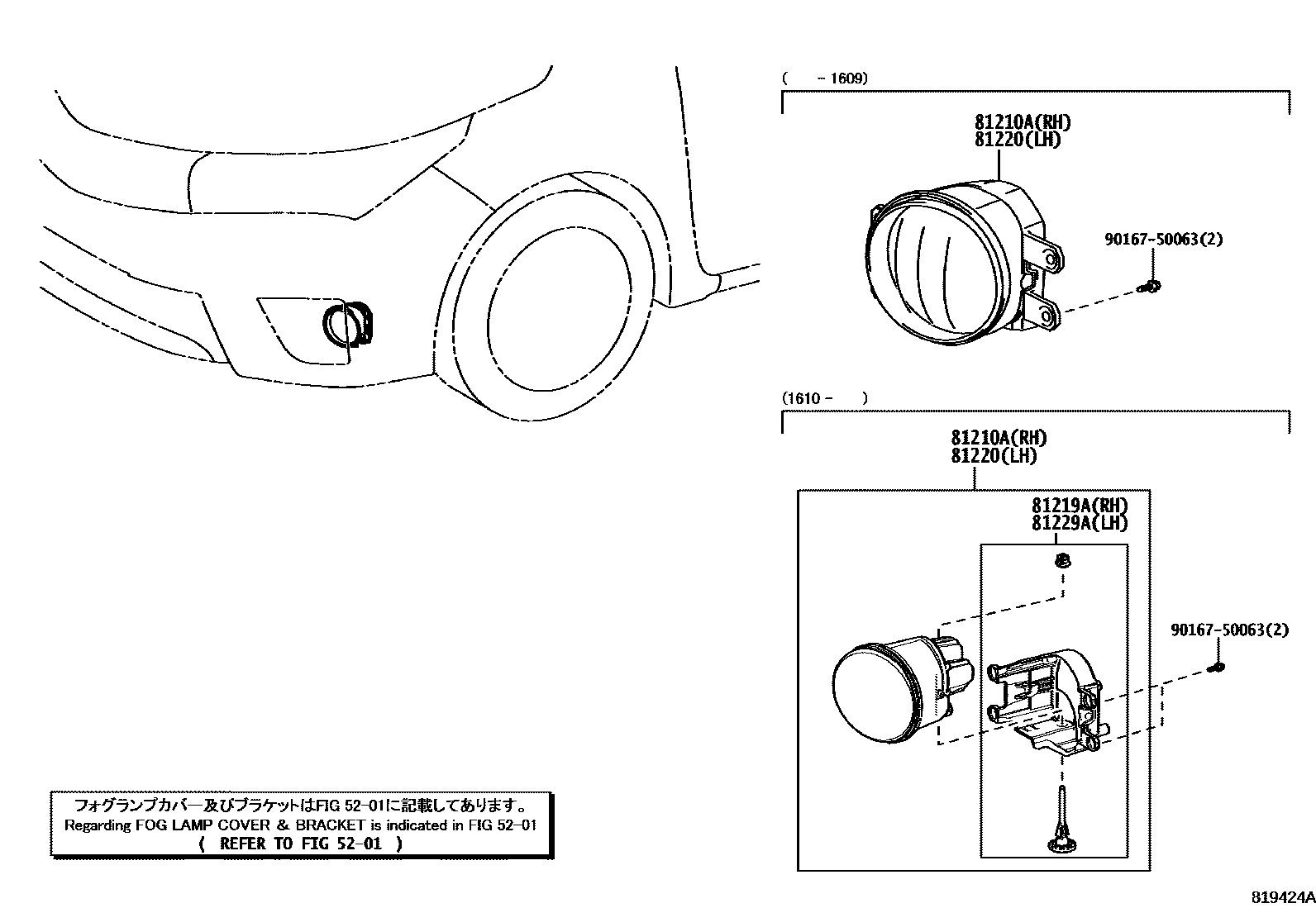

Toyota COROLLA Fog Lamp EPC diagram — 819424A
Fog Lamp — 819424A (201512 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210ARight fog light assembly81210-06090 · 81210-0D100 · 81210-48050 · 81210-48051
81210Bfog light bulb90981-CD003
81219ARight fog light bracket81219-48051
81220Left fog light assembly81220-06090 · 81220-0D100 · 81220-48050 · 81220-48051
81229ALeft fog light bracket81229-48051
