Toyota COROLLA Headlamp — Figure 8101

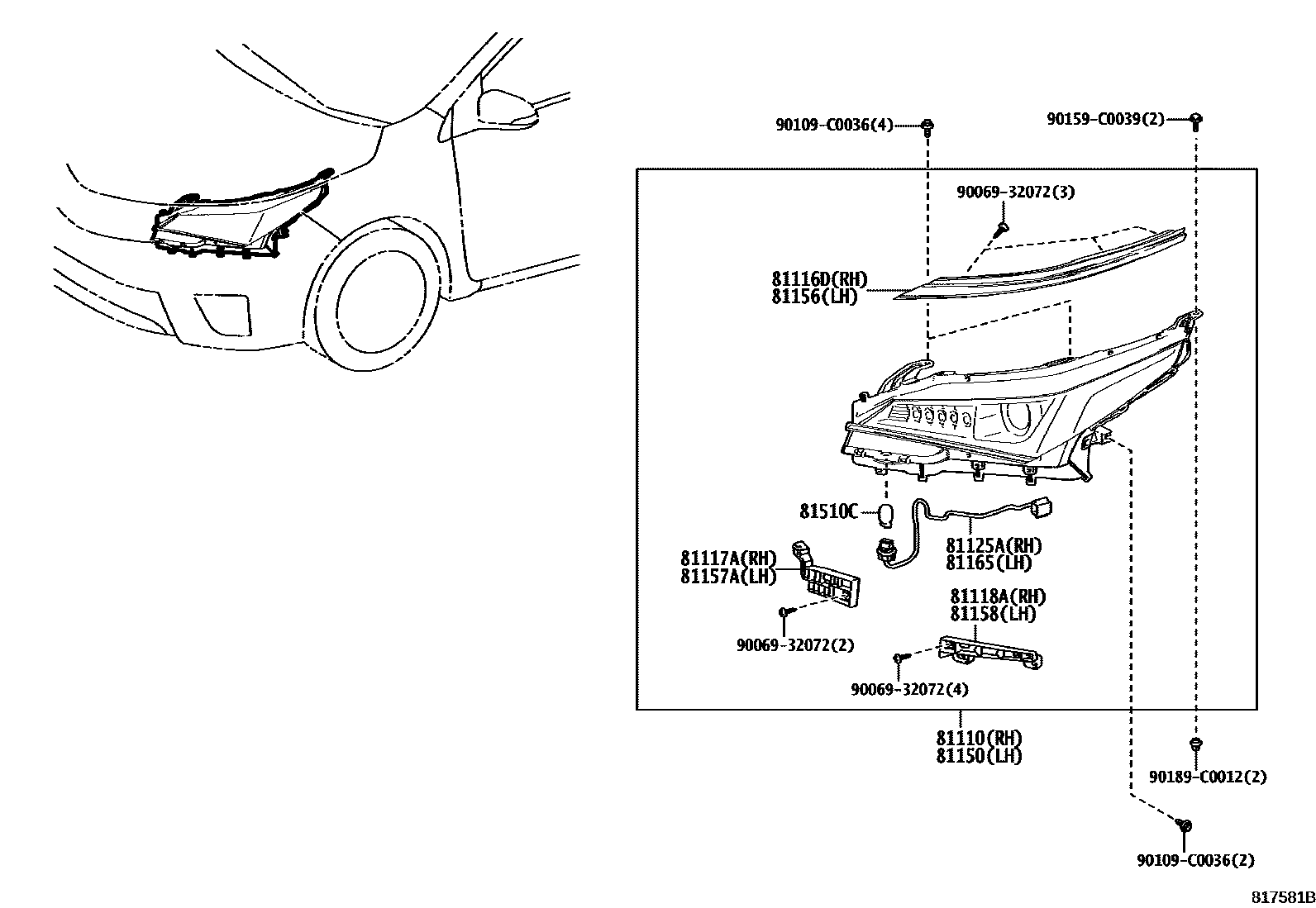

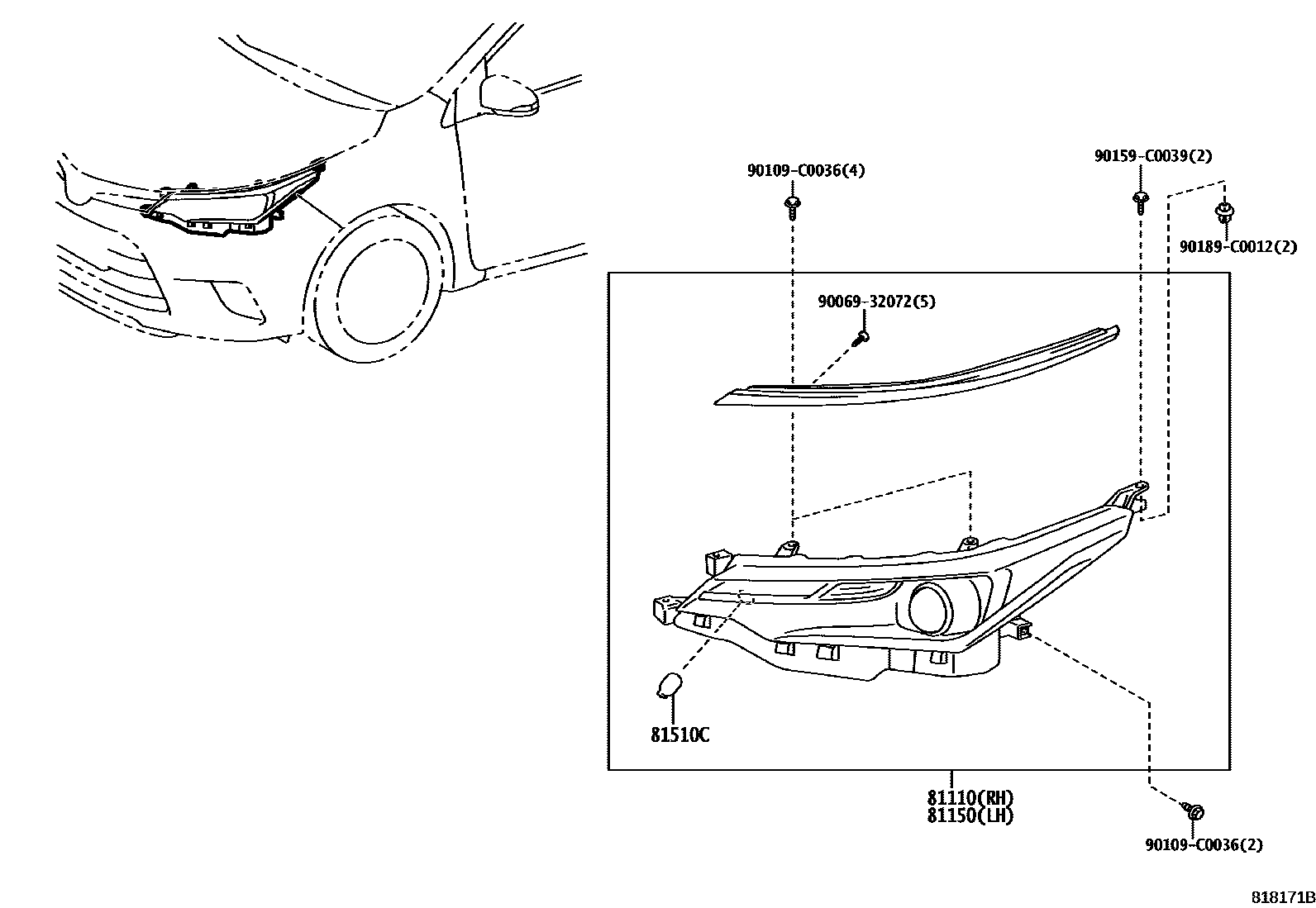

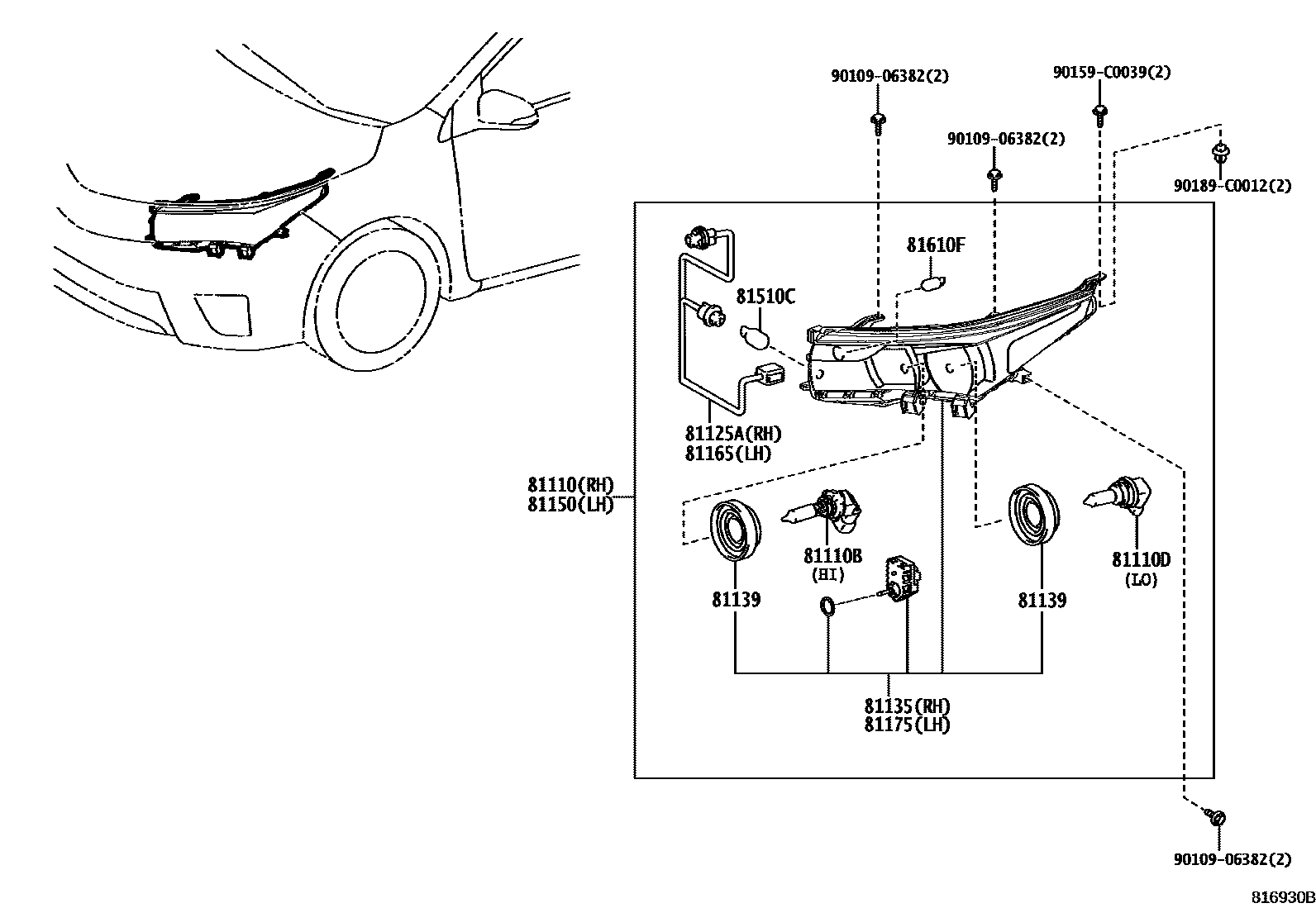

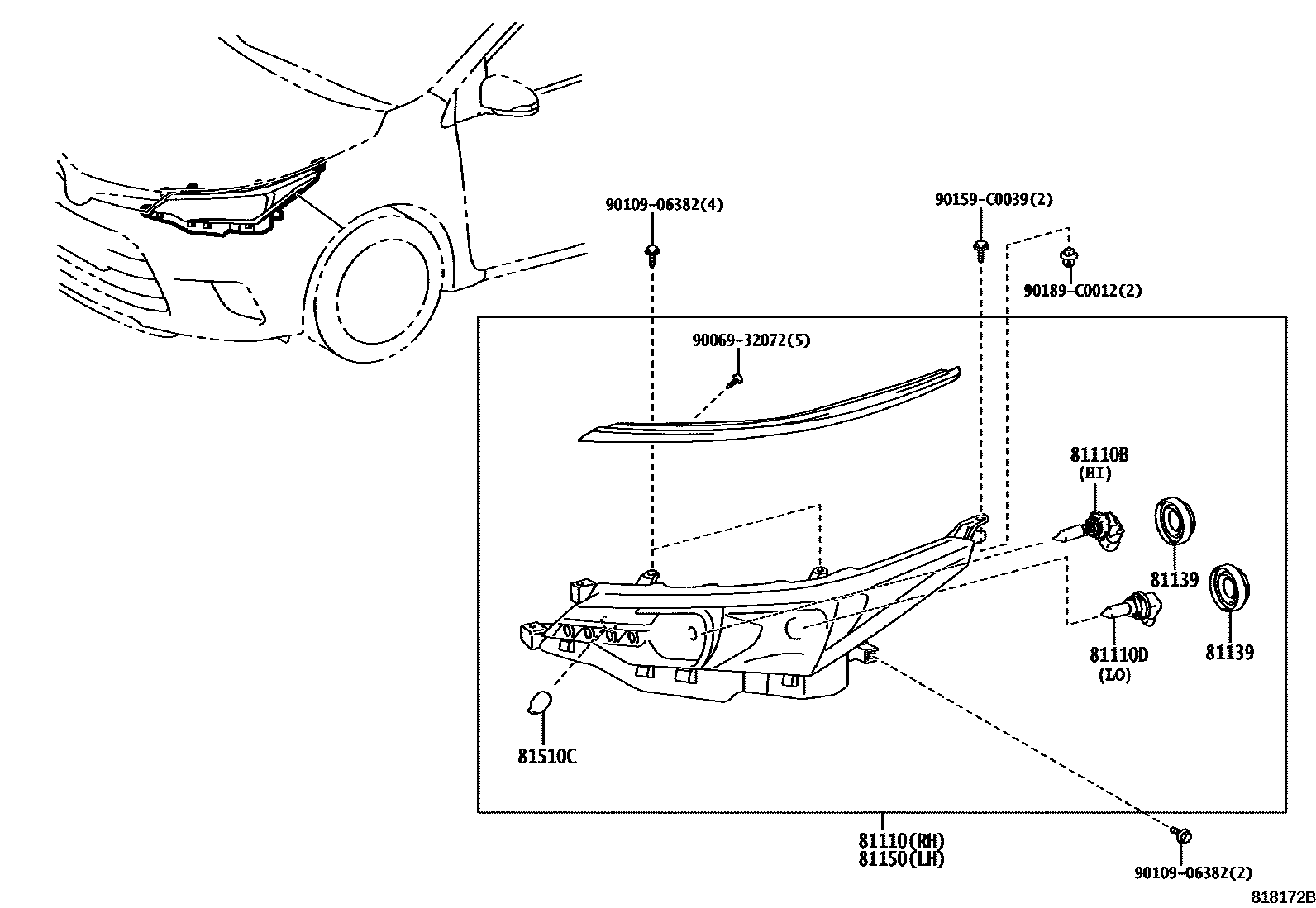

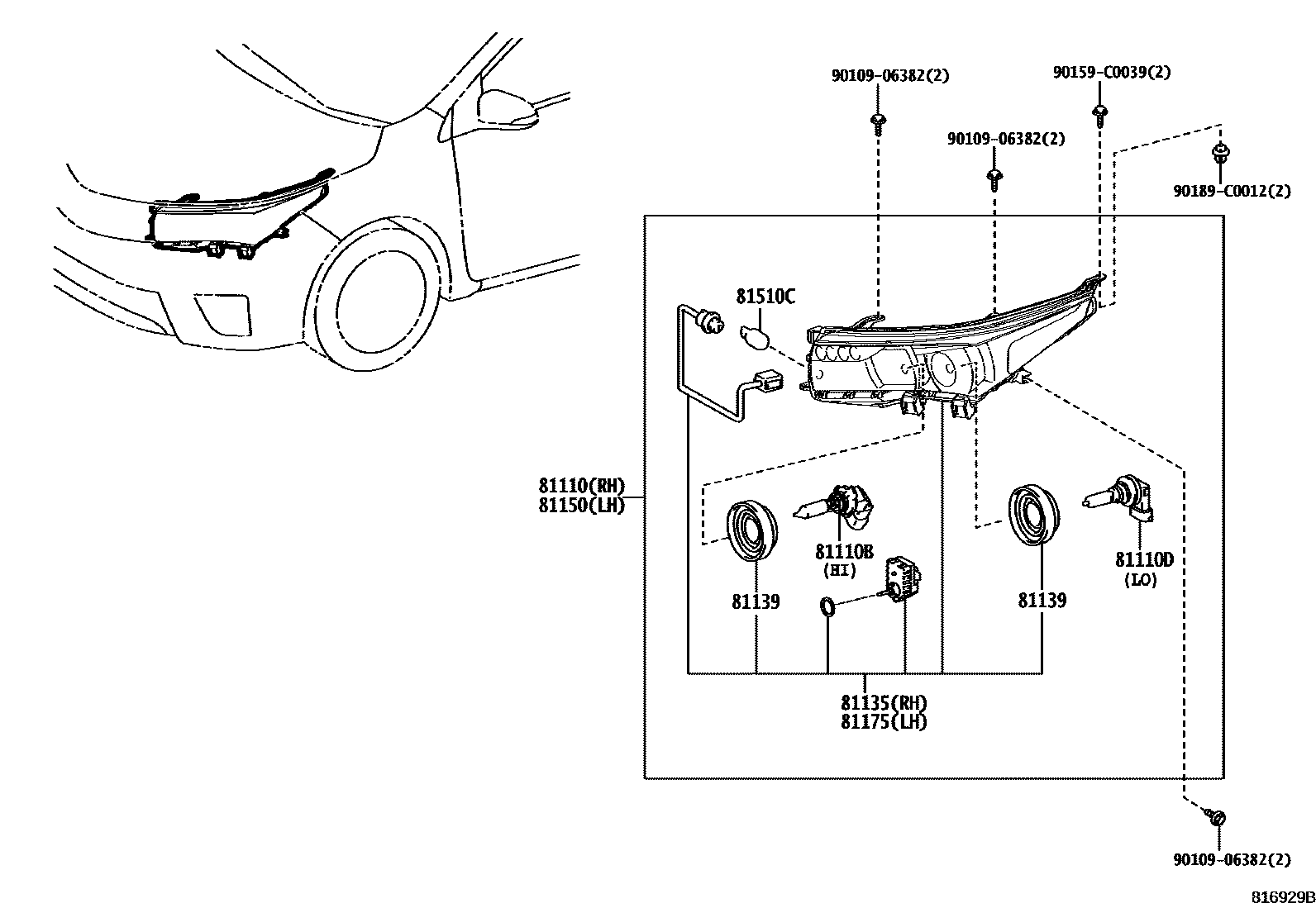

Toyota COROLLA EPC diagram 8101, Headlamp, with 5 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-02J00 · 81110-02J01 · 81110-02J10 · 81110-02K00 · 81110-02K10 · 81110-02M30 · 81110-02P70 · 81110-02P80 · 81110-02P90 |
| 81110B | Bulb (for headlight No. 1) | 90981-13046 · 90981-CD009 |
| 81110D | Bulb (for headlight No. 2) | 90981-13075 · 90981-13085 · 90981-CD008 |
| 81116D | Right headlight frame | 81116-02K00 |
| 81117A | Right headlight bracket | 81117-02K00 |
| 81118A | Right headlight bracket | 81118-02K00 |
| 81125A | Right headlight wire | 81125-02J00 · 81125-02K00 |
| 81135 | Right headlight assembly assembly | 81130-02J00 · 81130-02J01 · 81130-02J10 · 81130-02M30 · 81130-02P70 |
| 81139 | Headlight lamp holder cover | 81135-02400 · 90075-65022 |
| 81150 | Left headlight assembly | 81150-02J00 · 81150-02J01 · 81150-02J02 · 81150-02J10 · 81150-02K00 · 81150-02K10 · 81150-02L20 · 81150-02P70 · 81150-02P80 · 81150-02P90 |
| 81156 | Left headlight frame | 81156-02K00 |
| 81157A | Left headlight bracket | 81157-02K00 |
| 81158 | Left headlight bracket | 81158-02K00 |
| 81165 | Left headlight wire | 81125-02J00 · 81125-02K00 |
| 81175 | Left headlight assembly assembly | 81170-02J00 · 81170-02J01 · 81170-02J02 · 81170-02J10 · 81170-02L20 · 81170-02P70 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 · 90981-CB004 |
| 81610F | Light bulb (for width indicator light) | 90981-CB001 |
