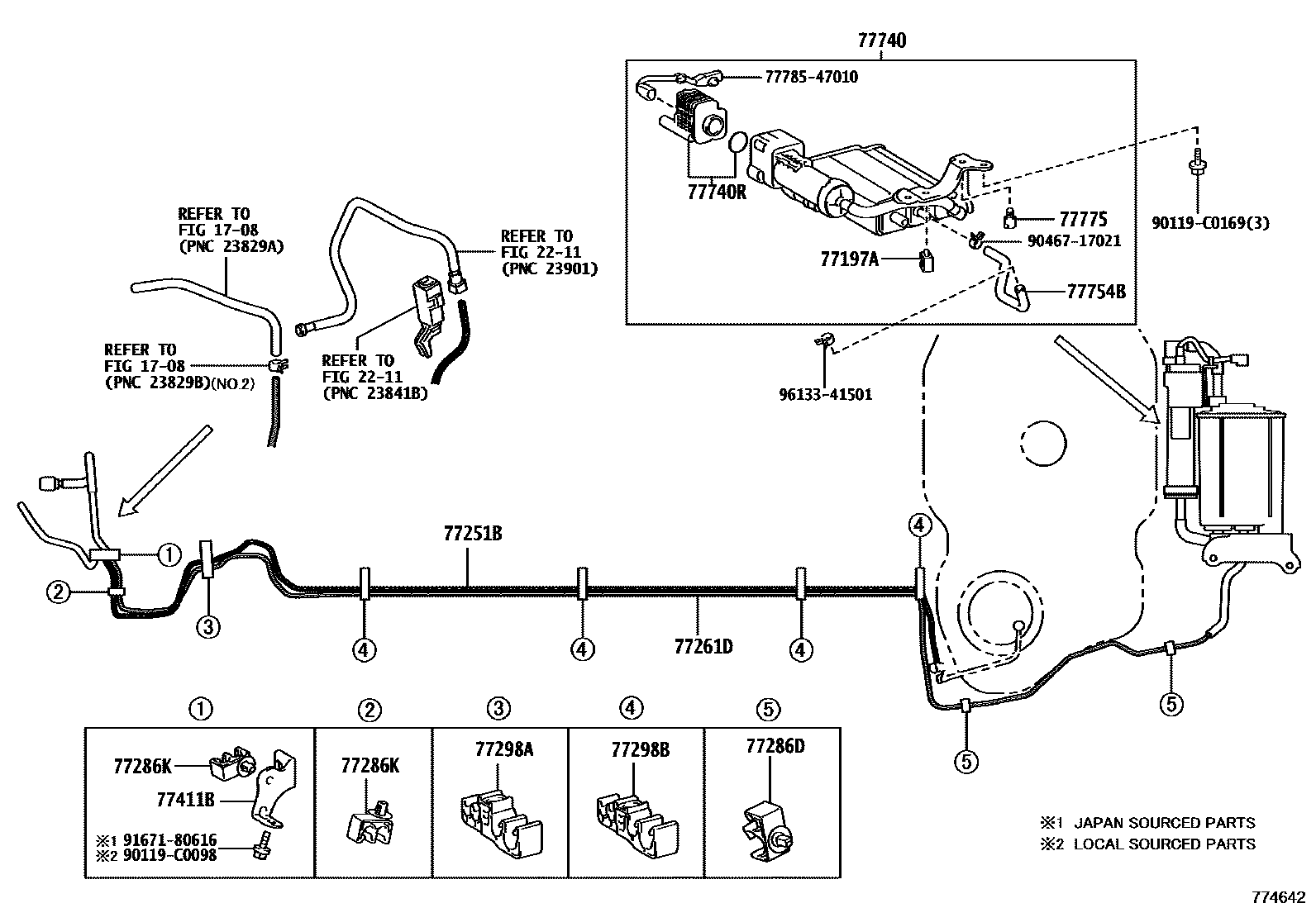

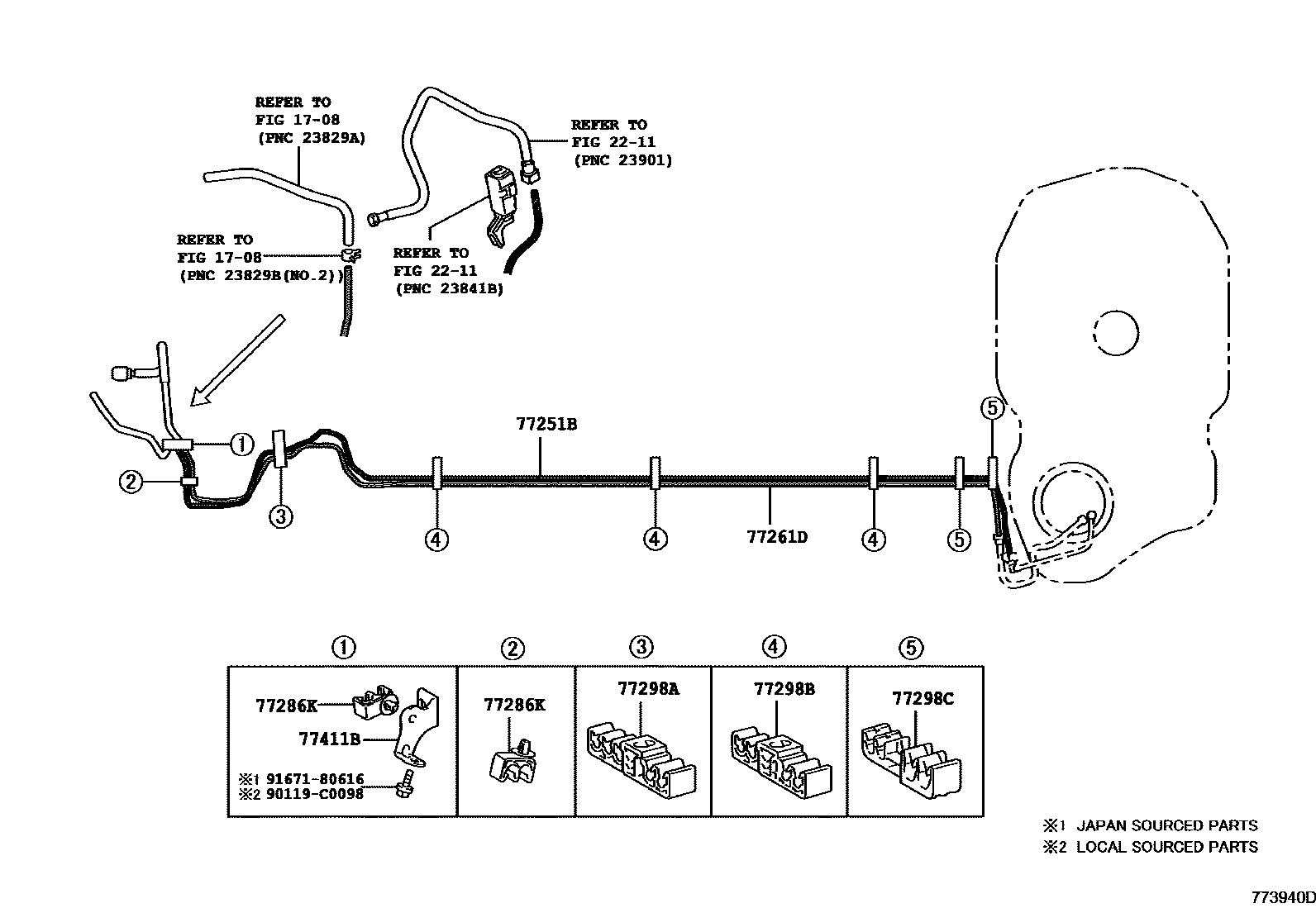

Toyota COROLLA 燃油箱和燃油管 — Figure 7701

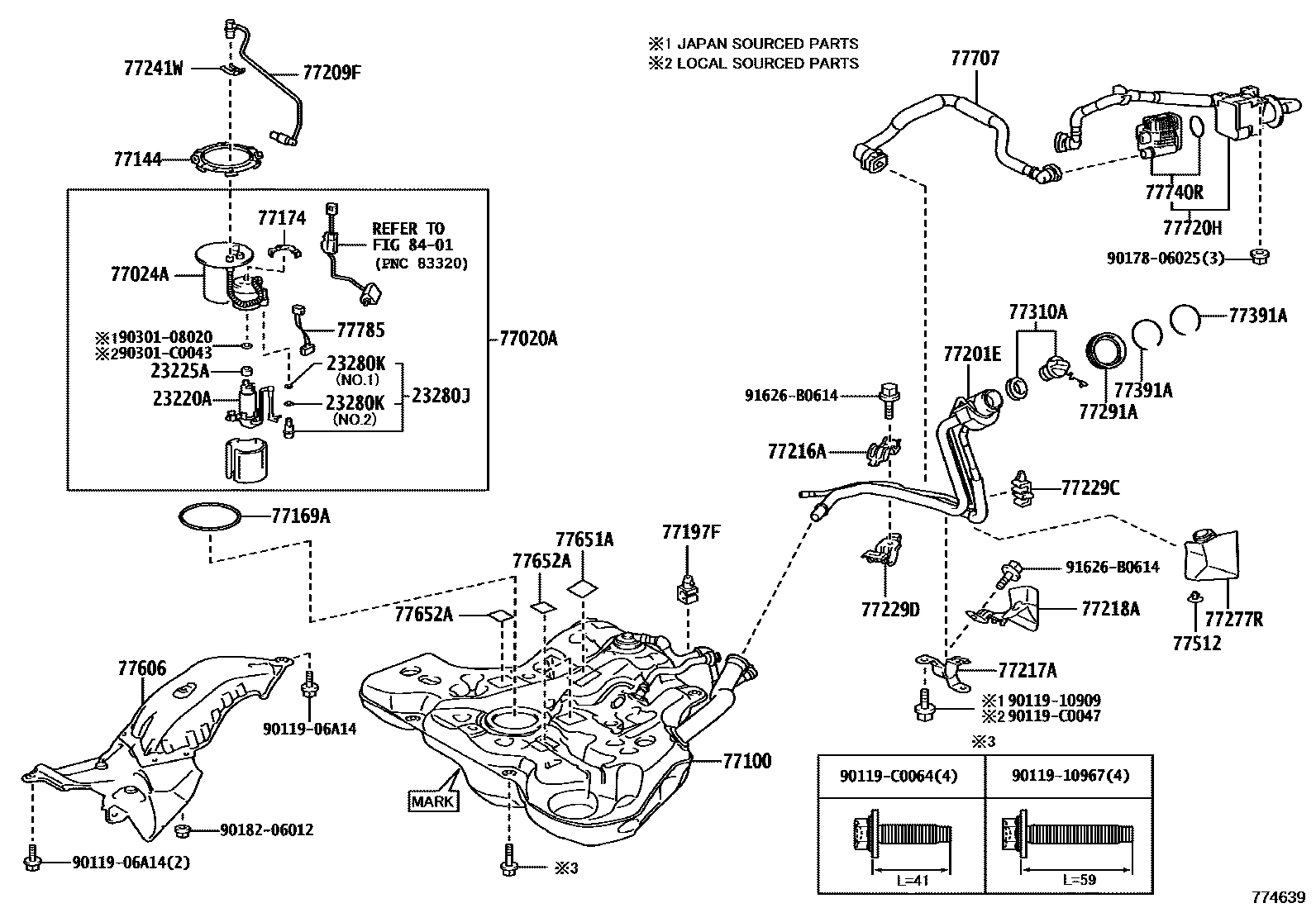

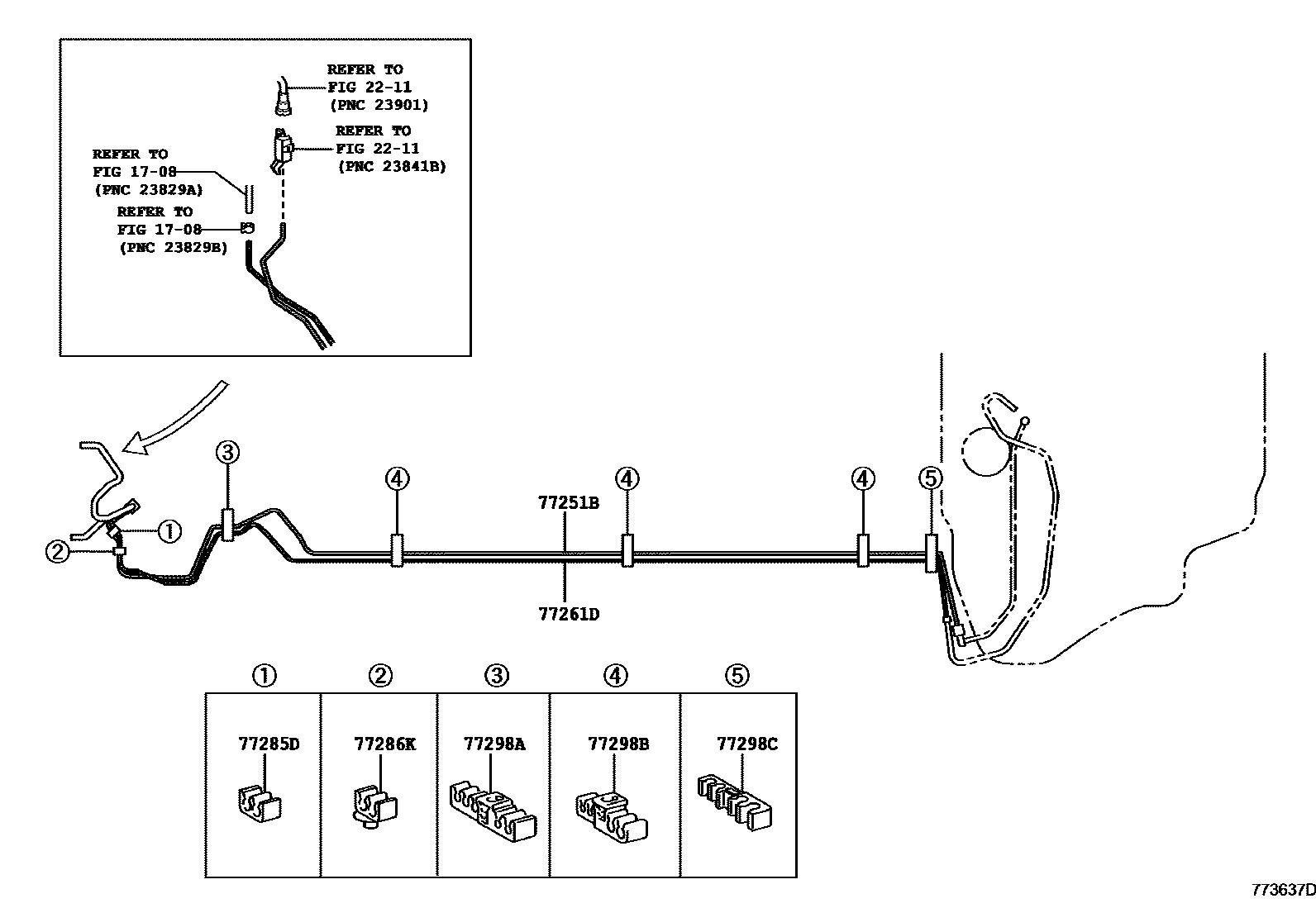

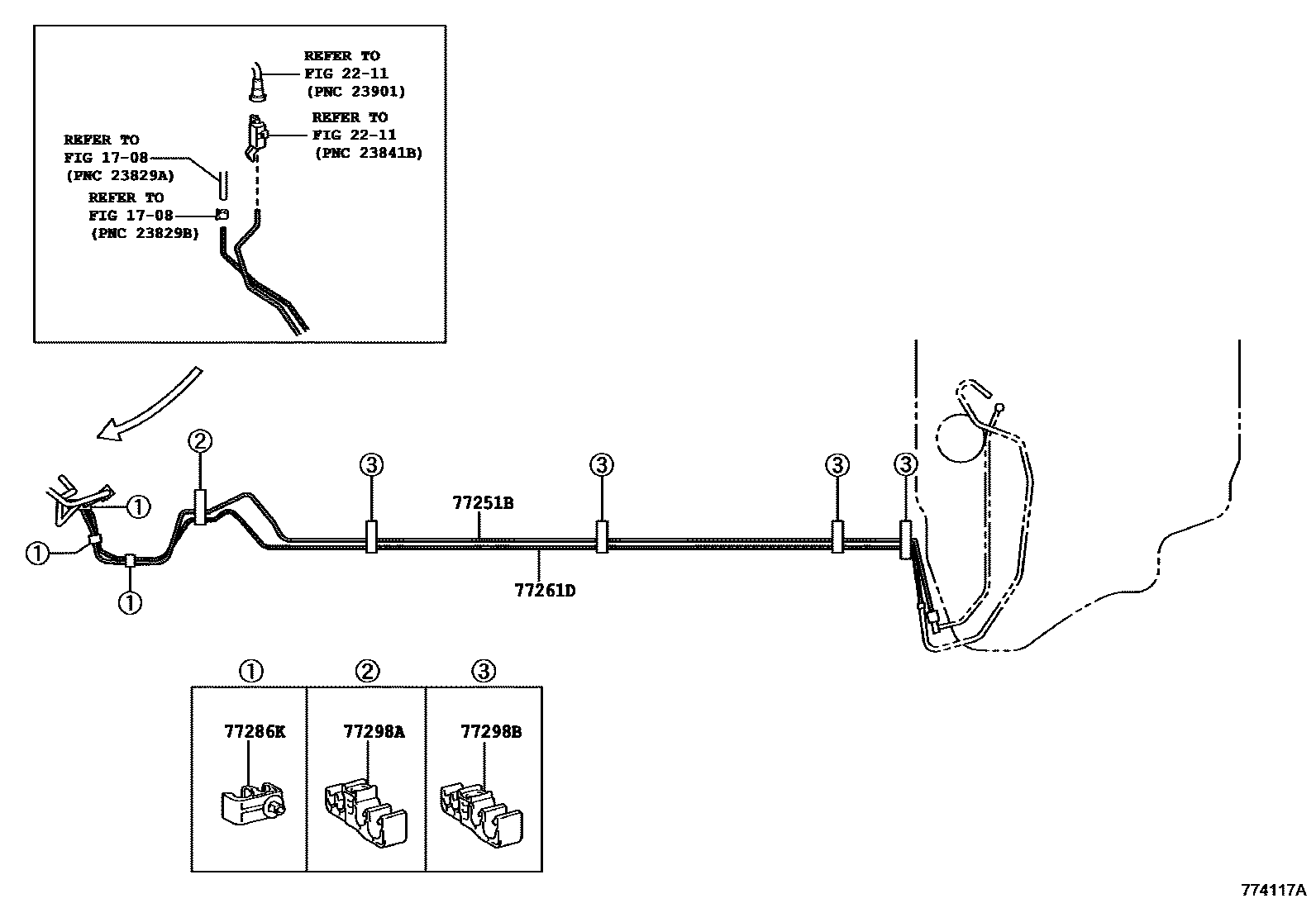

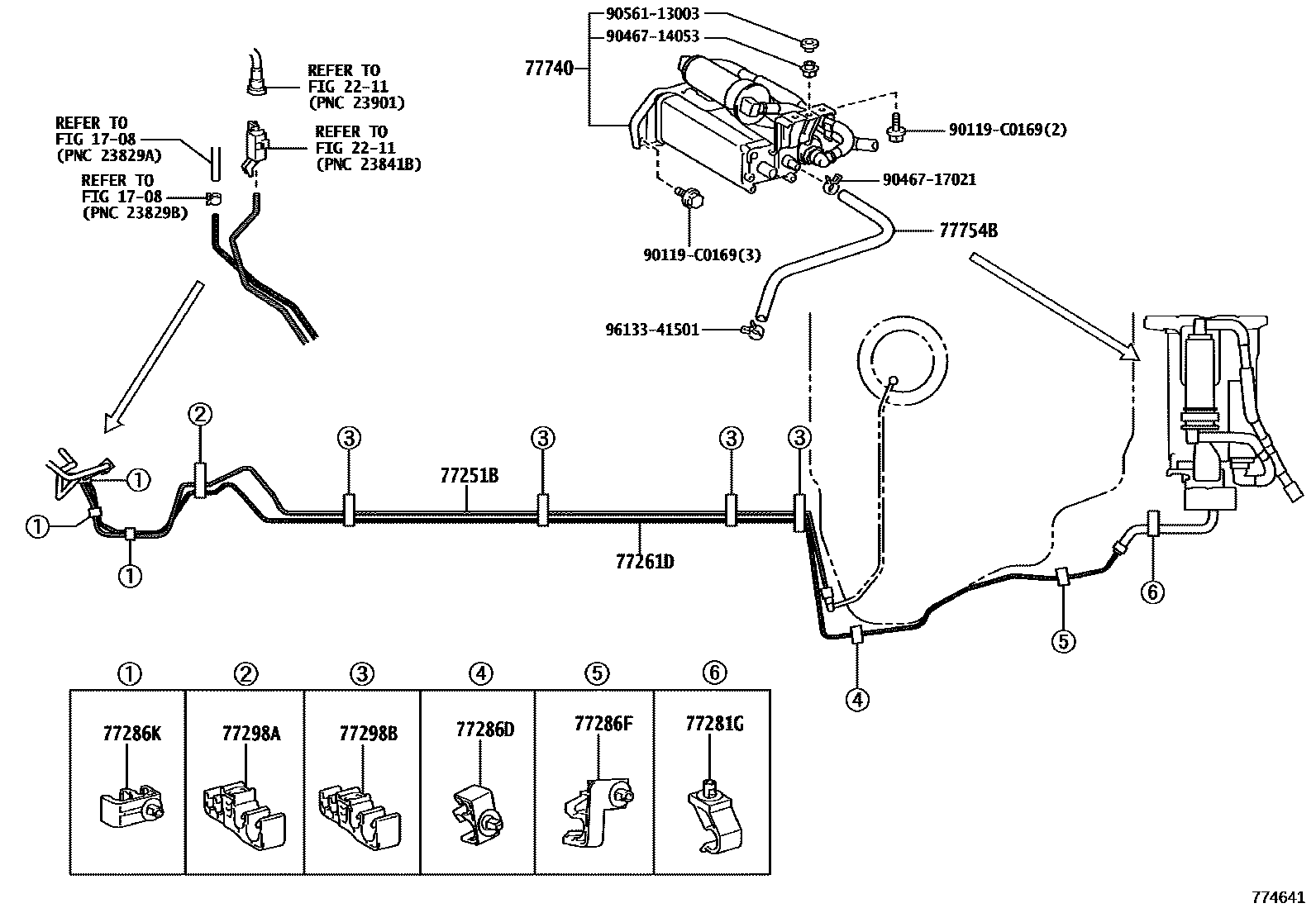

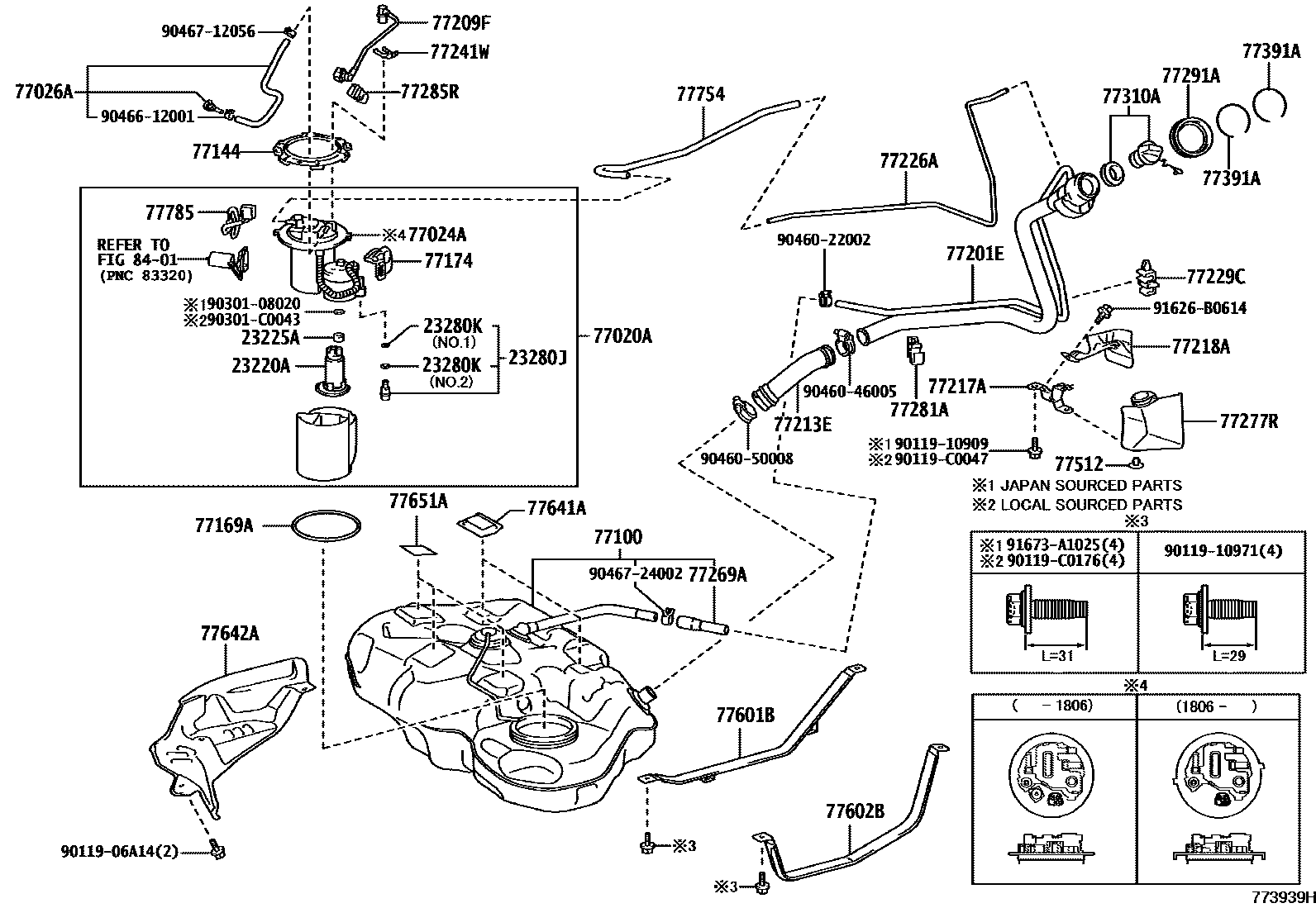

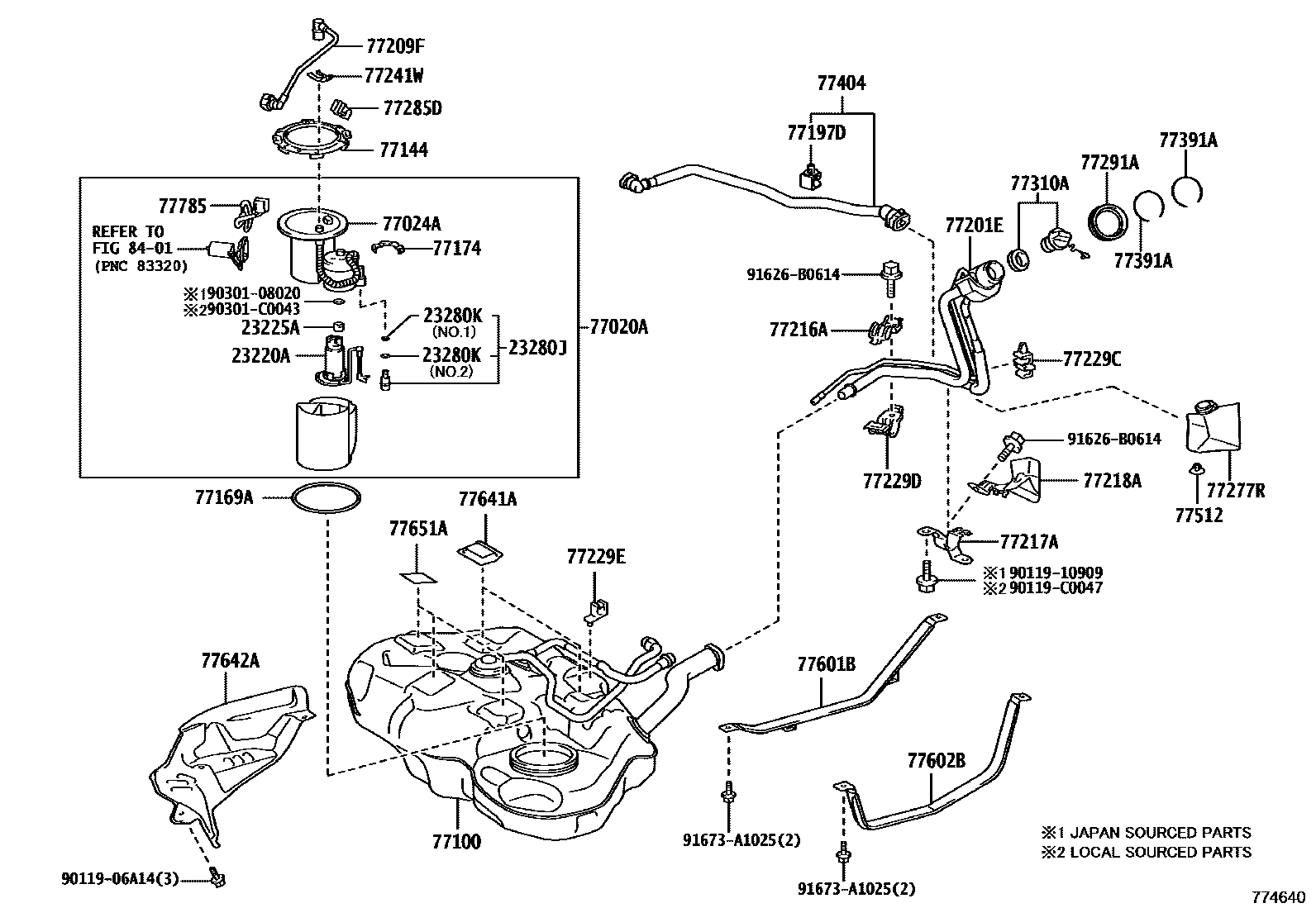

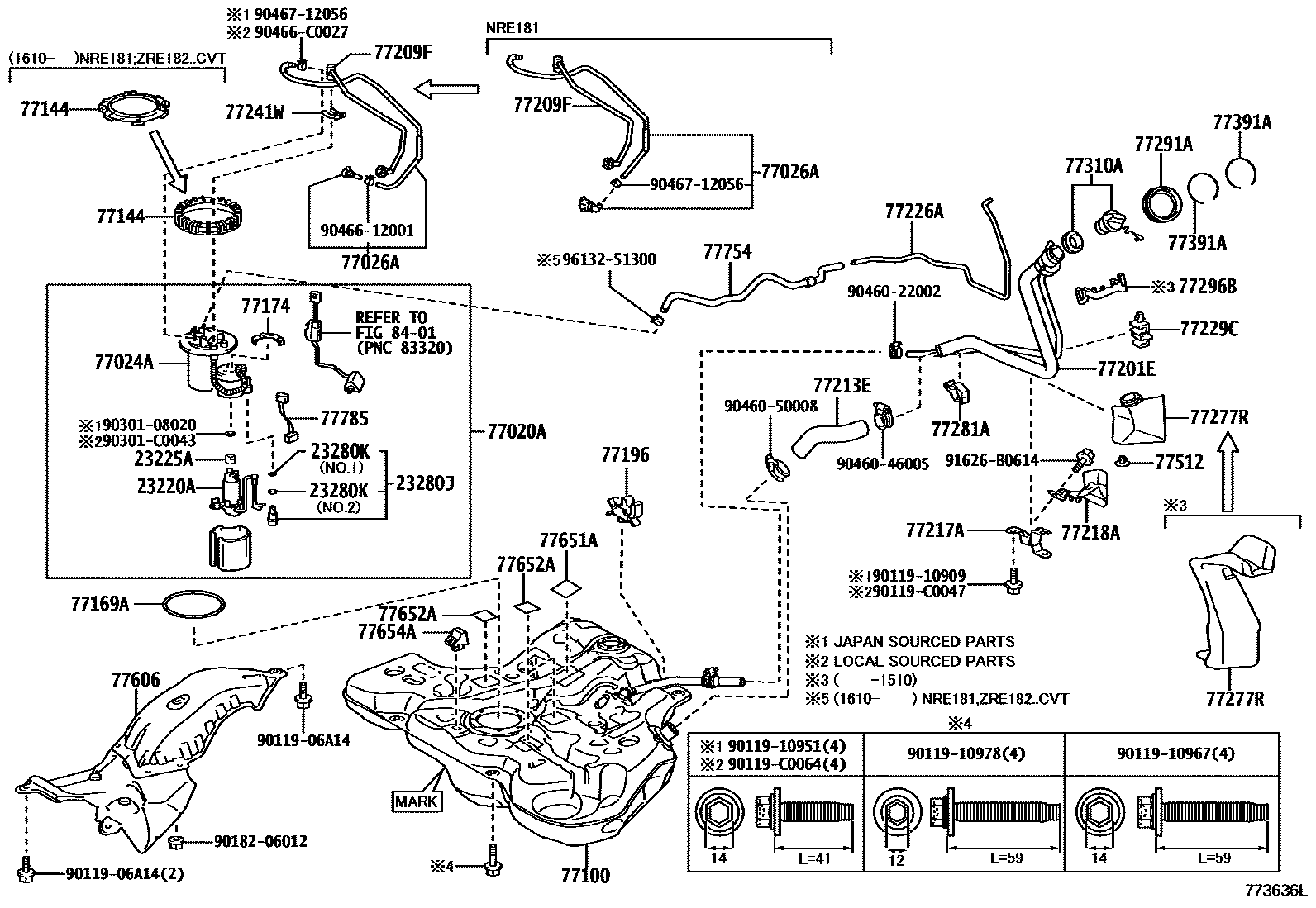

Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 10 images and 70 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23220A | Fuel pump assembly with filter | 23220-0M051 · 23220-0T051 · 23220-0T181 · 23220-0Y140 |
| 23225A | fuel pump septum | 23225-0H020 · 23225-21020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 · 23280-36020 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 |
| 64648A | Trunk door lock opener seal | 64648-02020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-02630 · 77020-02631 · 77020-02640 · 77020-02641 · 77020-02661 · 77020-02730 · 77020-02870 · 77020-02880 · 77020-02A30 · 77020-02B80 |
| 77024A | Fuel absorber sub-assembly | 77024-02290 · 77024-02300 · 77024-02340 · 77024-02370 · 77024-02391 · 77024-02420 · 77024-02520 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-02030 · 77026-02080 · 77026-02090 · 77026-02100 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-02490 |
| 77100 | fuel tank assembly | 77001-02310 · 77001-02720 · 77001-02770 · 77001-02810 · 77001-02821 · 77001-02880 · 77001-02890 · 77001-02B50 |
| 77144 | Fuel pump instrument fixture | 77144-0H010 · 77144-30030 · 77144-F4010 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0D030 · 77169-47040 · 77169-F4050 |
| 77174 | No. 1 oil suction pipe bracket | 77174-0F010 · 77174-75010 |
| 77196 | No. 1 evaporation vent pipe clamp | 77196-02080 |
| 77197A | No. 2 evaporation vent pipe clamp | 77197-42020 |
| 77197D | No. 2 evaporation vent pipe clamp | 77197-42020 |
| 77197F | No. 2 evaporation vent pipe clamp | 77197-02040 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-02440 · 77201-02520 · 77201-02550 · 77201-02600 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-02170 · 77209-02270 · 77209-02360 · 77209-12270 |
| 77213E | Fuel tank to filler pipe hose | 77213-02100 · 77213-02130 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-02190 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-02150 · 77217-02170 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-02040 · 77218-02070 |
| 77226A | No. 6 fuel tank breather pipe | 77226-02030 · 77226-02040 |
| 77229C | Snorkel clamp | 77229-02060 · 77229-12070 |
| 77229D | No. 4 fuel tank filler pipe bracket | 77229-02040 · 77229-02050 |
| 77229E | Snorkel clamp | 77229-76040 |
| 77241W | Pipe joint clip | 77241-32060 · 77241-33011 |
| 77251B | main fuel pipe | 77251-02530 · 77251-02A10 · 77251-02A30 · 77251-0Q010 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-02410 · 77261-02680 · 77261-02681 · 77261-02700 · 77261-02741 · 77261-47070 |
| 77269A | fuel tank breather hose | 77269-52100 |
| 77277R | Fuel tank filler pipe protection device | 77277-02230 · 77277-12180 · 77277-47050 |
| 77281A | Fuel filler pipe clamp | 77281-12100 · 77281-47060 |
| 77281G | fuel hose clamp | 77281-02190 |
| 77285D | No. 1 fuel pipe clamp | 77285-42110 · 77285-47090 |
| 77285R | No. 1 fuel pipe clamp | 77285-02180 |
| 77286D | No. 2 fuel pipe clamp | 77286-75020 |
| 77286F | No. 2 fuel pipe clamp | 77286-02160 |
| 77286K | No. 2 fuel pipe clamp | 77286-12120 · 77286-20190 · 77286-75010 |
| 77291A | Fuel tank filler pipe cover | 77291-02220 |
| 77296B | No. 1 fuel line protector bracket | 77296-52030 |
| 77298A | No. 4 fuel pipe clamp | 77298-68010 · 77298-75010 |
| 77298B | No. 4 fuel pipe clamp | 77298-12150 · 77298-52070 |
| 77298C | No. 4 fuel pipe clamp | 77298-12120 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-06100 |
| 77310A | Fuel tank cap assembly | 77300-02030 · 77300-06100 |
| 77350 | Fuel filler cap assembly | 77350-02190 |
| 77358A | Fuel filler cap stopper | 77358-30060 |
| 77360A | Fuel filler cap spring assembly | 77360-30080 |
| 77377 | Fuel filler cap lock retainer | 77377-0D070 |
| 77391A | fuel inlet ring | 77391-0R030 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-02180 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-47010 |
| 77512 | fuel tank rear bracket | 77512-35140 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-02130 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-02160 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-02050 · 77606-02051 · 77606-02140 |
| 77641A | No. 1 fuel tank protective shell | 77606-12190 |
| 77642A | No. 2 fuel tank protective shell | 77641-02240 |
| 77651A | No. 1 fuel tank liner | 77651-12070 |
| 77652A | No. 2 fuel tank liner | 77652-45020 |
| 77654A | No. 4 fuel tank liner | 77654-02040 |
| 77707 | Carbon canister outlet hose sub-assembly | 77707-02010 |
| 77720H | Fuel delivery valve assembly | 77720-12010 |
| 77740 | Carbon canister assembly | 77740-12780 · 77740-12790 |
| 77740R | Leak detection pump sub-assembly | 90910-14008 |
| 77754 | No. 1 carbon canister outlet hose | 77754-02060 · 77754-02160 · 77754-02161 |
| 77754B | Carbon canister outlet hose | 77754-02140 · 77754-12230 |
| 77775 | Carbon canister outlet duct | 77775-47010 |
| 77785 | fuel pump wiring harness | 77785-0F031 · 77785-12010 |
