Toyota COROLLA 后防护条 — Figure 7504

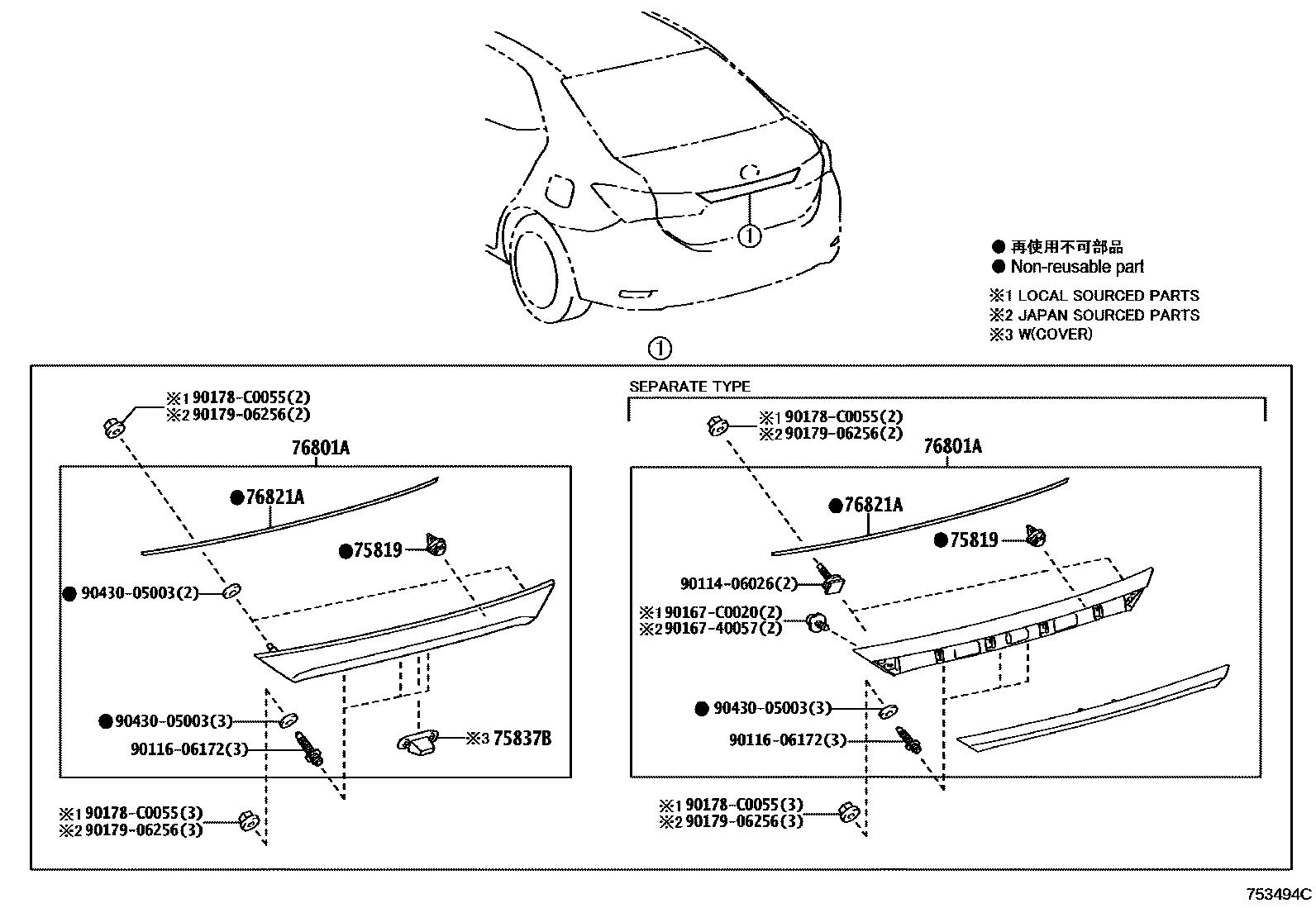

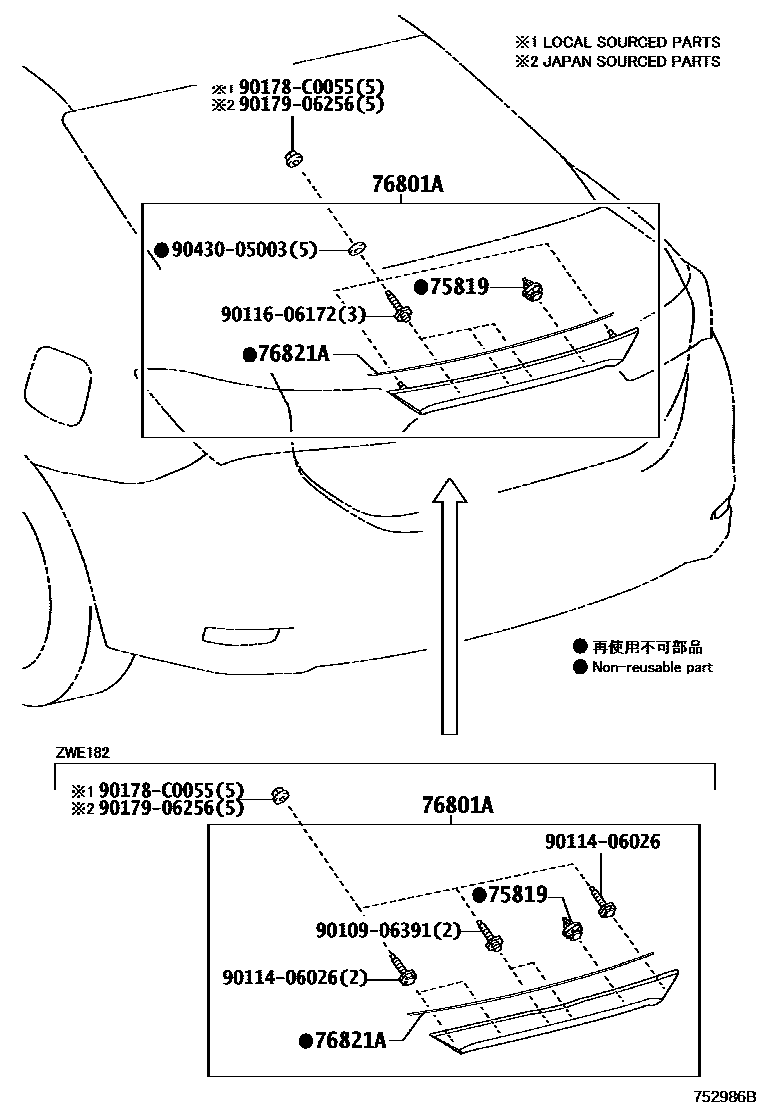

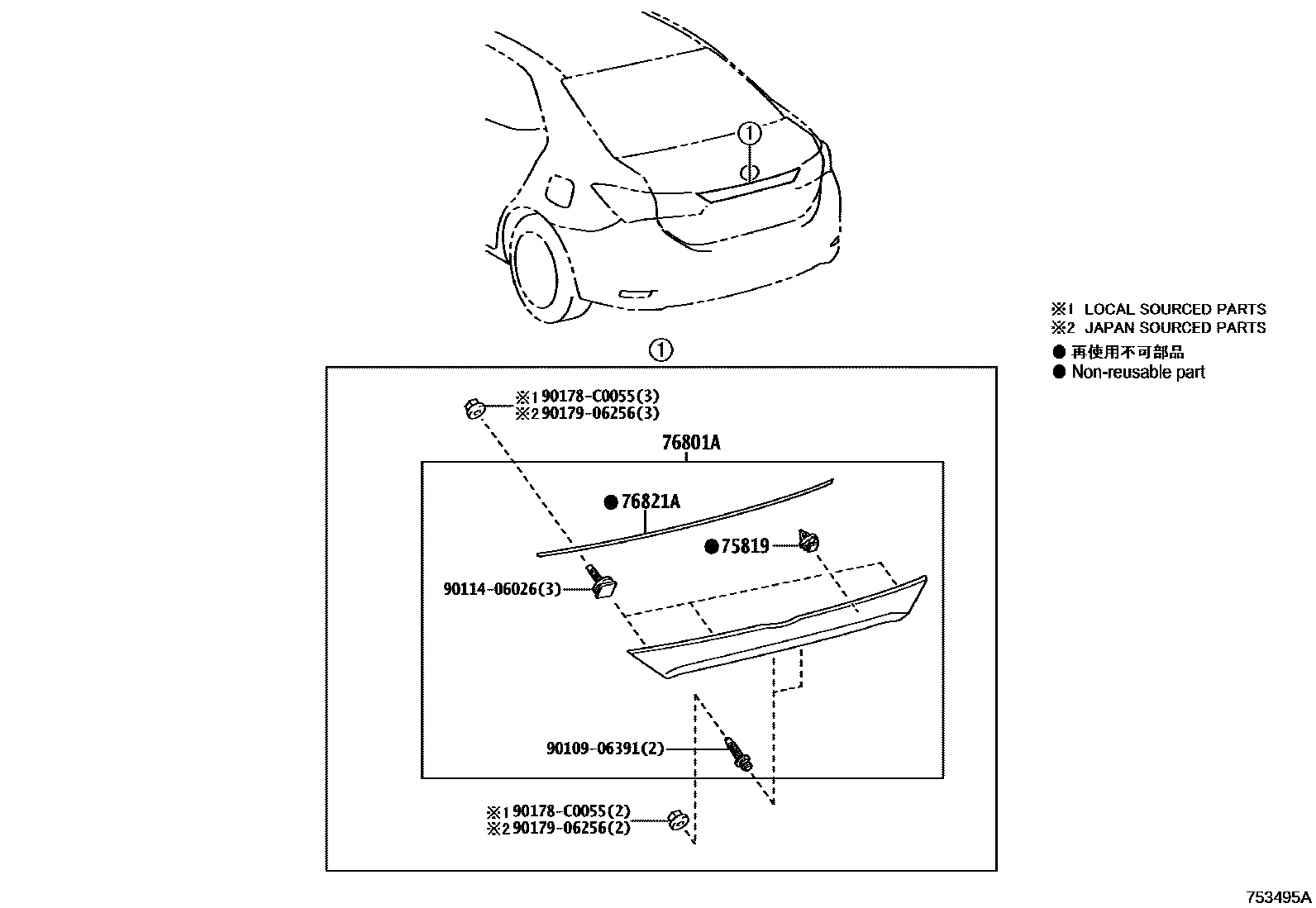

Toyota COROLLA EPC diagram 7504, 后防护条, with 3 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75819 | Trunk door protective strip clip | 75819-33010 |
| 75837B | Central decorative panel fixings | 76829-02010 |
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-02720 · 76801-02E70 · 76801-02E80 · 76801-02F70 · 76801-02F80 · 76801-02M10 · 76801-02M80 |
| 76821A | Luggage door outer decorative strip protective cover | 76825-02220 · 76825-02270 · 76825-02310 |
