Toyota COROLLA 侧防护条 — Figure 7503

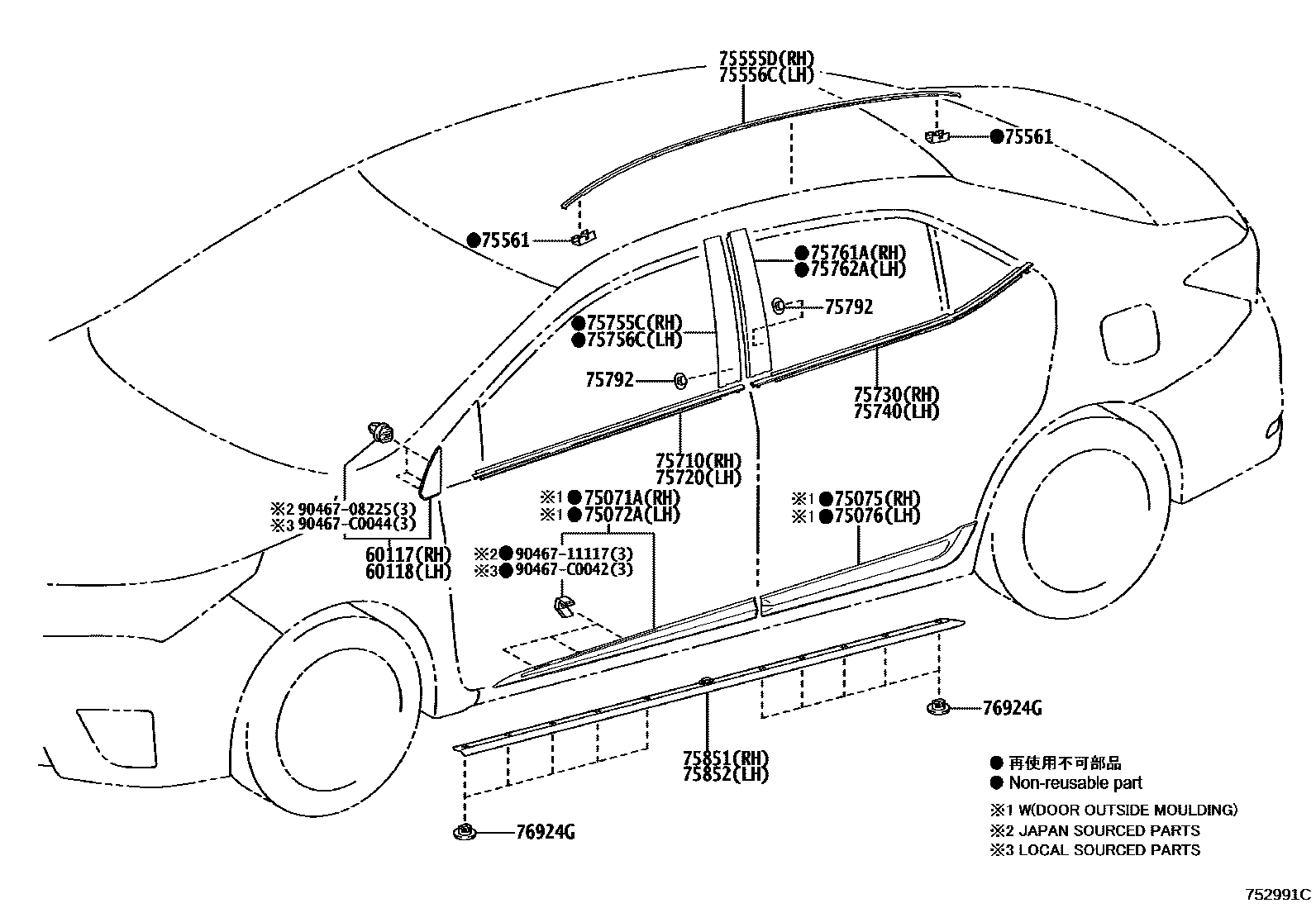

Toyota COROLLA EPC diagram 7503, 侧防护条, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 60117 | Right front pillar upper cover sub-assembly | 60117-02170 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-02170 |
| 75555D | Drainage channel side decorative strip in the middle section on the right side of the roof | 75555-02270 |
| 75556C | Drainage channel side decorative strip in the middle section on the left side of the roof | 75556-02260 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-02070 · 75561-0P020 |
| 75710 | Right front door waistline protection strip assembly | 75710-02430 · 75710-02440 |
| 75720 | Left front door waistline protection strip assembly | 75720-02430 · 75720-02440 |
| 75730 | Right rear door waistline protection strip assembly | 75730-02410 · 75730-02420 |
| 75740 | Left rear door waistline protection strip assembly | 75740-02410 · 75740-02420 |
| 75755C | Right front door window frame rear protective strip | 75755-02090 |
| 75756C | Left front door window frame rear protective strip | 75756-02080 |
| 75761A | Right rear door window frame front protective strip | 75761-02090 |
| 75762A | Left rear door window frame front protective strip | 75762-02090 |
| 75792 | Car door window frame protective strip clip | 75792-47010 |
| 75851 | Right side door sill panel protective strip | 75851-02210 |
| 75852 | Left side door sill panel protective strip | 75852-02210 |
| 76924G | Door sill panel protective strip fixings | 76924-02070 |
