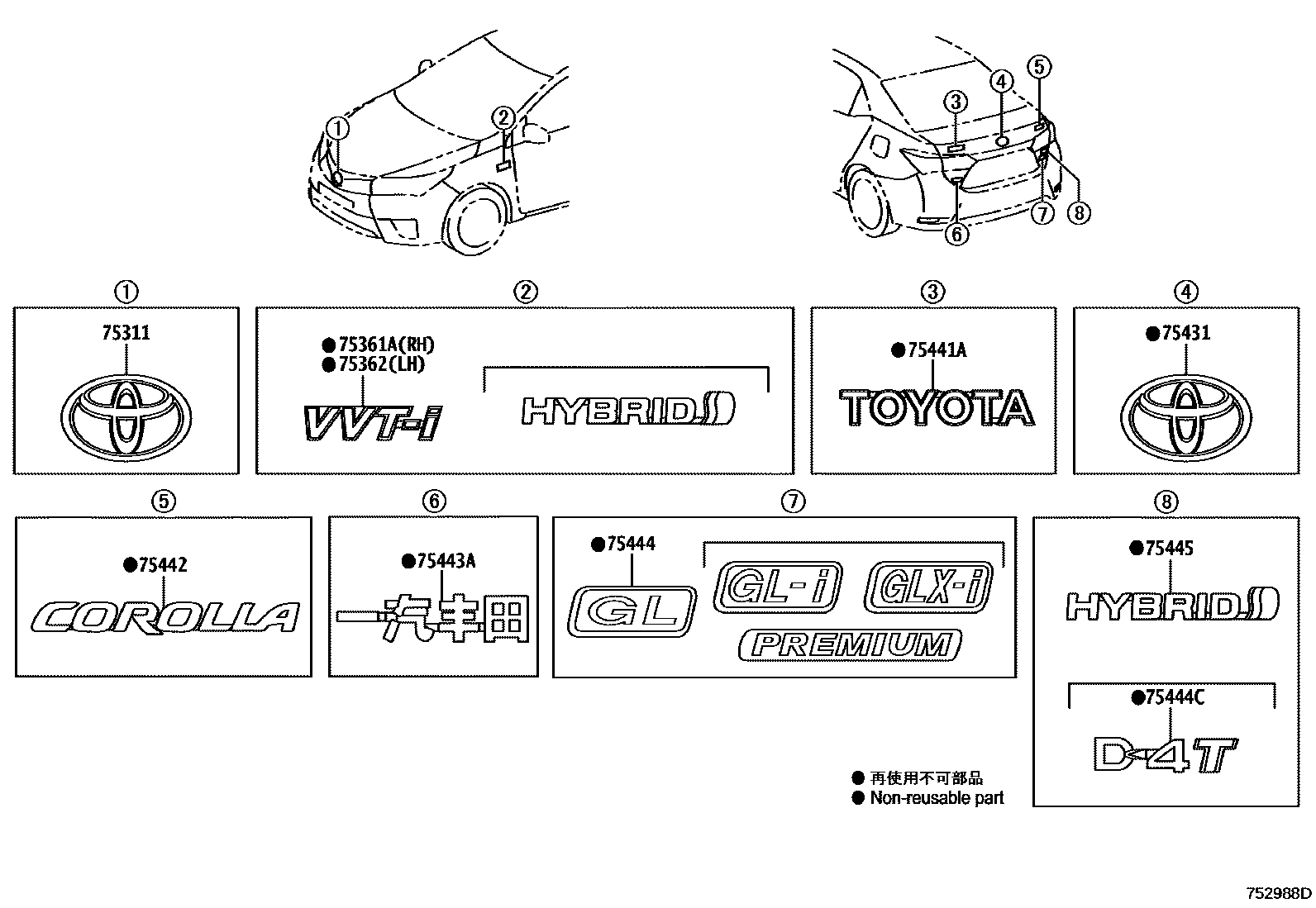

Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501
Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75310-02020 · 75311-02170 |
| 75361A | Front fender No. 1 nameplate | 75374-02050 · 75447-02350 |
| 75362 | Front fender No. 2 nameplate | 75374-02060 · 75447-02370 |
| 75431 | luggage compartment door sign | 75403-02020 · 75431-02060 |
| 75441A | Trunk door No. 1 name plate | 75441-02330 |
| 75442 | Trunk door number plate No. 2 | 75442-02360 |
| 75443A | Trunk door No. 3 nameplate | 75441-02340 |
| 75444 | Trunk door No. 4 nameplate | 75444-02B10 · 75444-02B20 · 75444-02B30 · 75444-02B40 |
| 75444C | Trunk door No. 4 nameplate | 75444-02C50 |
| 75445 | Trunk door No. 5 name plate | 75443-02310 |
