Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

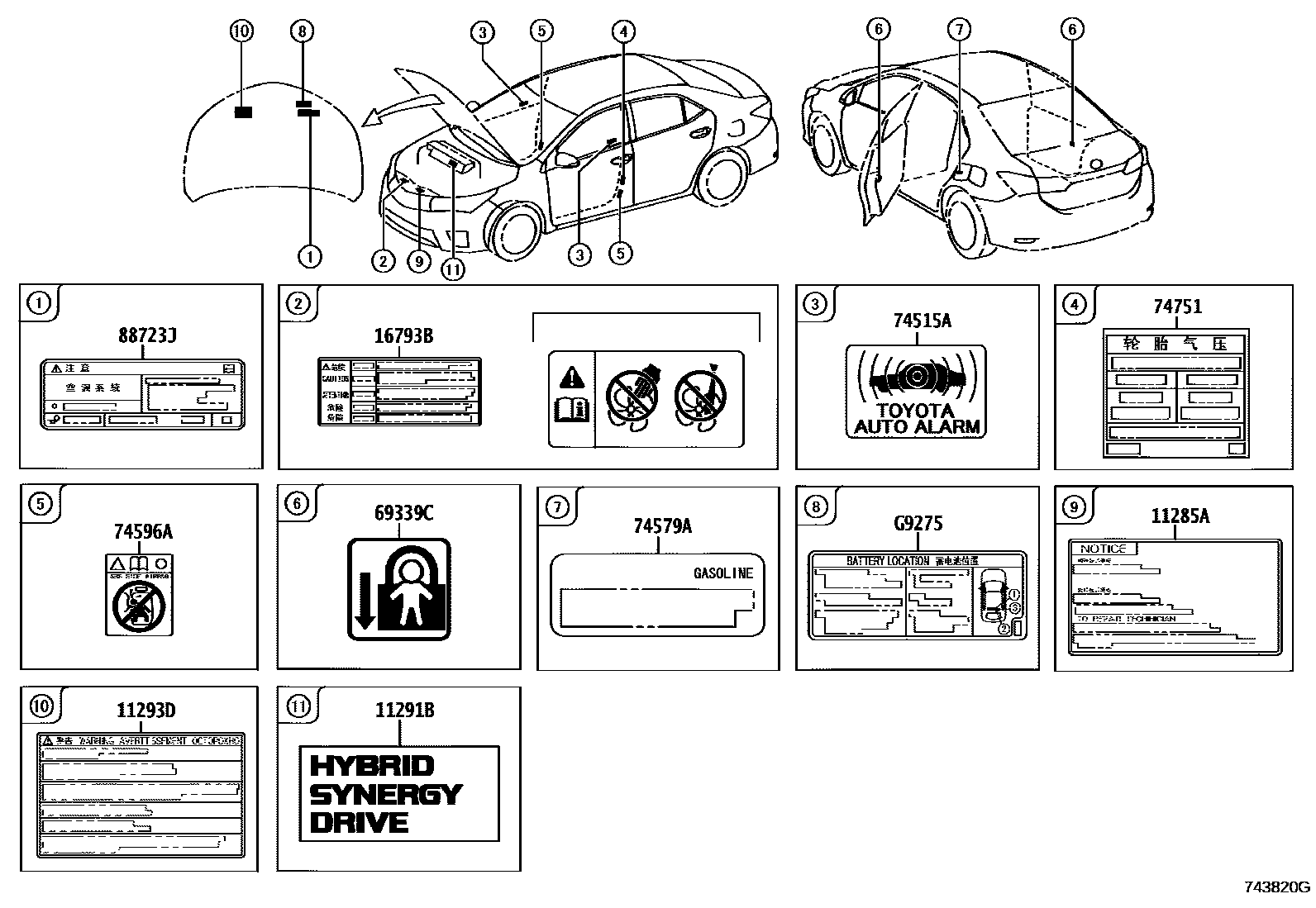

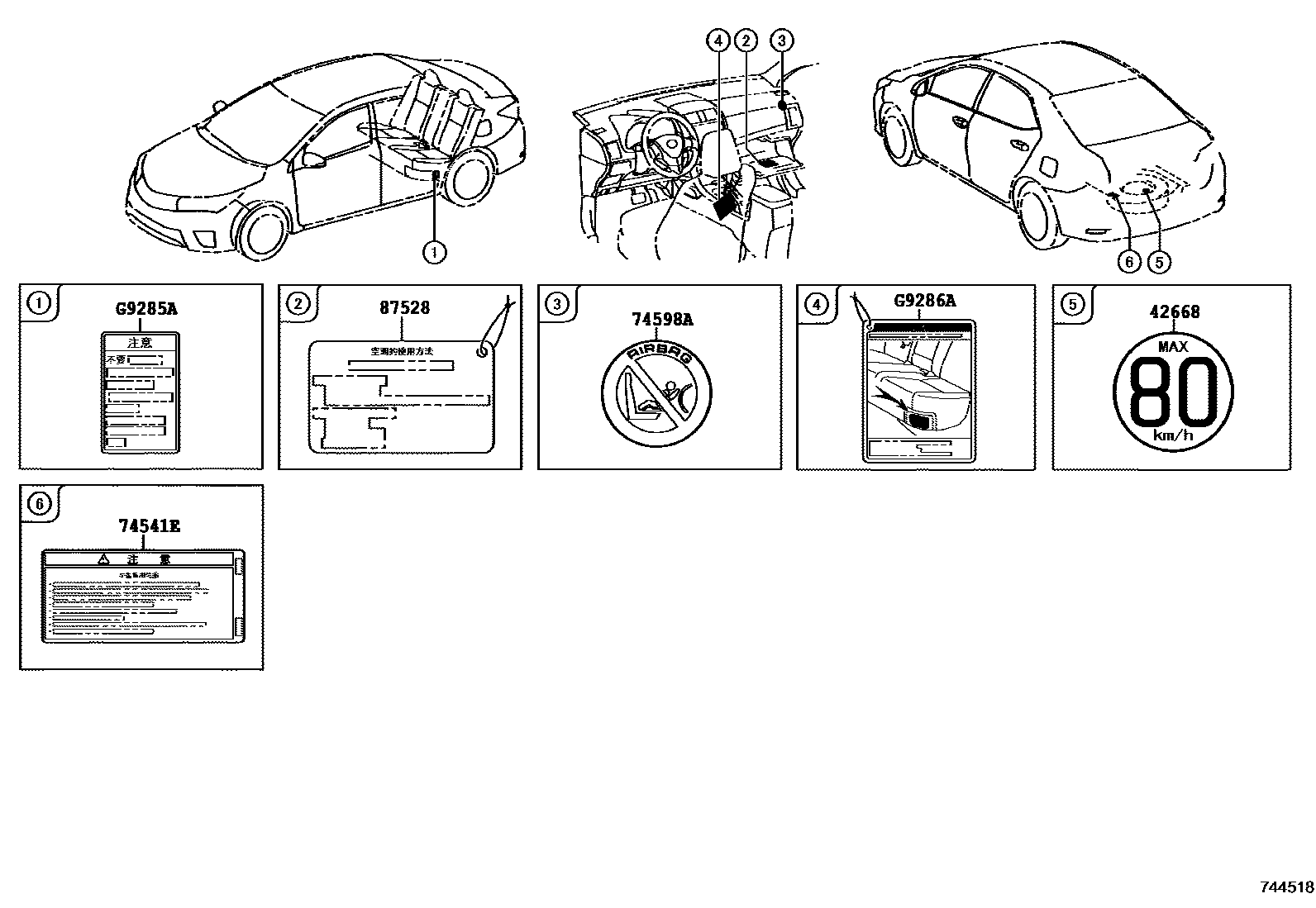

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-0Y010 |
| 11291B | Engine name plate | 11291-37060 |
| 11293D | engine warning label | 11293-36070 |
| 16793B | Cooling fan information label | 16793-31040 · 16793-36050 |
| 42668 | Small spare tire warning label | 42668-20020 |
| 69339C | Child Restraint Information Label | 69339-06080 |
| 74515A | Anti-theft warning nameplate | 74515-06020 |
| 74541E | Small spare tire warning plate | 42668-0N010 |
| 74579A | Unleaded Fuel Information Label | 74579-0D010 · 74579-26011 |
| 74596A | Side air bag warning label | 74596-53012 |
| 74598A | Passenger air bag warning label | 74598-06040 |
| 74751 | tire pressure information label | 42661-02L00 · 42661-02L10 · 42661-02N60 · 42661-02N70 · 42661-02P20 · 42661-02P30 · 42661-02P60 · 42661-02P70 |
| 87528 | Air conditioner information label | 87528-02010 |
| 88723J | Cooler No. 2 maintenance warning label | 88723-02360 · 88723-02380 |
| G9275 | No. 1 battery warning label | G9275-02010 |
| G9285A | HV Battery No. 1 Warning Label | G928L-02010 |
| G9286A | No. 2 HV battery information label | G9286-02010 |
