Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 2 images and 6 PNC and OE references.

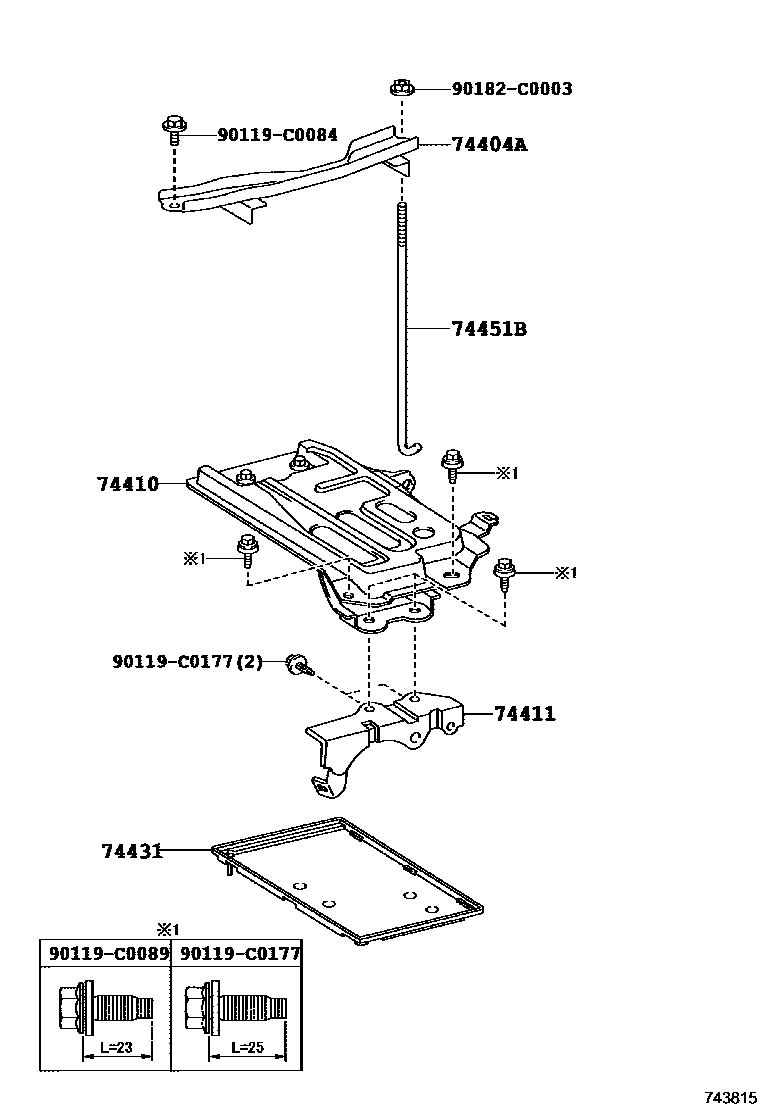

Toyota COROLLA battery holder EPC diagram — 743815
battery holder — 743815 (201406 – 999999)

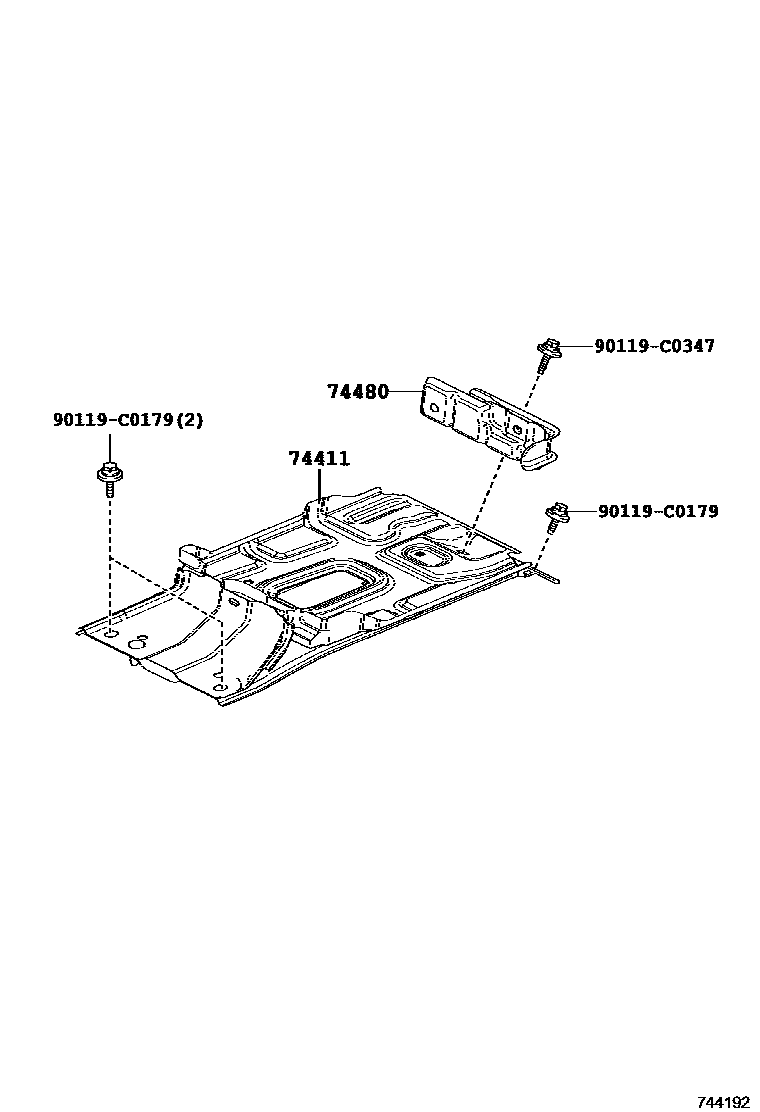

Toyota COROLLA battery holder EPC diagram — 744192
battery holder — 744192 (201512 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-02530
74410Battery bracket assembly74410-02070
74411battery holder74401-02030 · 74403-02030
74431battery tray74431-02240
74451BBattery clamp bolt74451-58011
74480Battery clip bracket assembly74480-02010
