Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

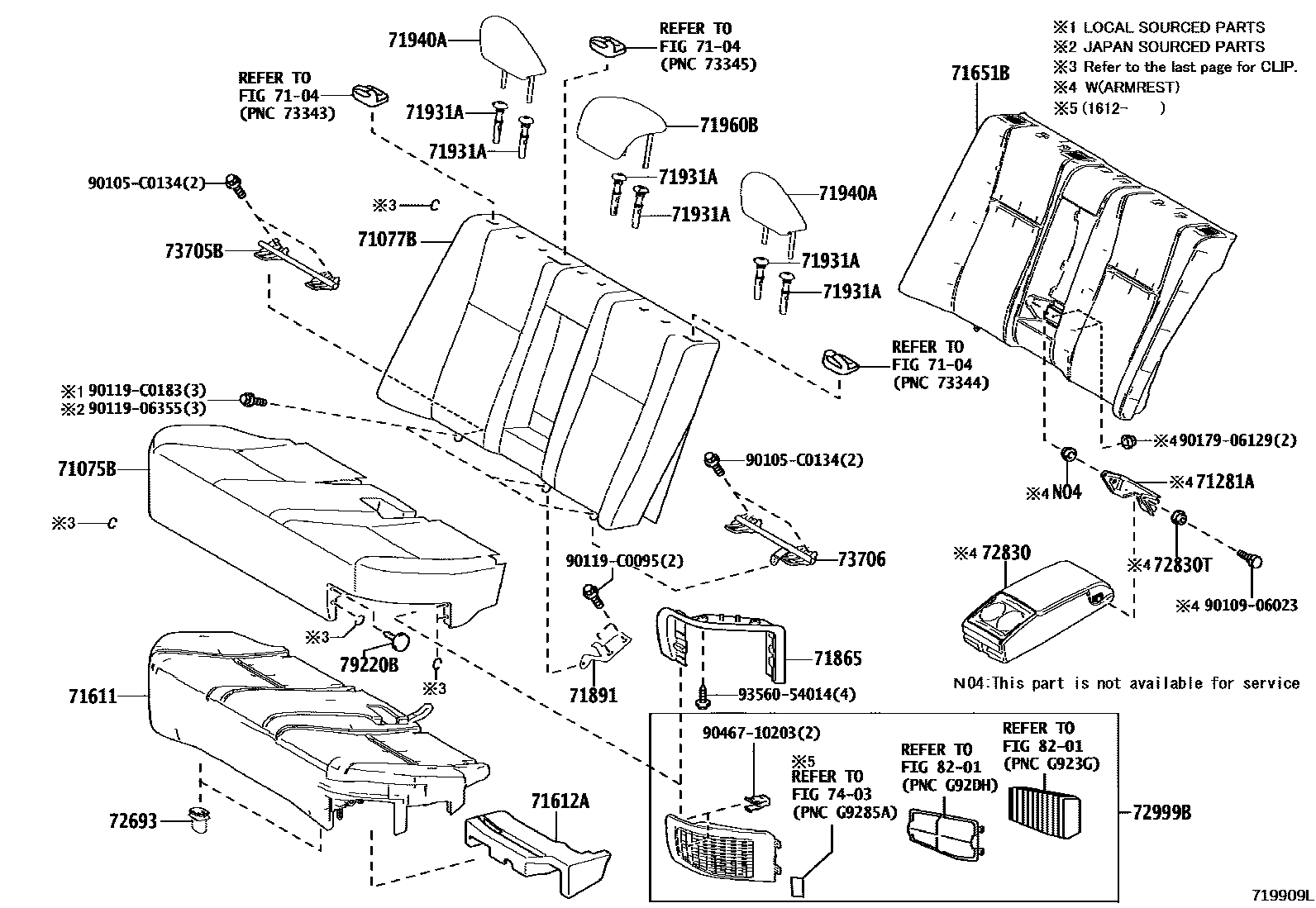

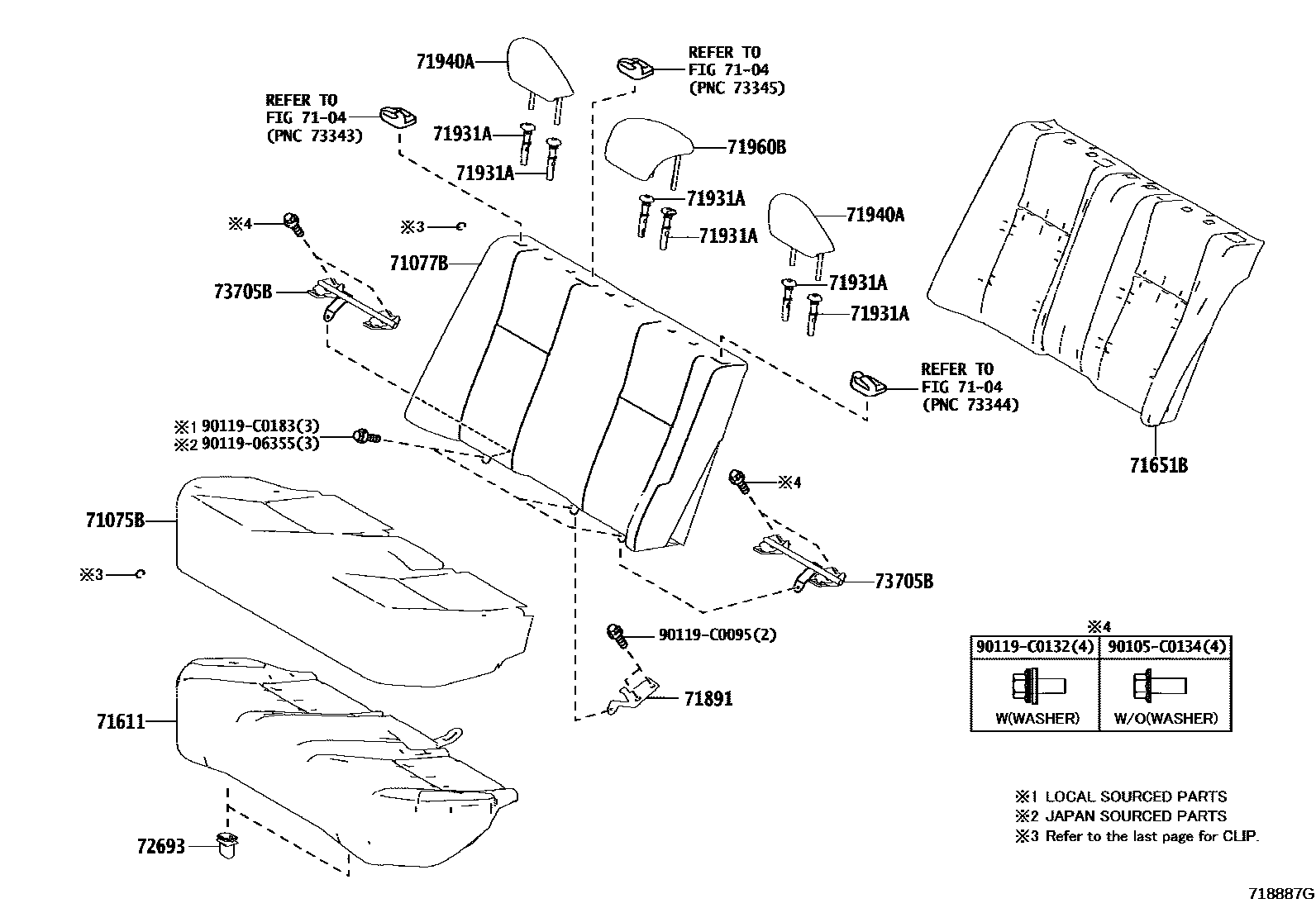

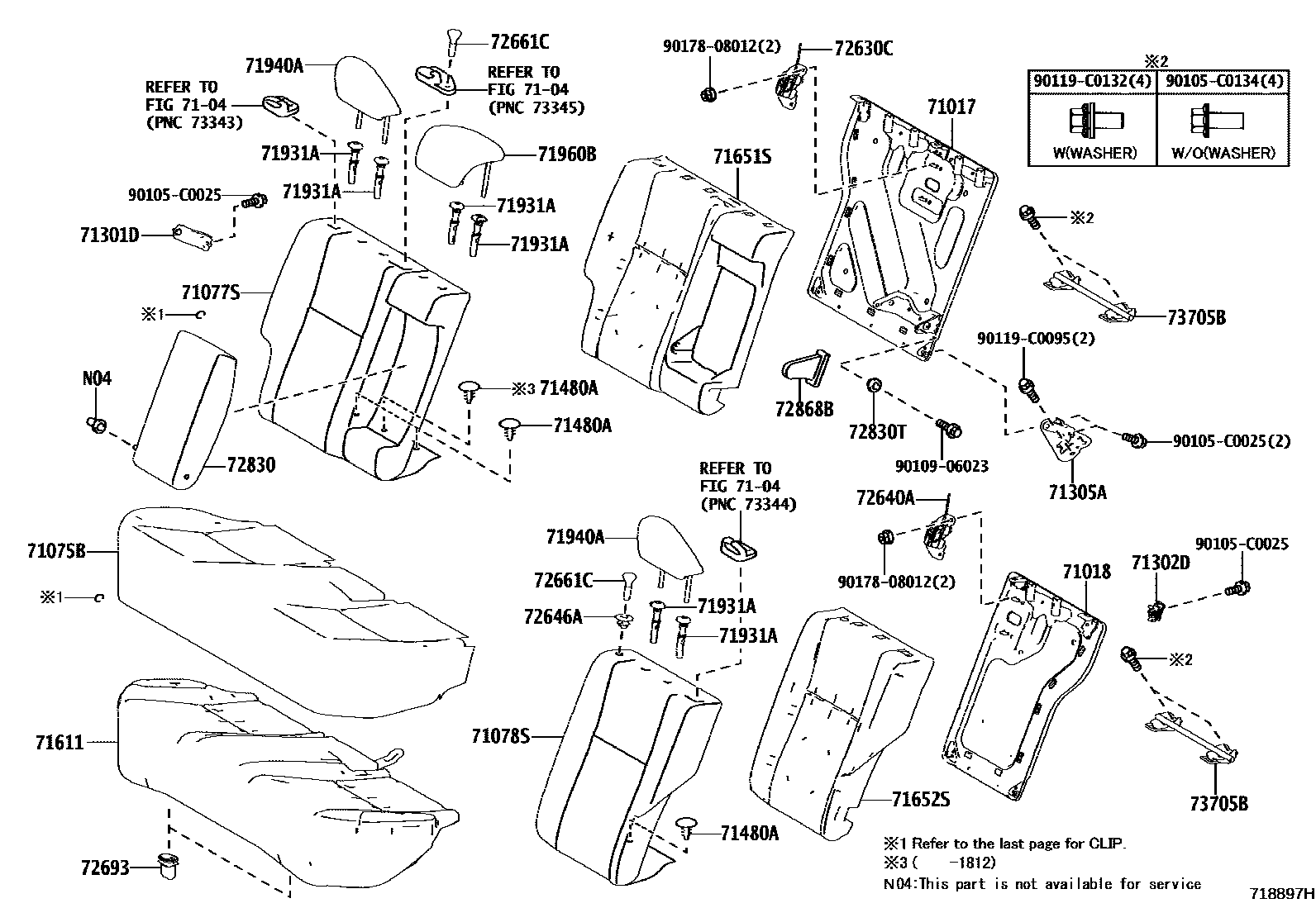

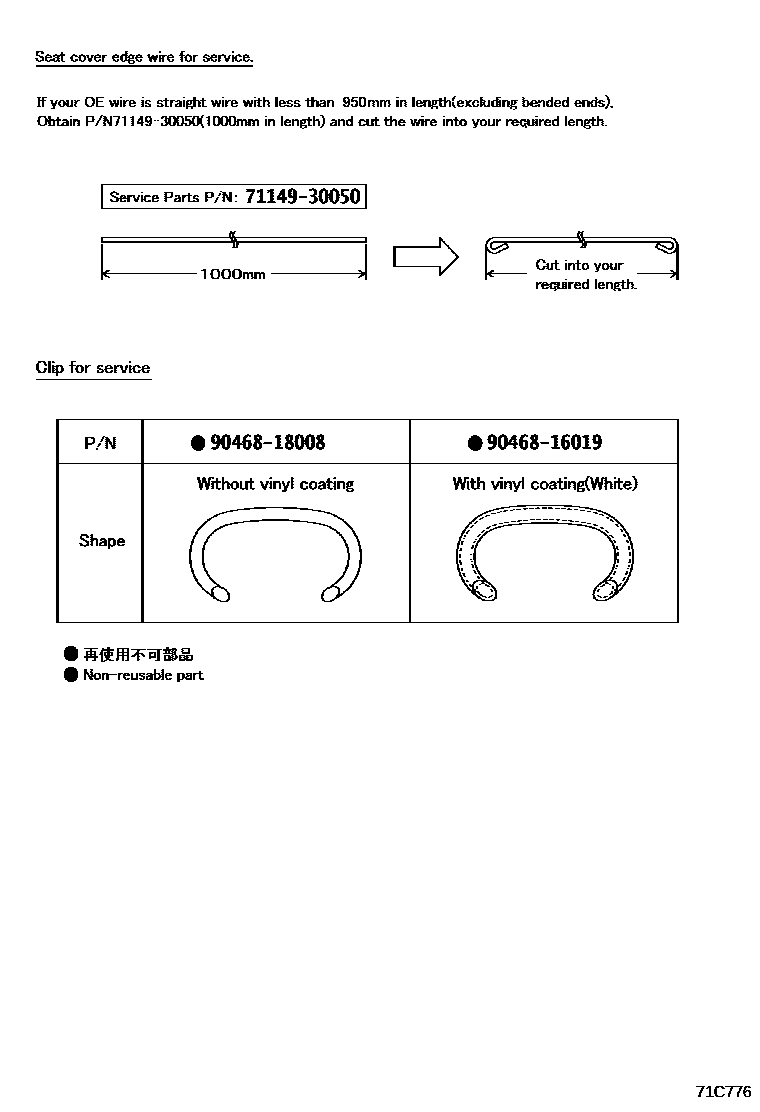

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-02820 |
| 71018 | Rear left seat back frame sub-assembly | 71018-02510 |
| 71281A | Rear seat center armrest hinge | 71281-02080 |
| 71301D | Rear right seat hinge sub-assembly | 71303-02280 |
| 71302D | Rear left seat hinge sub-assembly | 71303-02280 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-02300 |
| 71611 | Rear seat cushion cushion | 71503-02431 · 71503-02441 · 71503-02540 |
| 71612A | Rear left seat cushion | 71612-02090 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-02330 · 71507-02380 · 71507-02390 · 71507-02530 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-02700 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-02650 |
| 71891 | Rear seat No. 1 backrest fixing bracket | 71891-02020 |
| 72630C | Rear right seat back lock assembly | 72630-02230 |
| 72640A | Rear left seat back lock assembly | 72640-02170 |
| 72693 | Rear seat cushion hook | 72693-02030 |
| 72830T | Bushing (for rear seat center armrest) | 90386-08077 |
| 73705B | Cross anchor bracket sub-assembly | 73705-02130 · 73705-02200 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-02080 |
