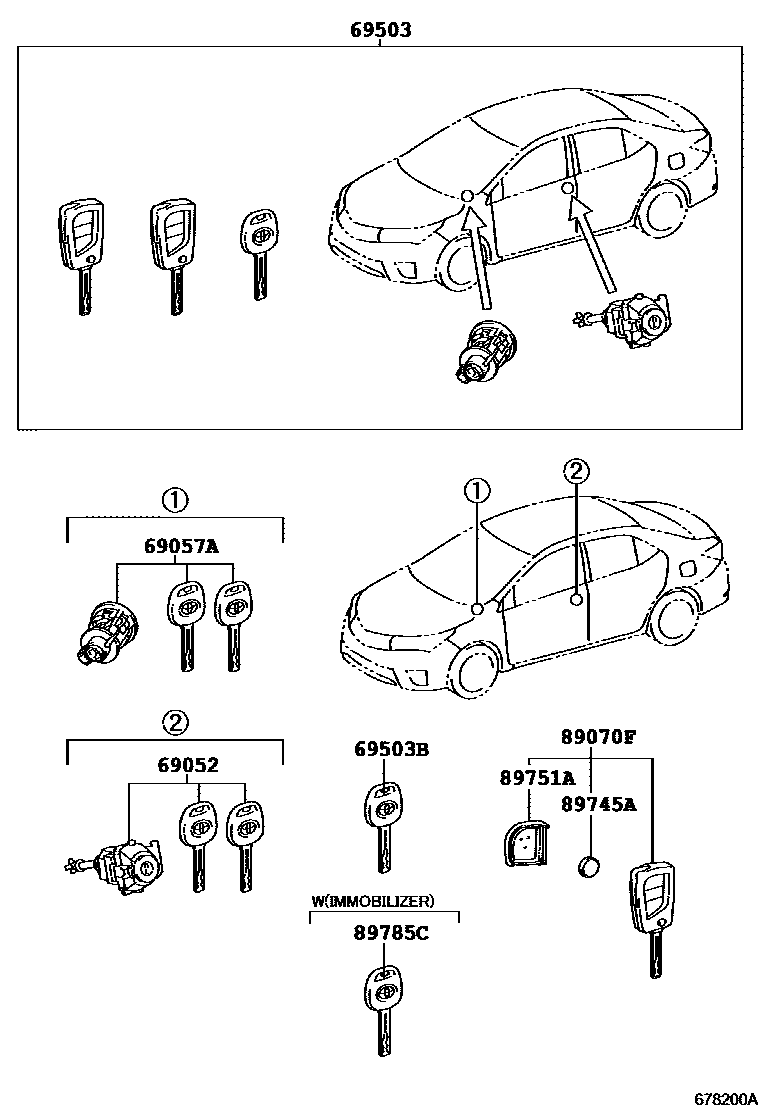

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-02400 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-02A40 · 69057-02A50 |
| 69503 | Door lock cylinder components | 69005-02E60 · 69005-02F90 · 89704-02500 · 89704-02A40 |
| 69503B | internal tooth key | 69515-02220 · 69515-33110 |
| 69503D | Internal tooth key (card smart key) | 69515-12270 |
| 89070F | Remote key assembly (internal tooth key) | 89070-02650 · 89070-02720 |
| 89072A | Remote key shell assembly | 89072-02180 · 89072-06450 |
| 89745A | Transmitter battery | 89745-02070 |
| 89745B | Transmitter battery (card smart key) | 89745-50030 |
| 89745C | Transmitter battery | 89745-45010 |
| 89751A | Transmitter housing cover | 89751-02240 |
| 8975B | Remote control battery case cover | 8975B-30030 |
| 89785C | transceiver key master transmitter | 89785-02420 |
| 89904B | Electronic key transmitter sub-assembly | 89904-02180 · 89904-02190 |
| 89904C | Electronic key transmitter sub-assembly (card-type smart key) | 89904-12310 |
