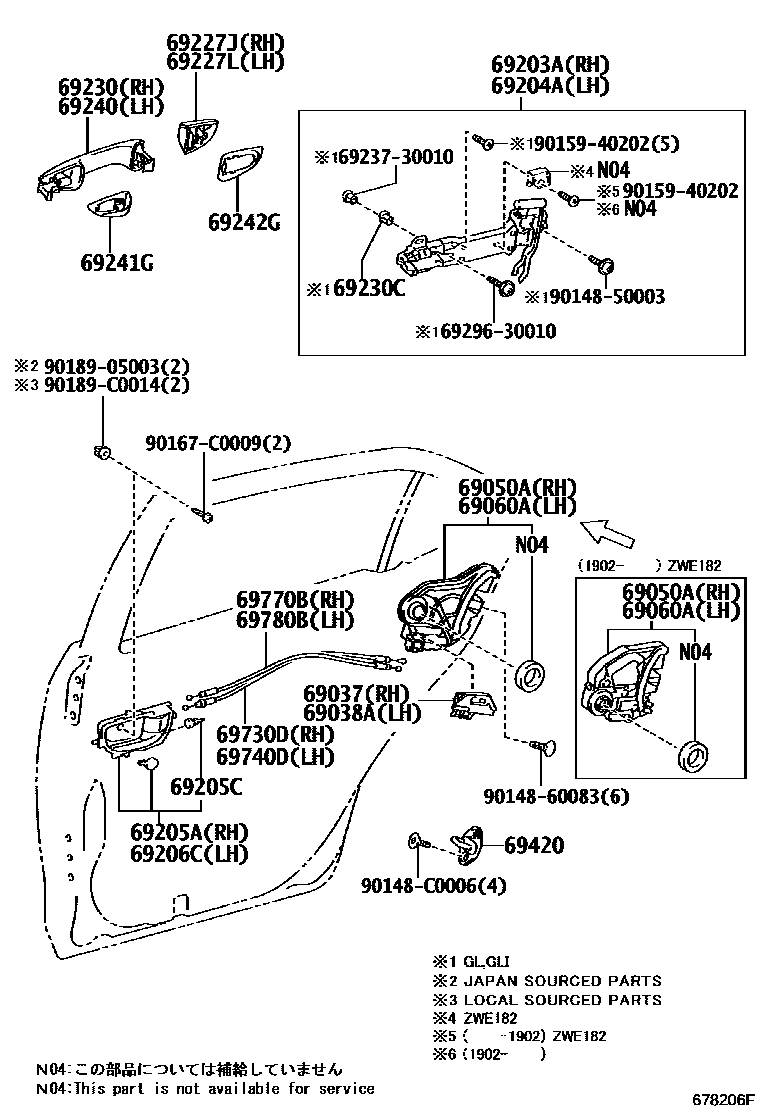

Toyota COROLLA 后门锁和后门把手 — Figure 6706
Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69037 | Right rear door door lock cover sub-assembly | 69037-02060 |
| 69038A | Left rear door door lock cover sub-assembly | 69038-02060 |
| 69050A | Right rear door lock assembly with motor | 69050-02450 · 69050-02460 · 69050-06111 |
| 69060A | Left rear door lock assembly with motor | 69060-02450 · 69060-02460 · 69060-06111 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-02280 · 69203-02290 · 69203-02340 · 69203-02350 · 69203-02490 · 69203-02500 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-02280 · 69204-02290 · 69204-02340 · 69204-02350 · 69204-02490 · 69204-02500 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04027 |
| 69230C | Bushing (for rear door outer handle) | 69239-30010 |
| 69241G | Rear door front exterior handle pad | 69241-02200 · 69242-02190 |
| 69242G | Rear door rear outer handle pad | 69241-02210 · 69242-02200 |
| 69420 | Rear door lock plate assembly | 69410-0D020 |
| 69730D | Right rear door lock remote control cable assembly | 69730-02280 · 69730-02440 |
| 69740D | Left rear door lock remote control cable assembly | 69730-02280 · 69730-02440 |
| 69770B | Right rear door inner lock cable assembly | 69770-02380 · 69770-02540 |
| 69780B | Left rear door inner lock cable assembly | 69770-02380 · 69770-02540 |
