Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105

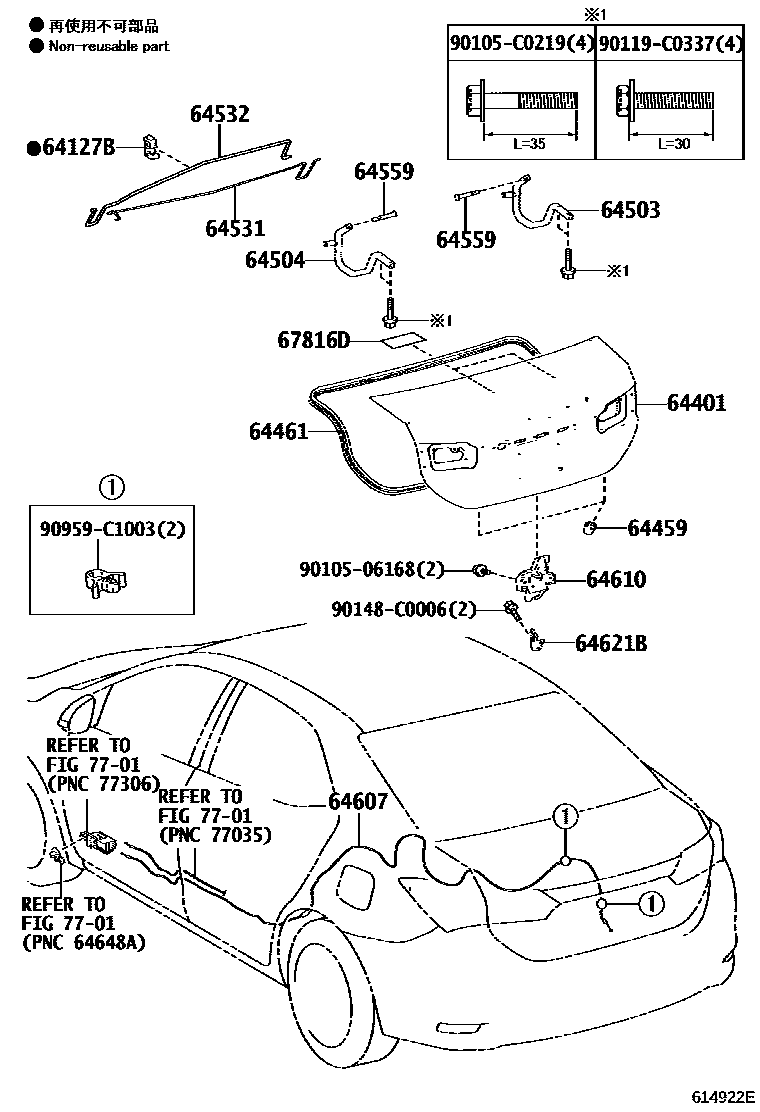

Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-33071 |
| 64401 | Trunk door panel sub-assembly | 64401-02A50 · 64401-02D50 · 64401-02D51 · 64401-02D60 · 64401-02D61 · 64401-02E40 |
| 64459 | Trunk door cushion | 90541-09069 |
| 64461 | Trunk door seal | 64461-02250 · 64461-02260 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-02200 · 64503-02201 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-02200 · 64503-02201 |
| 64531 | Trunk door right hinge torsion bar | 64531-02350 · 64531-02351 |
| 64532 | Trunk door left hinge torsion bar | 64532-02350 · 64532-02351 |
| 64559 | Trunk door hinge pin | 64559-12040 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-02460 · 64607-02461 |
| 64610 | Trunk door lock assembly | 64600-02120 · 64600-02121 |
| 64621B | Trunk door latch | 64621-0D040 |
| 67816D | Rear door silencer panel | 67816-02050 · 67816-02051 |
