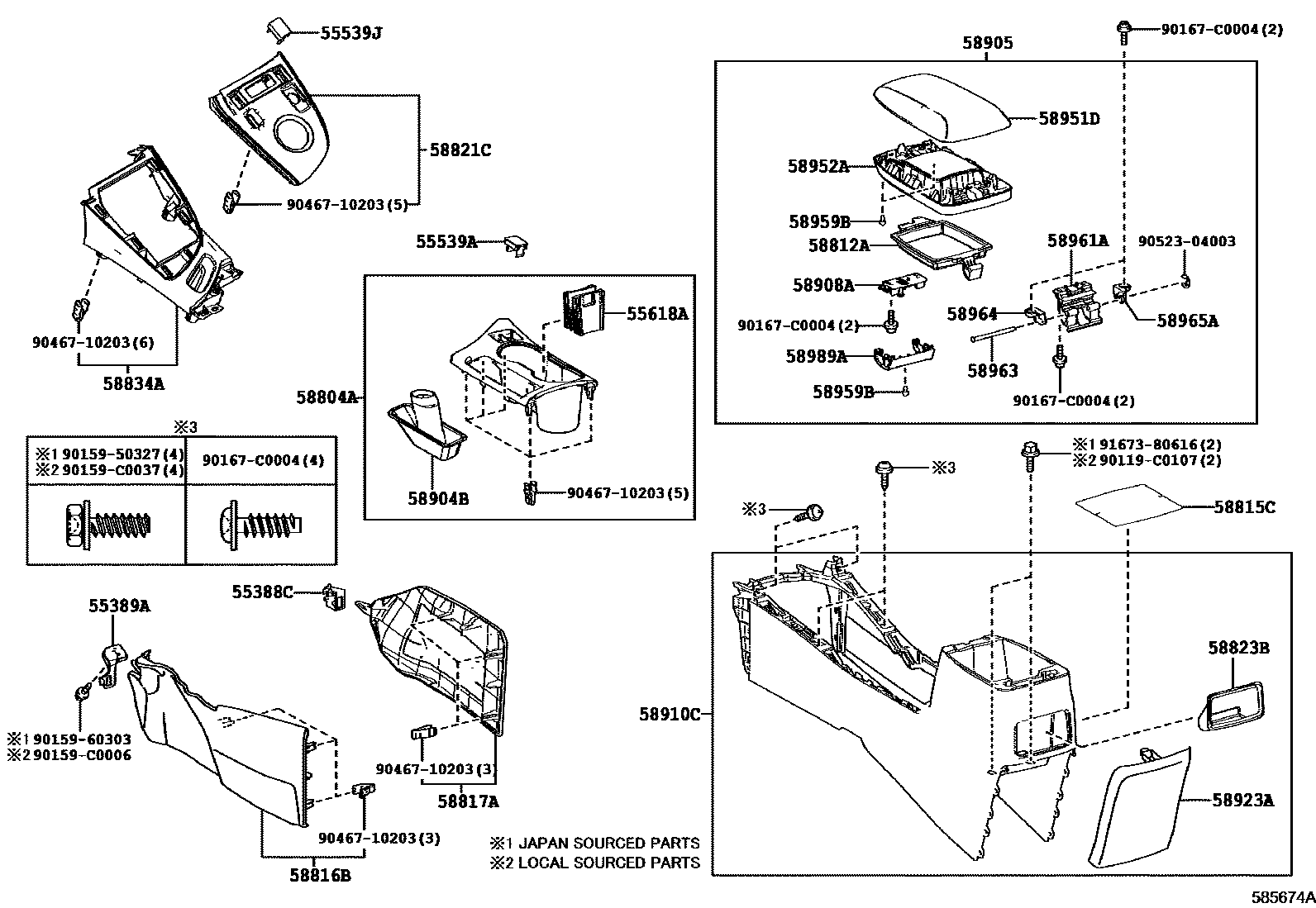

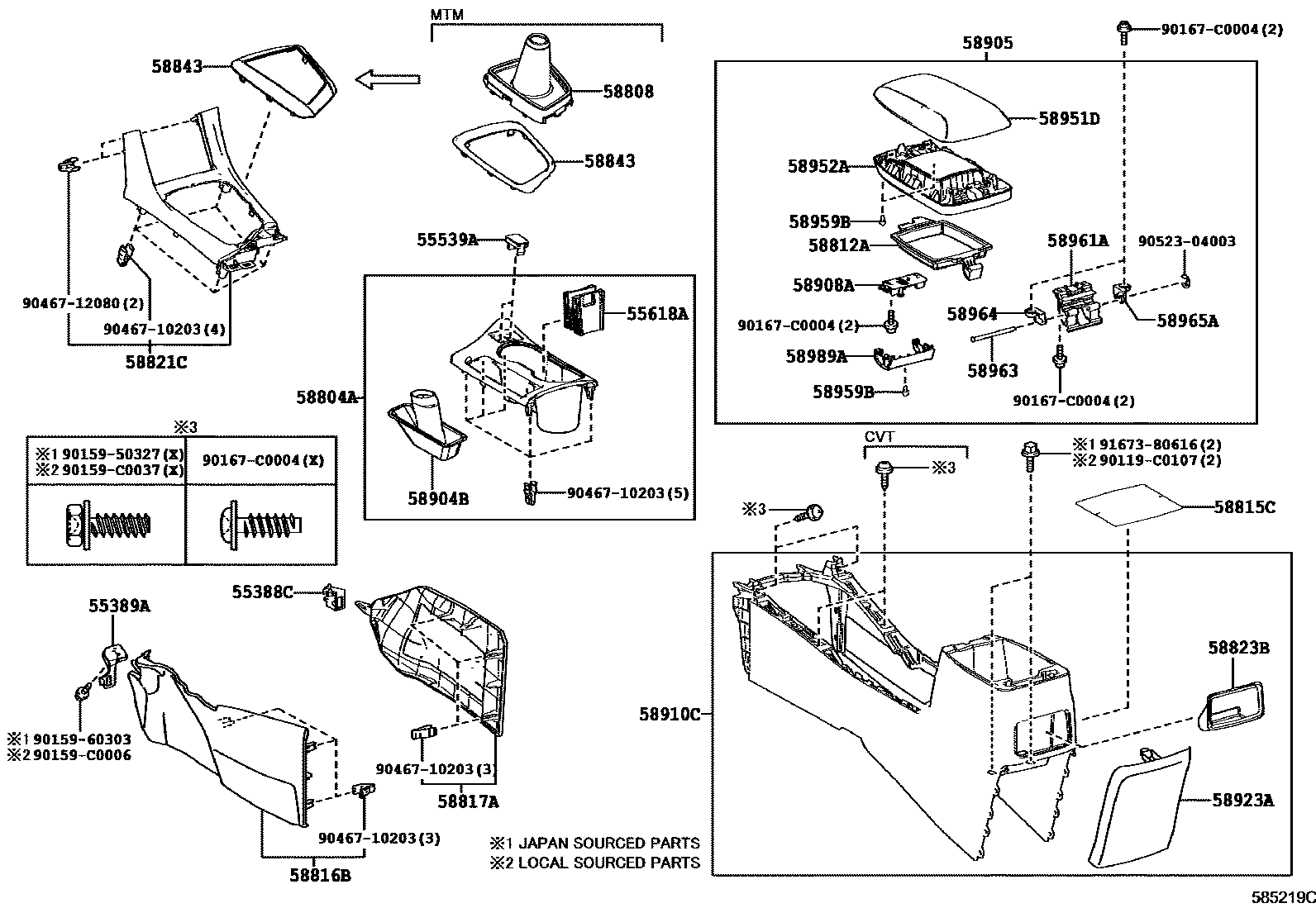

Toyota COROLLA 中央扶手箱和支架 — Figure 5806
Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55388C | Mounting bracket on the right side of the console | 55388-02180 |
| 55389A | Console left side mounting bracket | 55389-02160 |
| 58815C | Armrest box felt pad | 58815-02370 |
| 58821C | Armrest box upper panel | 58821-02500 · 58821-02501 |
| 58843 | shift hole frame | 58843-02740 · 58843-02741 · 58843-02750 · 58843-02751 |
| 58908A | Armrest box lid lock assembly | 58908-02190 |
| 58959B | Armrest box cover cushion | 90541-03078 |
| 58961A | Armrest box lid protruding hinge | 58961-02210 |
| 58963 | Armrest box lid hinge shaft | 58963-02170 |
| 58964 | Armrest box cover No. 1 stop | 58964-02390 |
| 58965A | Armrest box cover No. 2 stopper | 58965-02400 |
