Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801

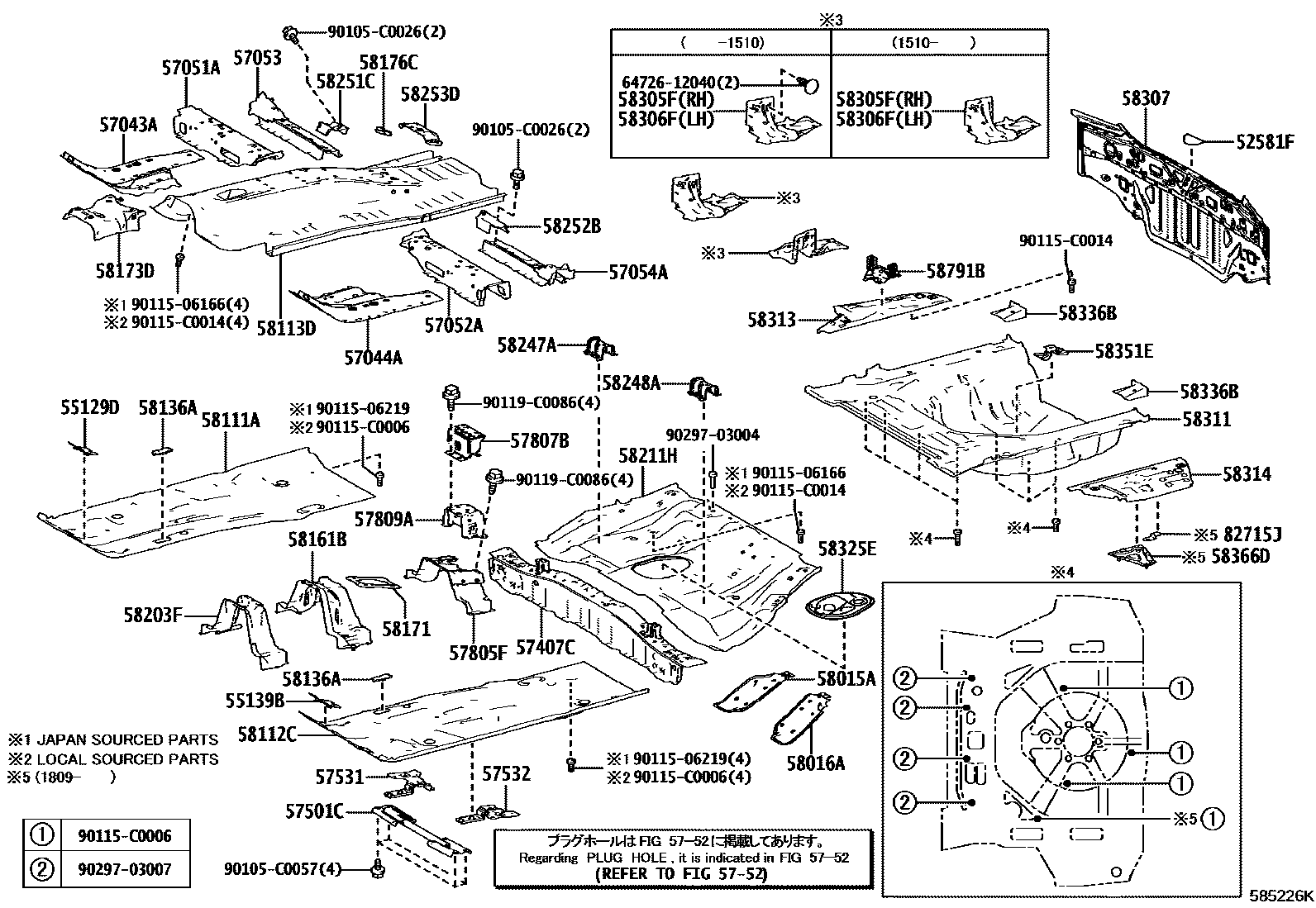

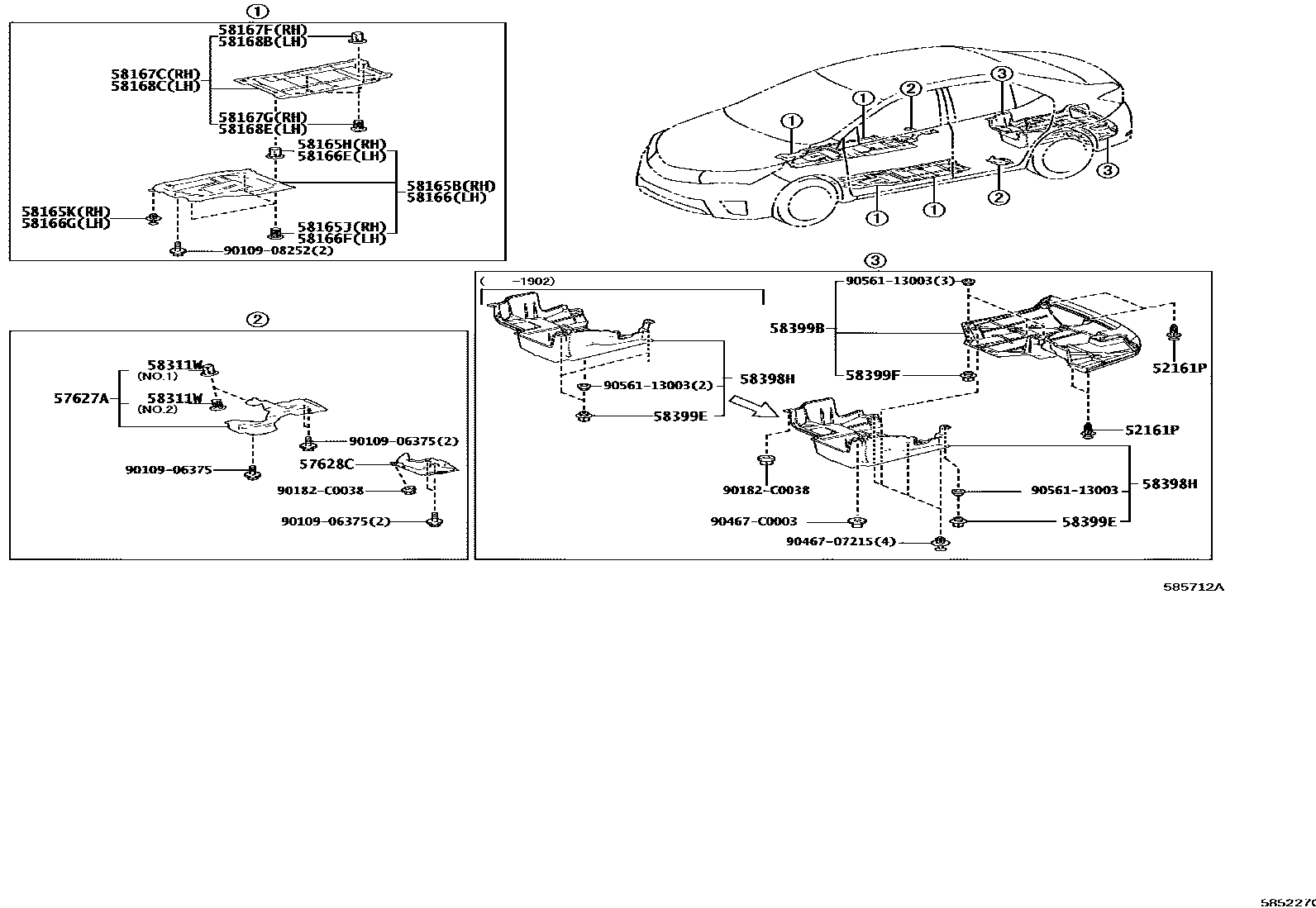

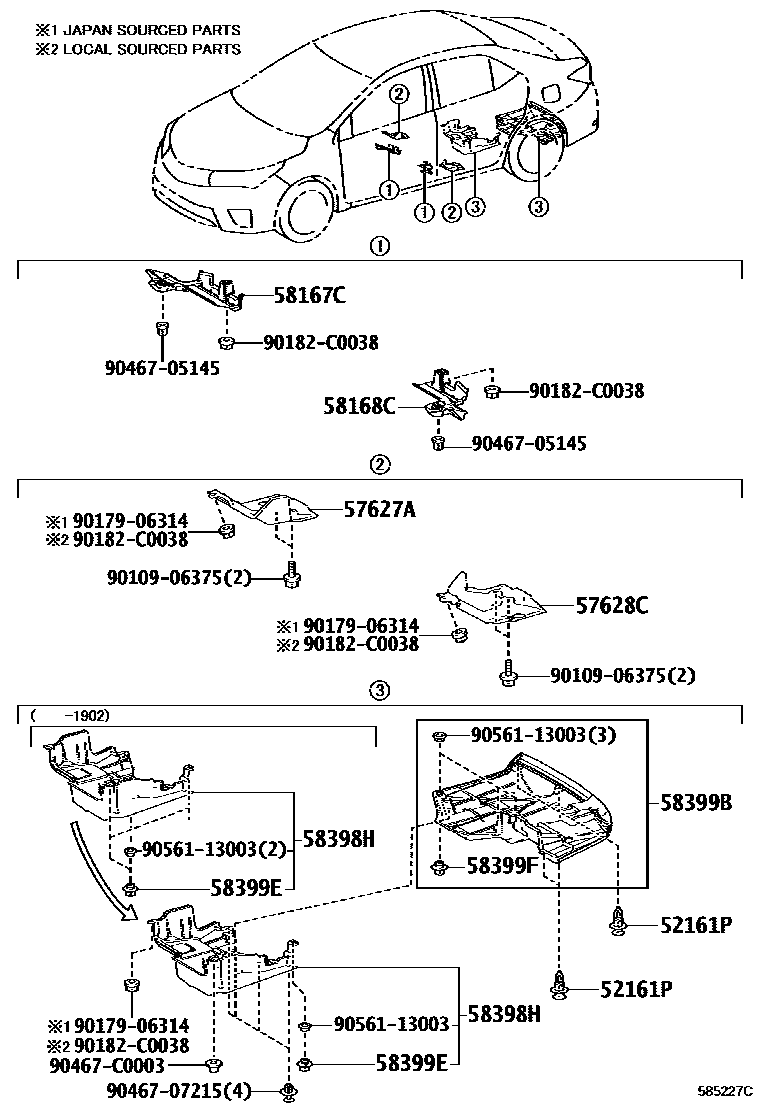

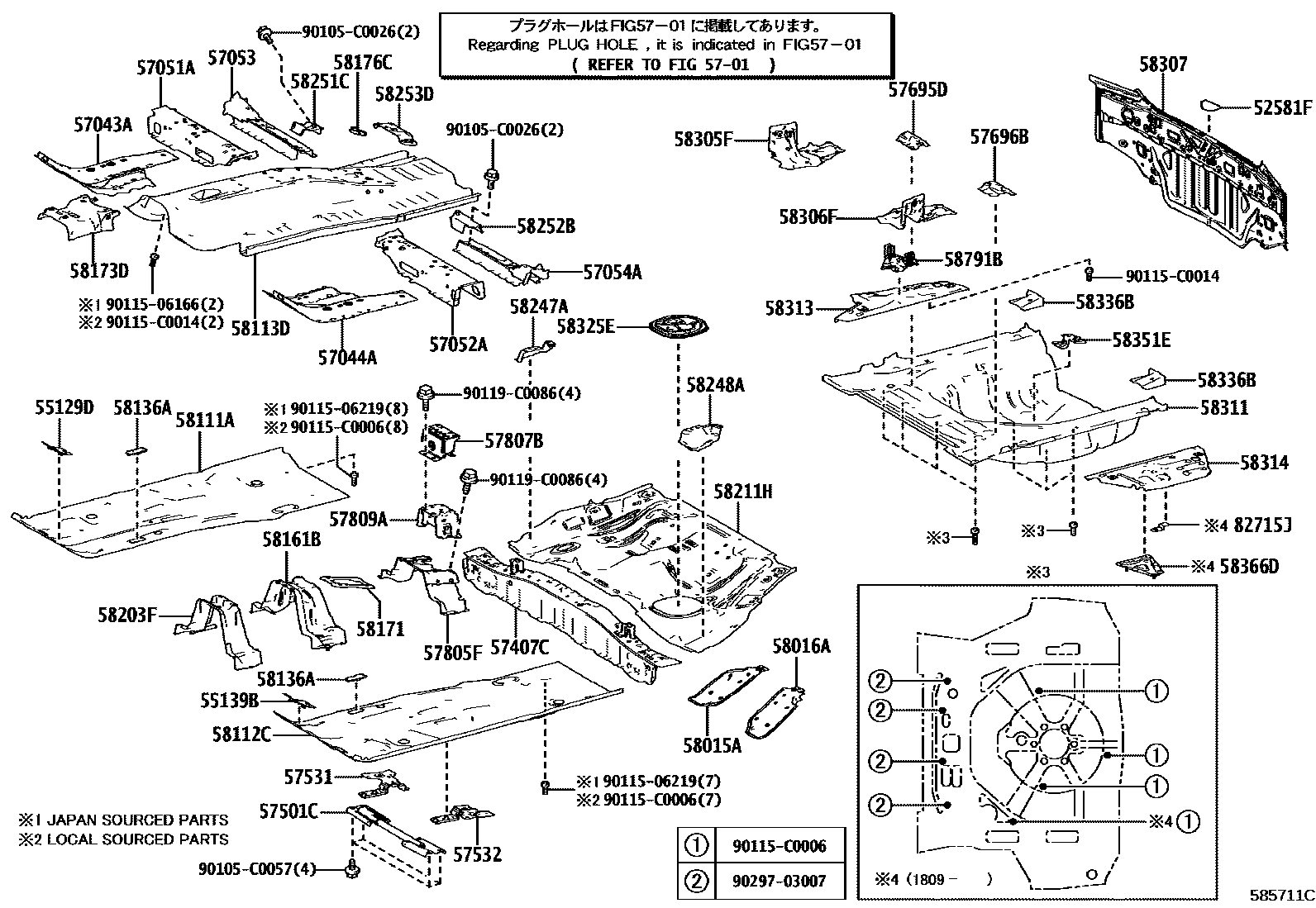

Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 4 images and 60 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161P | Rear bumper insert | 52161-02040 · 52161-16010 |
| 52581F | rear bumper protector | 52581-02080 |
| 55129D | Right front panel hole cover | 55129-02040 |
| 55139B | Left front panel hole cover | 55139-02030 |
| 57043A | Right front longitudinal beam rear reinforcement sub-assembly | 57043-02020 |
| 57044A | Left front longitudinal beam rear reinforcement sub-assembly | 57044-02020 |
| 57051A | Front floor right cross member sub-assembly | 57051-02040 |
| 57052A | Front floor left cross member sub-assembly | 57052-02030 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-02040 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-02050 |
| 57407C | Center floor No. 1 beam sub-assembly | 57407-02110 |
| 57501C | Front floor center bracket sub-assembly | 57501-12020 |
| 57531 | Front floor center bracket right bracket | 57531-02020 |
| 57532 | Front floor center bracket left bracket | 57532-02020 |
| 57627A | Rear floor right longitudinal member cover | 57627-02070 · 57627-02120 |
| 57628C | Rear floor left longitudinal member cover | 57628-02080 |
| 57695D | Rear floor No. 2 right mounting bracket | 57695-02050 |
| 57696B | Rear floor No. 2 left mounting bracket | 57696-02030 |
| 57805F | No. 1 seat belt anchor reinforcement sub-assembly | 57805-02060 |
| 57807B | No. 2 seat belt anchor reinforcement sub-assembly | 57807-02040 |
| 57809A | No. 3 seat belt anchor reinforcement sub-assembly | 57809-02060 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-02082 · 58015-02083 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-02092 · 58016-02093 |
| 58111A | Front floor right bottom panel | 58111-02937 |
| 58112C | Front floor left bottom panel | 58112-02906 |
| 58113D | Front floor No. 1 right side panel | 58113-02911 · 58113-02913 |
| 58136A | Front floor access hole cover | 58136-02040 |
| 58161B | Seat belt anchor to floor pan reinforcement | 58161-02060 |
| 58165B | Front floor right cover | 58165-02090 |
| 58165K | No. 3 clip on the right side of the front floor cover | 90467-07215 |
| 58166 | Front floor left cover | 58166-02070 |
| 58166G | No. 3 clip on the left side of the front floor cover | 90467-07215 |
| 58167C | Front floor center right cover | 58167-02020 · 58167-02130 |
| 58168C | Front floor center left cover | 58168-02020 · 58168-02120 |
| 58171 | Parking brake base reinforcement | 58171-02071 |
| 58173D | No. 4 ECU mounting bracket | 58173-02010 |
| 58176C | Parking brake base No. 2 reinforcement | 58176-02030 |
| 58203F | Exhaust pipe mounting bracket sub-assembly | 58203-02030 |
| 58211H | central floor base | 58211-02460 · 58211-02915 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-02100 · 58247-02160 |
| 58248A | Rear left seat cushion hinge reinforcement | 58247-02160 · 58248-02020 |
| 58251C | Front floor right bracket | 58251-02040 |
| 58252B | Front floor left bracket | 58252-02020 |
| 58253D | Parking brake cable bracket | 58253-02060 |
| 58305F | Rear floor right side panel sub-assembly | 58305-02020 · 58305-02070 |
| 58306F | Rear floor left side panel sub-assembly | 58306-02020 · 58306-02070 |
| 58307 | Body lower back panel sub-assembly | 58307-02430 |
| 58311 | rear floor pan | 58311-02160 · 58311-02161 · 58311-02162 · 58311-02163 |
| 58313 | Rear floor right panel | 58313-02070 |
| 58314 | rear floor left panel | 58314-02070 · 58314-02071 · 58314-02072 · 58314-02073 |
| 58325E | Rear floor access hole cover | 58325-02090 · 58325-02190 |
| 58336B | Rear floor pan reinforcement | 58336-02080 |
| 58351E | Spare tire clip bracket | 58351-02010 |
| 58366D | Fuel tank rear bracket reinforcement | 58366-02030 |
| 58398H | No. 1 floor under cover | 58398-02120 · 58398-02140 · 58398-02141 |
| 58399B | Floor No. 2 lower cover | 58399-02080 · 58399-02140 |
| 58399E | Clamp No. 1 (for lower floor cover) | 90467-14053 |
| 58399F | Clip No. 2 (for lower floor cover) | 90467-14053 |
| 58791B | jack bracket | 58791-02100 |
| 82715J | Wire harness clamp bracket | 82715-0D100 |
