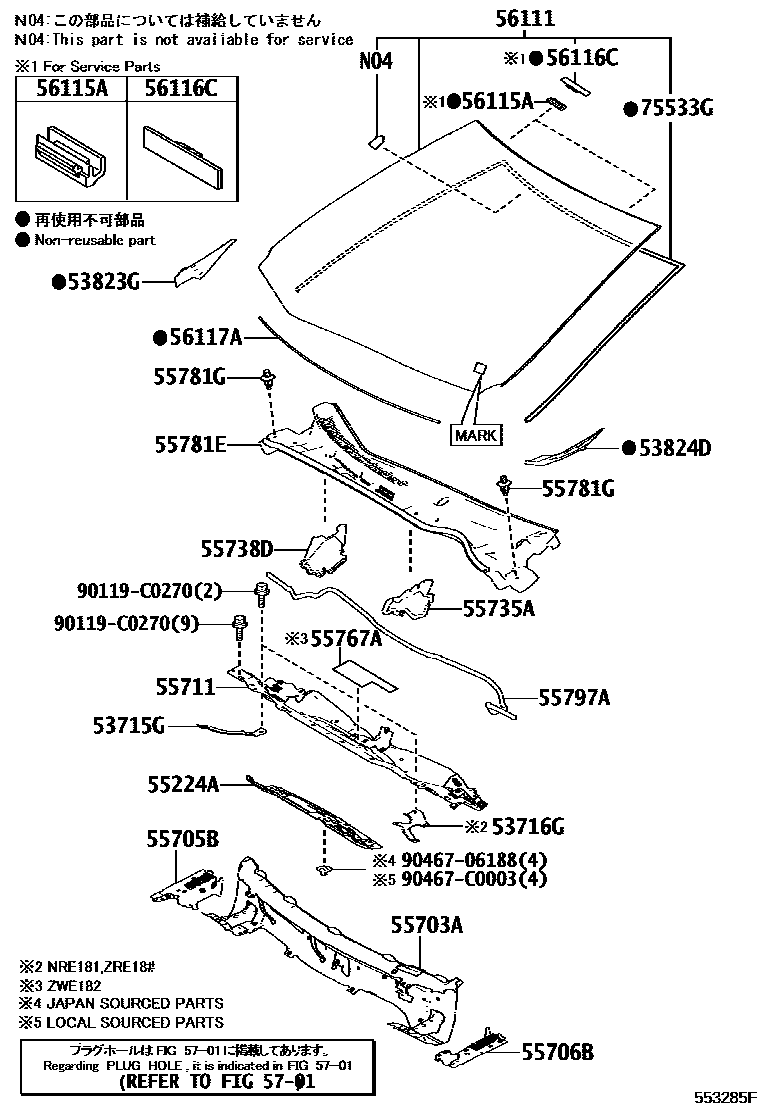

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53715G | Right front fender fender rear extension | 53715-02070 |
| 53716G | Left front fender fender rear extension | 53716-02070 |
| 53823G | No. 2 right front side panel protector | 53823-02130 |
| 53824D | No. 2 left front side panel protector | 53824-02130 |
| 55224A | No. 2 outer insulation pad for front wall | 55224-02110 |
| 55703A | Front wall upper inner panel sub-assembly | 55703-02330 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-02180 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-02180 |
| 55711 | Front outer panel | 55701-02300 · 55701-02480 |
| 55735A | Left waterproof cover panel | 55734-02350 |
| 55738D | No. 2 heater duct splash guard seal | 55737-02200 |
| 55767A | No. 5 front wall heat shield | 55767-02030 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-02680 · 55708-02681 |
| 55781G | Ventilation grille clips on front apron | 90467-C0026 |
| 55797A | Front wall pumping device seal | 55797-02150 |
| 56111 | windshield | 56101-02G90 · 56101-02G91 · 56101-02J30 · 56101-02J31 · 56101-02K20 · 56101-02K21 · 56101-02K70 · 56101-02K71 · 56101-0Z330 · 56101-0Z340 · 56101-0Z350 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-02270 |
| 75533G | Windshield outer protective strip | 75533-02180 · 75533-02200 |
