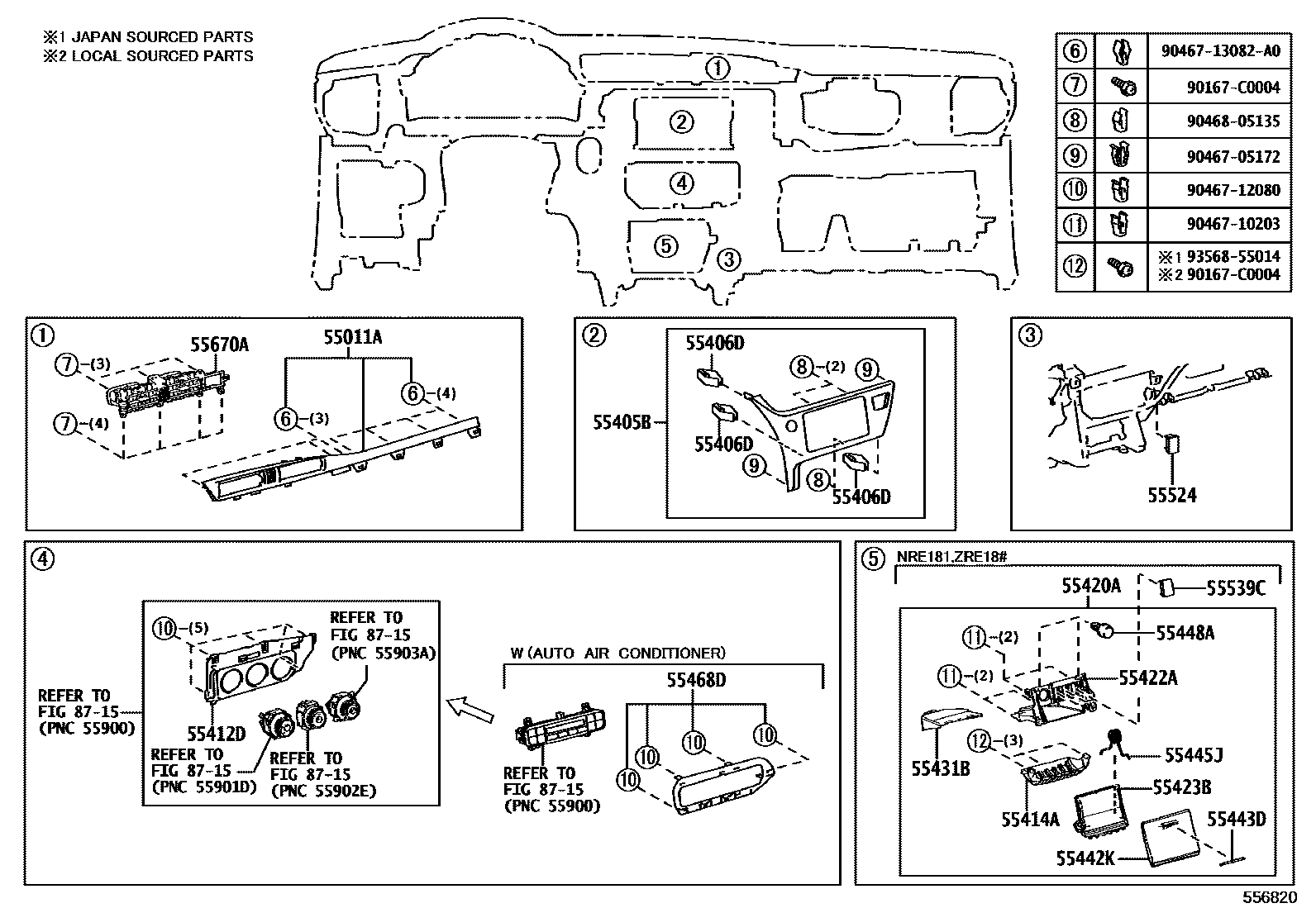

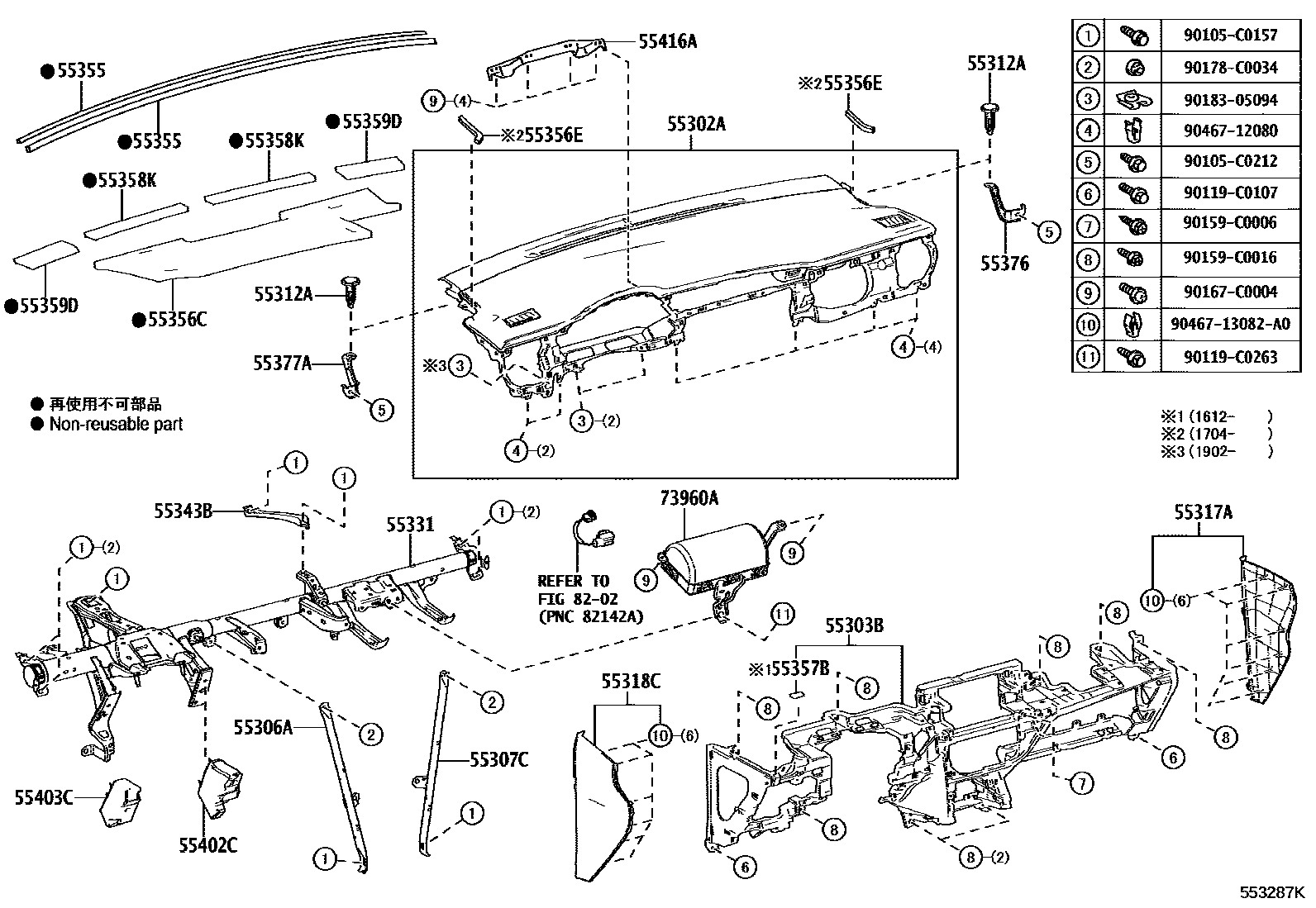

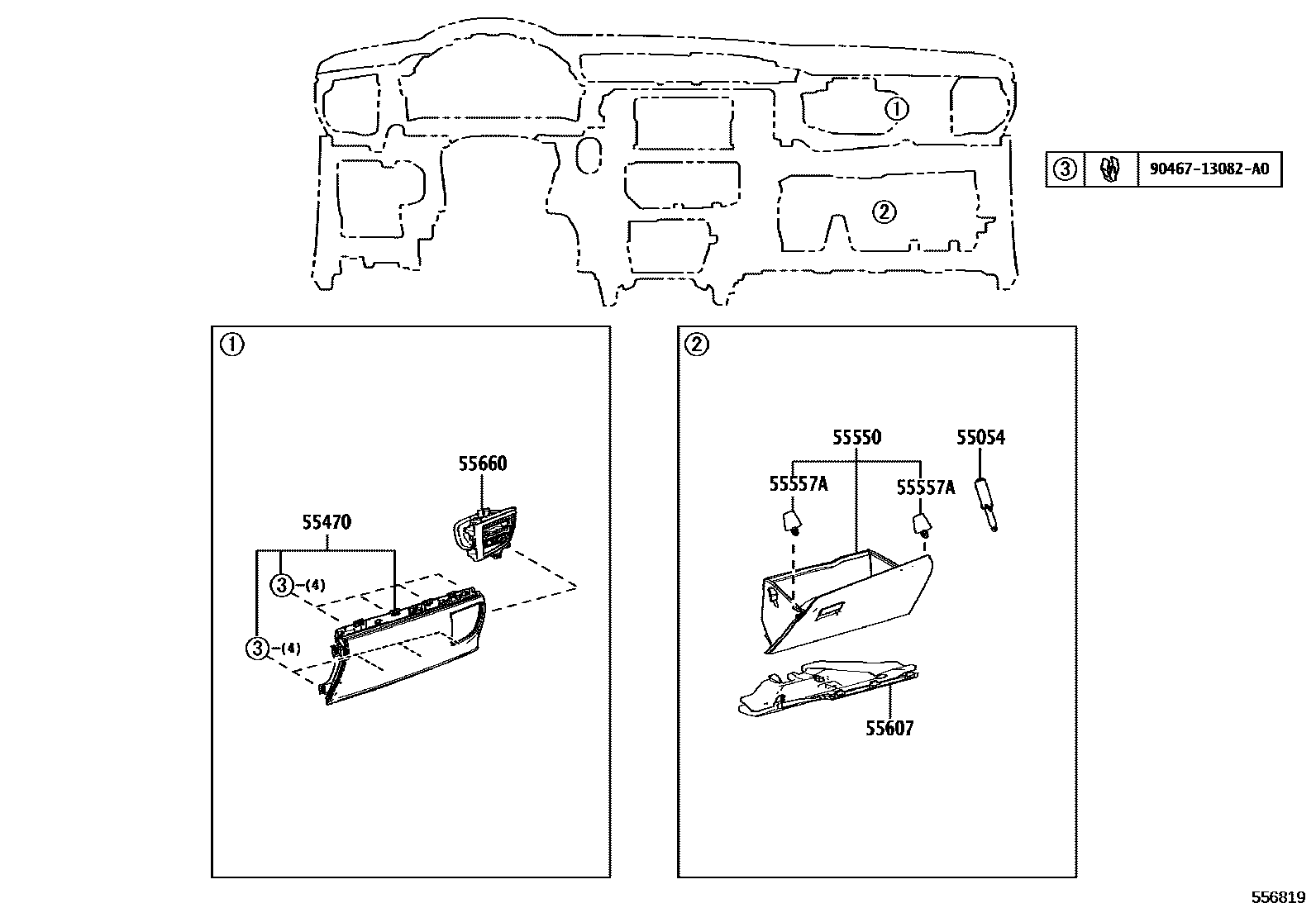

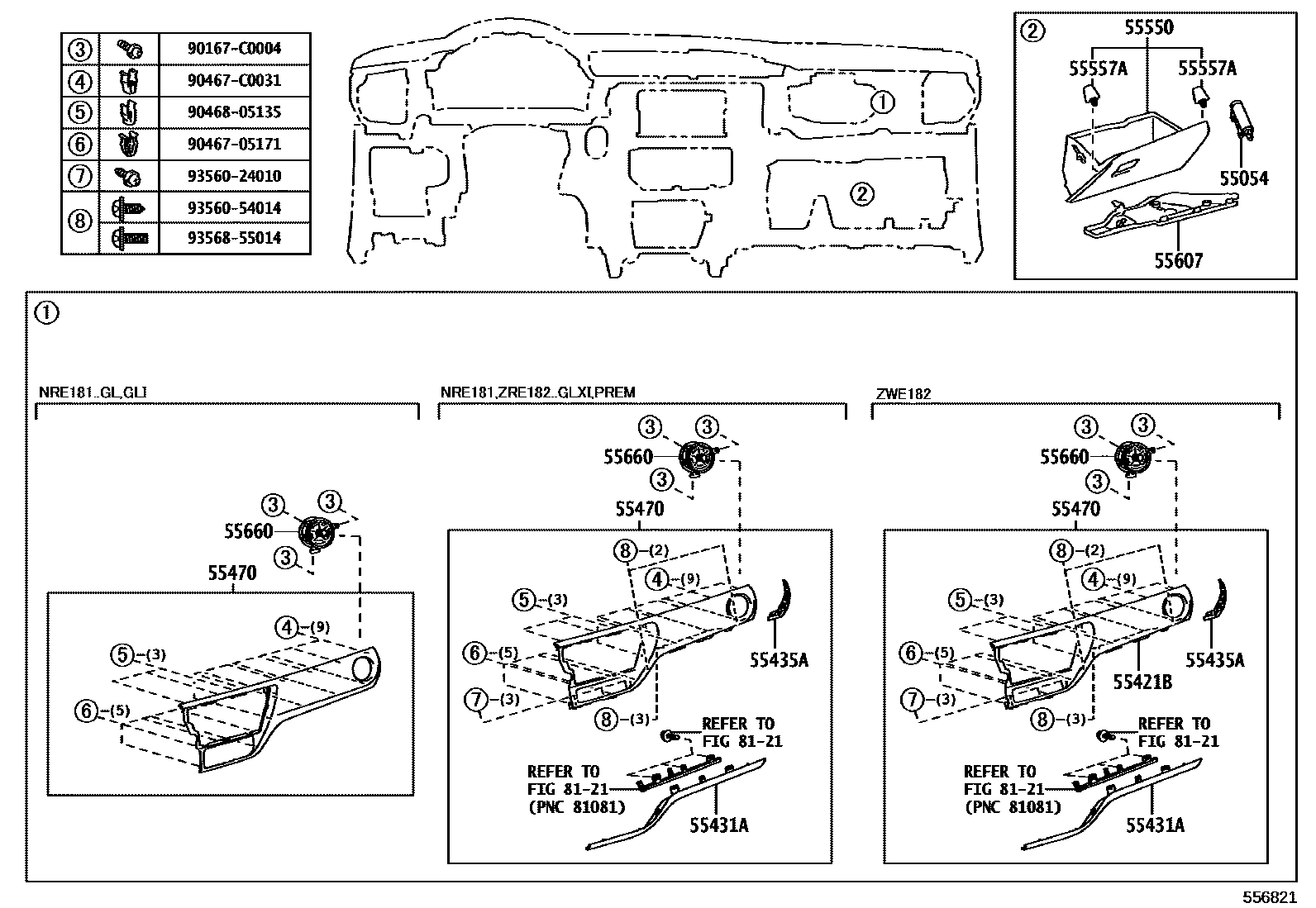

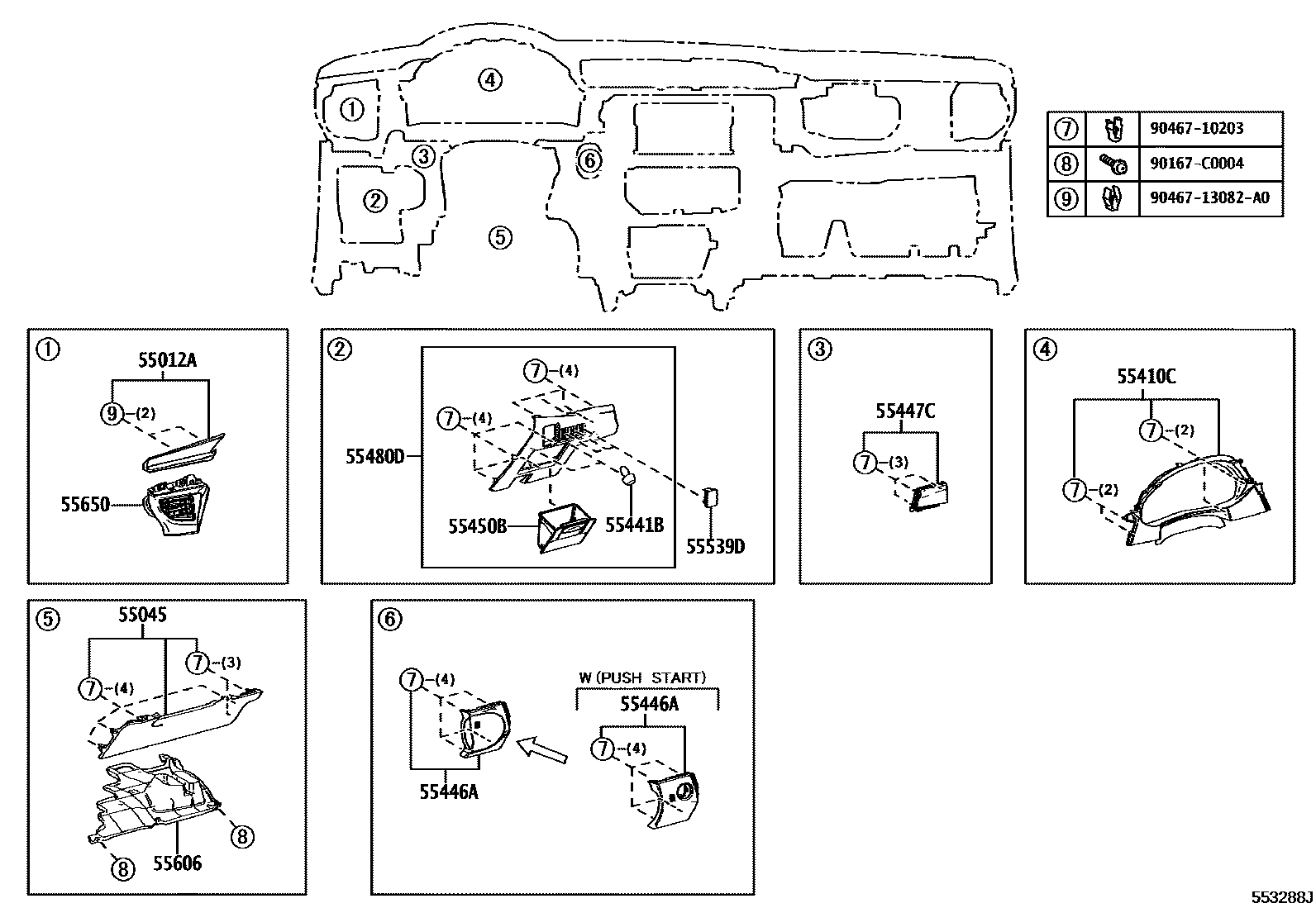

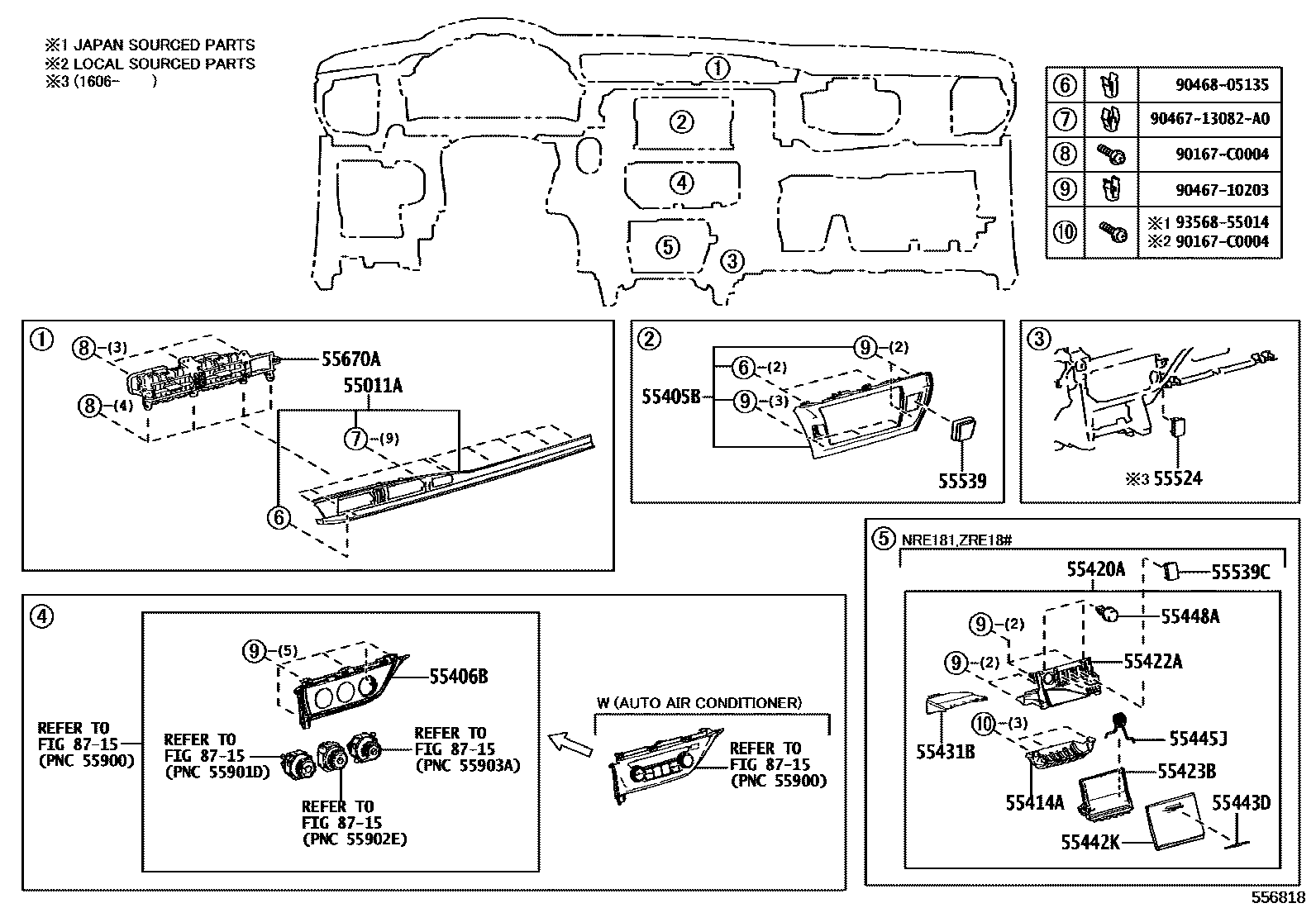

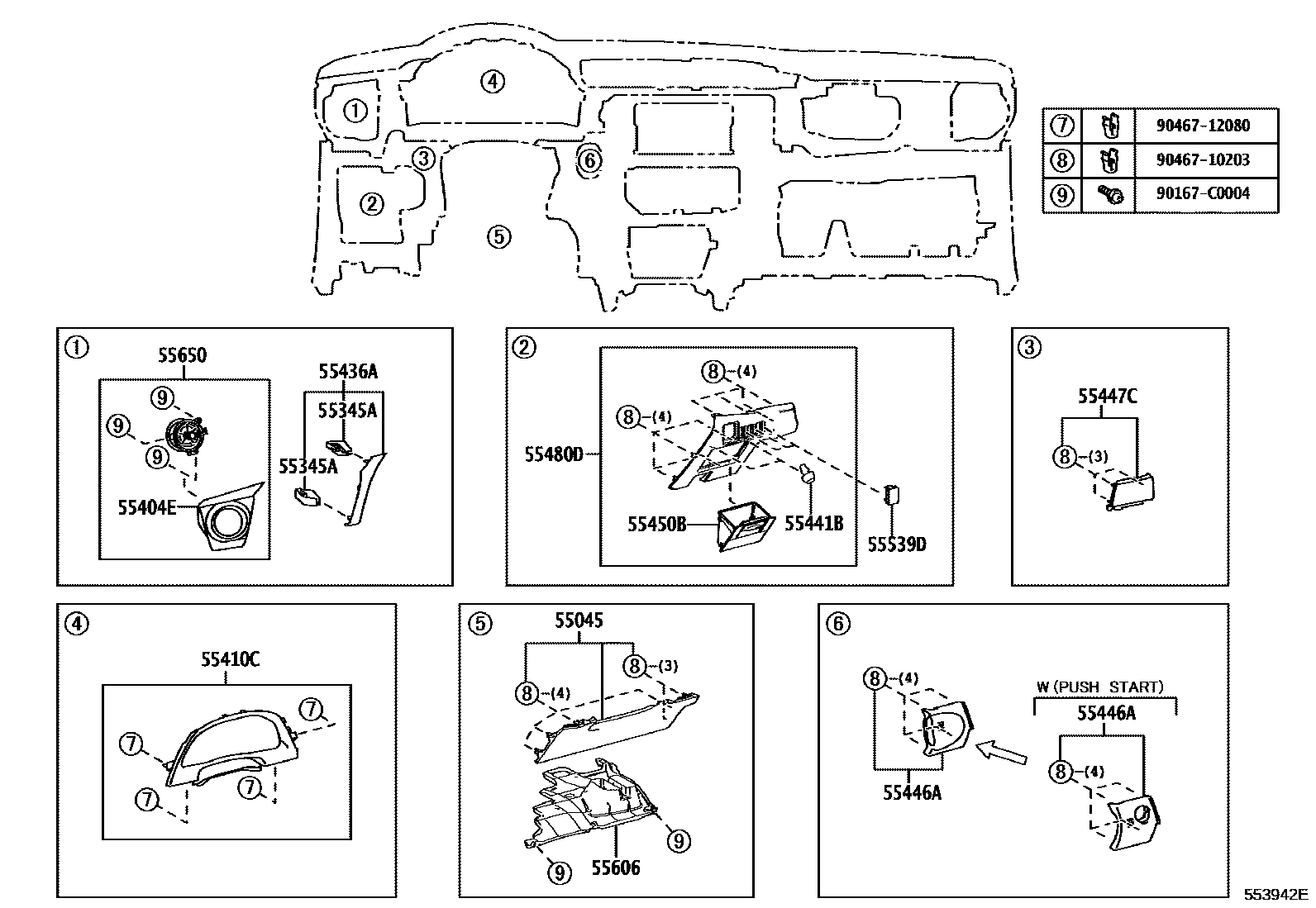

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 7 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55011A | No. 1 instrument panel trim sub-assembly | 55011-02200 |
| 55054 | Glove box cover stopper sub-assembly | 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-02670 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-02420 · 55307-02450 |
| 55312A | Dashboard clip | 52161-02040 · 52161-16010 |
| 55331 | Dashboard reinforcement | 55330-02810 |
| 55343B | Center bracket (dashboard to cowl) | 55343-02240 |
| 55345A | Dashboard Clip No. 1 | 90468-04191 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-02440 · 55355-02450 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-02340 |
| 55356E | Dashboard No. 2 Cushion Pad | 55356-02400 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-02270 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-02170 |
| 55359D | Dashboard No. 5 Cushion Pad | 55359-02170 |
| 55376 | Instrument panel mounting bracket No. 1 | 55376-02150 |
| 55377A | Instrument panel mounting bracket No. 2 | 55377-02140 |
| 55402C | Dashboard lower right pad sub-assembly | 55402-02080 |
| 55403C | Instrument panel lower left pad sub-assembly | 55403-02180 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-02C60 |
| 55412D | Center instrument cluster decorative panel | 55412-02640 |
| 55414A | Instrument cluster end decorative panel | 55414-02310 |
| 55416A | Instrument cover No. 1 fixing piece | 55416-02240 · 55416-02290 |
| 55422A | Decorative panel under instrument cluster | 55422-02410 |
| 55423B | Instrument cluster decorative panel cover | 55423-02130 |
| 55431B | Decorative panel on dashboard | 55431-02050 |
| 55436A | Instrument panel left end decorative panel | 55435-02650 |
| 55441B | Dashboard storage box cushion | 58959-60060 |
| 55443D | Dashboard storage box lid knob | 55443-02110 |
| 55445J | Dashboard storage box spring | 55445-02300 |
| 55448A | Instrument panel decorative cushion No. 1 | 58959-60060 |
| 55468D | Dashboard safety mat central fixing | 55468-02130 |
| 55524 | Switch base hole cover | 55524-0P010 |
| 55557A | Glove box cover limit pad | 55557-60050 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-02290 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-02260 · 55607-02261 |
| 55670A | Instrument panel central air register assembly | 55670-02520 · 55670-02600 · 55670-02B00 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-02240 · 73960-02241 |
