Toyota COROLLA 发动机盖锁和铰链 — Figure 5303

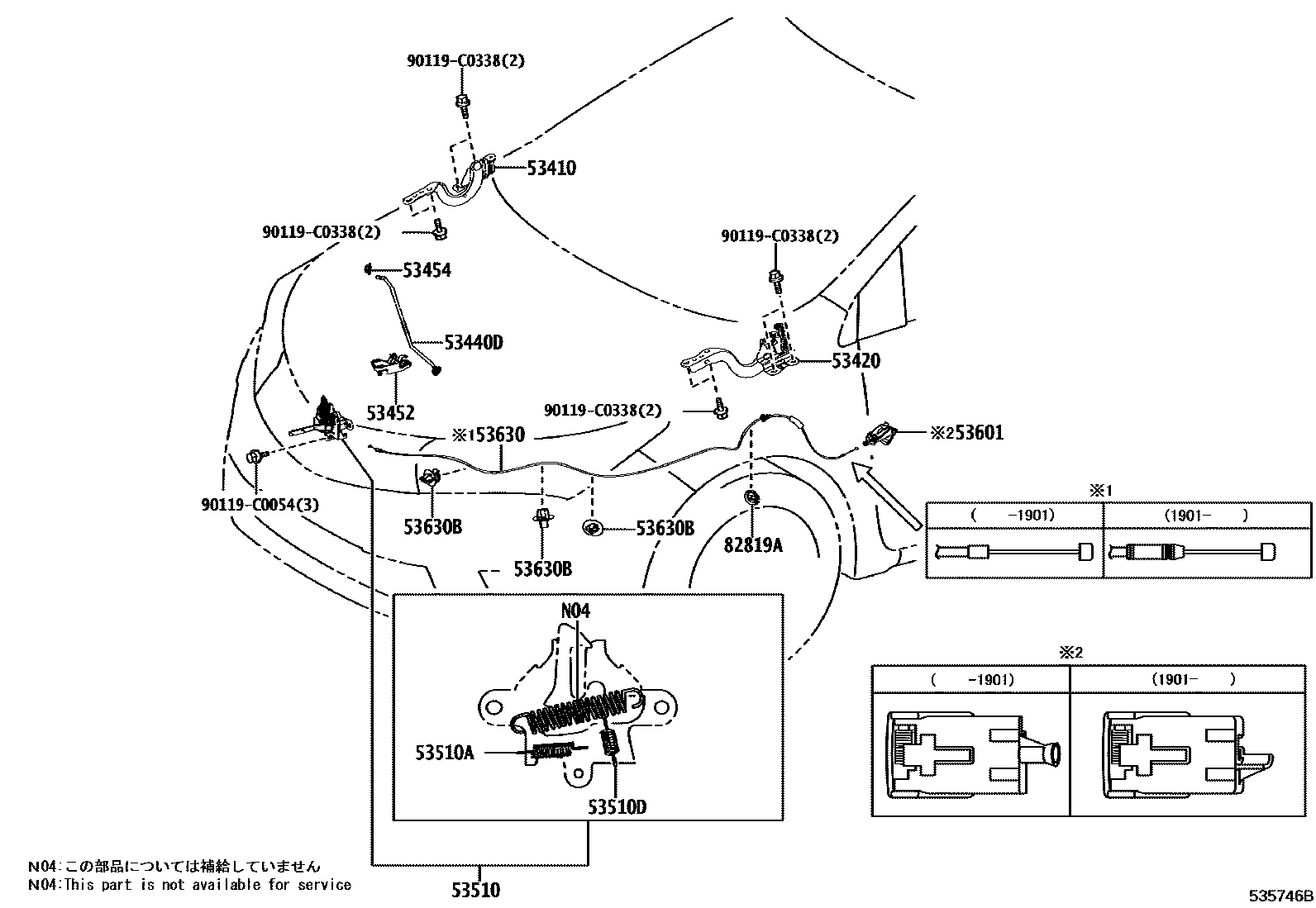

Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-02450 |
| 53420 | Engine cover left hinge assembly | 53420-02450 |
| 53440D | Engine cover support rod assembly | 53440-02240 |
| 53452 | Engine cover stay rod fixing | 53452-02200 |
| 53454 | Engine cover support rod clip | 53454-12030 |
| 53510 | Engine cover lock assembly | 53510-02720 · 53510-02730 |
| 53510A | Tension spring (for hood lock) | 90506-09055 |
| 53510D | Tension spring (for hood lock) | 90506-12063 |
| 53630 | Engine hood lock control cable assembly | 53630-02360 · 53630-02361 · 53630-02430 · 53630-02431 · 53630-02432 |
| 53630B | Clip (for hood lock control cable) | 90469-C0004 |
| 82819A | Wire harness seal | 82817-02460 · 82817-1A810 |
