Toyota COROLLA 发动机盖和前翼子板 — Figure 5302

Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 28 PNC and OE references.

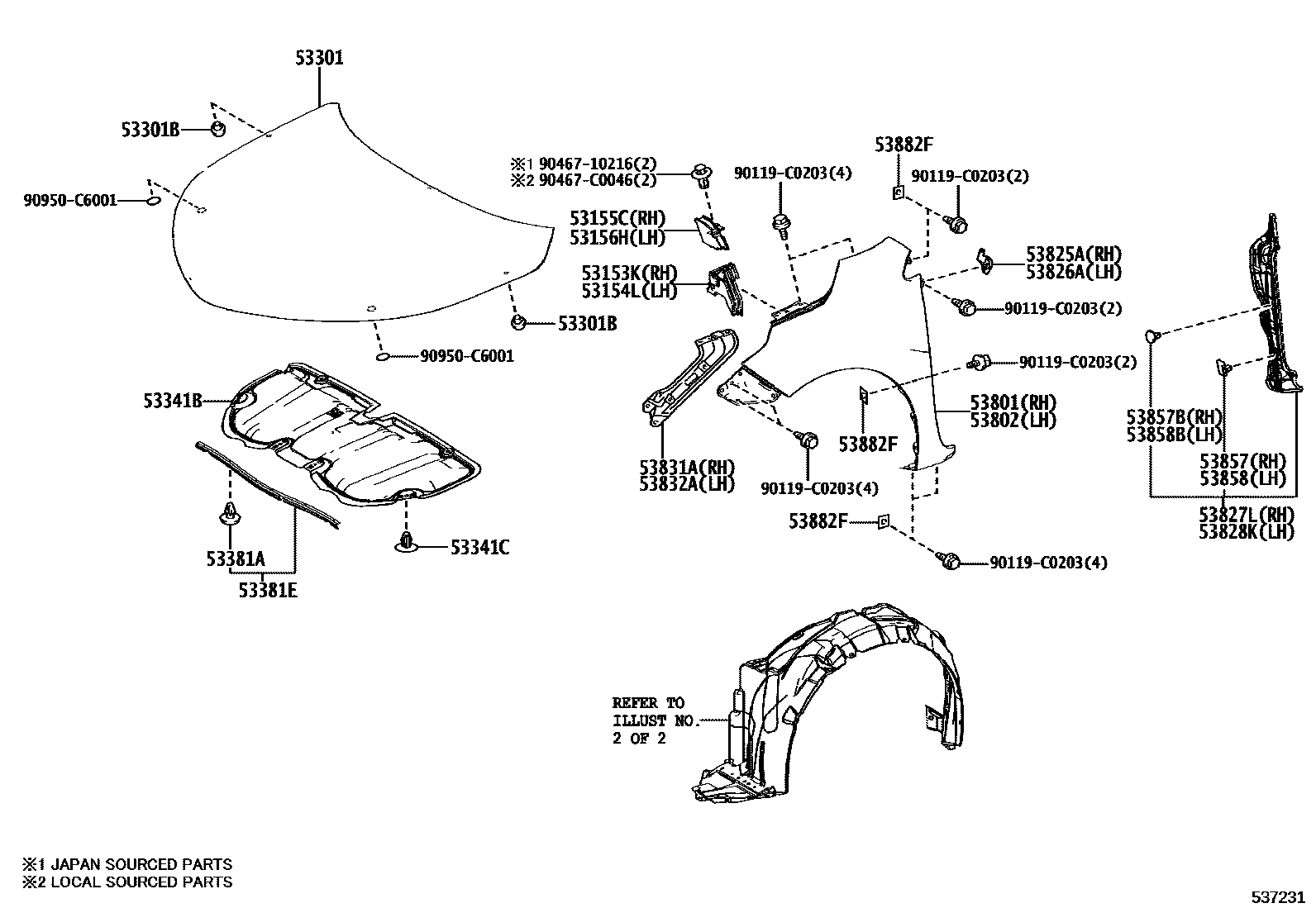

Toyota COROLLA 发动机盖和前翼子板 EPC diagram — 537231 — 发动机盖和前翼子板 — 537231 (201406 – 999999)

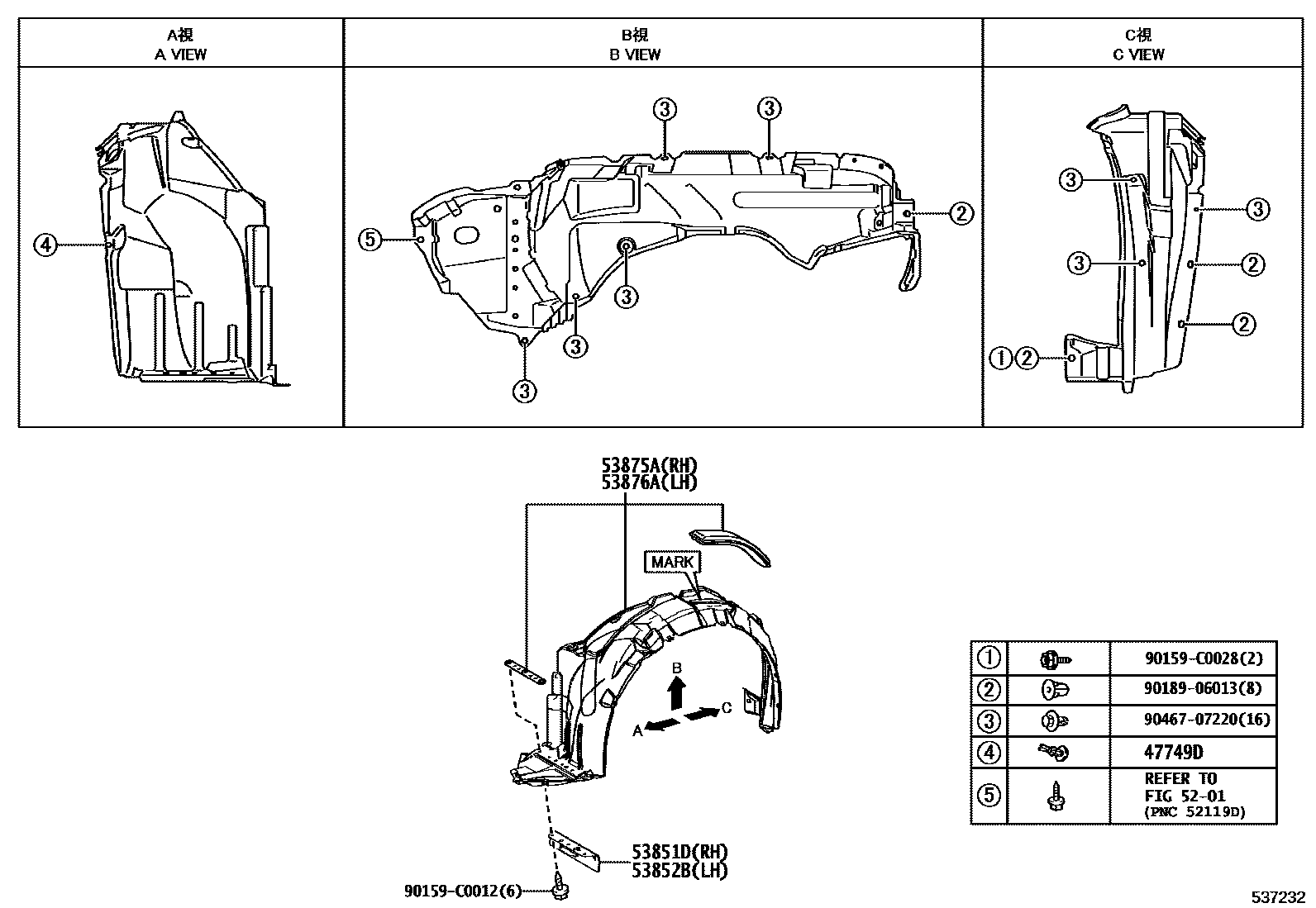

Toyota COROLLA 发动机盖和前翼子板 EPC diagram — 537232 — 发动机盖和前翼子板 — 537232 (201406 – 999999)

PNC and OE references

PNC	Part name	OE numbers
47749D	pin fixing clip	47749-02030 · 47749-58010
53153K	Radiator grille right deflector	53153-02070
53154L	Radiator grille left deflector	53154-02070
53155C	Radiator grille seal No. 1	53155-02090
53156H	Radiator grille seal No. 2	53156-02080
53301	Engine cover sub-assembly	53301-02340
53301B	engine cover cushion	90541-09117
53341B	engine cover gasket	53341-02350
53341C	Clip (for engine cover gasket)	90467-09050 · 90467-C0025
53381A	Clip (for engine cover to radiator bracket seal)	90467-08011
53381E	Engine cover to radiator bracket seal	53381-02160 · 53381-02230
53801	Right front fender sub-assembly	53811-02420
53802	Left front fender sub-assembly	53812-02420
53825A	Right front fender protection piece	53825-02130
53826A	Protection piece on left front fender	53826-02130
53827L	Right front fender side panel protector	53827-02140
53828K	Left front fender side panel protector	53828-02140
53831A	Right front fender side panel	53831-02140
53832A	Left front fender side panel	53832-02120
53851D	Right front fender outer panel pad	53851-02200
53852B	Left front fender exterior panel pad	53852-02180
53857	Right front fender external panel fixing piece	53857-12010
53857B	Right front fender external panel fixing piece	53857-0R010 · 53857-47011
53858	Left front fender external panel fixing piece	53857-12010
53858B	Left front fender external panel fixing piece	53857-0R010 · 53857-47011
53875A	Right front fender lining	53875-02580 · 53875-02700 · 53875-02701
53876A	Left front fender lining	53876-02600 · 53876-02640 · 53876-02740 · 53876-02741 · 53876-02750 · 53876-02751 · 53876-02840
53882F	front fender seal	53882-0D020 · 53882-33060
