Toyota COROLLA radiator grille — Figure 5301

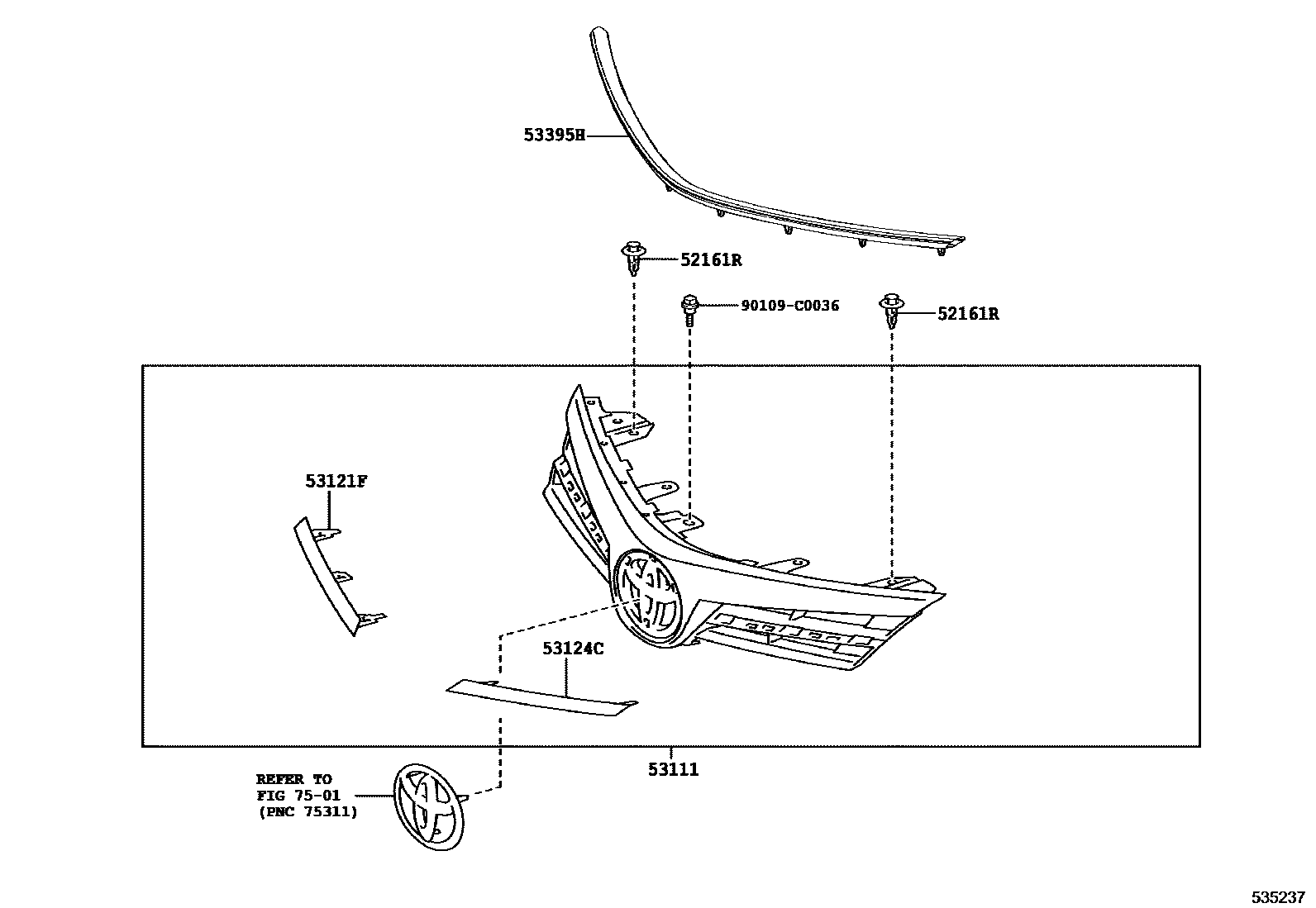

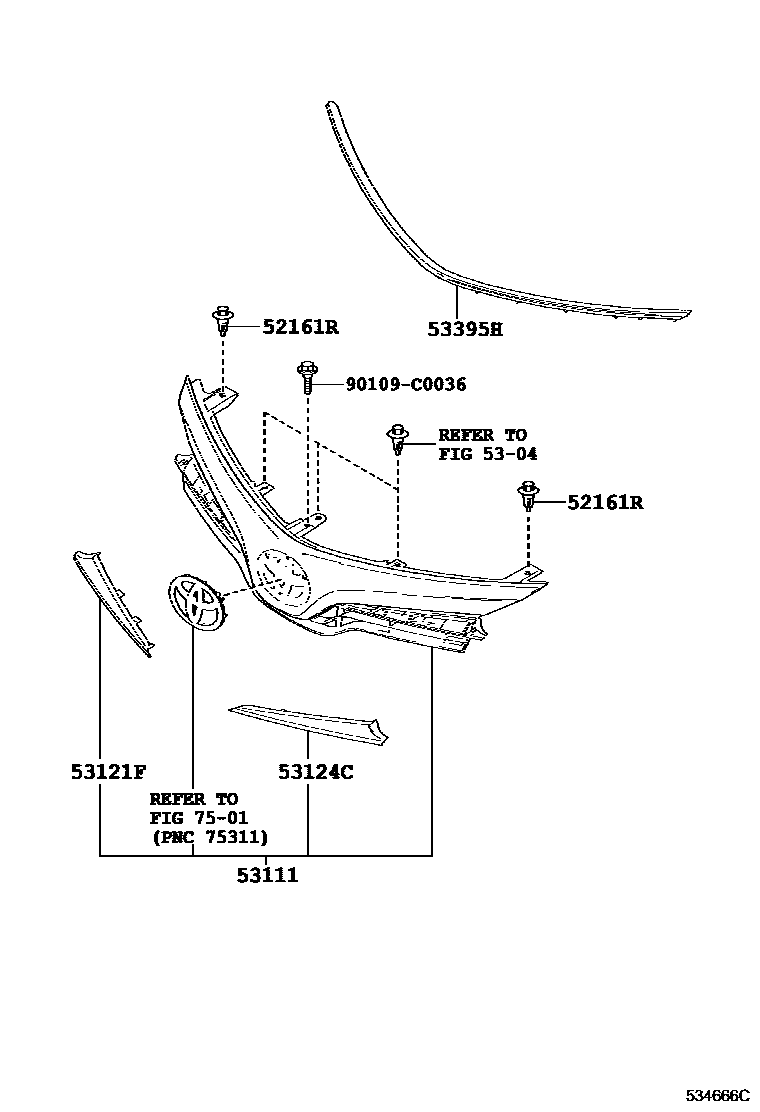

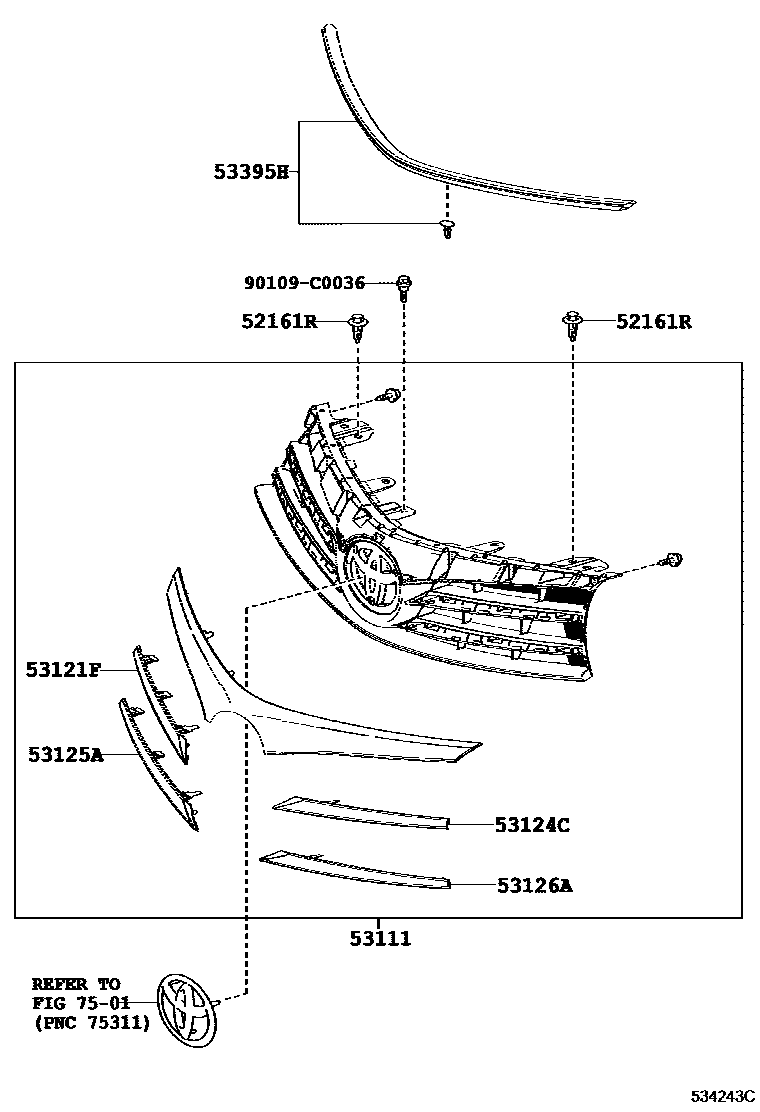

Toyota COROLLA EPC diagram 5301, radiator grille, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161R | front bumper insert | 52161-02040 · 52161-16010 |
| 53111 | radiator grille | 53100-02420 · 53100-02840 · 53100-02C10 · 53100-02C30 · 53100-02F80 |
| 53121F | Radiator grille upper right protective strip | 53121-02260 · 53121-02310 · 53121-02410 |
| 53124C | Radiator grille upper left protective strip | 53124-02250 · 53124-02300 · 53124-02400 |
| 53125A | Radiator grille right center protective strip | 53125-02110 |
| 53126A | Radiator grille left middle protective strip | 53126-02140 |
| 53395H | Engine cover to radiator grille seal | 53395-02140 · 53395-02180 |
