Toyota COROLLA 前保险杠及附件 — Figure 5201

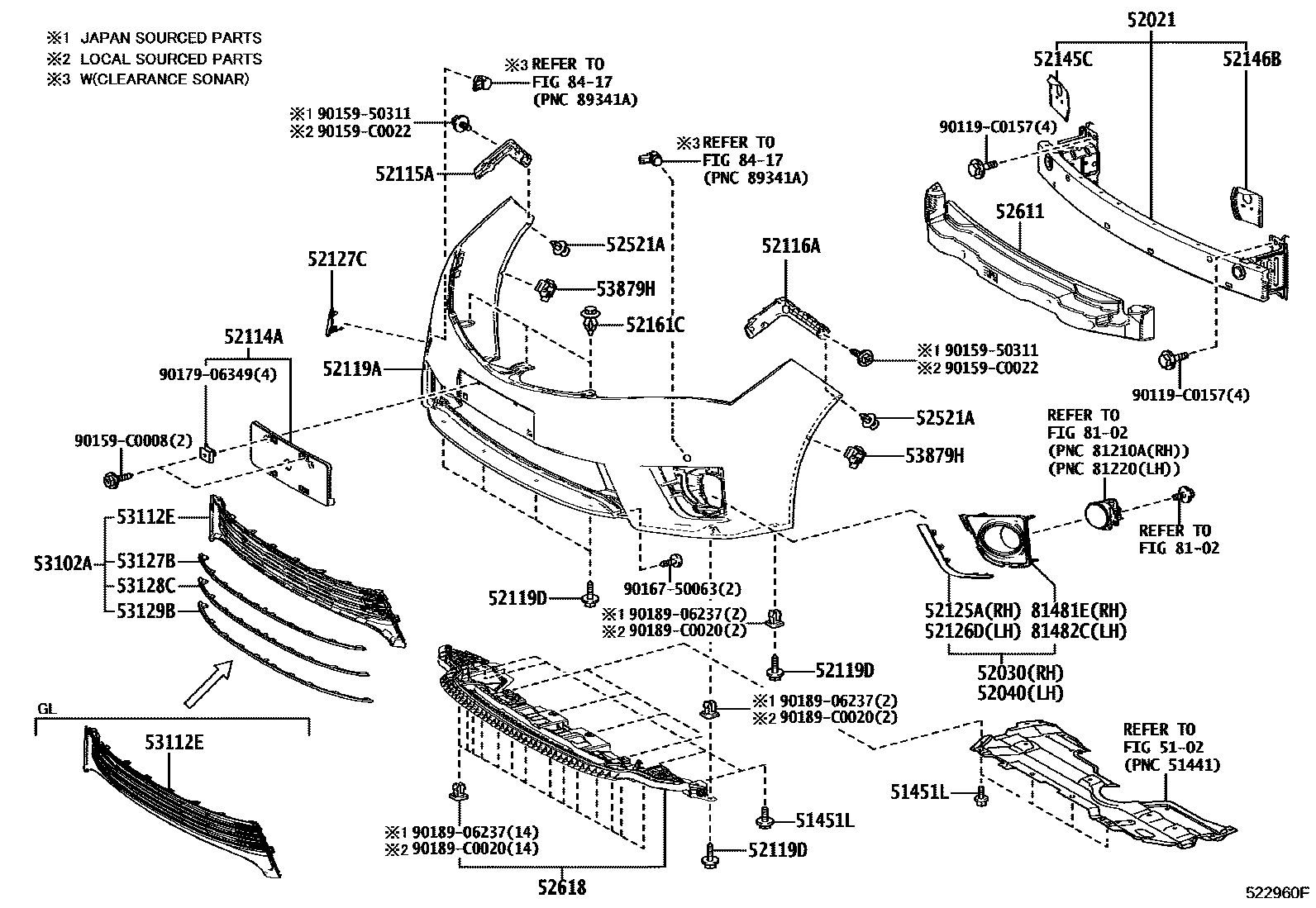

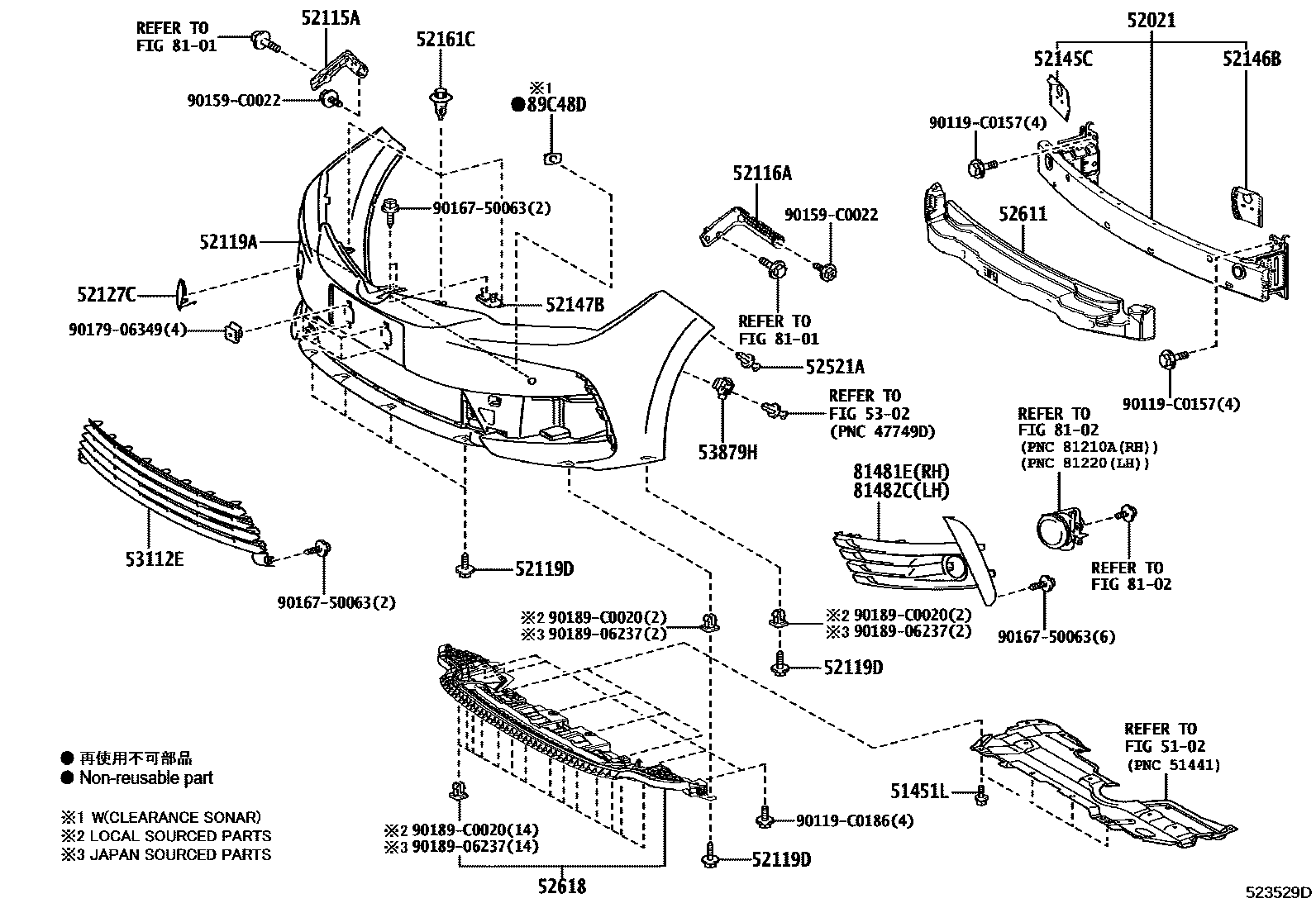

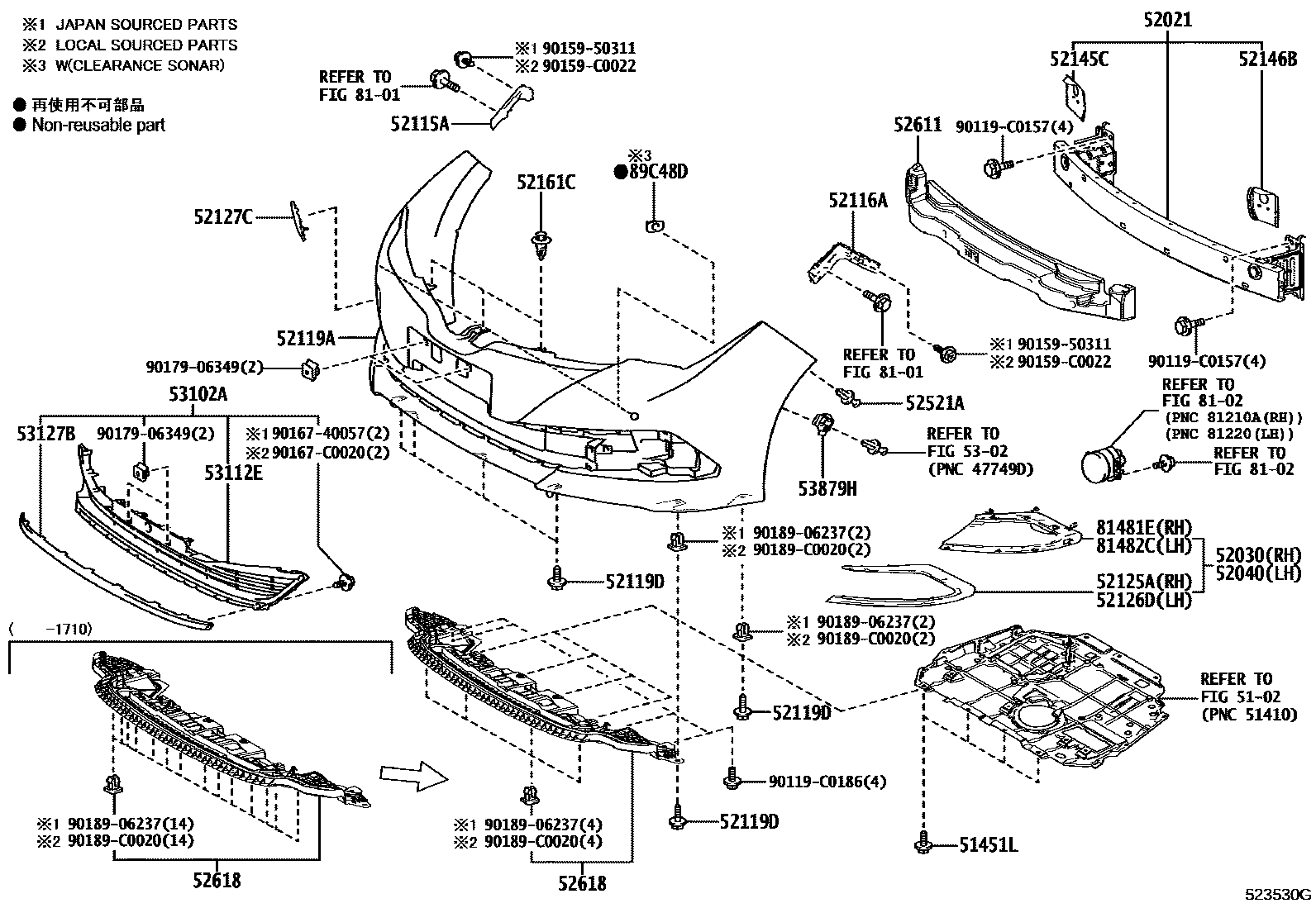

Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 3 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51451L | Bolt No. 1 | 90119-C0186 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-02280 |
| 52030 | Front bumper right hole cover assembly | 52030-02190 · 52030-02200 · 52030-02320 |
| 52040 | Front bumper left hole cover assembly | 52040-02190 · 52040-02200 · 52040-02320 |
| 52114A | Front bumper extension mounting bracket | 52114-02140 |
| 52115A | Front bumper right side bracket | 52115-02210 · 52115-02290 · 52115-02440 |
| 52116A | Front bumper left bracket | 52116-02210 · 52116-02290 · 52116-02420 |
| 52119A | front bumper cover | 52119-0X934 · 52119-0X935 · 52119-0Z949 · 52119-0Z950 · 52119-0Z952 · 52119-0Z953 · 52119-F2904 |
| 52119D | Screw No. 1 | 90159-60477 |
| 52125A | Right fog light mounting bracket | 52125-02030 · 52125-02230 · 52125-02280 |
| 52126D | Left fog light mounting bracket | 52126-02020 · 52126-02220 · 52126-02270 |
| 52127C | Front bumper hole cover | 52127-02922 · 52127-02928 · 52127-02929 · 52127-02941 |
| 52145C | Front bumper right side mounting bracket | 52145-02180 |
| 52146B | Front bumper left mounting bracket | 52146-02160 |
| 52147B | Front bumper mounting bracket | 52147-02100 |
| 52161C | front bumper insert | 52161-02040 · 52161-16010 |
| 52521A | Clip (for front bumper mount) | 90467-05170 |
| 52611 | front bumper energy absorber | 52611-02220 · 52611-02360 · 52611-02460 |
| 52618 | Front bumper lower shock absorber | 52618-02110 · 52618-02350 |
| 53102A | Radiator lower grille sub-assembly | 53102-02200 · 53102-02220 · 53102-02240 |
| 53112E | No. 1 radiator lower grille | 53112-02590 · 53112-02600 · 53112-02650 · 53112-02770 · 53112-02780 |
| 53127B | Radiator grille No. 7 protective strip | 53127-02080 · 53127-02100 · 53127-02110 |
| 53128C | Radiator grille No. 8 protective strip | 53128-02080 · 53128-02090 |
| 53129B | Radiator grille No. 9 protective strip | 53129-02010 · 53129-02090 |
| 53879H | Front fender lining fixing parts | 53879-02060 · 53879-58010 |
| 81481E | Right fog light cover | 81481-02490 · 81481-02560 · 81481-02780 |
| 81482C | Left fog light cover | 81482-02480 · 81482-02550 · 81482-02770 |
| 89C48D | Front angle ultrasonic sensor holder | 89348-02290 |
